Description

the final version of my glider model, which is very easy to print. all it takes is one print, a little editing, and it's ready to fly! printed in piece

Recommended print parameters:
3 walls
20% infil
Material PET-G
(can use PLA but PLA is brittle so there is a high chance the plane will crack)

Pre-flight instructions:

list of needs:
hair dryer, screw and nut M4, some pens or markers, glue for plastic

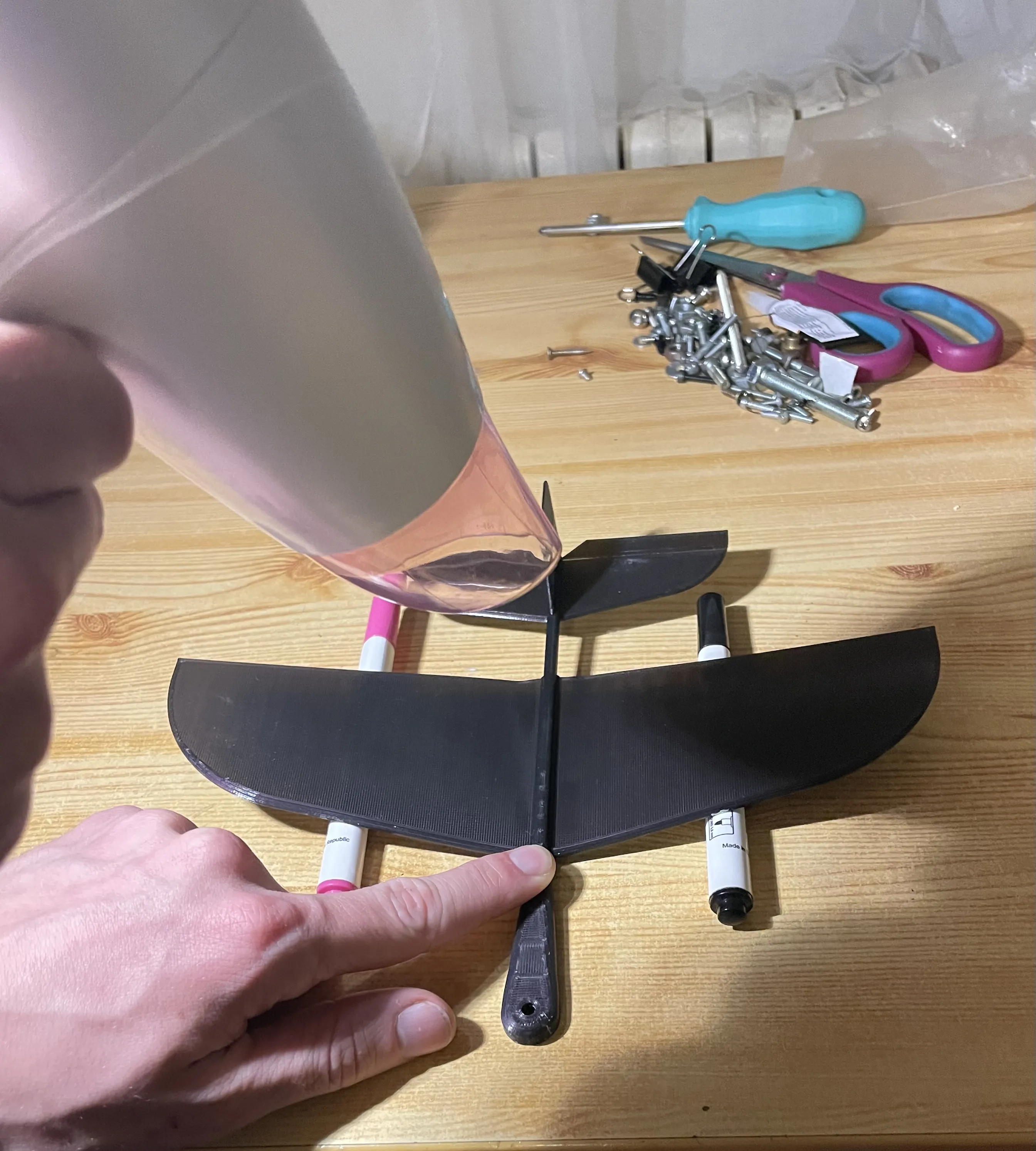

use a hair dryer to adjust the wings as shown in the photo. under the wings with markers so that the wings are V-shaped:

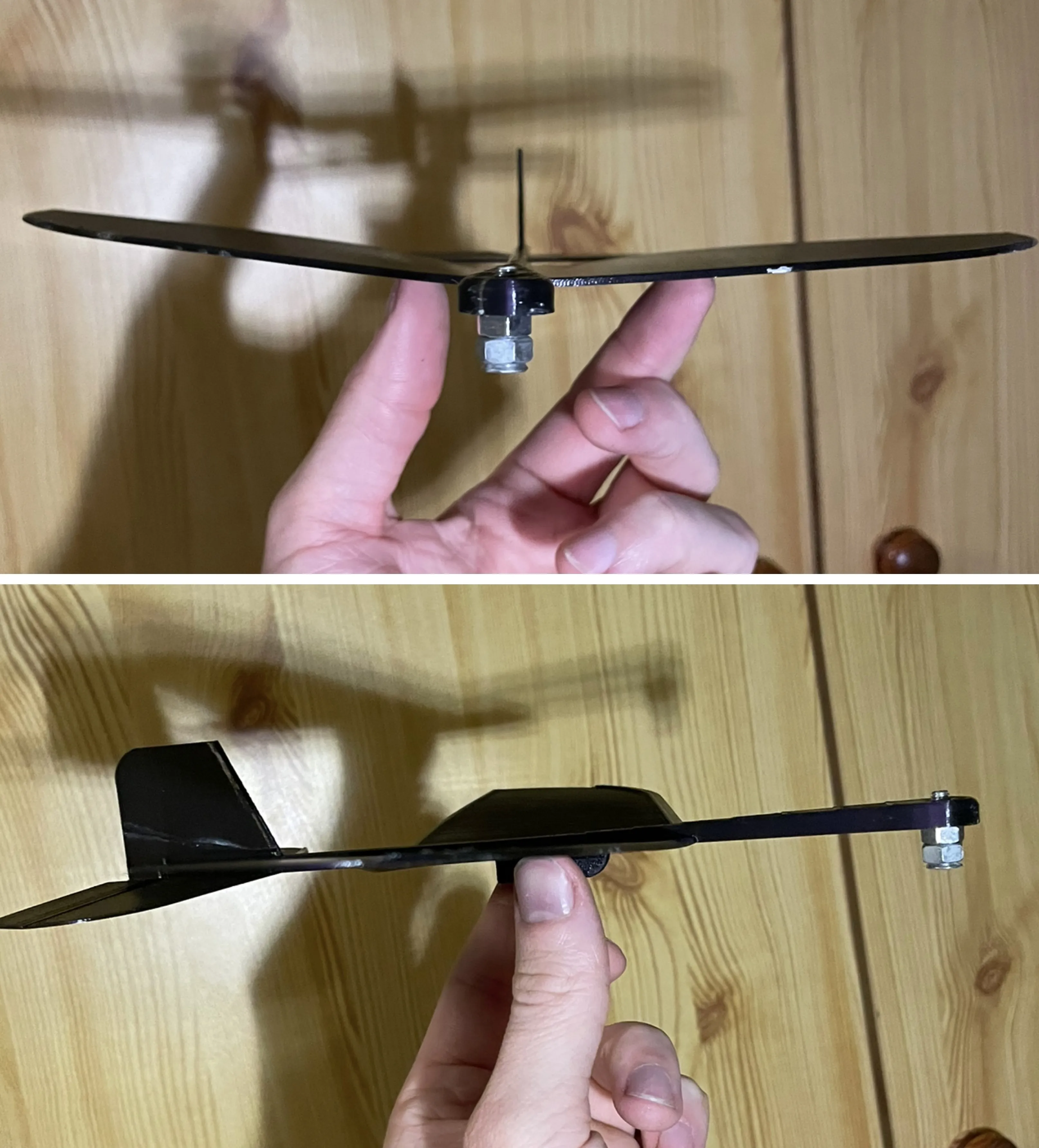

the center of gravity of the aircraft needs to be adjusted for the best result. screw a screw with a diameter of M4 and a length as required into the front hole. according to the photo:

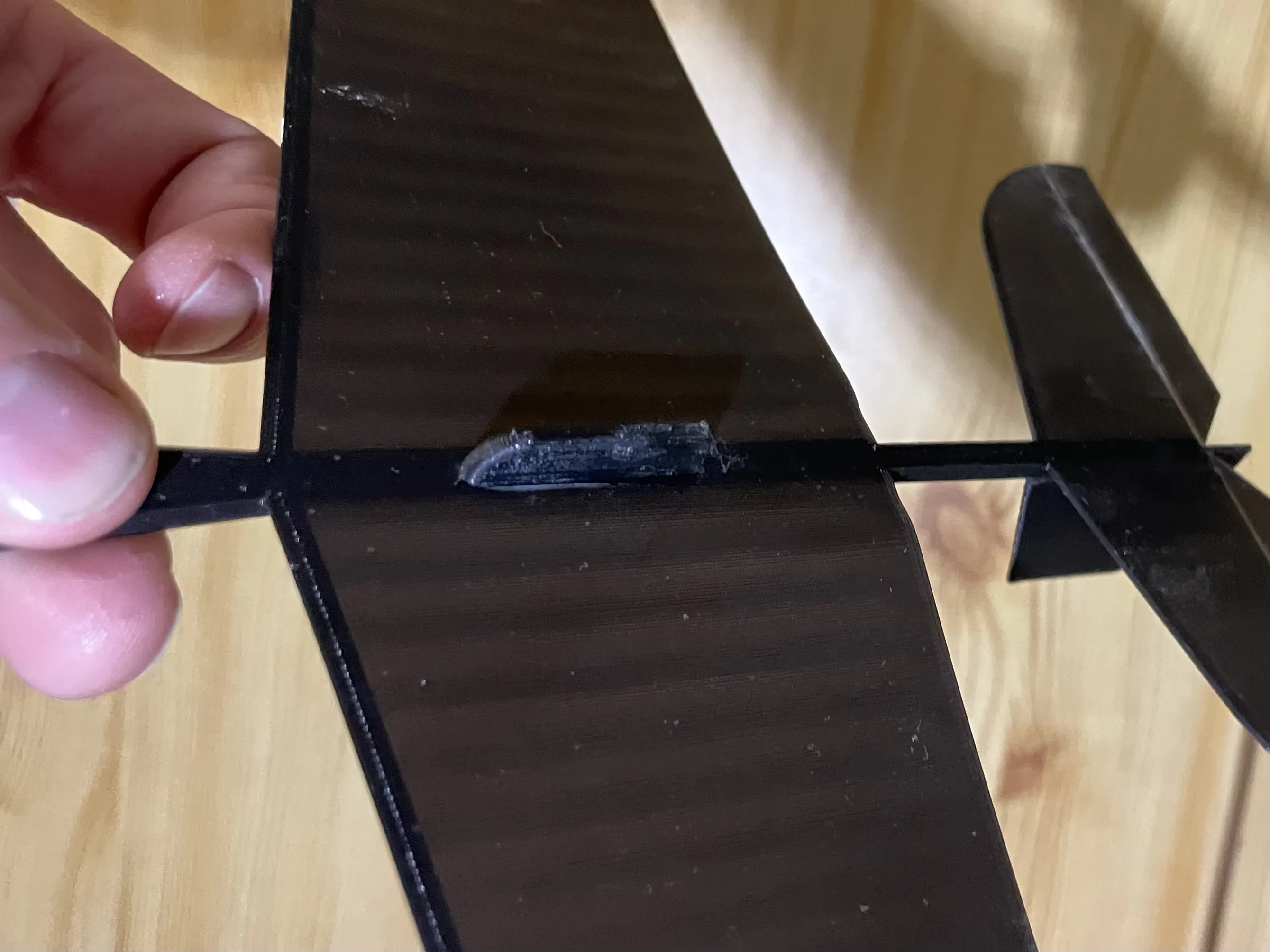

glue the holder in place of the bottom groove for easy throwing

adjust the tail flaps for better flight



enjoy flying!
