Aurora: Fixed-Wing FPV Cruiser


Print Profile(3)

Fuselage part. 0.2mm layer, 1 walls, 2% infill
Fuselage part. 0.2mm layer, 1 walls, 2% infill
Designer
X1 Carbon, P1S, P1P, X1, X1E, A139.6 h
4.5
0.2mm layer, 1 walls, 5% infill
0.2mm layer, 1 walls, 5% infill
Designer
X1 Carbon, P1S, P1P, X1, X1E, A125.1 h
3.5
0.2mm layer, 2 walls, 100% infill
0.2mm layer, 2 walls, 100% infill
Designer
X1 Carbon, P1S, P1P, X1, X1E, A11.3 h

388
564
28
582
471
Released
Copyright Claim
Model
Comment & Rating
Remixes
Related Models

Model

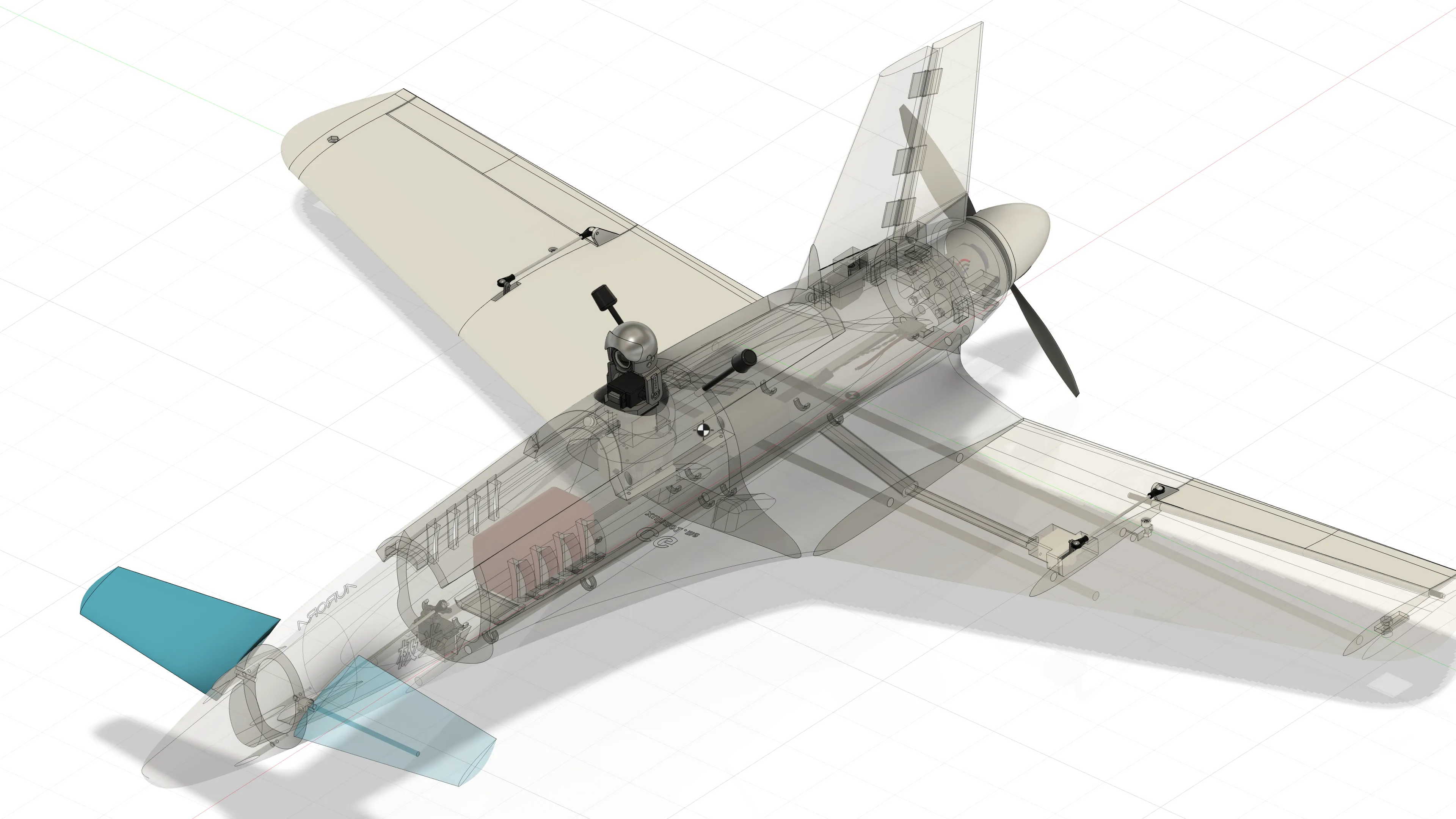

Here shows my own design, the Aurora, or 极光. It's an incredibly cool FPV cruiser that offers high speed and agility.

The design of Aurora is inspired by the IJN J7W Shinden and XP-55, with the addition of modern aircraft elements.

Including full-span canard, strakes (although they serve mostly as decorative elements), and winglets.

It comes with a servo gimbal (included in this model, remix from FLY_101) and cooling system for the DJI O3. So great if you wish to use a headtracker on it.



The flying speed is fast, with a cruising speed of 70kph (20m/s), and it can easily reach 100-130kph, pulling 3-4g maneuvers. A large area is required for flying, and it is completely unsuitable for park flying. When the flying speed exceeds 100kph, noticeable vibrations occur in the gimbal, severely affecting the flying experience, necessitating targeted optimization in the design.

Here are some basic details:

  • Wing Span: 1030mm
  • Weight (4s 18650, no gimbal & FPV system): ~1000g
  • Weight (with 4s18650 battery, with gimbal & FPV system): 1170g
  • Estimated endurance time: 30-45 minutes (theoretically, still testing)
  • Cruising speed: 20m/s-30m/s, 70km/h to 110km/h

Tested avionics:

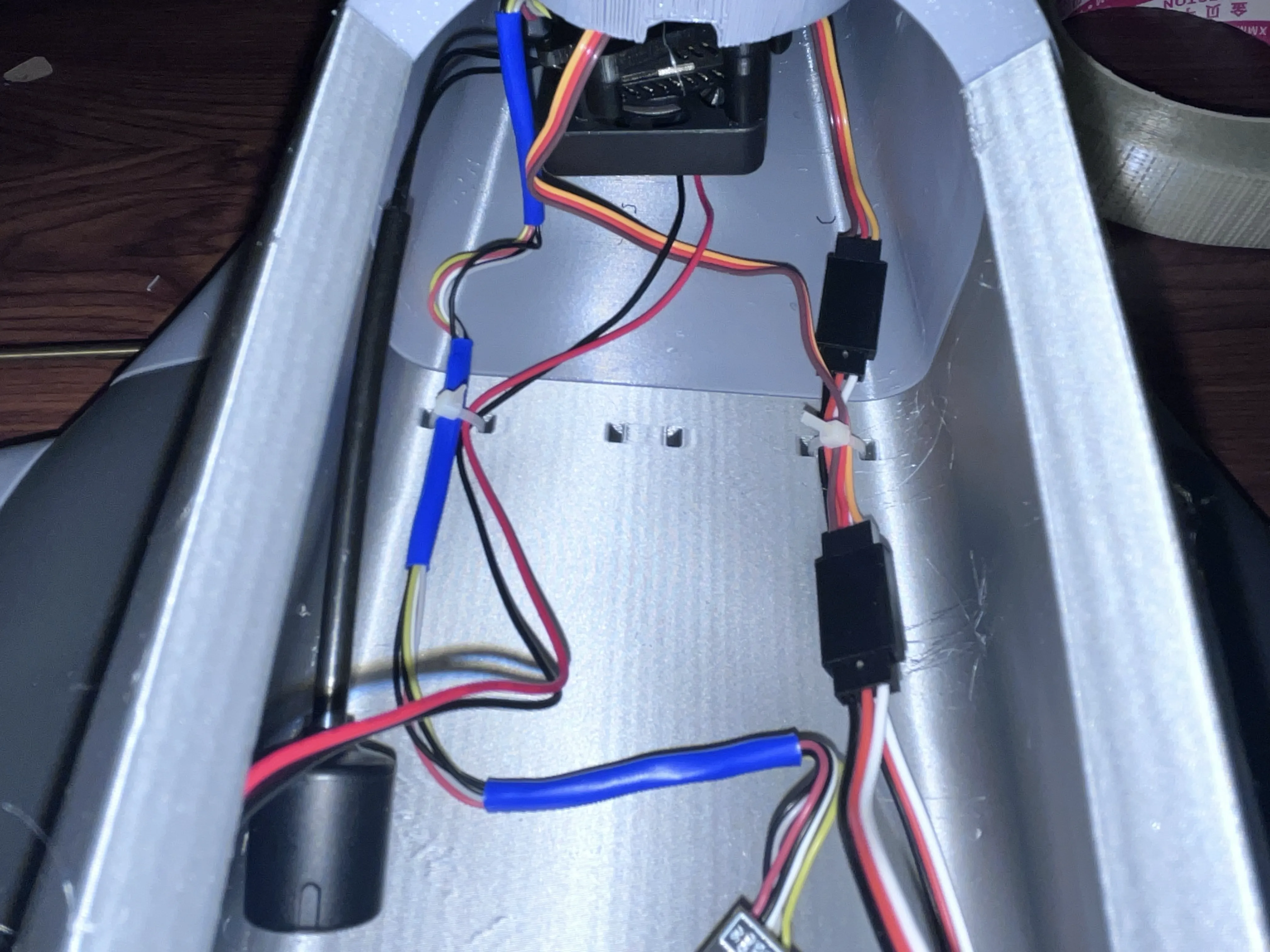

  • Flight Controller: SpeedBee F405 Wing with BZ182 GPS.
  • ESC: Any 30A ESC is OK
  • FPV system: DJI O3
  • Servo: Kingmax KM0940MD*4 (for flight control), and GDW DS014MG*2, 280deg/180deg (for servo gimbal)

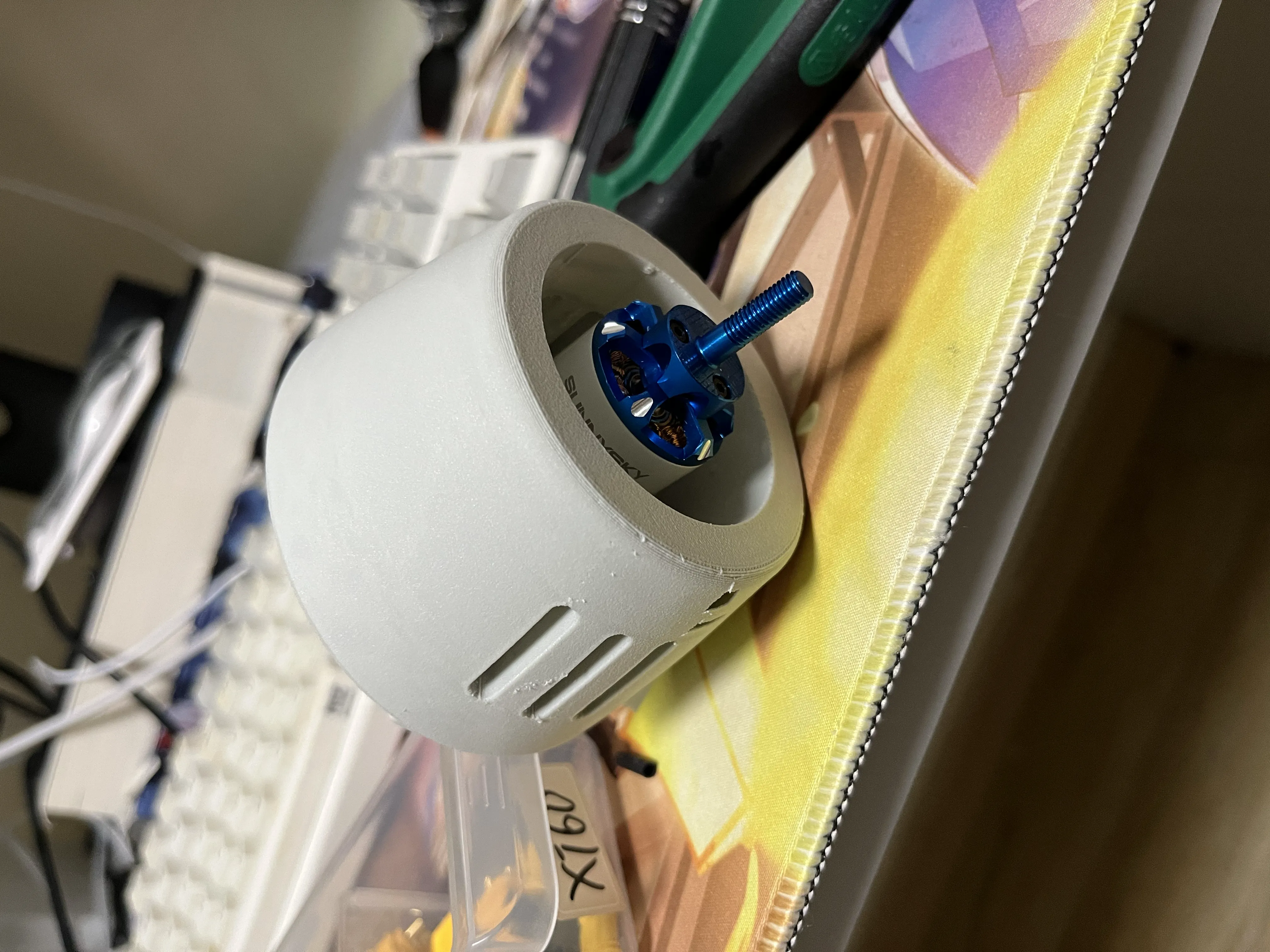

  • Motor: SunnySky X2216 KV1400
  • Propeller: APC/Gemfan 8*6-9*6, this may push you to 100kph or faster.

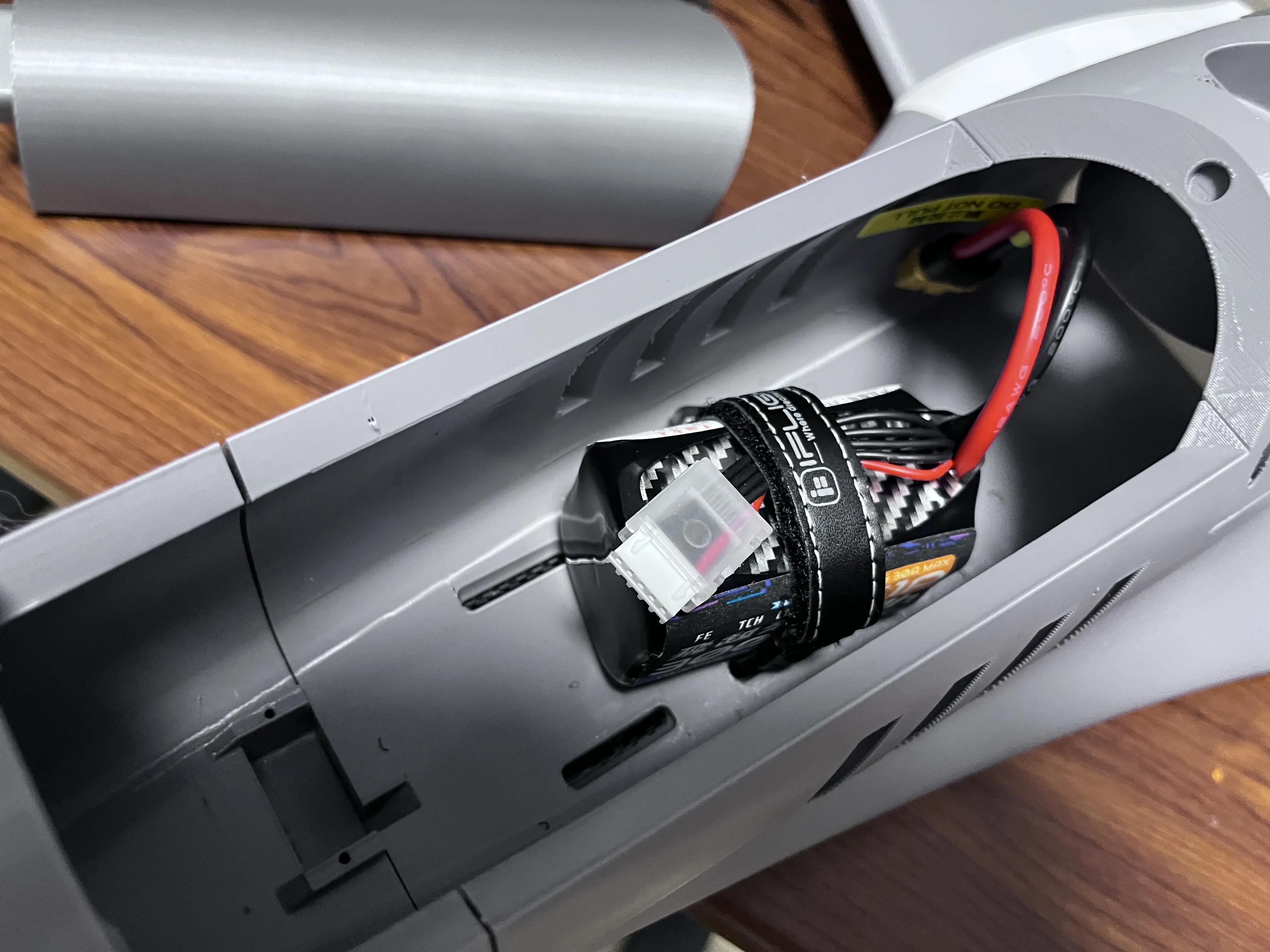

  • Battery: Sony VTC6 18650 4s1p

Extra components:

  • Carbon fiber pole:
    • 2*6x4x550
    • 1*6x4x585
    • 1*6x4x935
    • 3*3x250
    • 1*3x150

Four 6mm (diameter) x3mm (height) magnets for battery and flight controller canopy.



The core design concept of Aurora includes:

  • Appealing aesthetics
  • Decent endurance time
  • Relatively high speed.

Printing

Suggest print material:

Fusrock/Bambu PLA Aero.

I use Bambu PLA-Aero white for Wing, and FuskRock Gray PLA Aero for Fuselage. Use PLA-Aero from two manufacturer just because colors.

BE CAREFUL GO SETUP CORRECT PRINTING SETTINGS FOR FILAMENTS!

Default setting is for PLA-Aero, change it according to your own filaments. Strongly suggest print Aurora with PLA-Aero.

3D printer

Tested on Bambu Lab X1CC, suggest Bambu Machines with size=256mm

Print profiles:

Fuselage, wings and extra component are placed in different print profiles. They have different slice settings.

Flying Video:

(Click to watch if you see video unavailable)

对于中文用户,可以观看bilibili和简介中的介绍:



Gimbal system of Aurora is remix from https://www.thingiverse.com/thing:6193480 by FLY_101.

You may also use this gimbal on Aurora

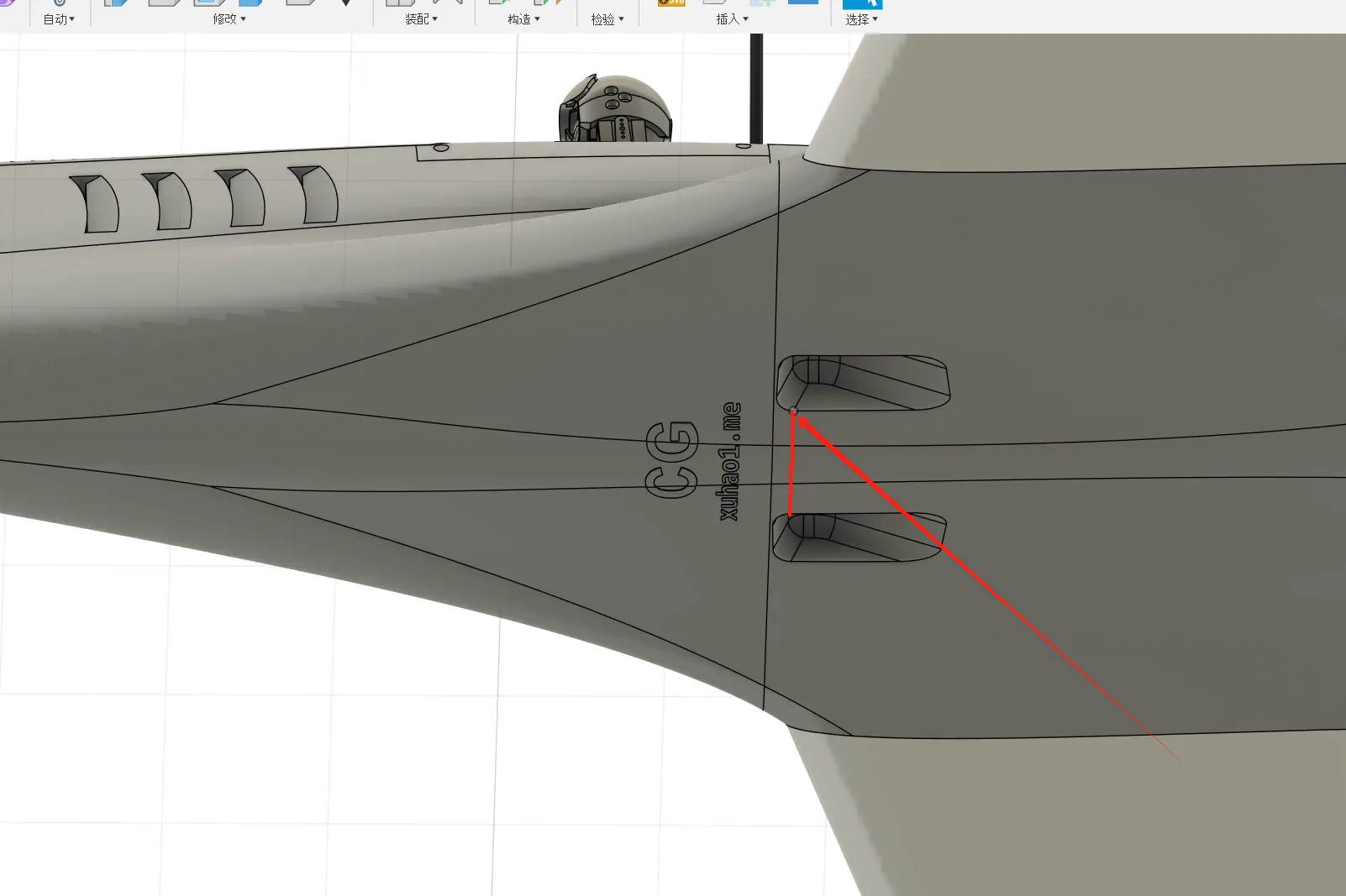

Center of Gravity

Flight with current CG setup (the CG icon) is too stable. You may try the following CG at read line, this is optimal CG point according to my latest CFD results and flight test.



Donation to help me!

Testing and releasing these model aircraft designs is neither easy nor cheap. It requires a significant investment of time and effort. The development cost of this airplane exceeds $1500, and that's not even taking into account my time. If you find my designs practical and useful, please consider making a donation to support my work. Your contributions will greatly assist me in continuing to develop these model aircraft, feel free to buy me a coffee by clicking follow button.

测试和发布航模并不便宜,这架飞机的开发成本超过万元,并且会花费非常多的时间和精力,如果你觉得我的设计非常实用,请捐款支持我,这将对我能够继续开发航模产生很大的帮助:

Build Logs

Build logs (in Chinese) for Aurora is available on my notion site, this contains every detail you may want to know about Aurora.

Update since upload

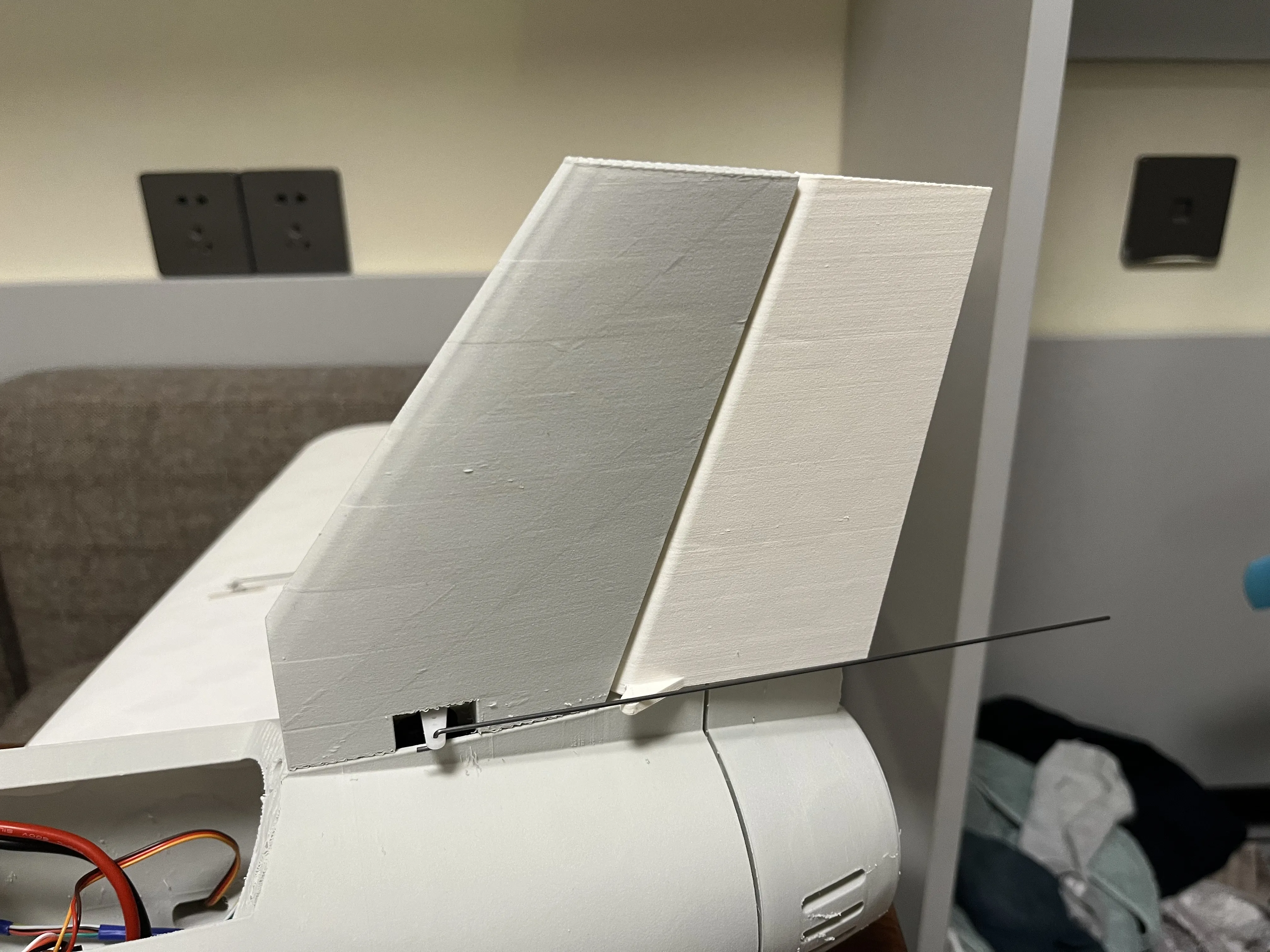

2023/12/21: Update to integrated vertical tail and rudder: do not need manually install hinge. I put the old design of vertial tail in supported files.

2023/12/23: Missing fuselage part is added to fuselage.3MF. Servo gimbal is also added to extras.3MF with original author's approval.

Some details

More details will be adding later.


License

This work is licensed under a
Creative Commons Attribution-Noncommercial

Comment & Rating (28)

0/5000

Model Comment

I'm missing a plate or file. I downloaded the fuselage plates, but I don't see the wing or rudder or canard. Do I need to down load the .stl files for them

The designer has replied
0
Reply
Model Uploader

I uploaded multiple printing profile in same page in makerworld. The wings and canard are in second printing profile (wings) and some extras are in third (extras) Please check carefully to find them!Thanks for your support again!

0
Reply

I need a help with the aero-lite pla settings.The nose cone was great. middle fuselage print stringy outer wall bumps. Hard material to dial in.

0
Reply
Model Uploader

@Hyetech One thing you can do is use the auto-calibration/manual calibration function in Bambu Studio or OrcaSlicer. This works for me https://wiki.bambulab.com/en/software/bambu-studio/calibration_flow_rate And I am not familiar with this material, so you need to have some tuning on temperature and flow rate. Usually start from manufacturer’s suggestion or from auto/manual calibration. The correct combination of temp with flow rate is the key. And yes, even after careful tuning, the printed part with PLA-Aero usually do not have such good quality compare to regular PLA, even with Bambu printers. So use your knife if you really care about the out wall quality. For the infill, any tuning won’t make it perfect. Just make sure you have good enough out wall is ok. I’ve test Fusrock and Bambu Lab Pla-aero. They both work fine.(Edited)

1
Reply
Model Comment

Did you print this with Aerolite PLA

The designer has replied
0
Reply
Model Uploader

I use Bambu PLA-Aero white for Wing, and FuskRock Gray PLA Aero for Fuselage. Use PLA-Aero from two manufacturer just because color.

0
Reply

@xuhao3e8 would it fly ok with non-Aero PLA?

1
Reply
Model Uploader

@Hyetech Well, regular PLA has been tested with small battery and without FPV system, but you may need real care about the airspeed.

0
Reply
Model Comment

what program did you use for cfd? it helped you find the cg? I’m interested in this process

The designer has replied
0
Reply
Model Uploader

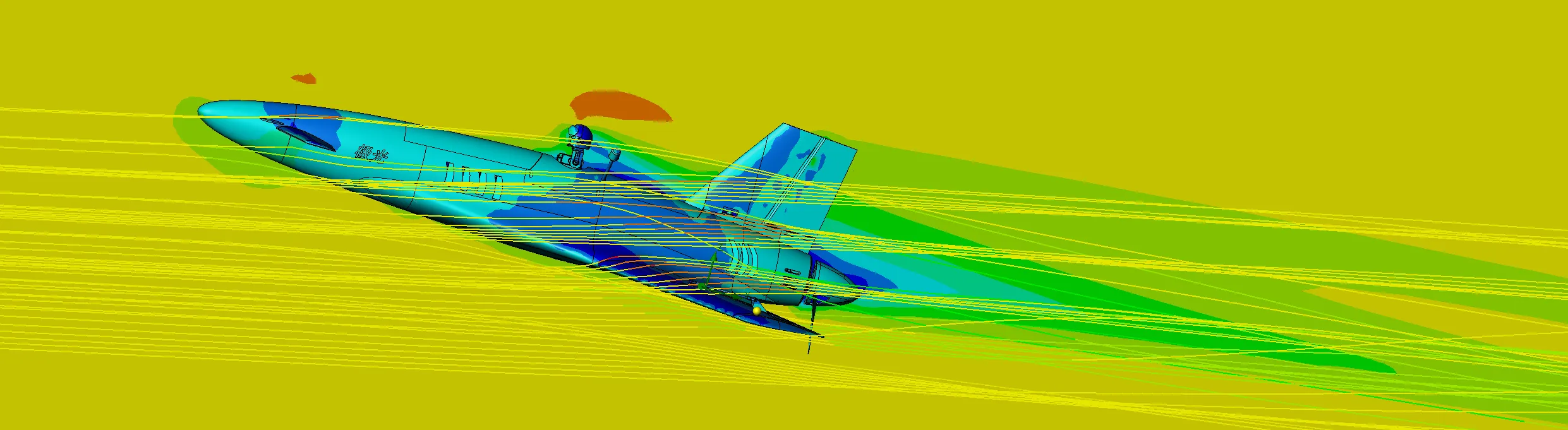

I am using Solidworks for CFD And yes, I find CG with XFlr5 and CFD. Initial neutral point (NP) is found by using XFLR 5 and use CFD to correct the predictions ( the stoke is not easy to model with XFLr5). Luckily, xflr5 and CFD have similar results on the prediction of NP. The CG is near 15% MAC before neutral point. If you are interesting in the process, I may release the code of finding neutral point use CFD results.

0
Reply

Thanks for your response! I am very interested in this process

0
Reply
Model Comment

大佬用什么材料打印的啊,那个发泡pla吗

The designer has replied
0
Reply
Model Uploader

推荐发泡pla

1
Reply
Model Uploader

拓竹官方的pla aero或者fusrock的pla aero

1
Reply
Model Comment

How exactly do you connect the control surfaces i.e. ailerons to the wing? Did you just glue hinges onto them? Also the aileron piece farthest from the fuselage is it supposed to function as a set of flaps since it doesn't have a printed hole for a servo linkage? And also do you have instructions for how to put together the gimble for the fpv camera?

The designer has replied
0
Reply
Model Uploader

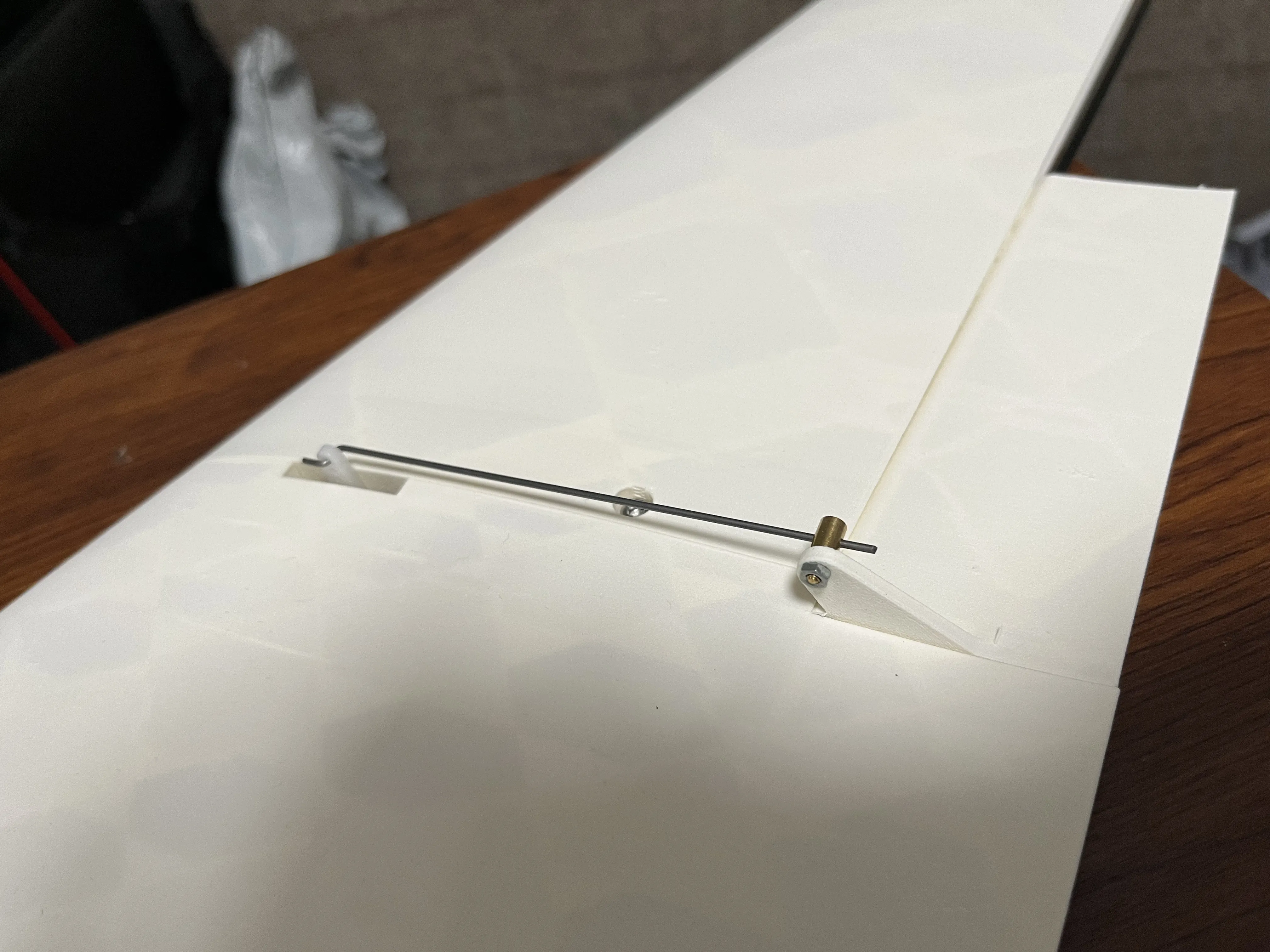

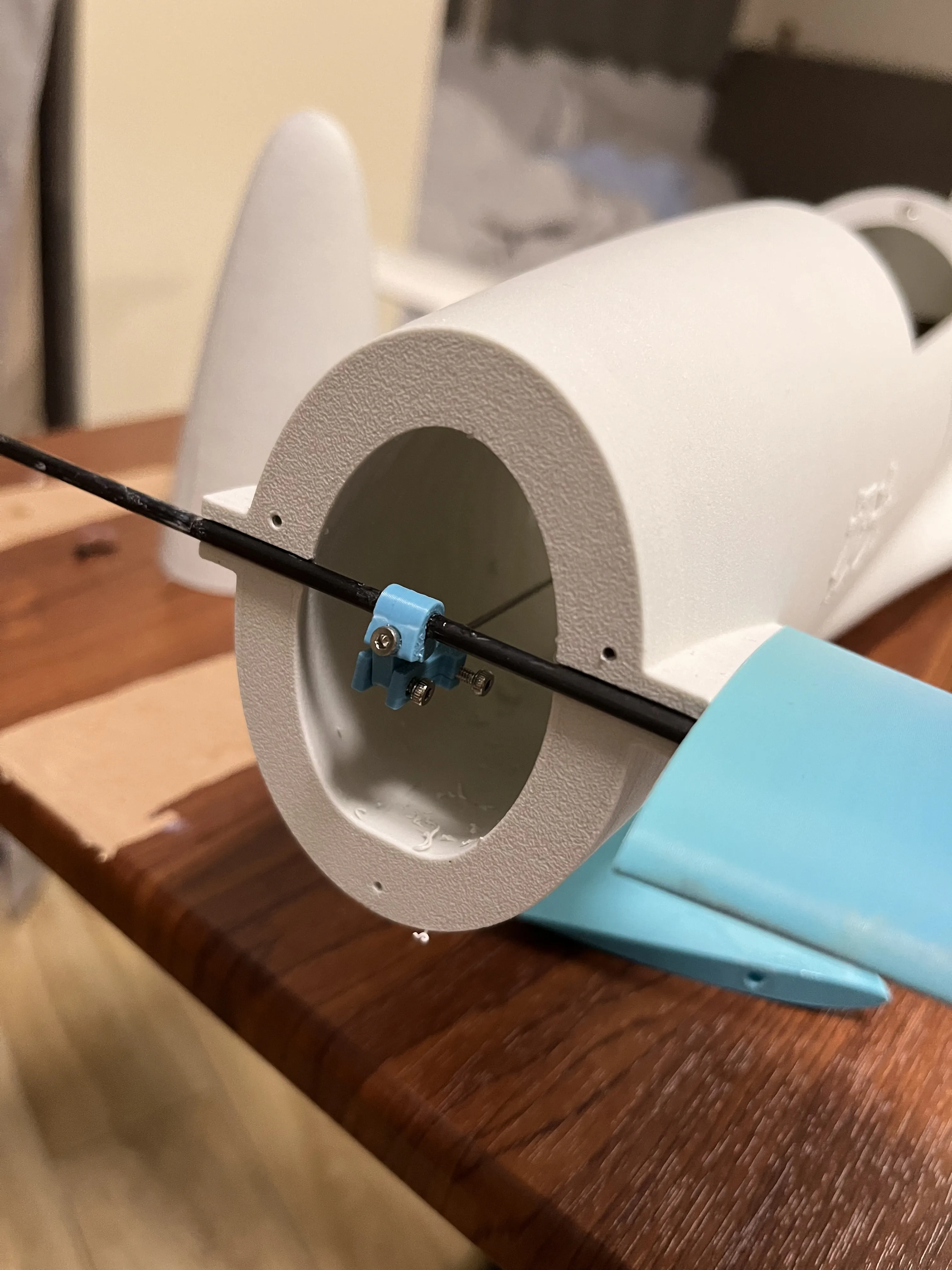

For ailerons, use 3*250 carbon fiber pole to connect it on the wing. I have no idea what does it means when you mention “farthest piece”. I have only one aileron for each side of wing. For FPV camera, you may refer to the original link to view the assembly. I will also put some image here. The assembly is very easy.

0
Reply
Model Comment

I have a hard time finding the wings here in the preview - where did you hide em? Cheers!

The designer has replied
0
Reply
Model Uploader

They are in the second print profile since I use different slice setting for fuselage and wings. And some extra components are in the third print profile.

0
Reply
