Accessories boxes - Holder
Print Profile(2)
Bill of Materials
- Threaded Inserts M4 x 8:
Description

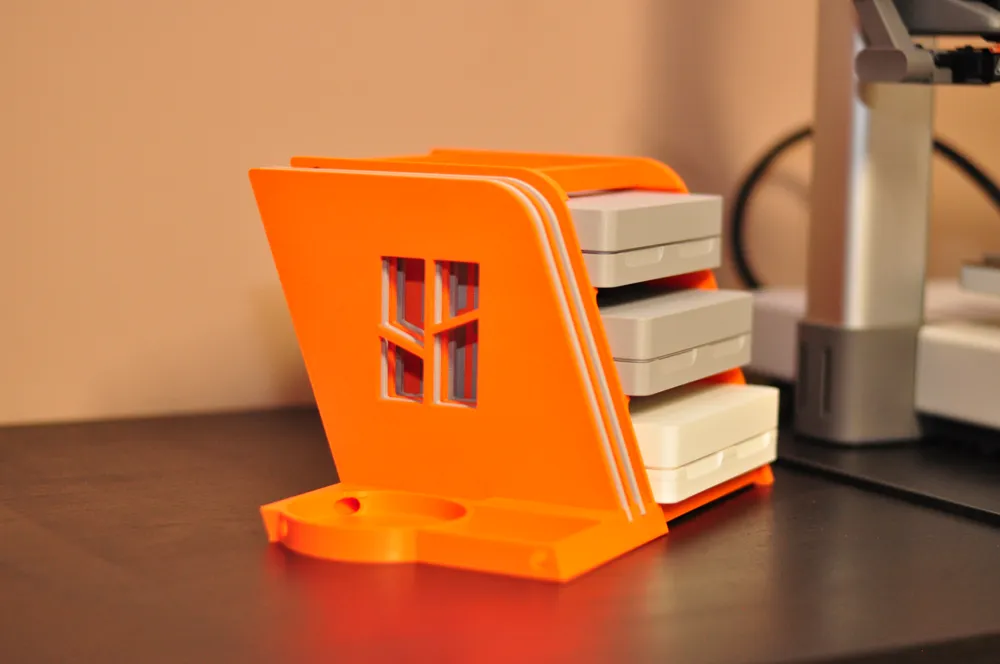

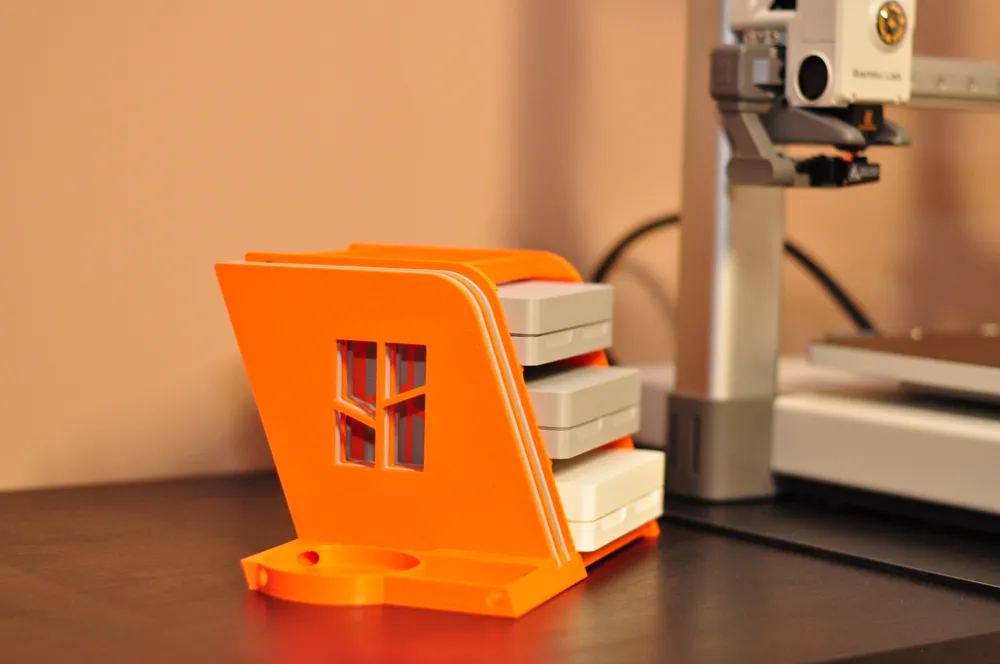

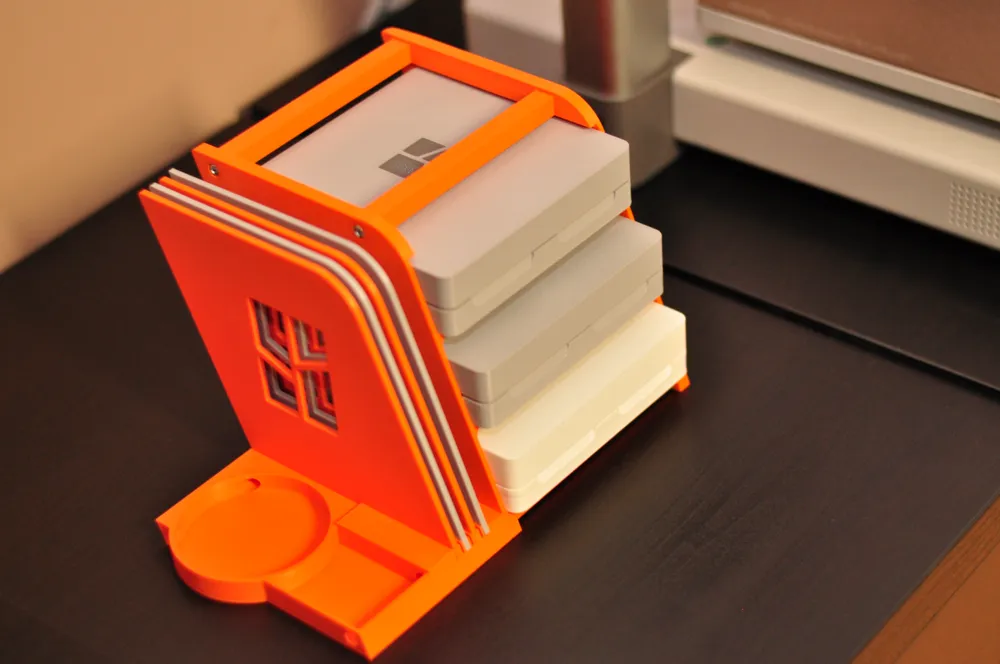

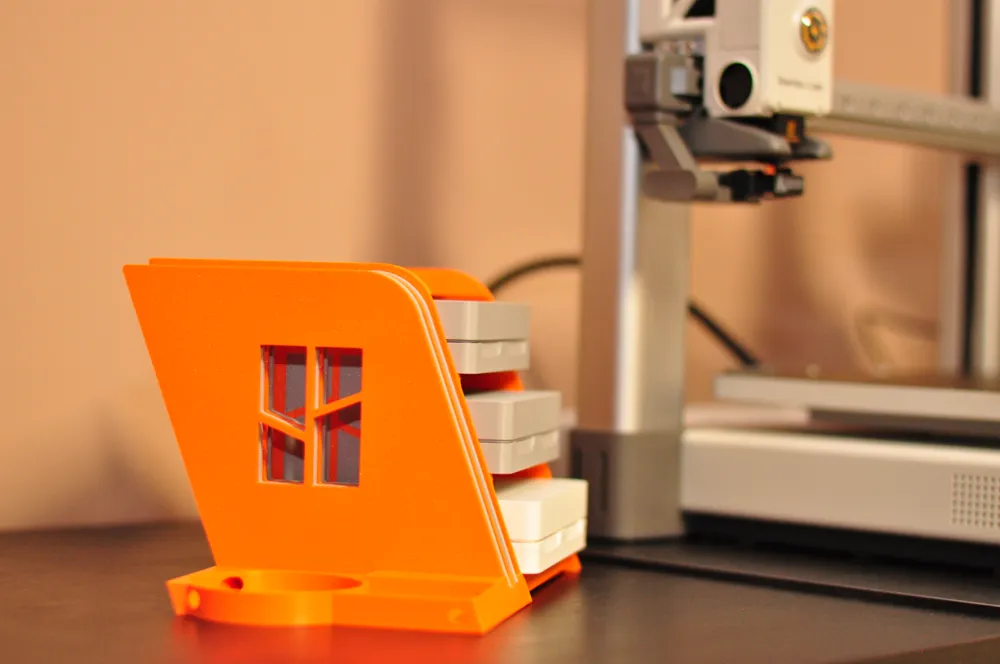

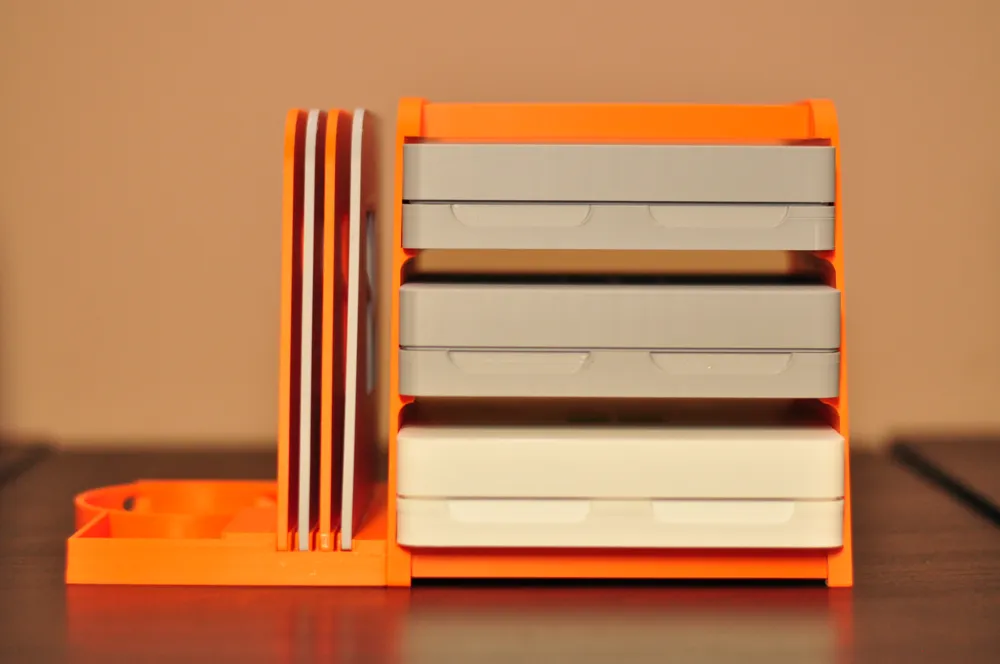

Accessories Boxes Holder!

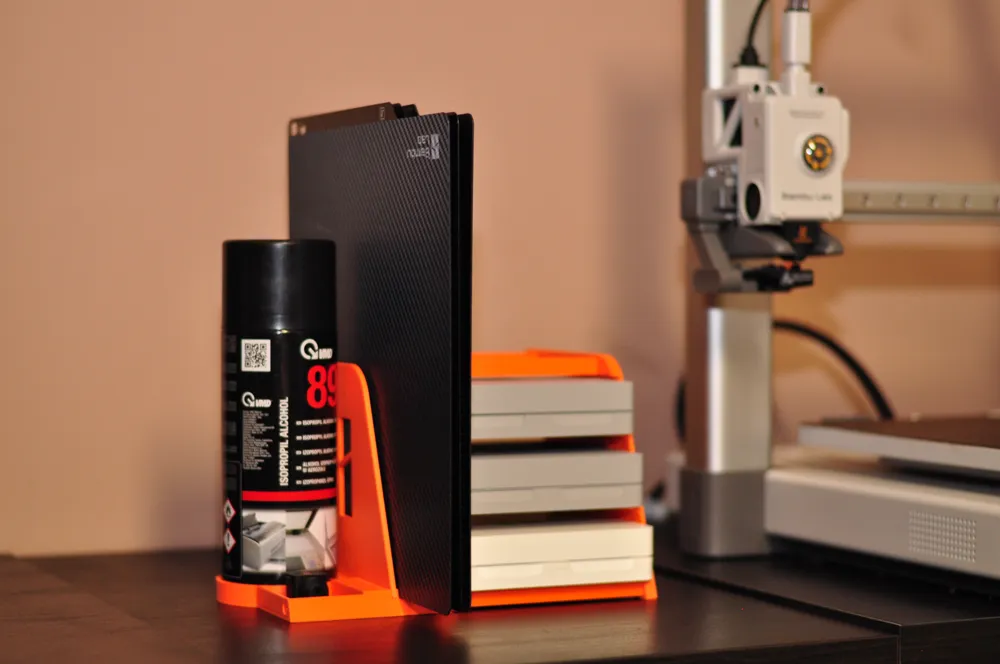

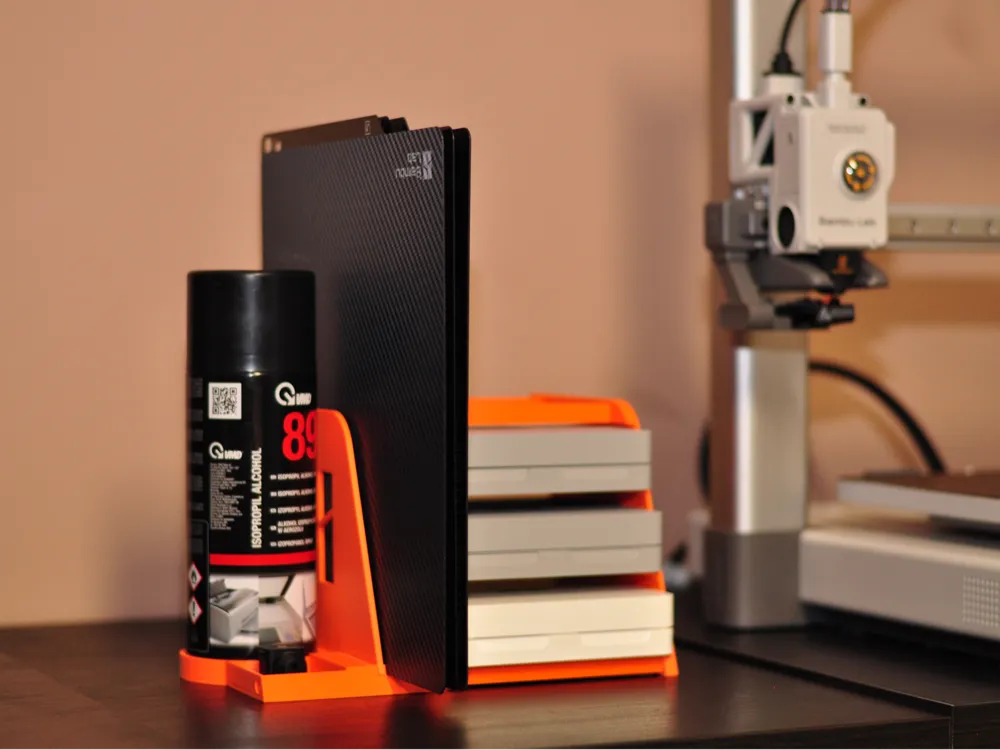

I made a drawer holder for the accessory storage boxes, complemented with 3 PEI holders, and IPA bottle holder, and a smaller compartment!
You can download my accessory boxes model at the following link!
Accessories boxes by MZ - MakerWorld
The assembly is very simple:
Glue is required!

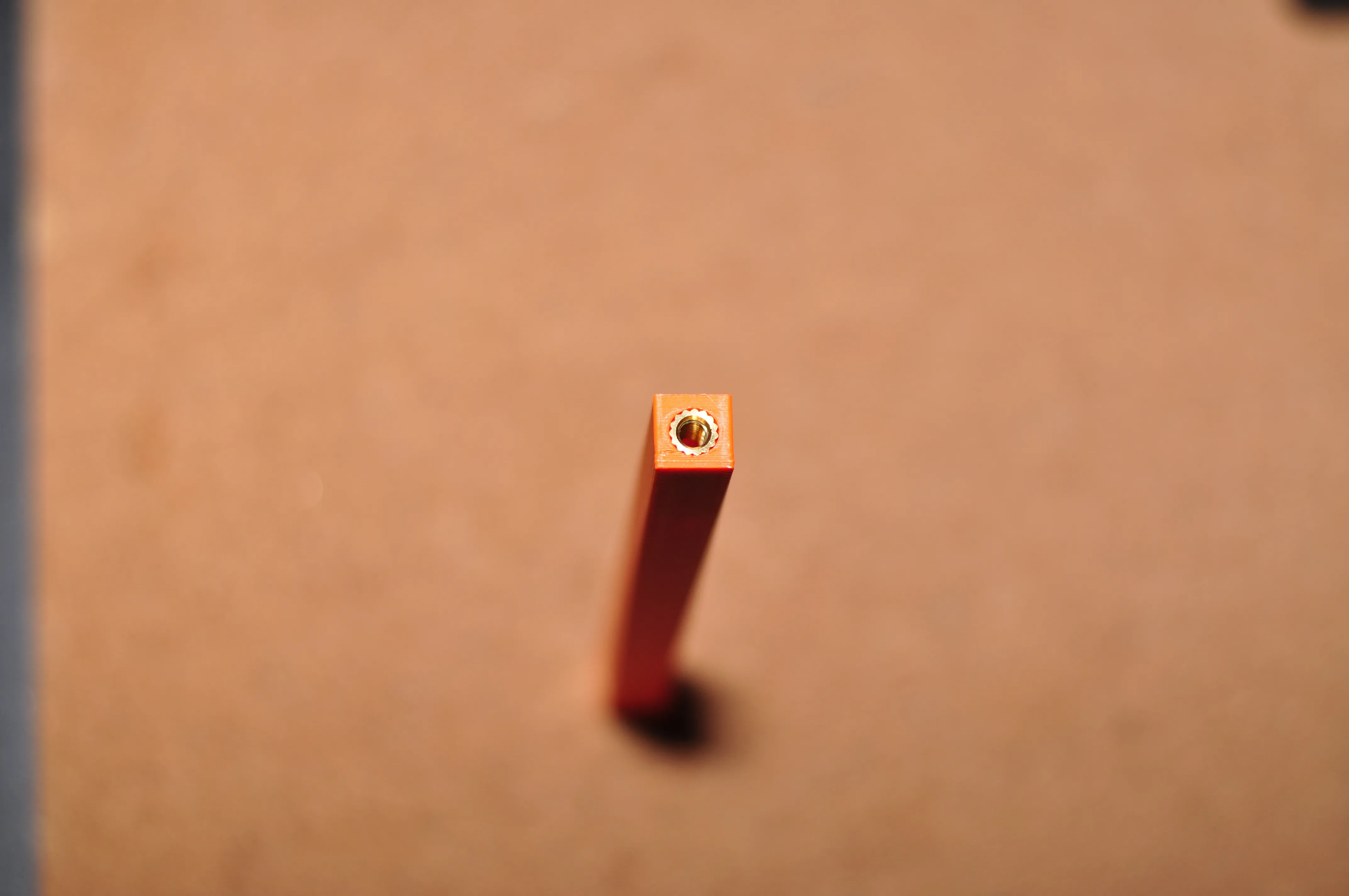

Step 1: Place the threaded inserts into the holes at the ends of the 4 beams using a soldering iron. (M4)
Step 2: Screw the beams to the right wall using M4 screws.
Step 3: Align the PEI holder with the right wall and screw it to the side wall through the pre-drilled holes.
Step 4: Insert the PEI sheet divider plates into the pre-formed grooves using adhesive.
Step 5: Print the TPU soles found in the "Bottom insert" printing profile and attach them to the recesses at the bottom of the holder!

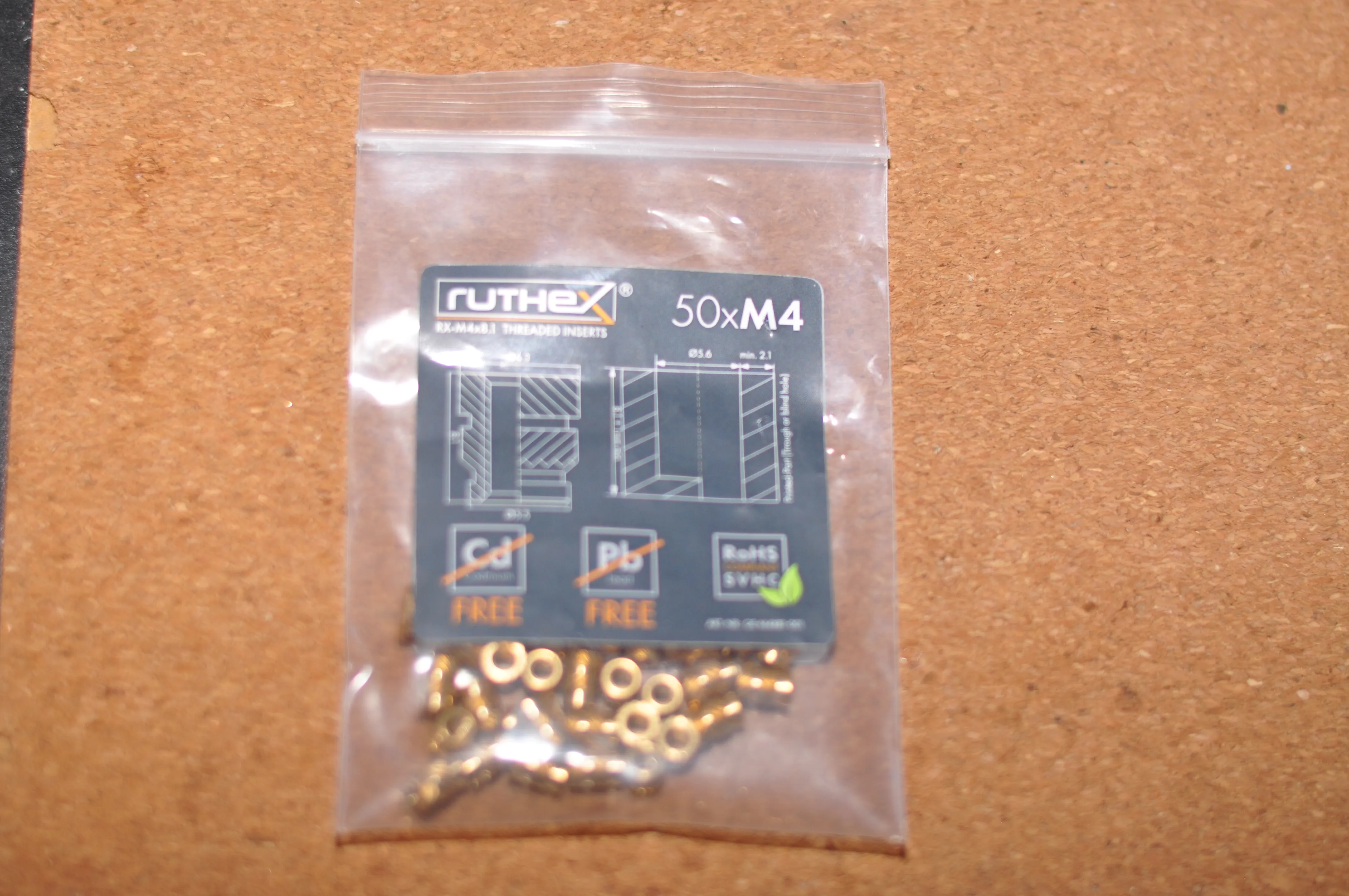

Required materials: 8 db. Ruthex RX-M4x8.1 threaded inserts or similar M4 threaded inserts!
