Python Rear Filament Coupler

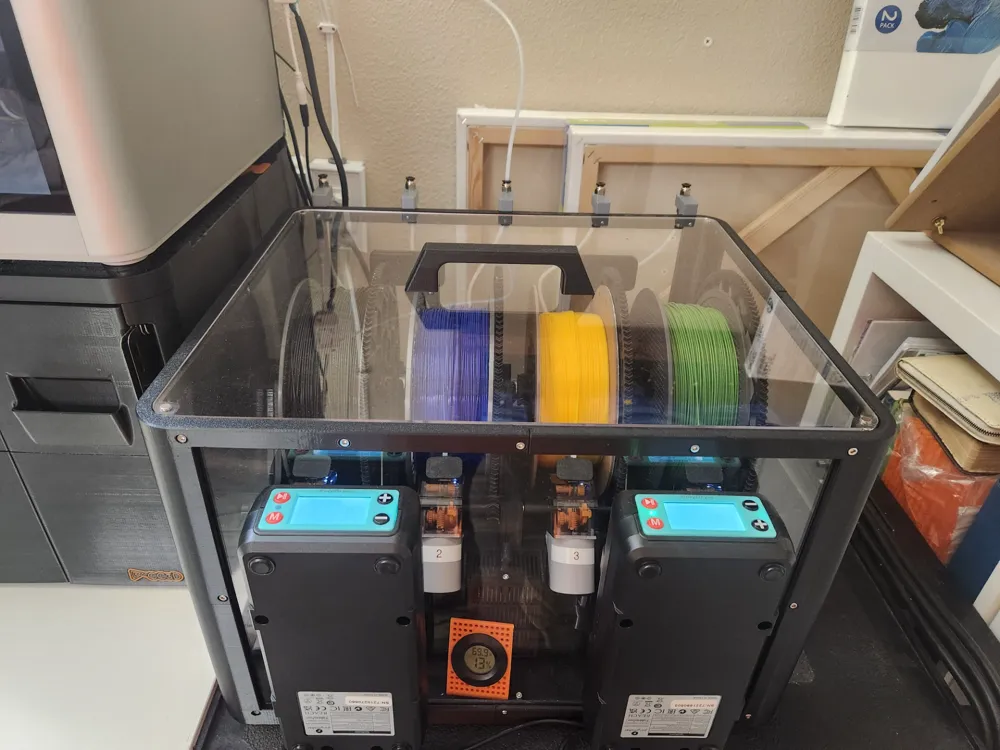

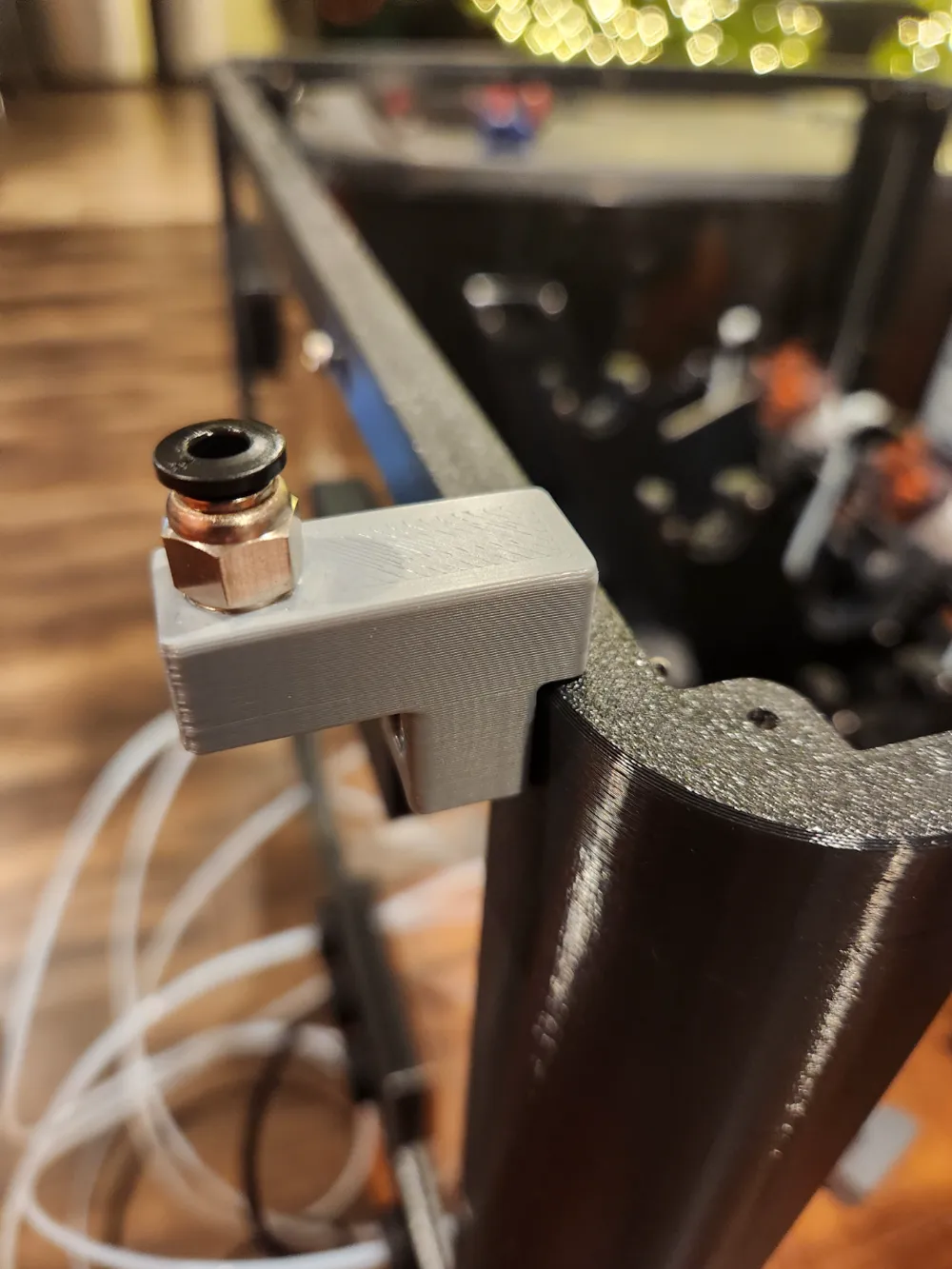

Rear mounting coupler for the Python AMS upgrade chamber.

I used ASA to print these because that's what was already loaded. I don't see any reason why you can't use PLA, PETG, ABS, etc…

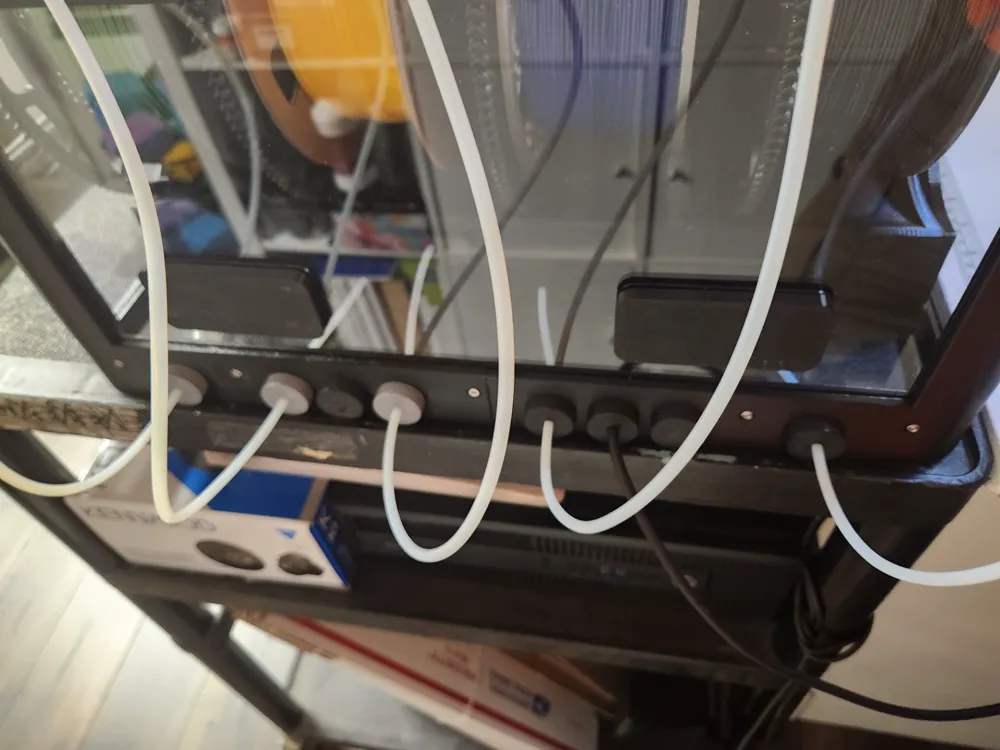

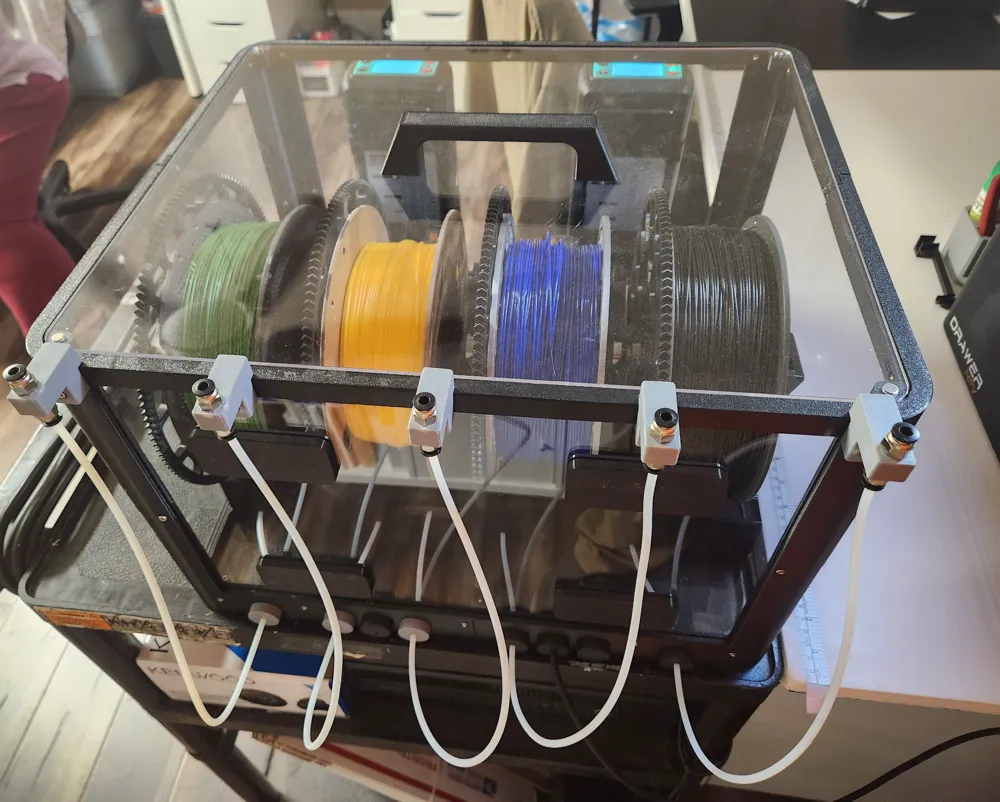

I was tired of 5 PTFE tubes just sticking out of the back of my Python enclosure and not being able to get to them quickly.

This allows you to quickly detach a single PTFE tube going to the printer and put it either in the main AMS slot or one of the four non AMS usage slots.

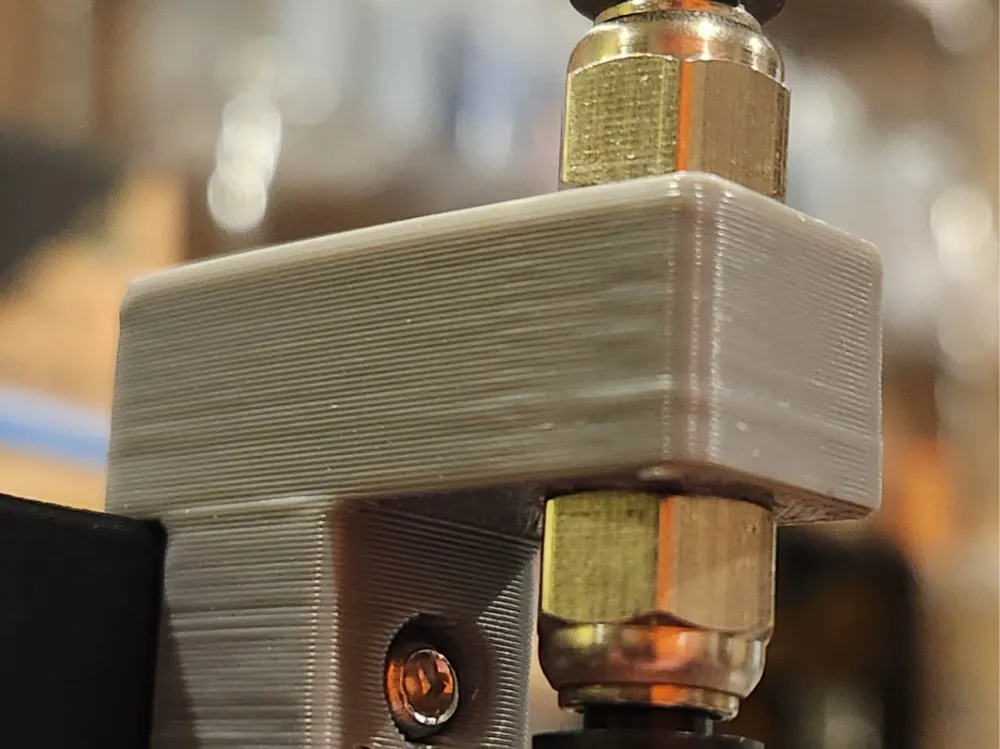

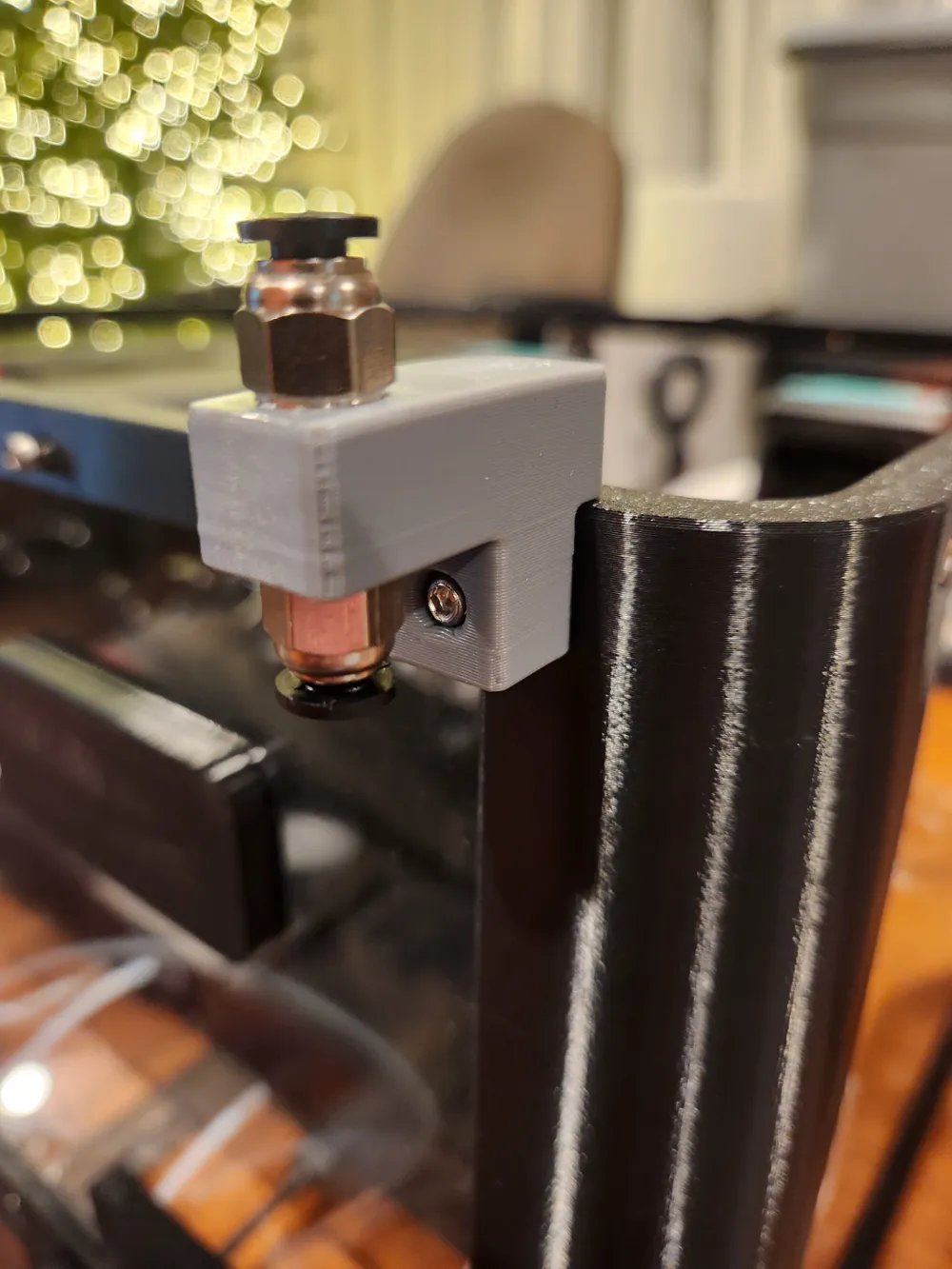

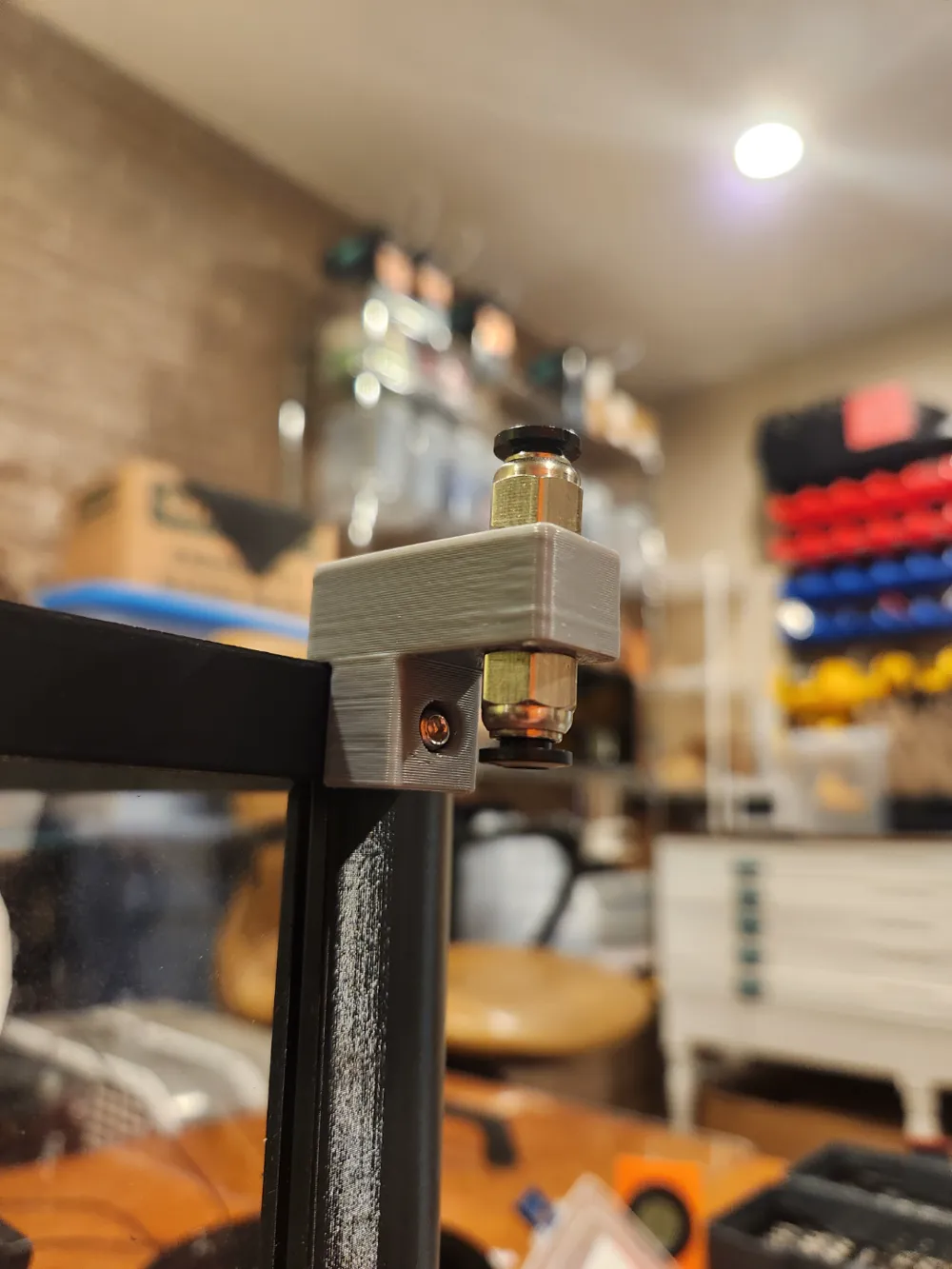

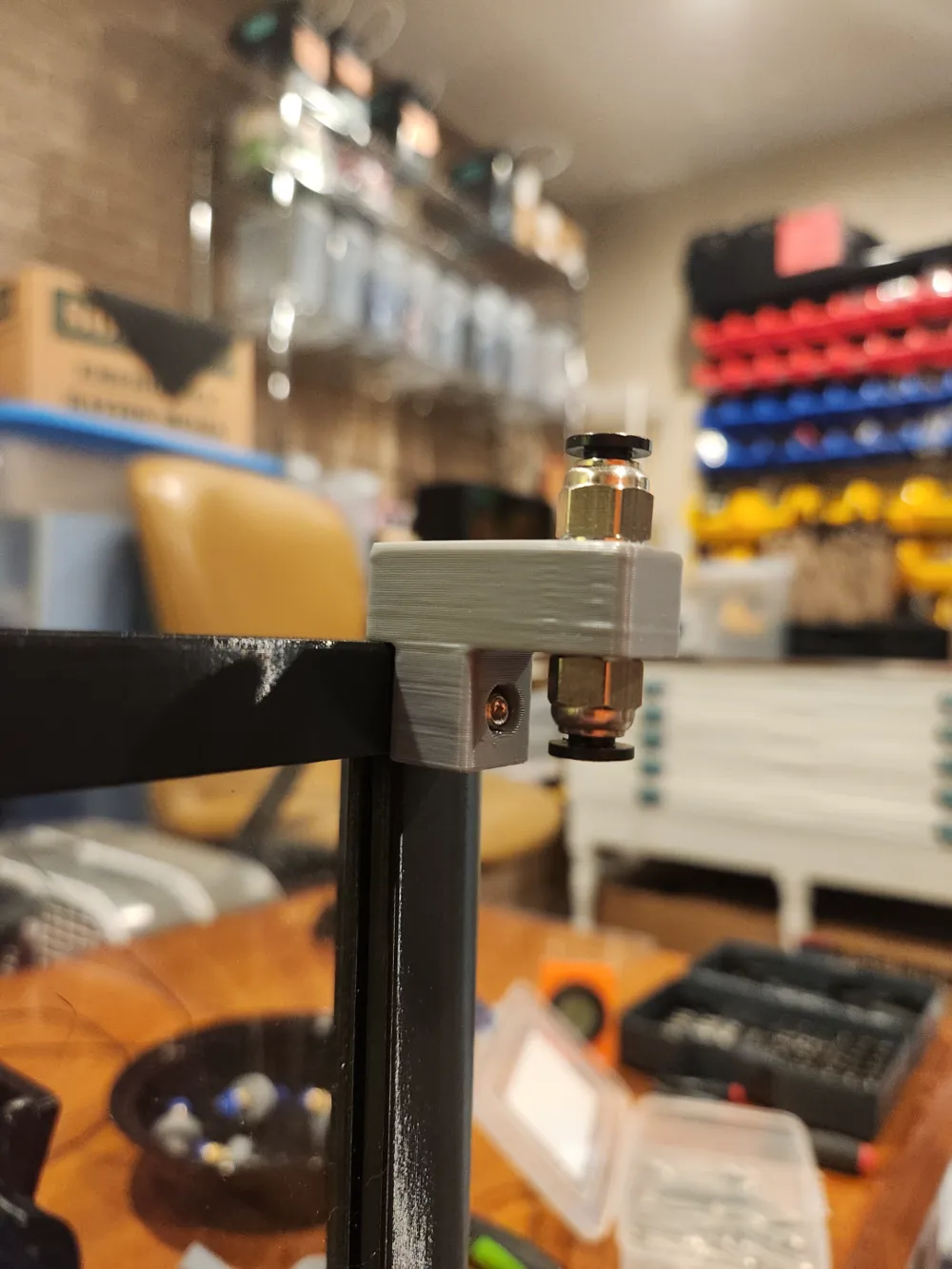

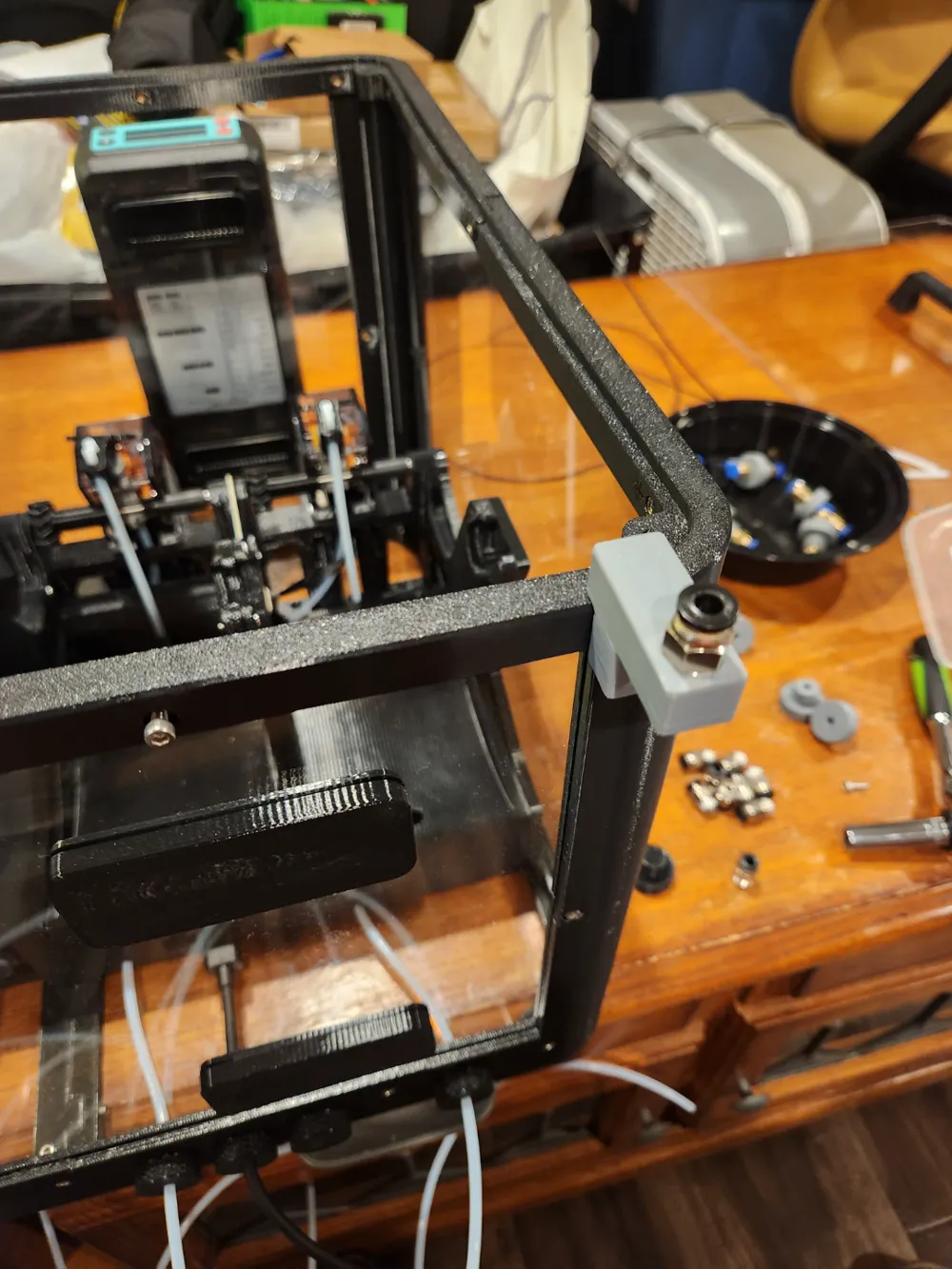

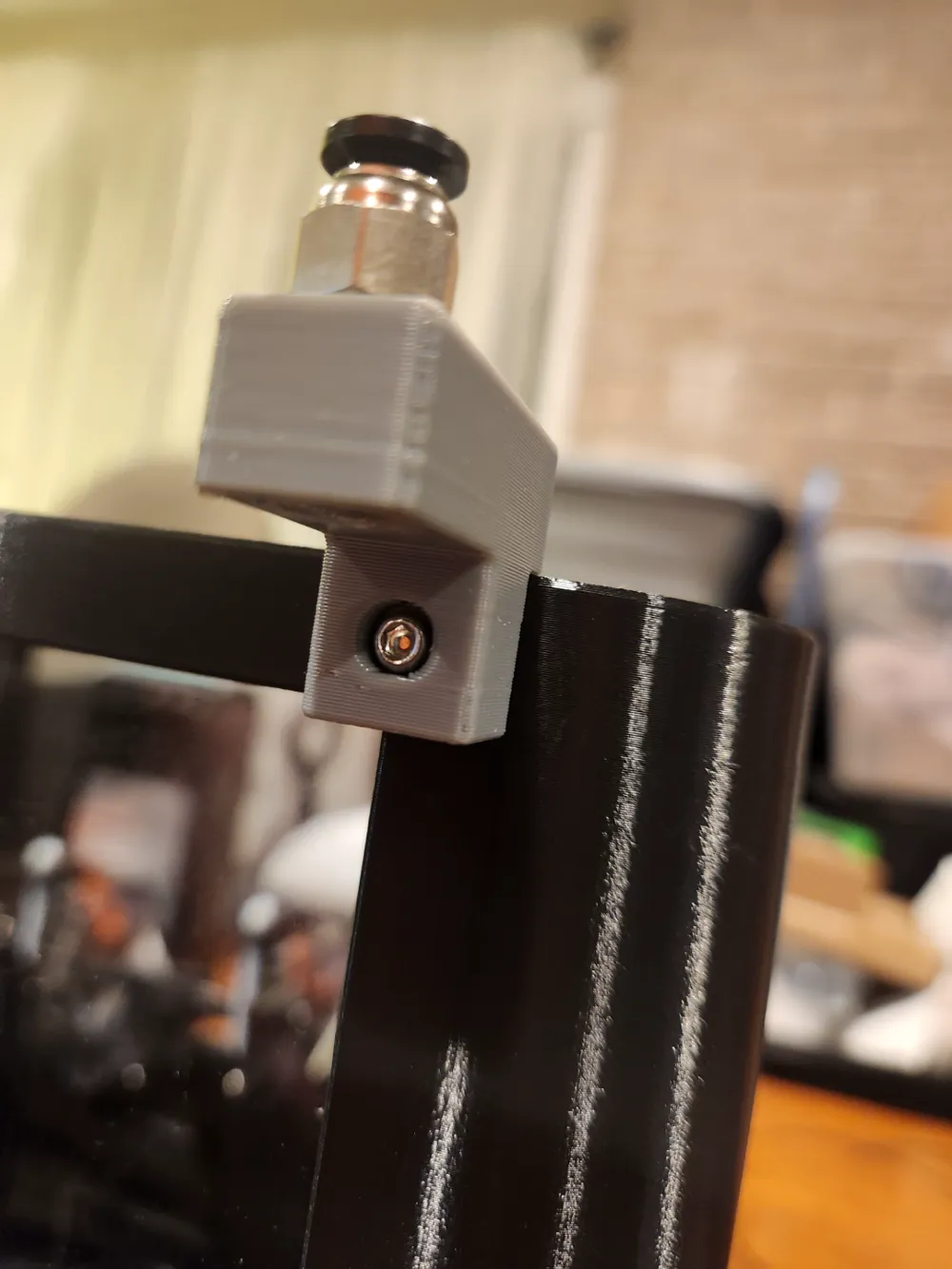

You simply remove the original M3 screw (10mm in my case) and use a 25mm to connect the coupler bracket along the top rear of the enclosure. You should wait until after you do this to install the lower PC4-M10 fitting.

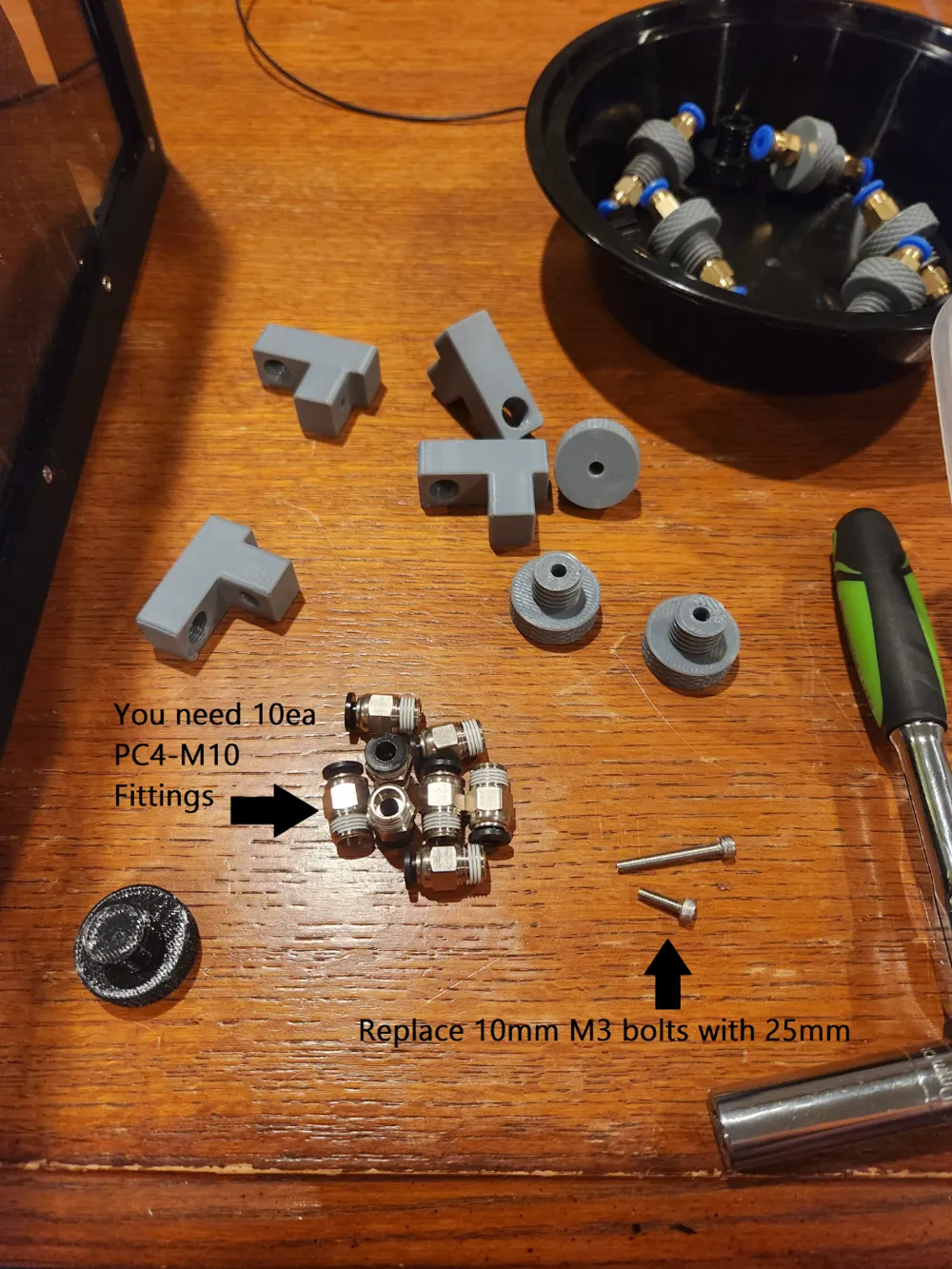

You'll need 10 each PC4-M10 fittings and 5 each M3x25mm screws.

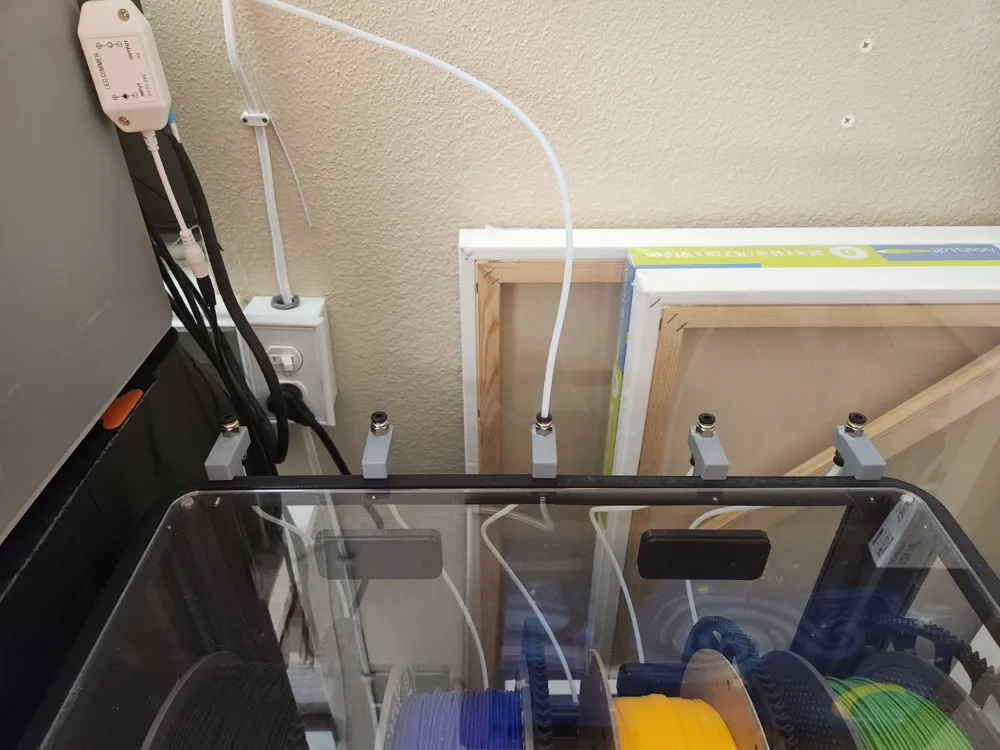

I think this is much cleaner looking and easier to use.
