RouterPack – Below Plate Dust Extraction
This is the RouterPack below plate dust extraction attachment. It attaches to the RouterPack base plate to improve dust extraction when edge routing.
RouterPack – A modular router accessory system

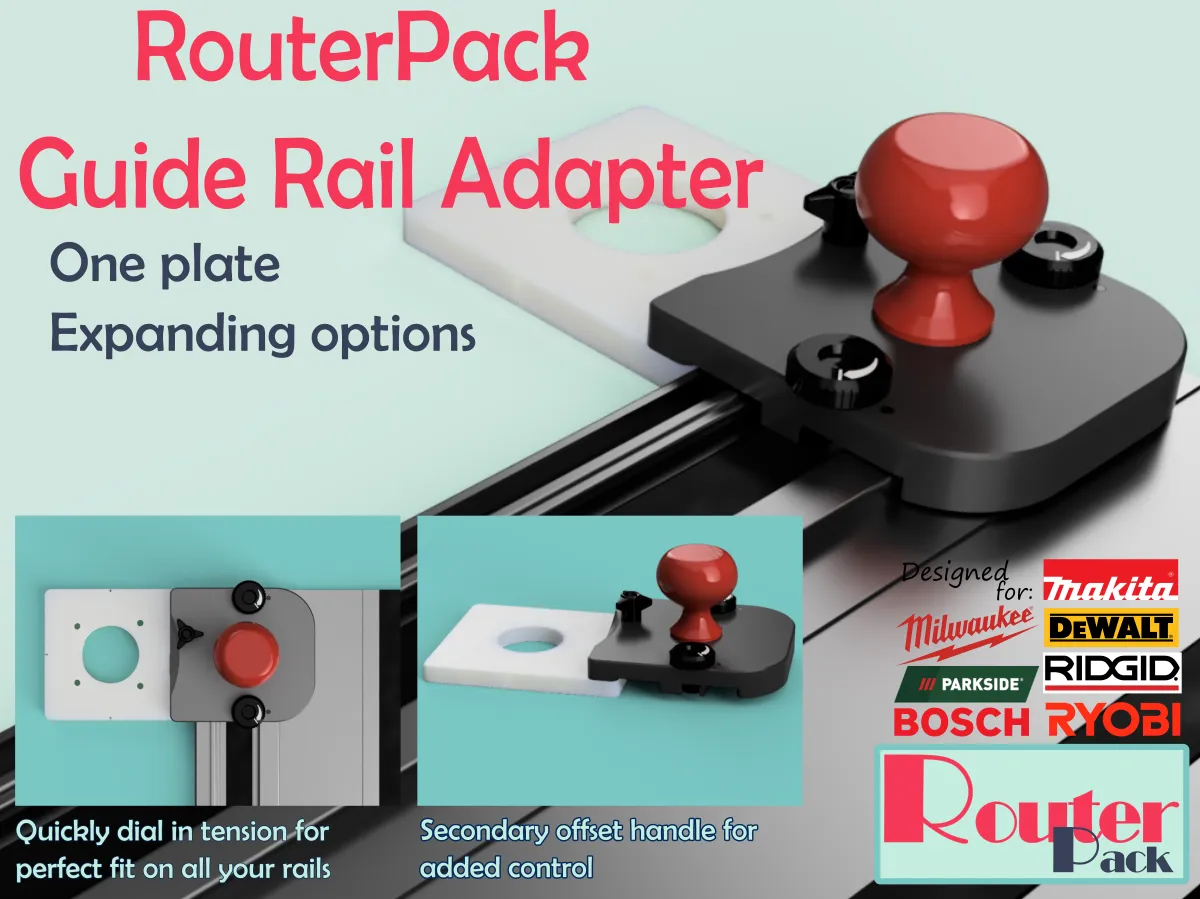

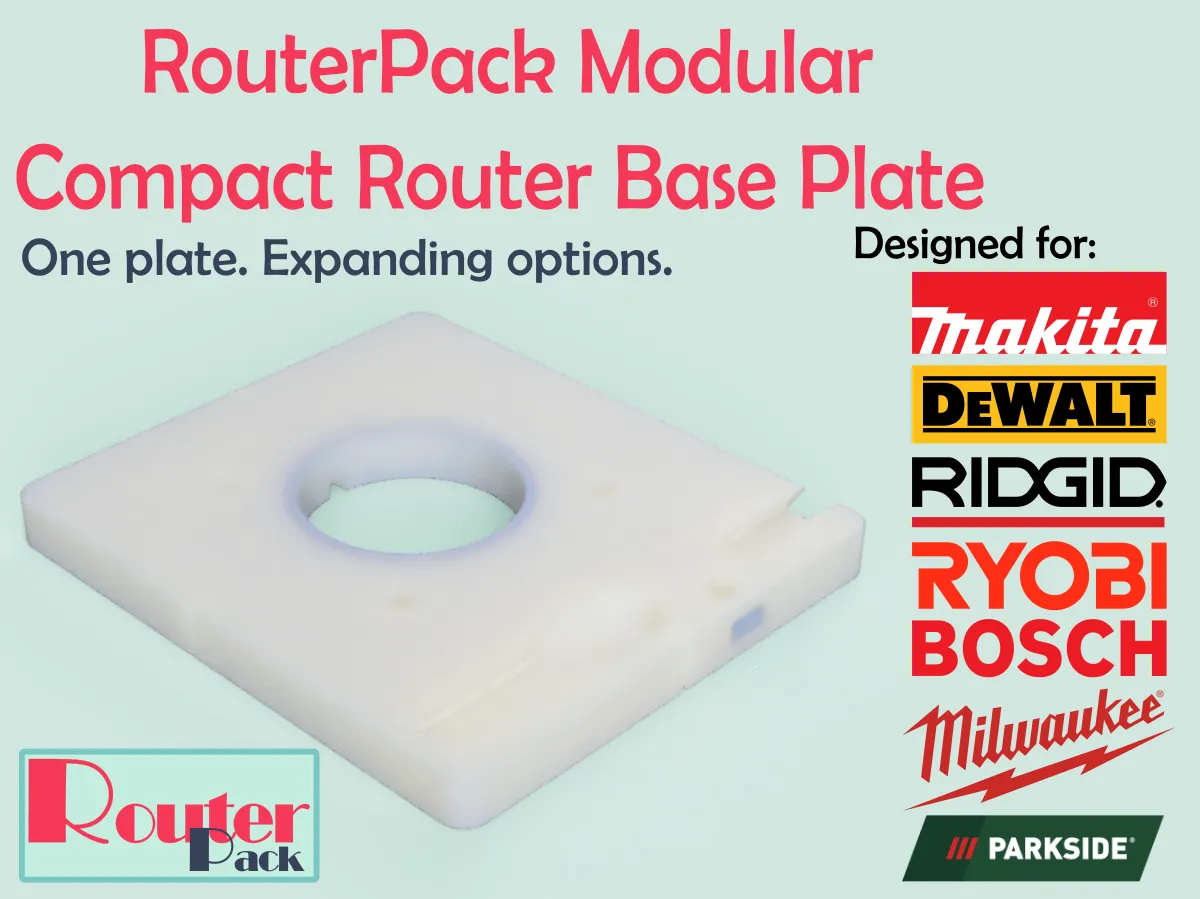

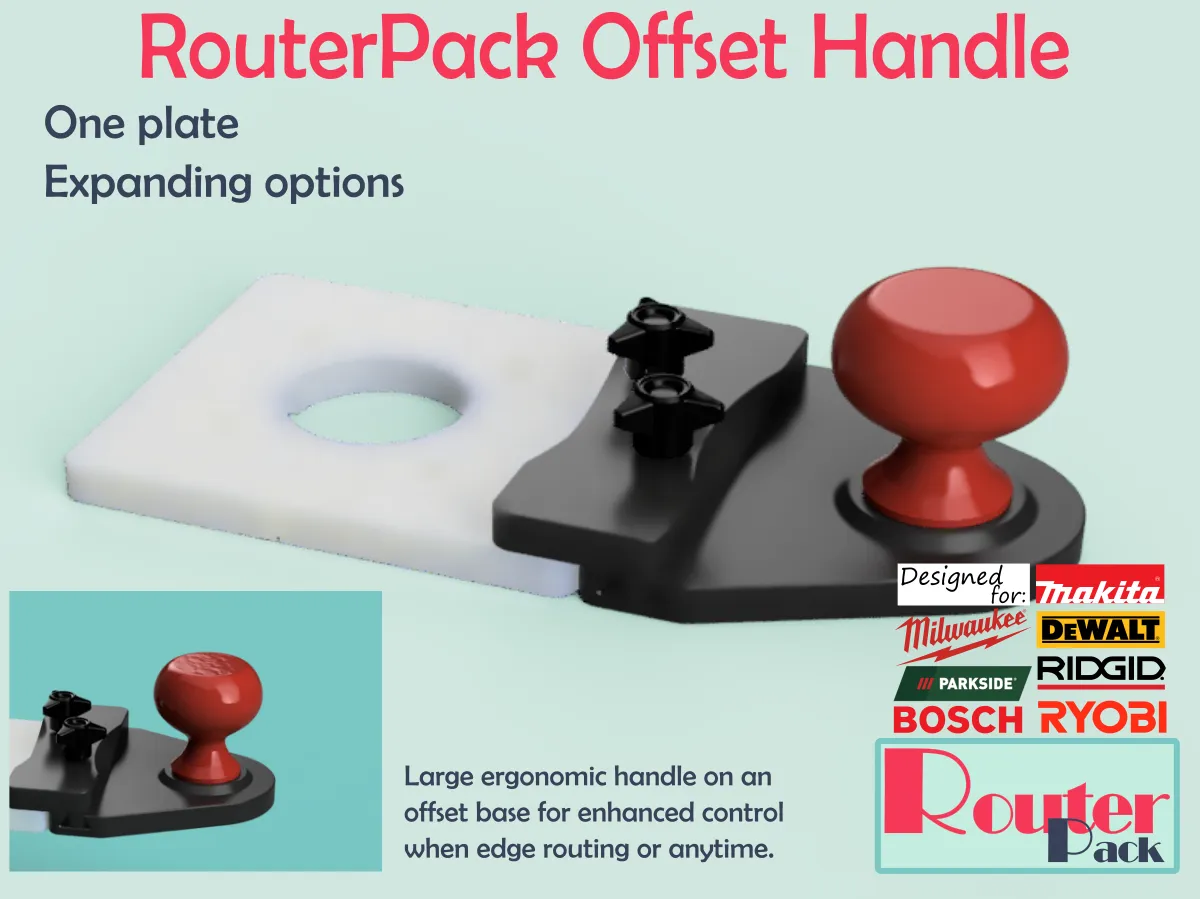

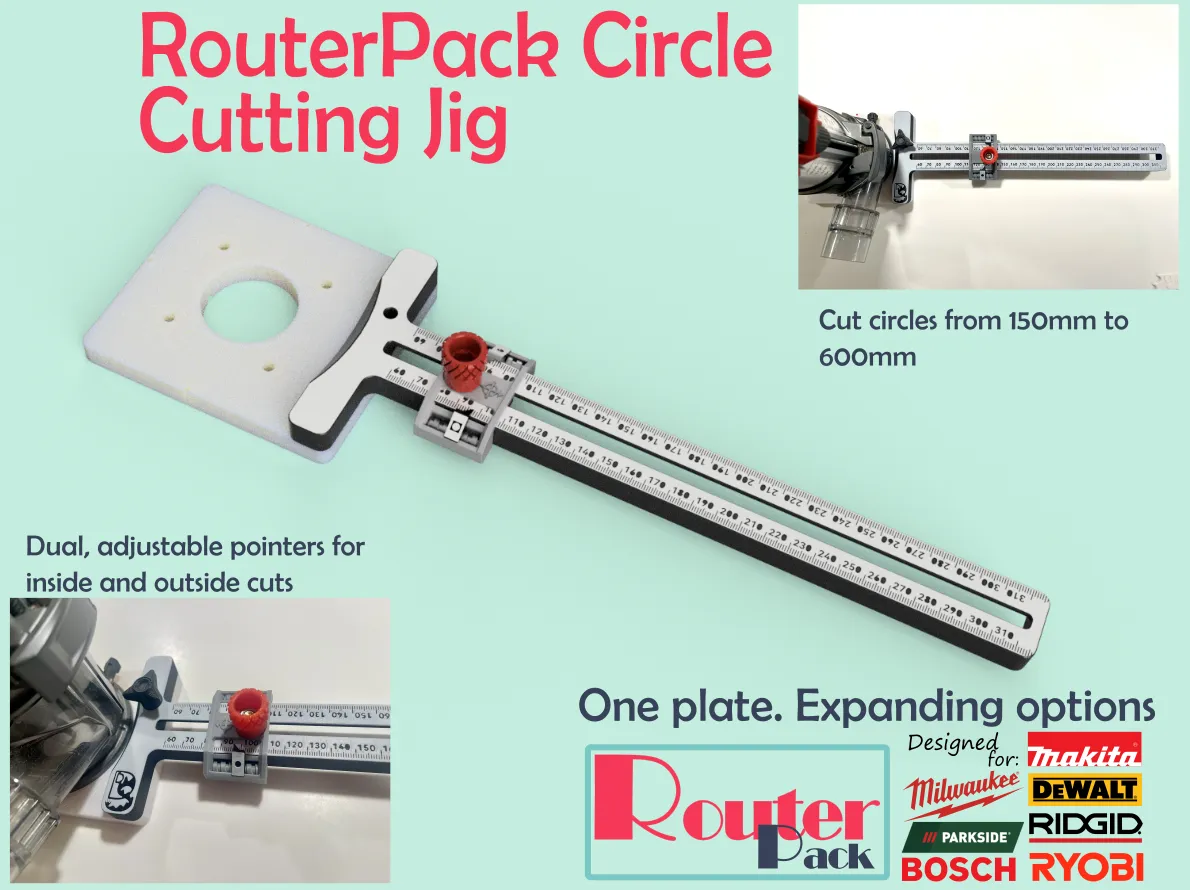

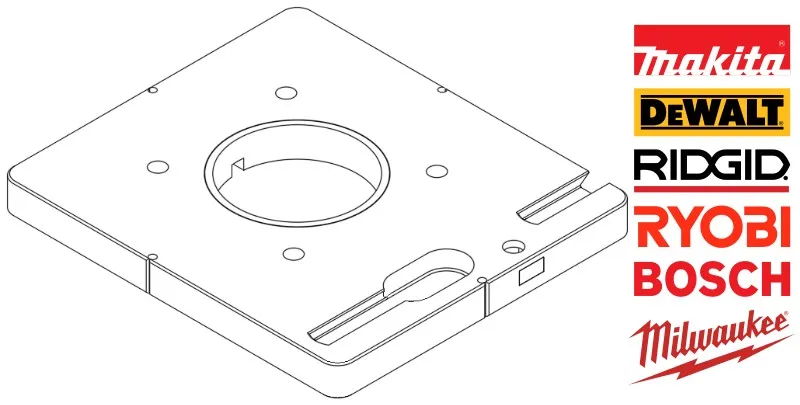

The RouterPack concept is based on a router plate custom designed to fit most popular compact routers and allow quick connection to multiple accessories. Guide rail adapters, offset handles, circle jigs, and more attach at the dovetail slots and secure with a thumbscrew. Dust extraction options attach with a ¼ turn system to the bottom of the plate.
No more hunting for an accessory fit your router and swapping base plates. If there's a RouterPack baseplate for it, RouterPack accessories will fit it.

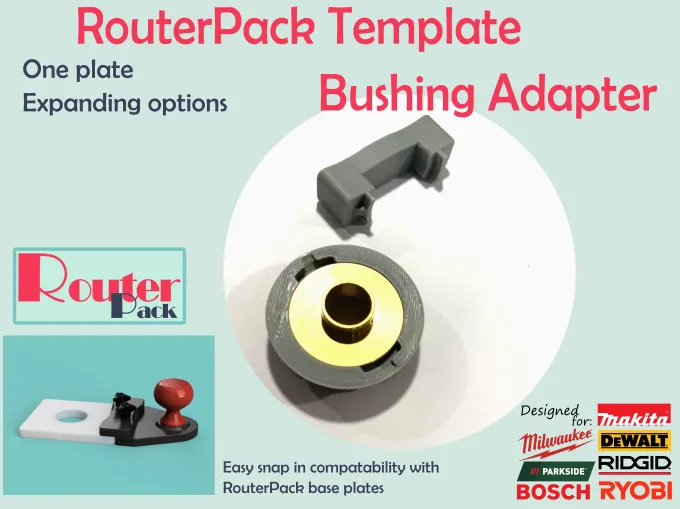

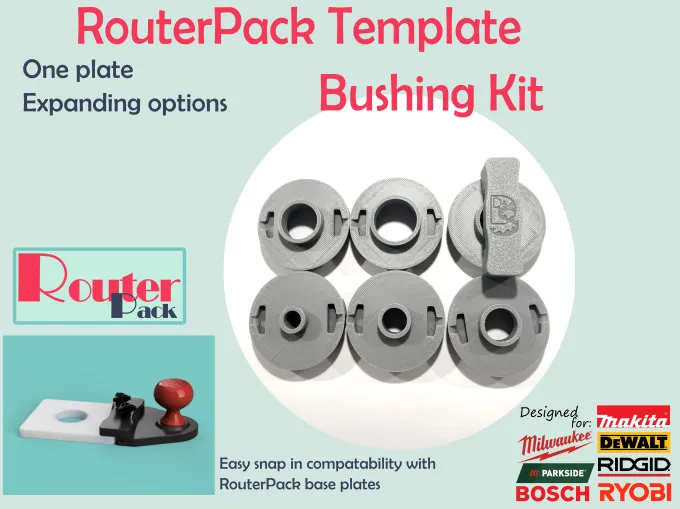

The current RouterPack lineup:
 |  |
 |  |
 |  |
 | more to come… |

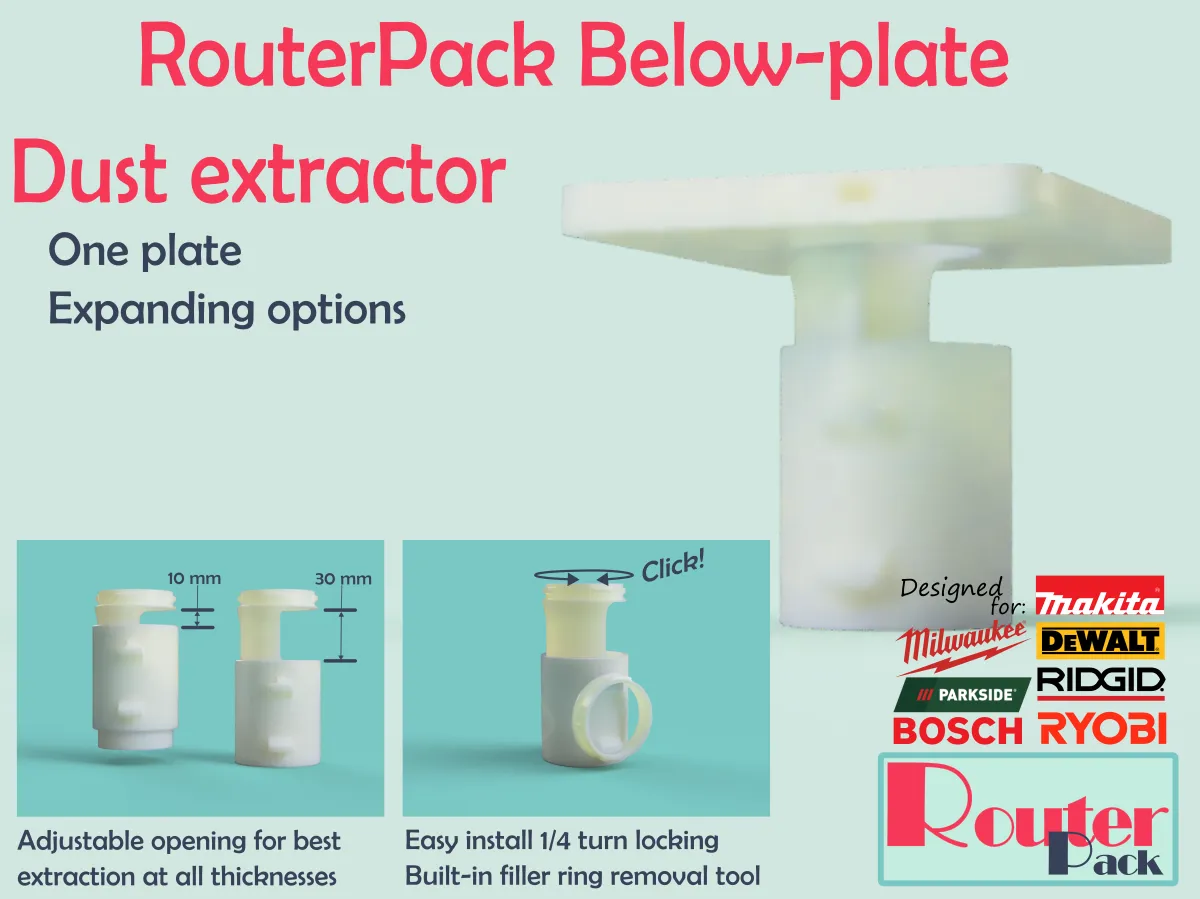

Below Plate Dust Extraction attachment assembly
Slide the adjustable opening sleeve over the main body of the dust extraction port body. If you find the port will not close tighter than about 25 mm, flip the slide over; it's upside down.
Use the ¼ turn tool on the slide to remove the filler ring in the RouterPack base plate and replace it with the dust extraction assembly. Attach your dust extractor hose.
