Incredible Rolling Object - Steinmetz Solid

🔄 Roll into Physics with the Bicylindrical Steinmetz Solid! 🔄

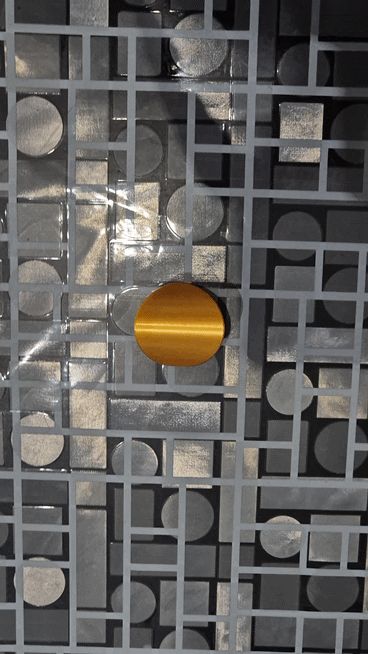

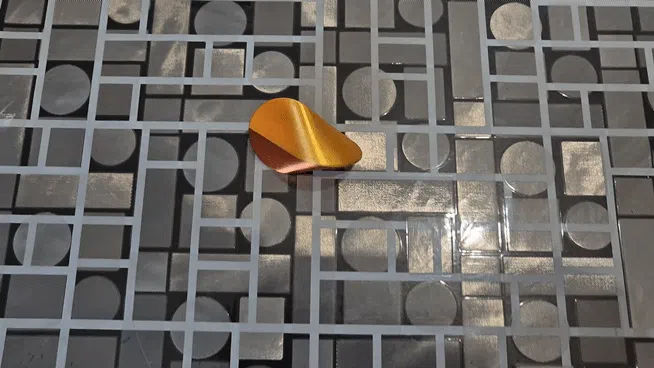

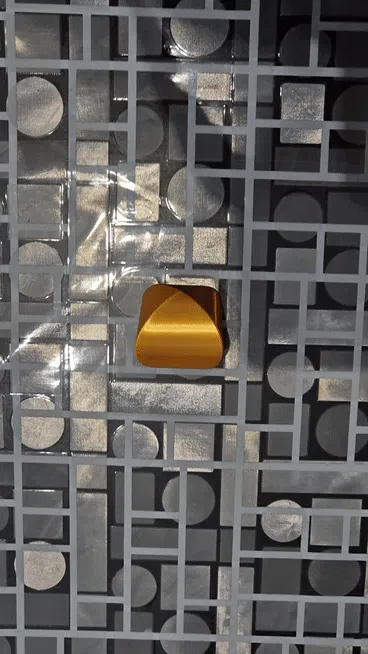

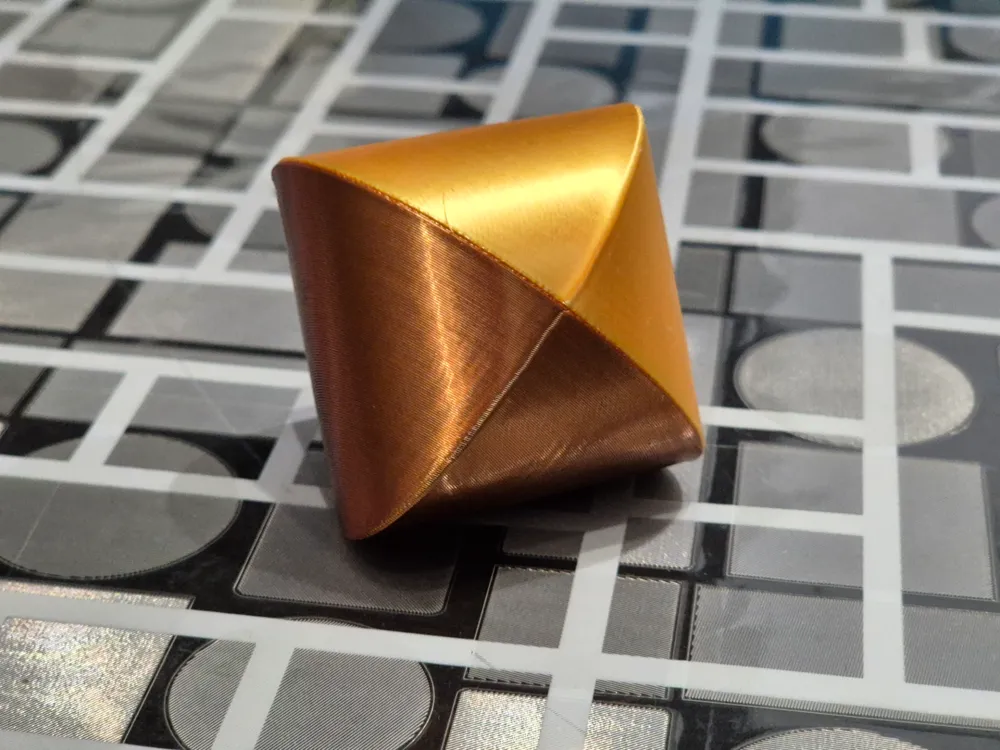

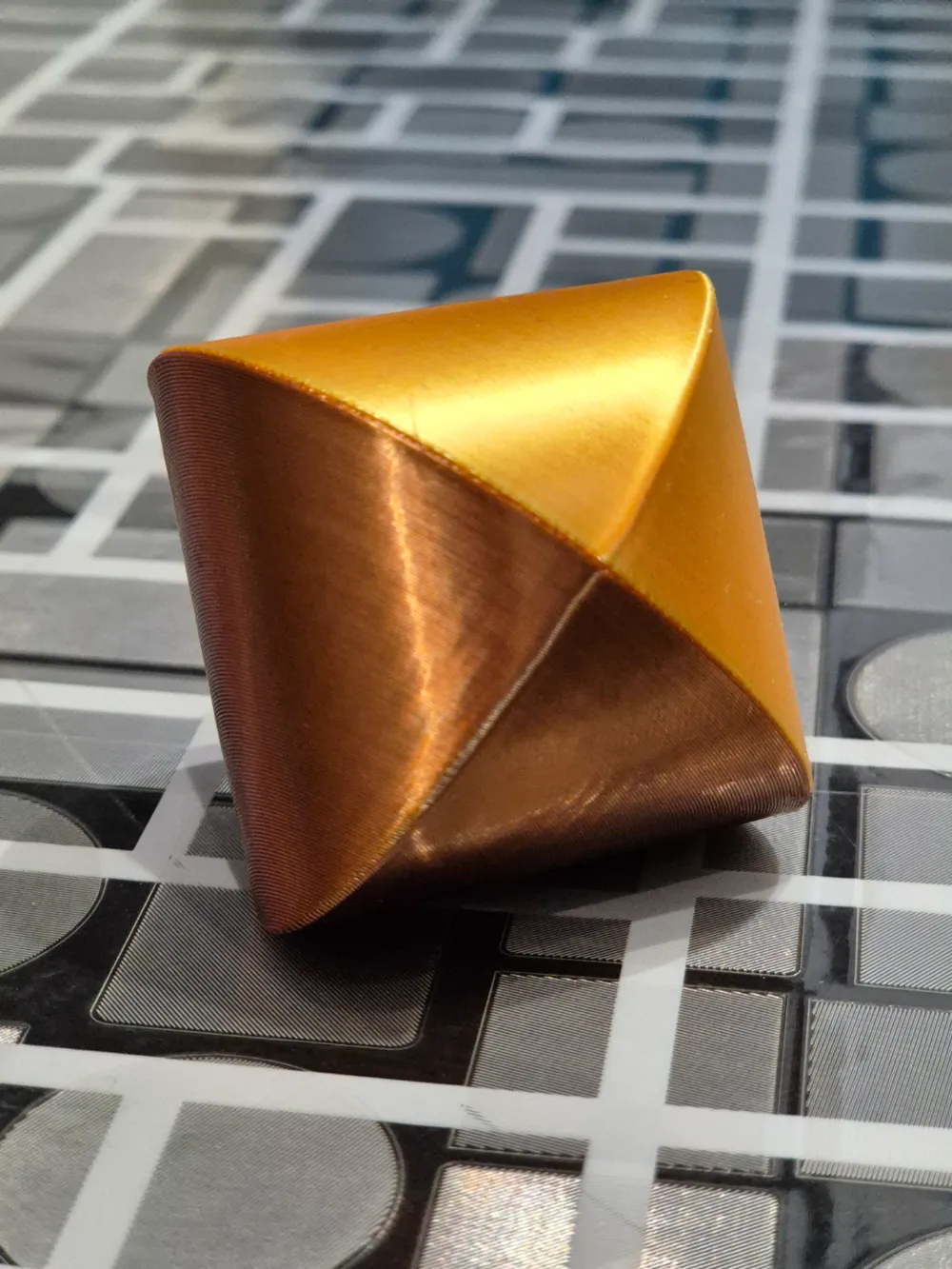

Dive into the fascinating geometry of the Bicylindrical Steinmetz Solid! This 3D-printed marvel is created from the intersection of two perpendicular cylinders, forming a smooth and symmetrical shape that rolls in surprising ways. 🌟 Its dynamic rolling motion stems from the interplay between its unique curved surface and its center of mass, offering an engaging way to explore physics and geometry in action.

🧩 Whether you're a STEM enthusiast or just love unique shapes, this solid is perfect for learning through play and exploring the beauty of symmetrical design.

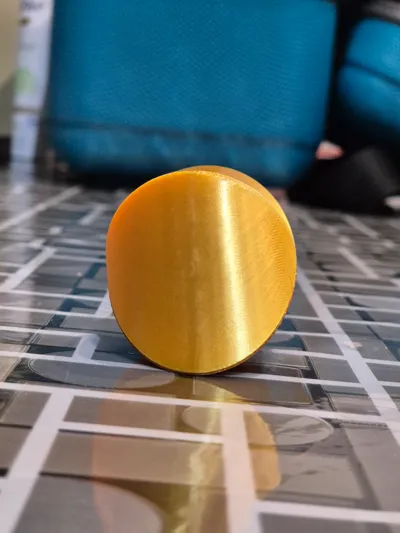

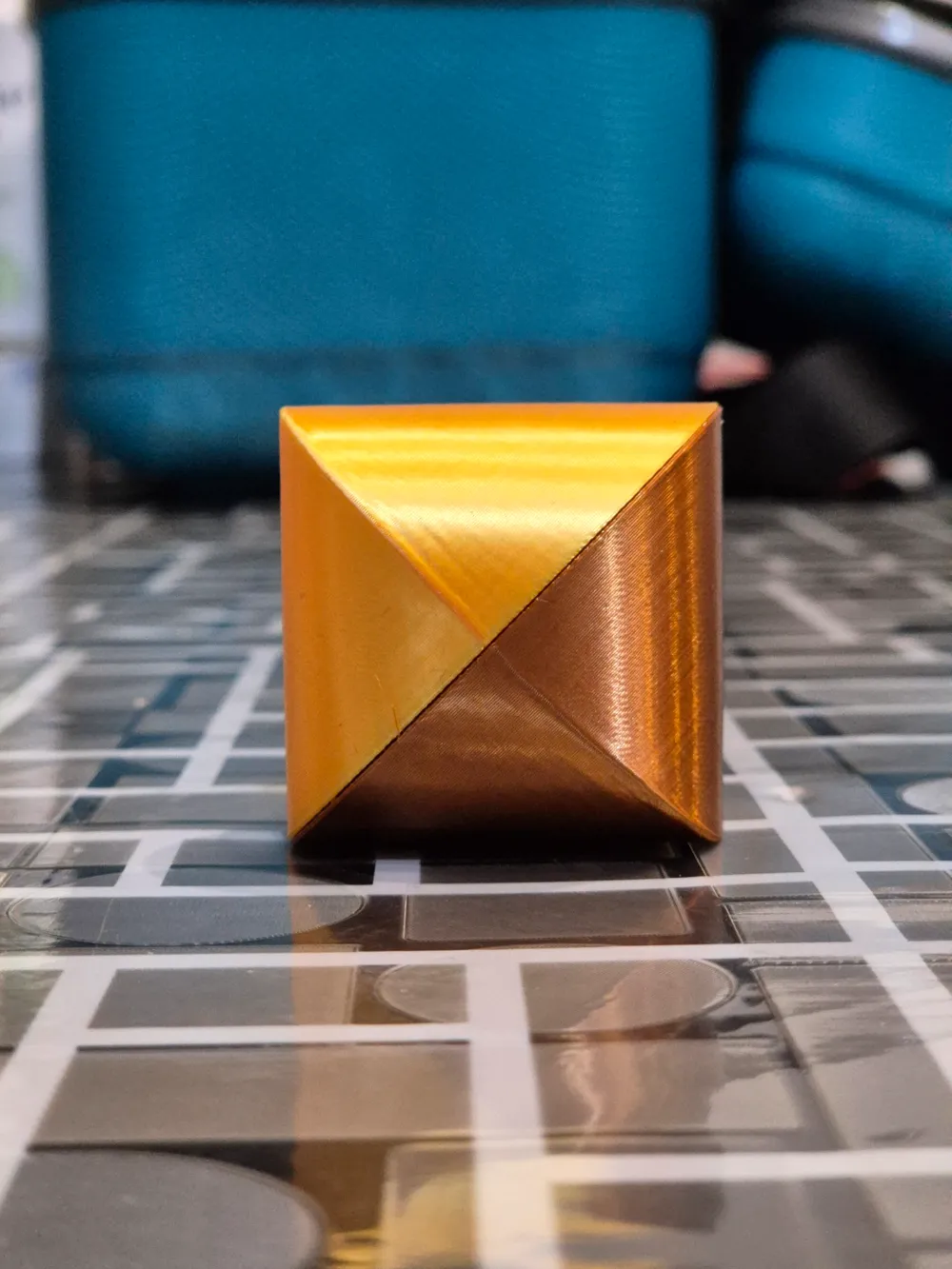

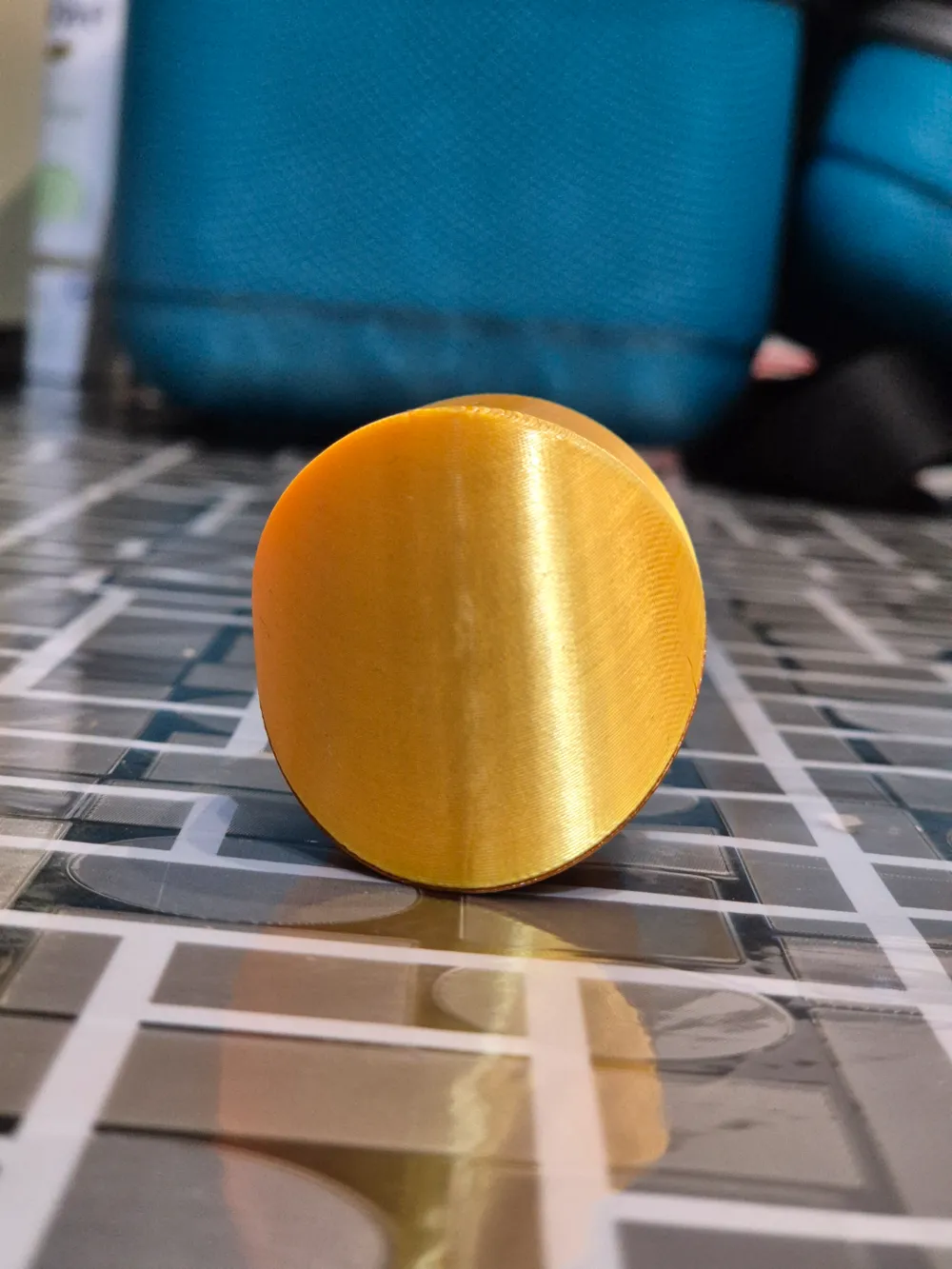

The silhouette from certain angles (e.g., top or side view) can resemble a lens or square-like shape.

🧩 Perfect for STEM learning, playful experiments, and anyone curious about the science of rolling objects.


 Assembly Instructions


Identify Components: Locate the main body and the insertable peg or component (as seen in the images). Align the Parts: Ensure the peg is oriented correctly with the slot on the main body. The shapes should align naturally for a snug fit. Insert the Peg: Carefully slide the peg into the slot. Apply gentle pressure to avoid damaging the model. The peg should fit tightly into place. Test Stability: Once assembled, gently roll the solid on a flat surface to confirm proper alignment and secure assembly. Enjoy!: Your Bicylindrical Steinmetz Solid is now ready for play, exploration, and educational experiments.

Applications of Steinmetz Solids in Physics and Engineering

Steinmetz solids, formed by the intersection of two or more cylinders, have wide-ranging applications in physics and engineering due to their intriguing geometric properties:

1. Robotics and Kinematics:
   Recent studies have explored the use of robotic systems inspired by Steinmetz solids, known as Rolling Pixels. These innovative systems leverage the unique rolling properties of Steinmetz solids to create dynamic, adaptable structures and kinetic designs that are revolutionizing robotic motion and flexibility.
2. Structural Engineering:
   The geometric characteristics of Steinmetz solids provide insights for architectural and structural engineering. They are particularly relevant in designing vaults, arches, and other stable yet visually appealing structures.
3. Mathematical Modeling:
   Steinmetz solids are valuable in mathematical physics for studying complex interactions in three-dimensional spaces. They facilitate understanding of symmetry, volume calculations, and the relationships between intersecting geometries, which are applicable in numerous scientific and engineering disciplines.
4. Fluid Dynamics and Volume Calculations:
   These solids serve as practical examples for solving real-world problems in fluid mechanics, such as analyzing flow patterns and calculating volumes in intersecting cylindrical domains.
5. Electromagnetic Field Theory:
   The symmetric geometry of Steinmetz solids is used to study the distribution of electric and magnetic fields, especially in systems involving intersecting coils or wavefronts.
6. Optics:
   They provide insights into light interference patterns and scattering phenomena, particularly in the context of intersecting wavefronts.
7. Educational Tools:
   Steinmetz solids are excellent for teaching mathematical and physical concepts, such as integration, symmetry, and three-dimensional geometry, making them a staple in both academic and practical education.
