Gridfinity CST2 Custom Storage Tower 2 Individual

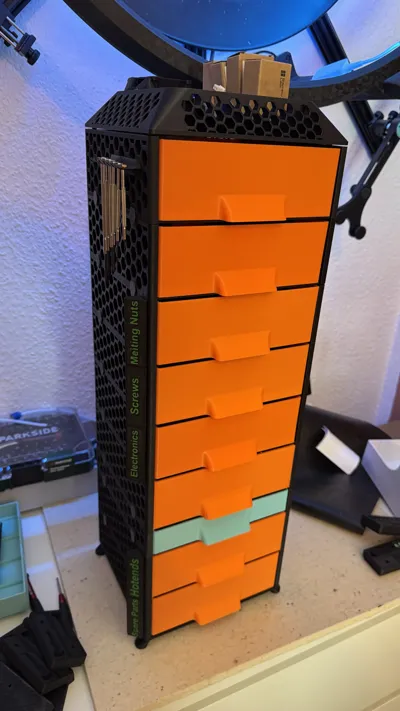

Welcome to the Custom Storage Tower 2

The new Version of the CST1 which is A1 mini compatible but smaller and without Gridfinity.

This time a complete modular build up to save Print time, filament and improve individualize options.

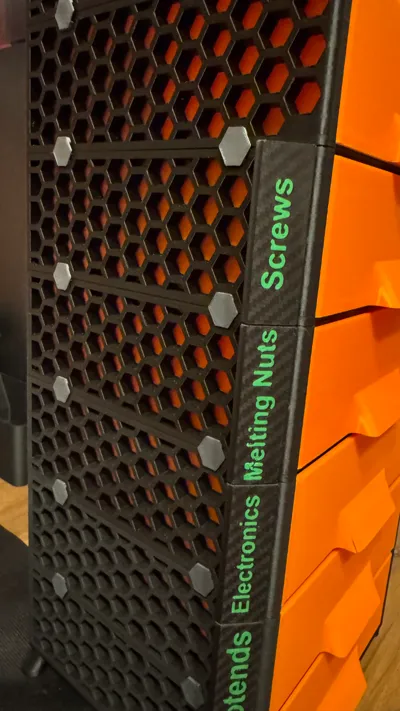

Also the Hex Walls are made to create new models that can be connected to it. So it will improve over time.

You can print all parts with the preset print profile. No support is needed for the Hex / Honeycomb structure! Only a small connector hole needs support but this is preset. All other parts can be print without!

To Build up the Tower follow this Steps:

• Put the Left and Right Panel on the X Shape Ground connector
  • Its only fitting in one direction
• Now slide in the Back Panel from the top in both side panels
• Now the Base of your floor is finished

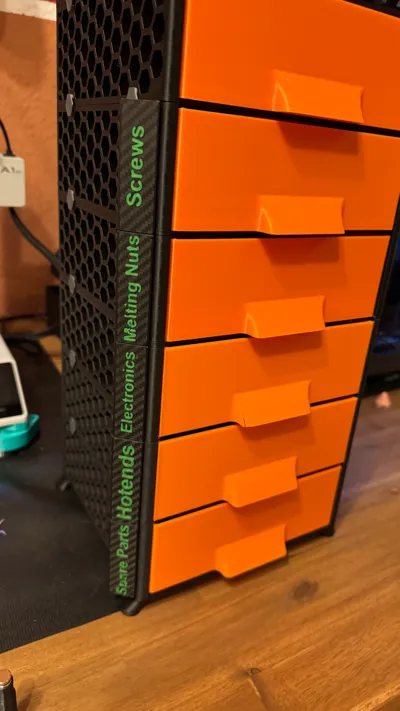

• Put in the Drawer and start printing Gridfinity Inlays
• For the next floor repeat the first steps

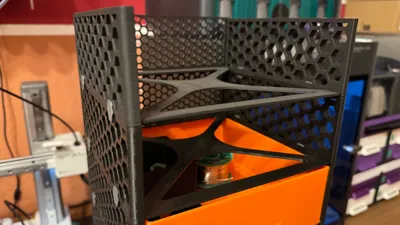

• Take the HEX floor connectors and put two of them on each side (left and right) in the side panels so that the floors are fully connected
  • You can see it on the model pictures (in Grey)
• To Connect the TPU Feet
  • Put in M3 melting Nuts in the holes of the Foot Baseplate
  • Now screw the TPU Feet from the bottom in the Foot Baseplate

• If you have further Questions feel free to contact me or leave a comment

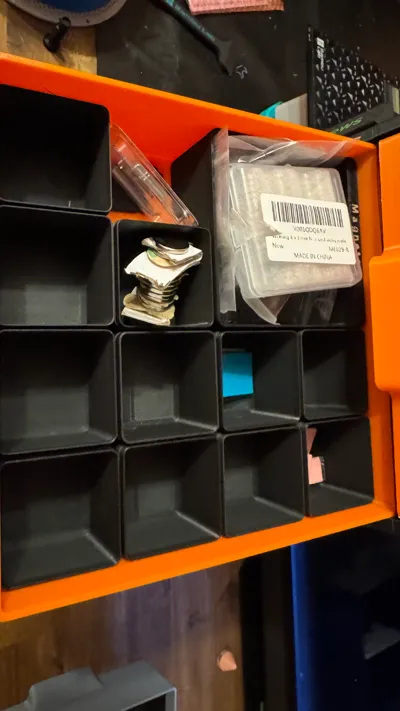

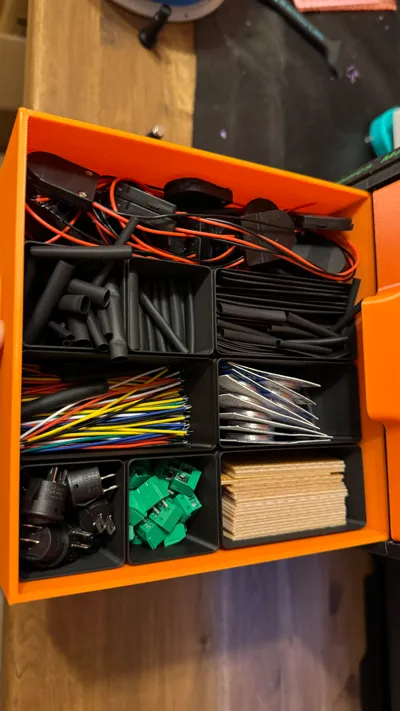

All Gridfinity Models are fitting to the Drawers.

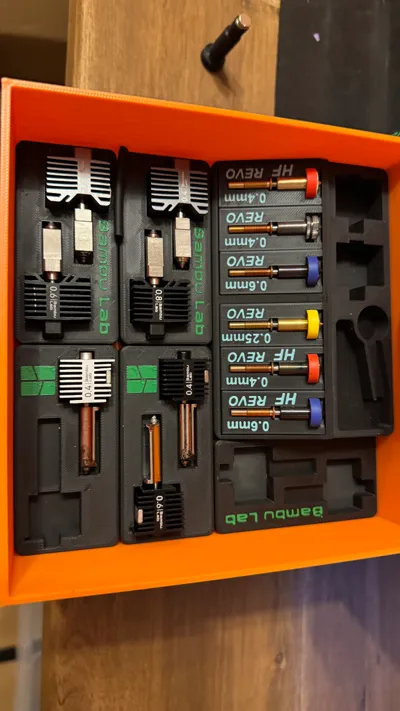

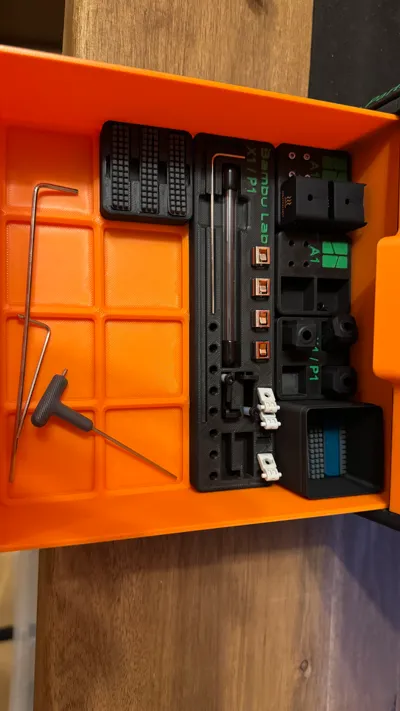

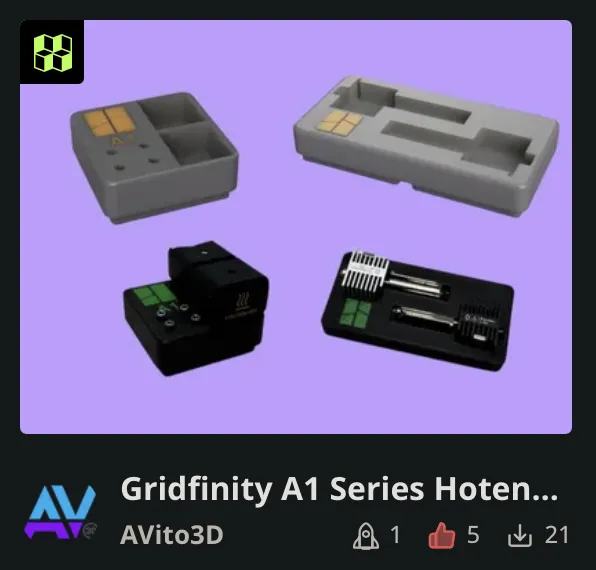

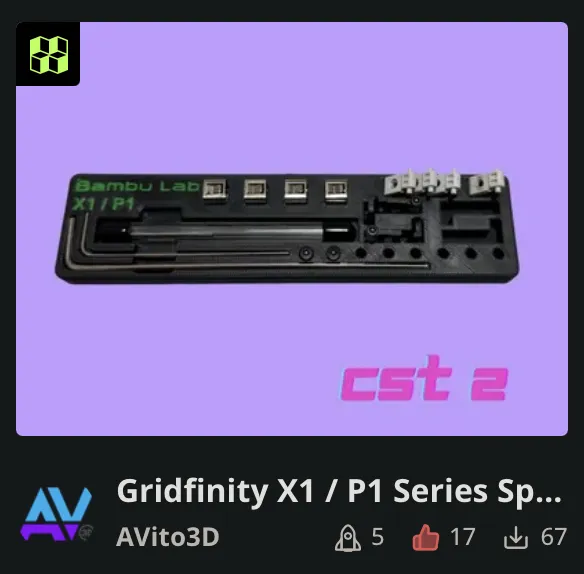

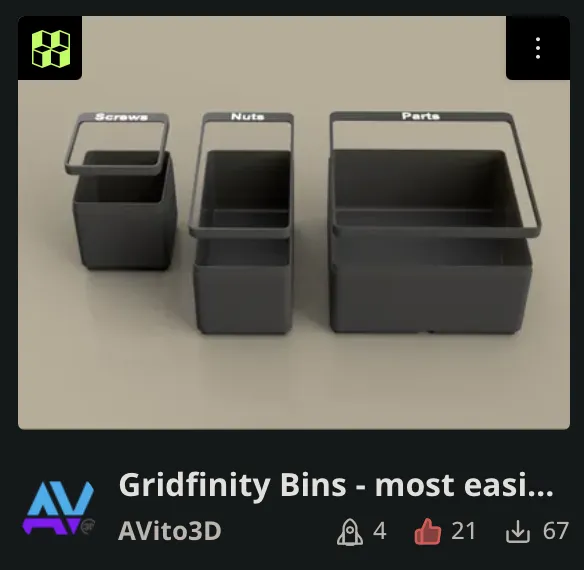

I also made some Printer related Gridfinity Inlays you can find all of them in this Collection.
