AmpliTune Compact

AmpliTune Compact is the passive amplifier in the AmpliTune series that delivers the highest volume boost for your smartphone. With an increase of 11 decibels compared to the device's maximum volume (tested with an Oppo Find X5 and a sample track on Spotify), the enhancement is clearly audible, making Compact perfect for those who want a significantly more powerful audio experience.

The sound can be projected from either the right or left side thanks to an innovative dual-direction sound channel, offering greater versatility and balanced acoustics.

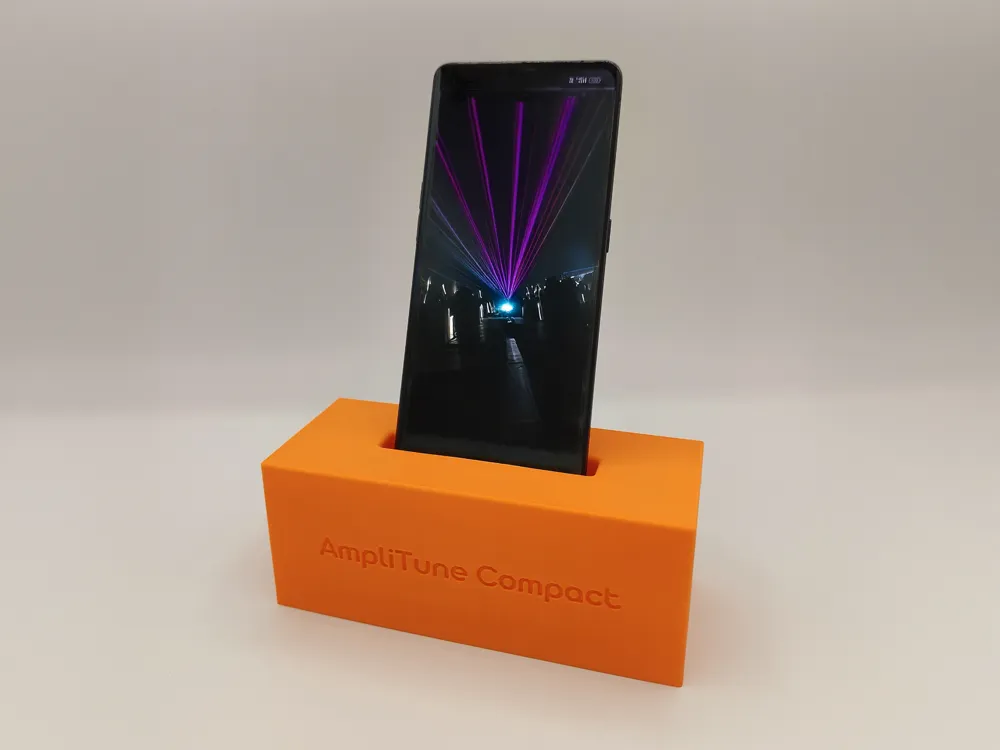

AmpliTune Compact features a simple yet functional design, shaped as a parallelepiped with dimensions of 150mm wide, 60mm high, and 60mm deep, making it ideal for any setting, from a desk to a living room.

The smartphone slot has been improved over previous models, measuring 80mm in length, 12mm in width, and 15.5mm in height, with a 7° inclination to ensure a stable and convenient position. The sound transport grooves have been enlarged (15x12mm) and are positioned on both the right and left sides of the slot. Both grooves lead to the amplification cones, which are connected by a central channel with a diameter of 4mm, optimizing sound diffusion.

AmpliTune Compact is compatible with most devices on the market, offering superior audio performance in terms of volume and sound quality. It’s the perfect accessory for those seeking a practical and powerful amplifier without compromising on design or compatibility.

Recommended Printing Parameters:

• Nozzle: 0.4mm
• Layer height: 0.2mm
• Infill: 15% grid pattern
• Walls: 2
• Supports: Not required
• Brim: Not needed

AmpliTune Compact represents the pinnacle of power and functionality in the AmpliTune series, making it ideal for everyday use or as a gift for tech enthusiasts and audio lovers.
