Dessicant drying tray [Stackable]
Print Profile(1)
Description

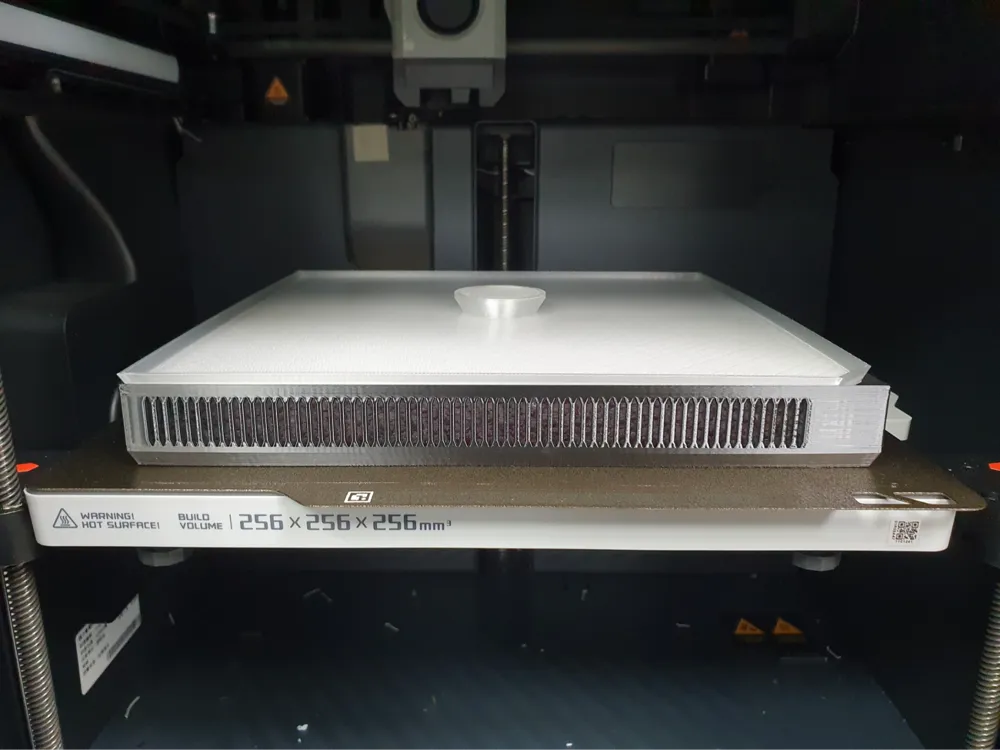

Stackable dessicant drying tray, to be used with a heated bed.
Tray can be printed multiple times and stacked, trays are self centering with the chamfer edge design.

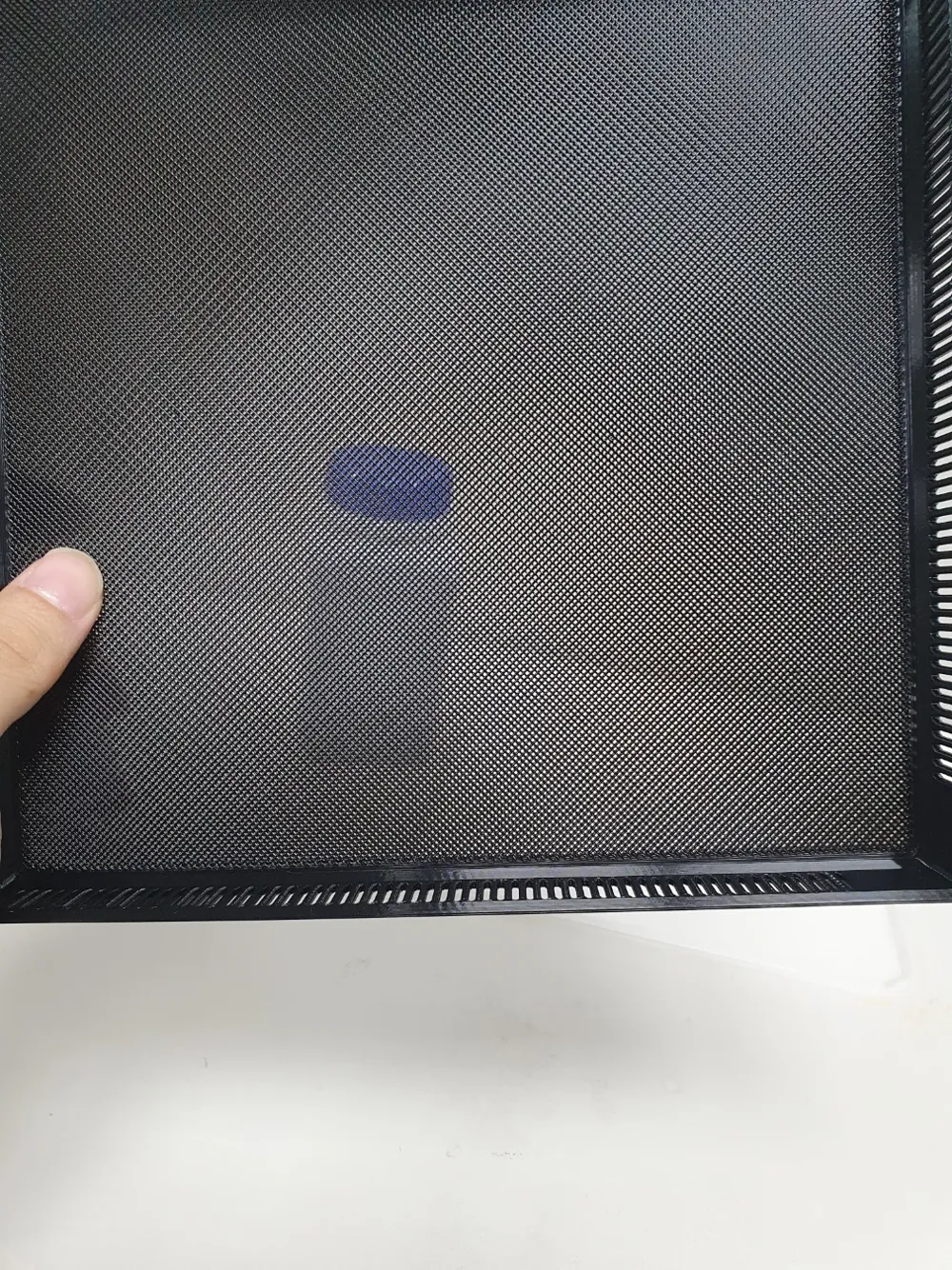

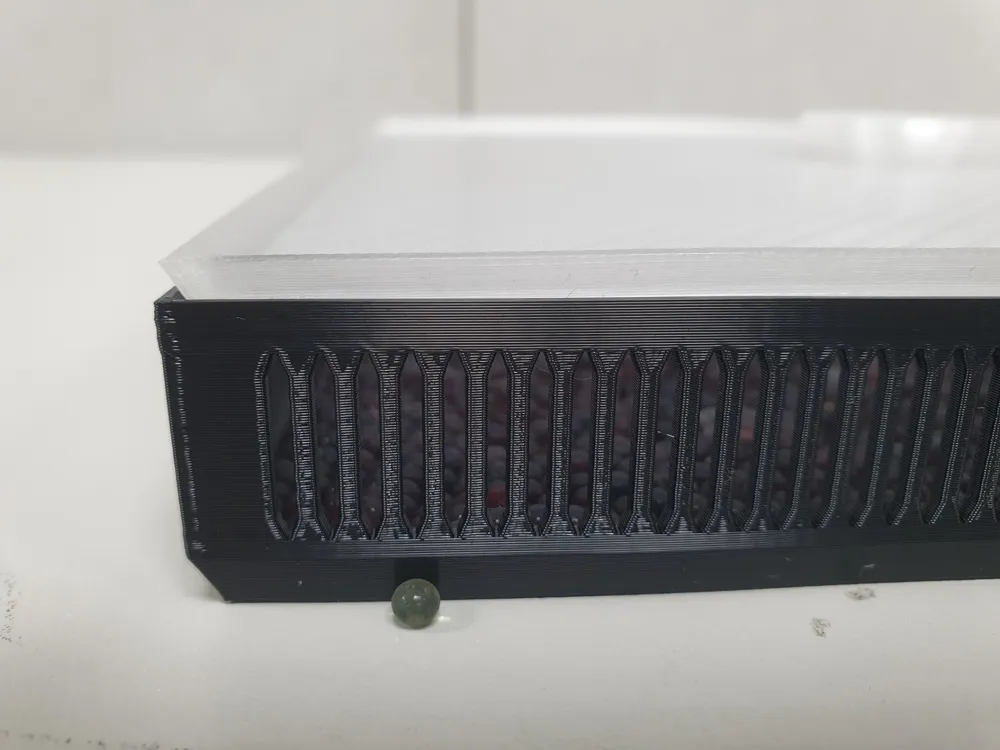

Walls of the tray have 1.5mm openings so that moisture can escape during the drying process, but it's small enough that dessicants cannot fall out.

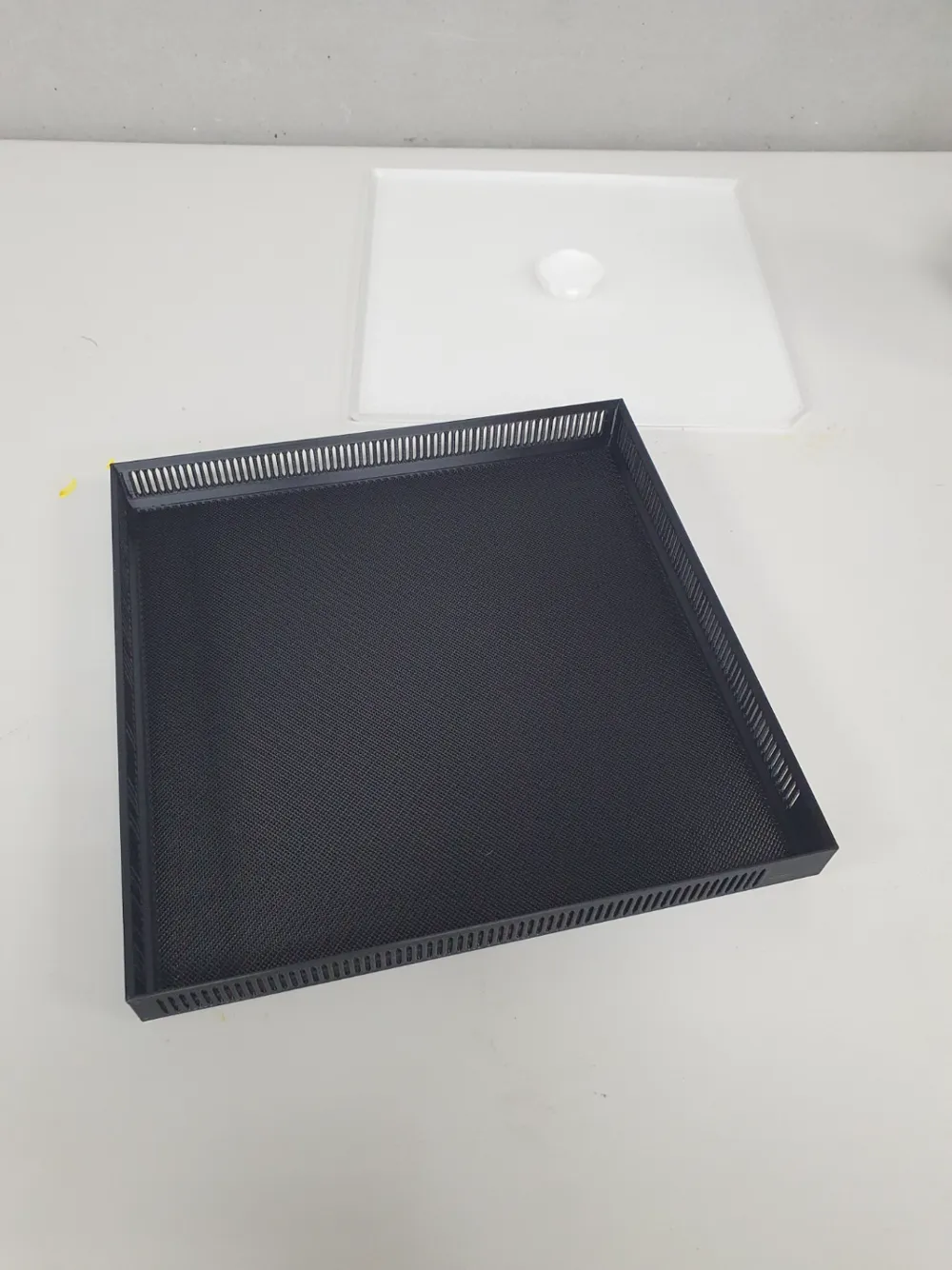

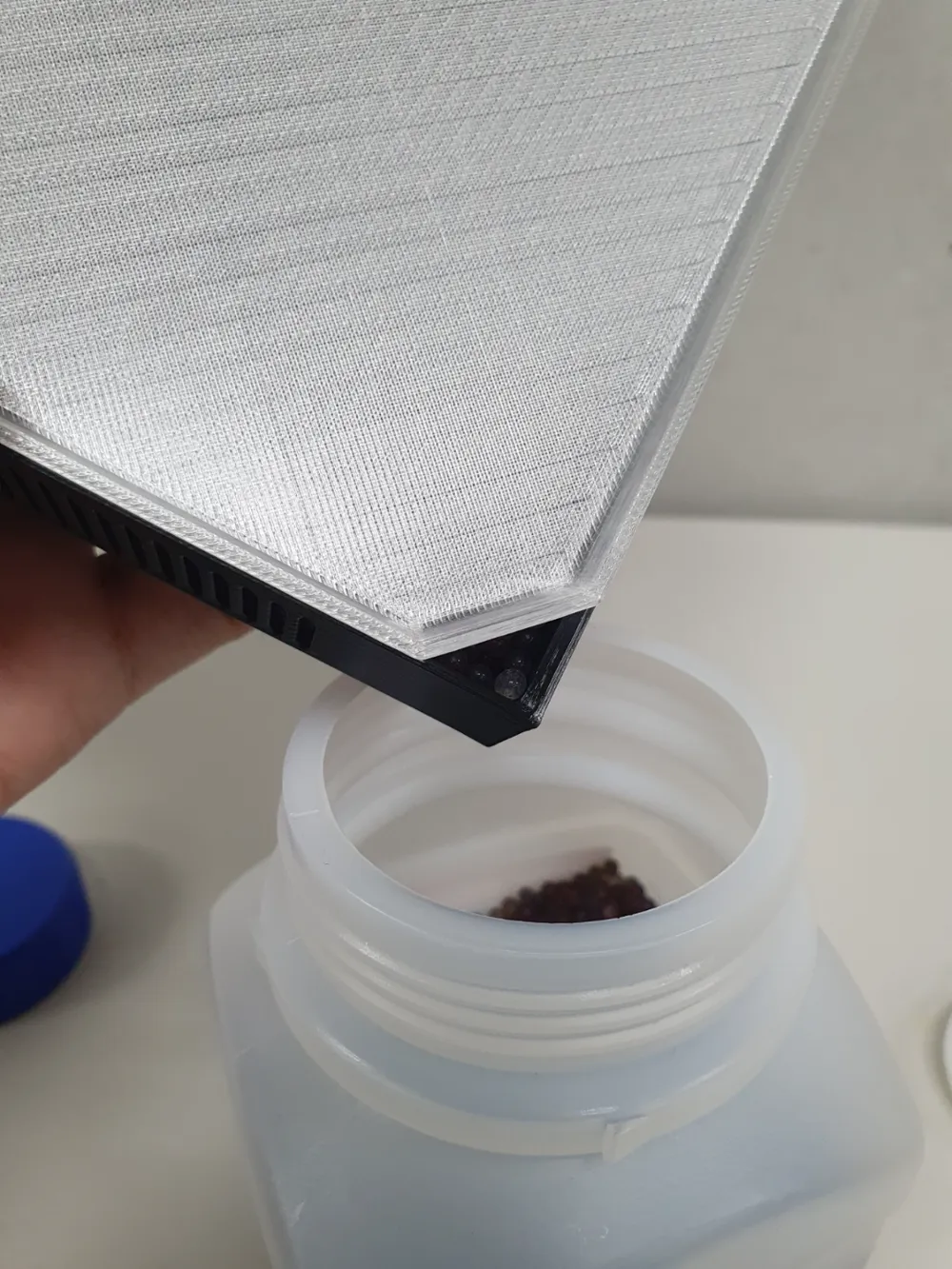

Lid on plate 2 helps contain the heat in the tray so it dries faster, it also has a cut corner design so that you can pour from a corner.
I printed it with PETG, and set bed temp 75C with chamber fan @ 10% to hopefully remove moisture out of the chamber.
Works better if bed temp is set to 90+C, but you'll need high temp materials like ABS, ASA, PC…etc
can also function as a fine sifting tray if needed.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
