HAN design pin test
Print Profile(1)
Description
This is a positioning and connecting dowel pin, to be used in current and future projects
Objective:
1. Securely joins parts without wobbling (primary objective)
2. Achieves a light-tight seal at the interface (secondary objective)
Description:

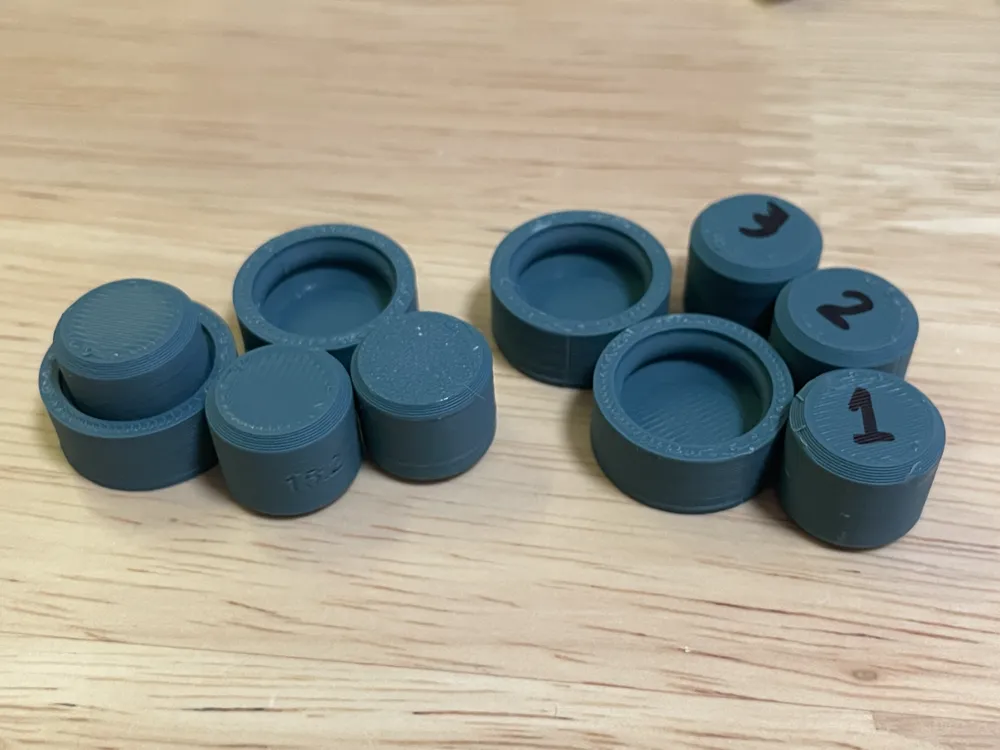

Contains five parts
Connecting holes x2

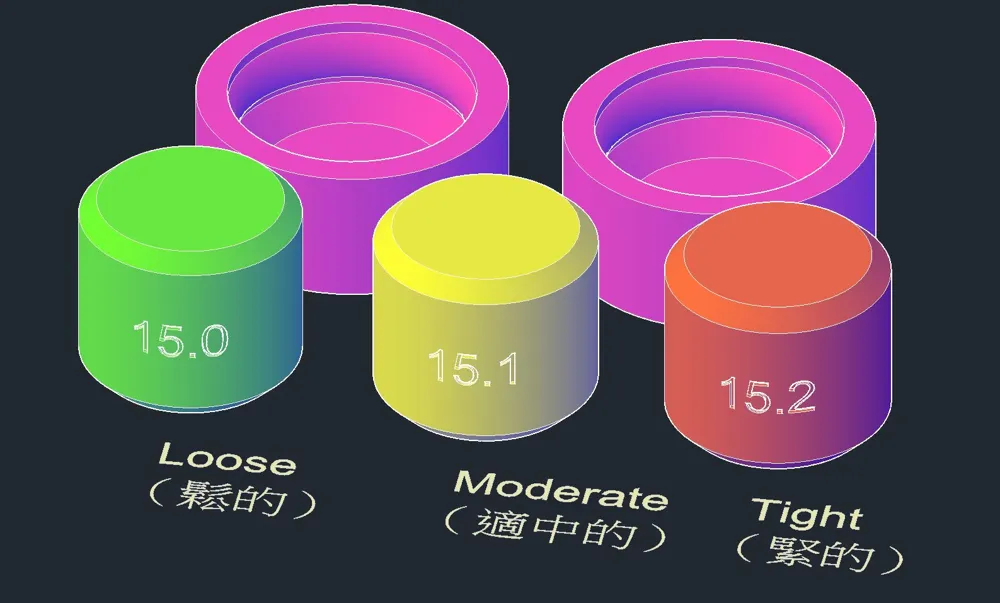

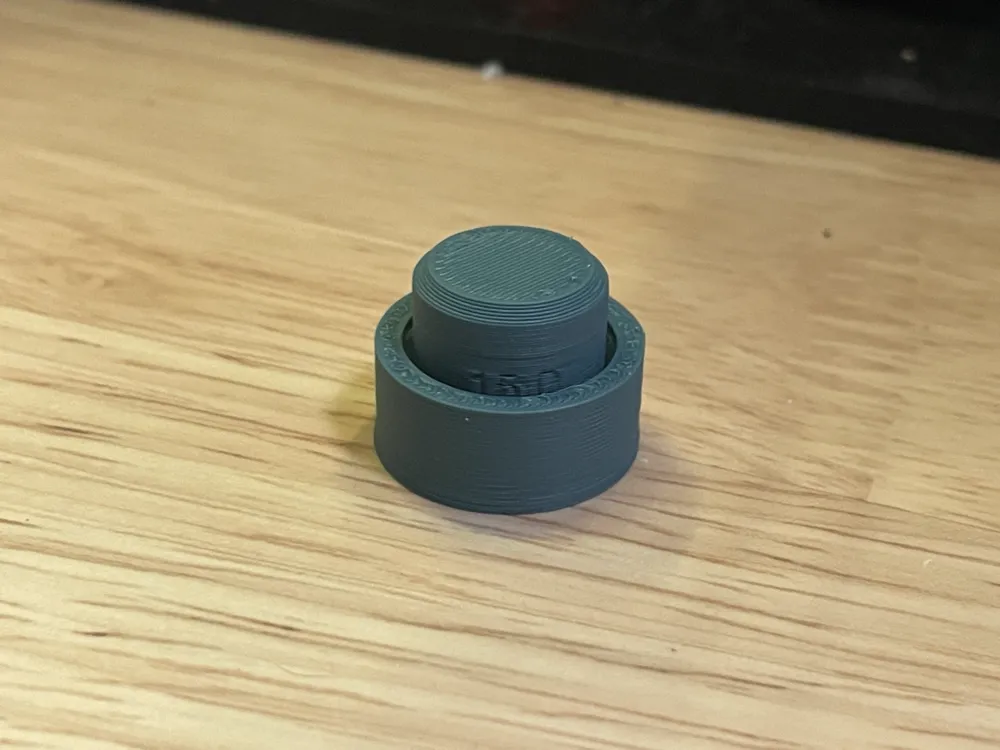

15.0 Dowel Pin x1 (Loose)
15.1 Dowel Pin x1 (Moderate)
15.2 Dowel Pin x1 (Tight)

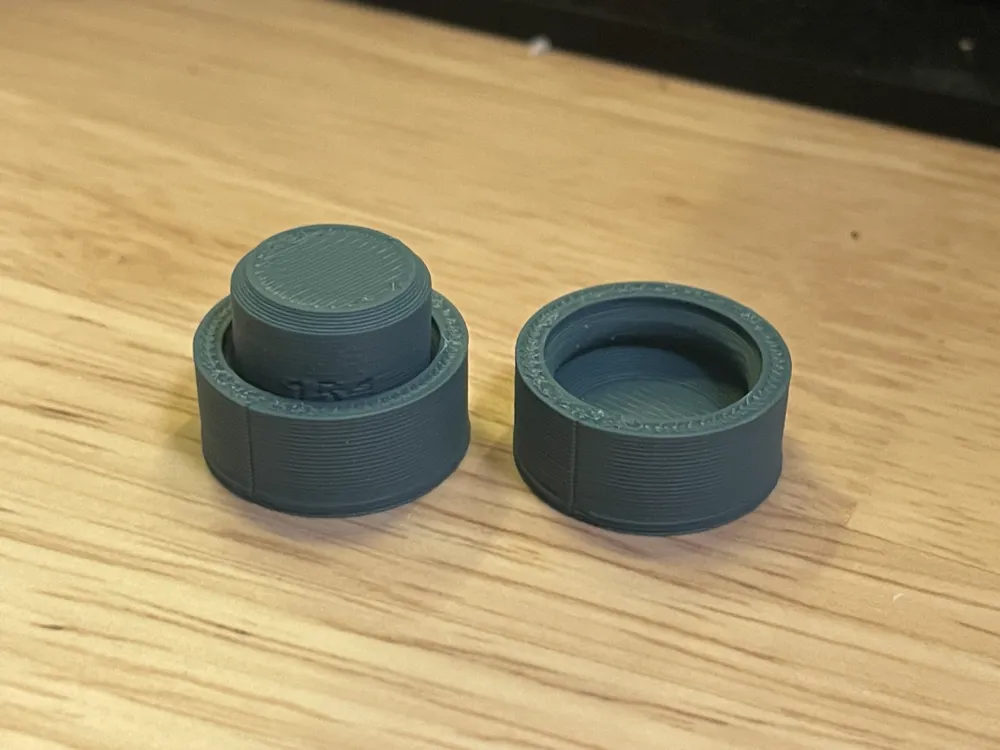

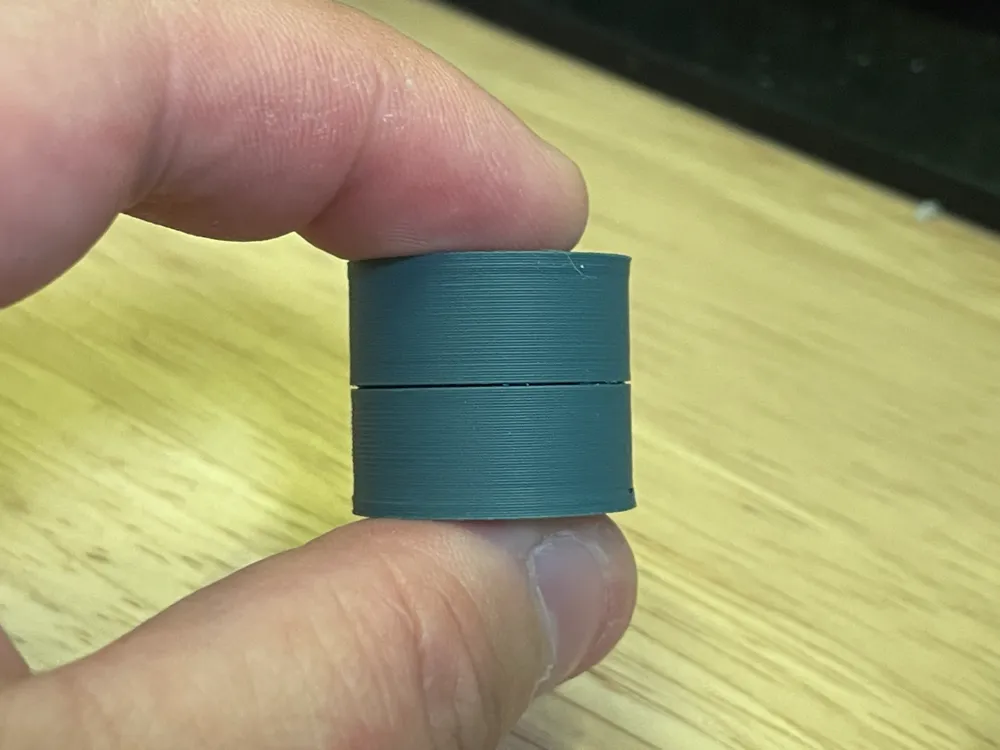

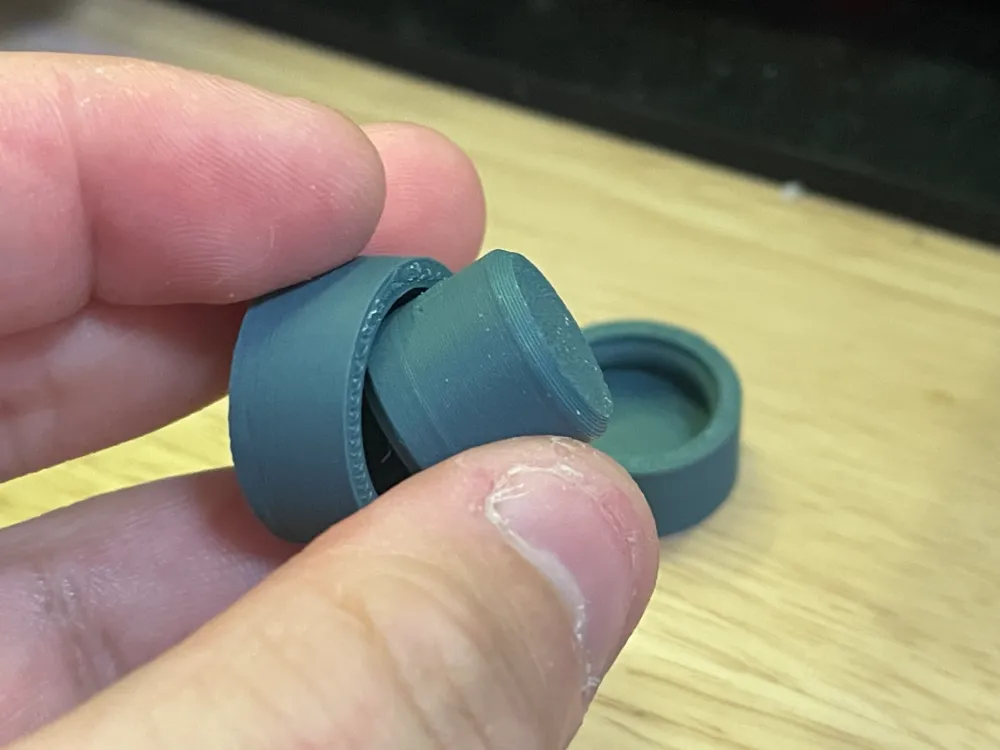

Current testing shows the 15.1 dowel pin achieves a tight fit without wobbling and can be manually separated (recommended)
Print time is approximately 20 minutes
Boost Me (for free)
"Do you like my models? Your support is my greatest motivation to keep moving forward! High-quality materials are quite costly, but with your help, I believe I can create even more stunning works. Thank you for your attention and support!"
Notes:
1. All parts are designed using FDM printing principles and are exported in the recommended orientation
2. For optimal fit, precise machine calibration is strongly recommended
Test Parameters:
2 walls, 5 top layers, 4 bottom layers, 15% infill (lower infill may damage the assembly)
Nozzle 210°C
Bed 65°C
Test Filament:
spidermaker_PLA
Finally, I wish you a pleasant printing experience. If you enjoy these designs, please follow me, as I will design more interesting models when I have time
Please leave a message if you have any questions, thank you!!
By HAN design
