Donny

cover

vacuum release.jpg

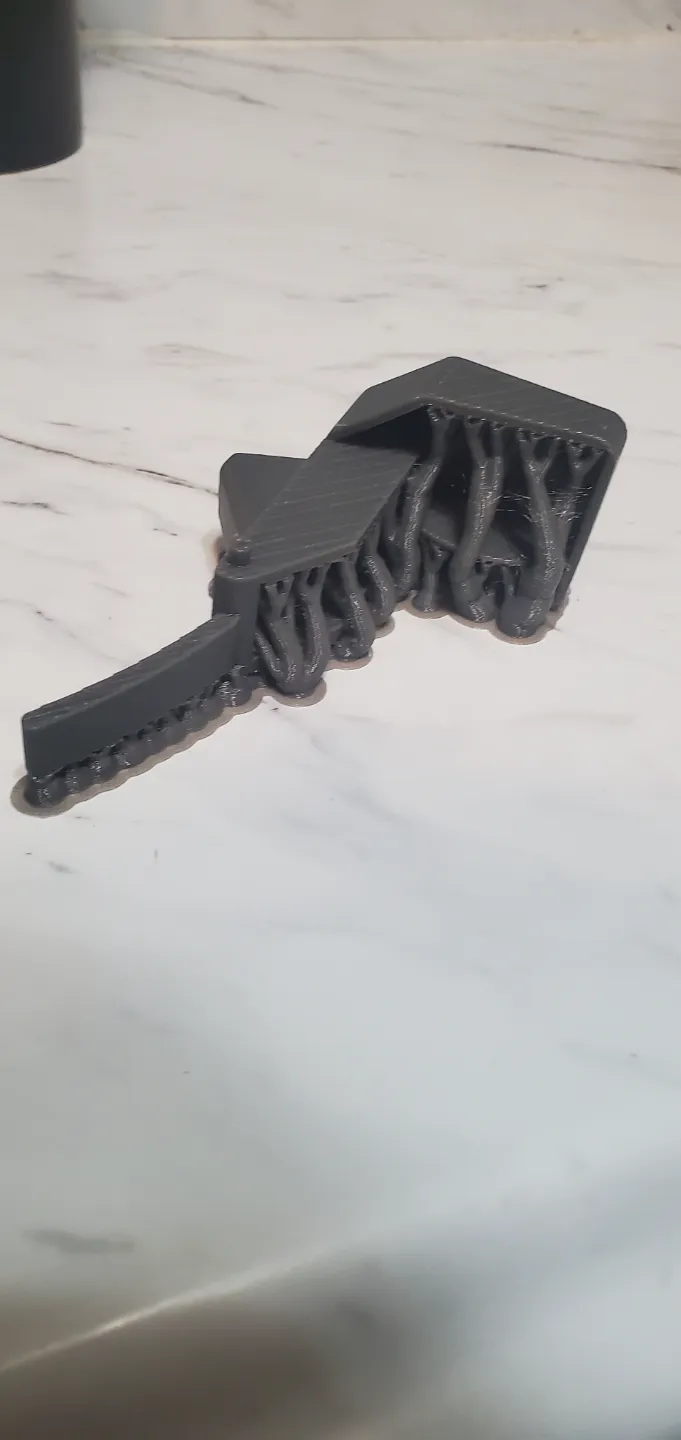

I printed with petg, because the catch uses the part itself to spring back into positionthe model should be printed sideways, the supports are kind of a pain to remove but sideways is the best orientation for strength of the lateral layer lines of the spring part.20 infill 15%2 walls or 3 gyroid or cross hatch if using petgand of course, supports, I prefer tree

0.2mm layer, 2 walls, 15% infill

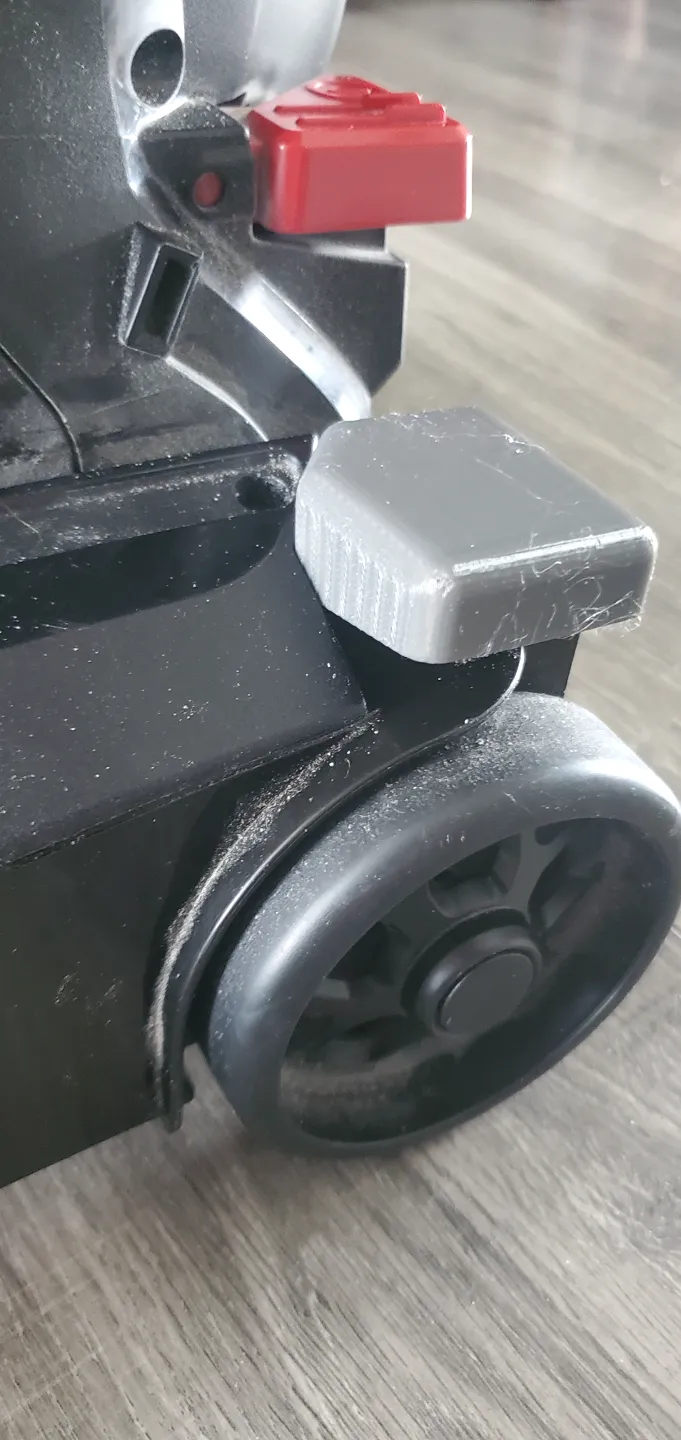

This is for the release to drop the vacuum into position for ofcourse vacuuming!specifically, for a bissell power force turbo pet, but im sure other models use this part.Hopefully you can use this part to fix your vacuum as well&nbsp;

Vacuum Release/Catch
