Bambu Tool Box

Multi-storage box for Bambu parts.

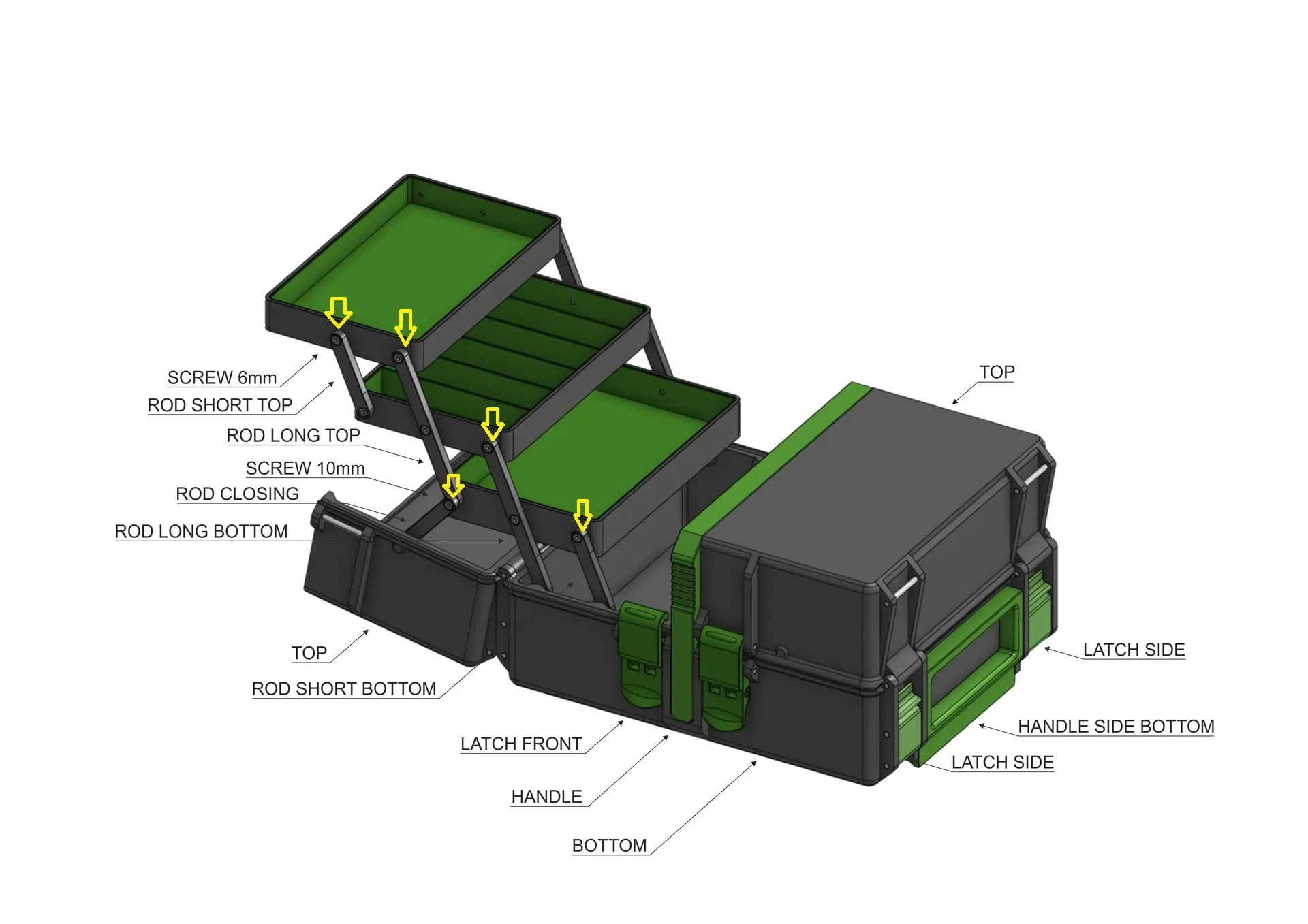

I marked the top of the bars with a yellow arrow, on the construction sheet, and also on the assembly picture!You have to pay attention to the correct installation, otherwise the box will get stuck!

I made three types of bottoms, you just have to print the one you like in the plan!

4 printing profiles, 1 from the bottom and 1 the top must also be printed for the box!

Assembly

list of non-printed parts

• 16 pcs - metal axis 36(35)mm x (2.8 - 3)mm or M3 screw with internal hex head
• 8 pcs - metal axis 39(40)mm x (2.8 - 3)mm or M3 screw with internal hex head
• 2 pcs - metal axis 24(25)mm x (2.8 - 3)mm or M3 screw with internal hex head (for top with handle)
• 40 pcs - 6mm M3 screw with internal hex head
• 4 pcs - 10mm M3 screw with internal hex head

  You can use Locating Dowel or Cylindrical Pins or Stainless Steel Shafts in M3 diameter (lengths 35mm, 40mm, 25mm), as metal axes.

Thank you for Willi | Printables.com creator of Babo organizer and Michal Fanta | Printables.com creator of sbox.If someone was missed, thank you.

See 3 bottom variant pictures.
