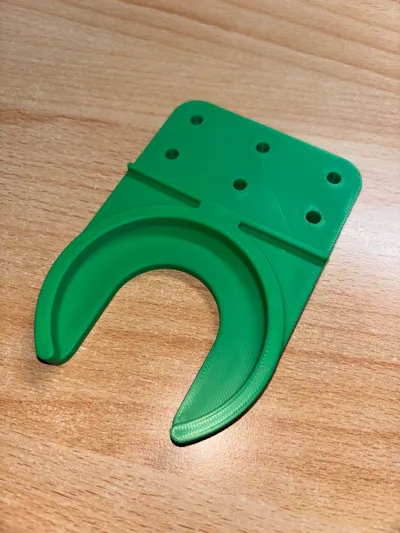

Simple holder for your workbench for easy access to the Festool D27/32 vacuum hose

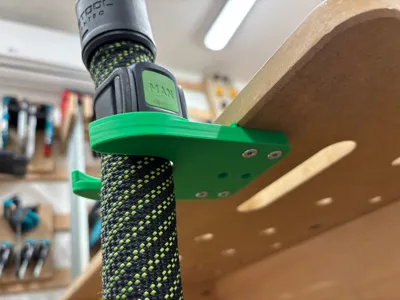

Mounts from the bottom to keep your workspace free (using 3-6 screws)
Designed for 2 holding positions: below the remote or below the hose end adapter
2 print profiles with (each) 2 versions included:
- High Strength Profile 6 walls / 25% (As the workshop is a rough environment and I expect that it is easy to bump against it (at least I will do for sure 😇), I designed the print profile for heavy strength). The weight and time difference to the Medium Profile is very minor, so I would recommend that one.
  - Plate 1 - Long Version: For workshop tabletops with >45 mm overhang
  - Plate 2 - Short Version: For workshop tabletops with >20 mm overhang
- Medium Strength Profile 4 walls / 15% (maybe you are less clumsy than I am 😆)
  - Plate 1 - Long Version: For workshop tabletops with >45 mm overhang
  - Plate 2 - Short Version: For workshop tabletops with >20 mm overhang

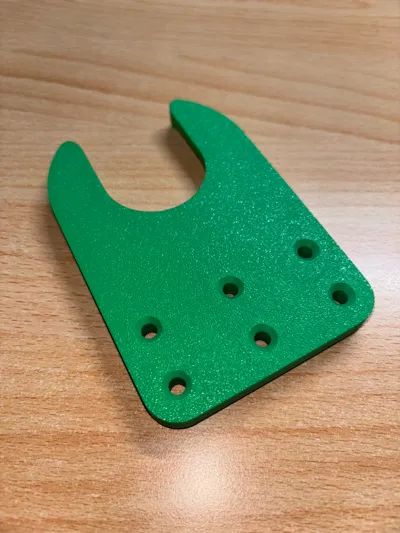

I optimized the screw holes for 4.5x25 mm countersunk Spax screws (which fits 18 mm/0.75" plates or thicker) but it will fit any countersink screw with <5 mm diameter
