Magnet Press Tool (D4 Magnet)

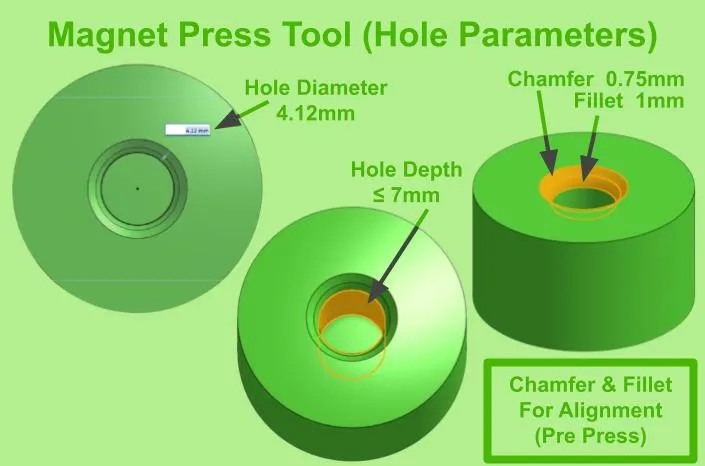

This Magnet Press Tool can be used to press fit magnets into 3D prints with ease. It is designed to work with magnets that have a diameter of 4mm however can be used to press magnets of larger diameters. And is designed to press magnets into print holes with a diameter of 4.12mm that have a fillet or chamfer to enable ease of aligning the magnet in place before using the tool (Outlined Below).

Main Features

Easily Printable Design - Lying on side face which adds extra strength to the press shaft as layer lines run with direction of force not against.

Press Shaft - The length of the press shaft is 7mm therefore enables the magnet to be pressed into a hole of up to 7mm in depth.

Third Prong On Handle - Enables the Magnet Press Tool to be placed upright on a solid surface and the part to be pushed down over it with the magnet positioned in the hole to be perfectly pressed into place.

Low Filament Cost - Requires only 0.51 grams of filament.

Magnet Application Instructions

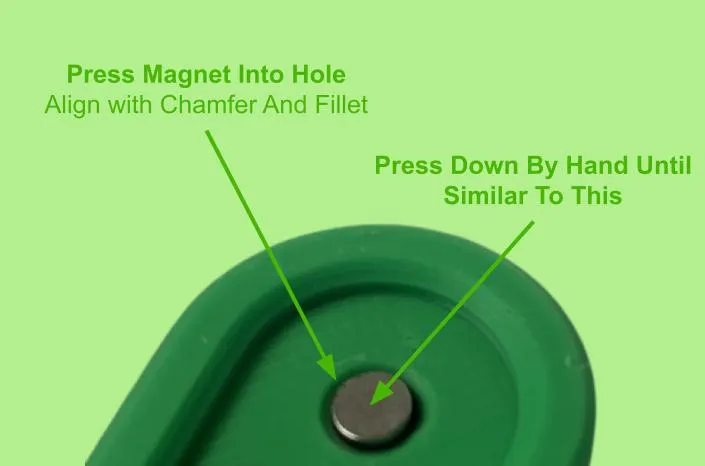

Step 1: Place magnet into hole and press down by hand until aligned within the fillet and chamfer.

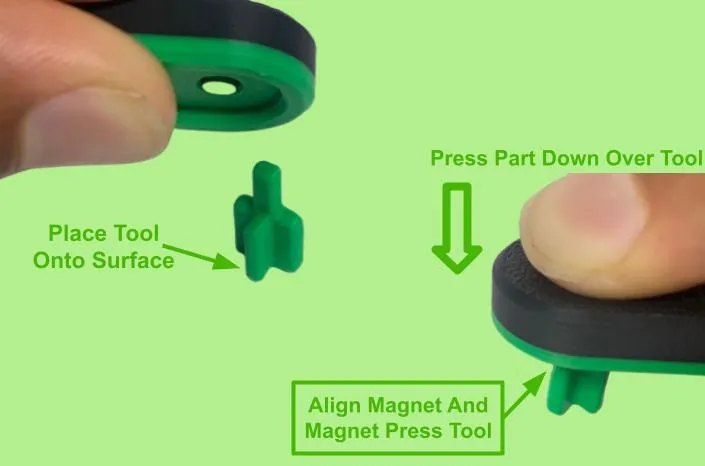

Step 2: Place Magnet Press Tool upright on surface then turn over part aligning the tool with the magnet in the part and pressing down.

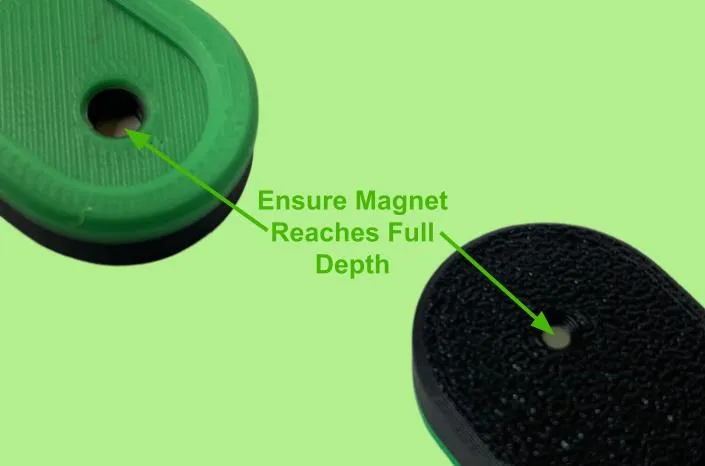

Step 3: Ensure Magnet has reached full depth of the recessed hole.

Application Complete

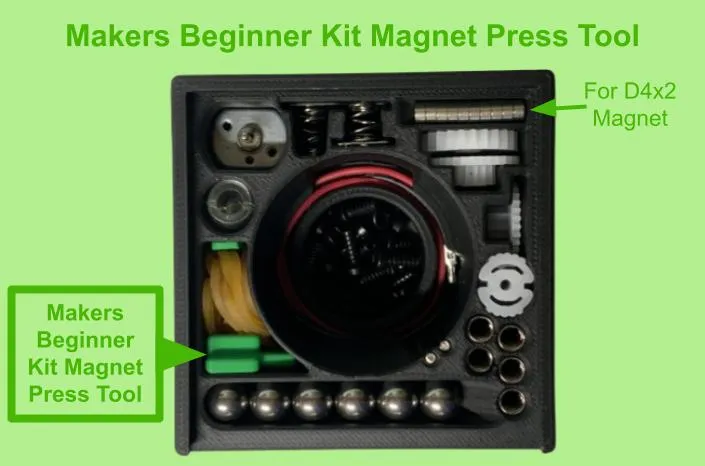

Accessory To (Maker's Beginner Kit Parts Organiser)

The Magnet Press Tool (D4 Magnet) is designed to be compact and fit within the parts organiser for the Makers Beginner Kit providing a detailed description of how to design parametric models to press fit D4 Magnets without the need for glue or other fastening agents. Project Link (https://makerworld.com/en/models/917206#profileId-878723)
