Stream Deck Sim Rig Mount

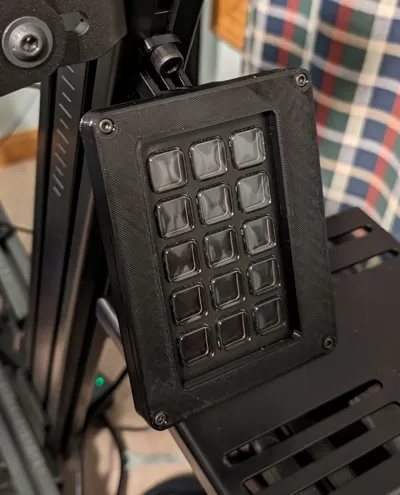

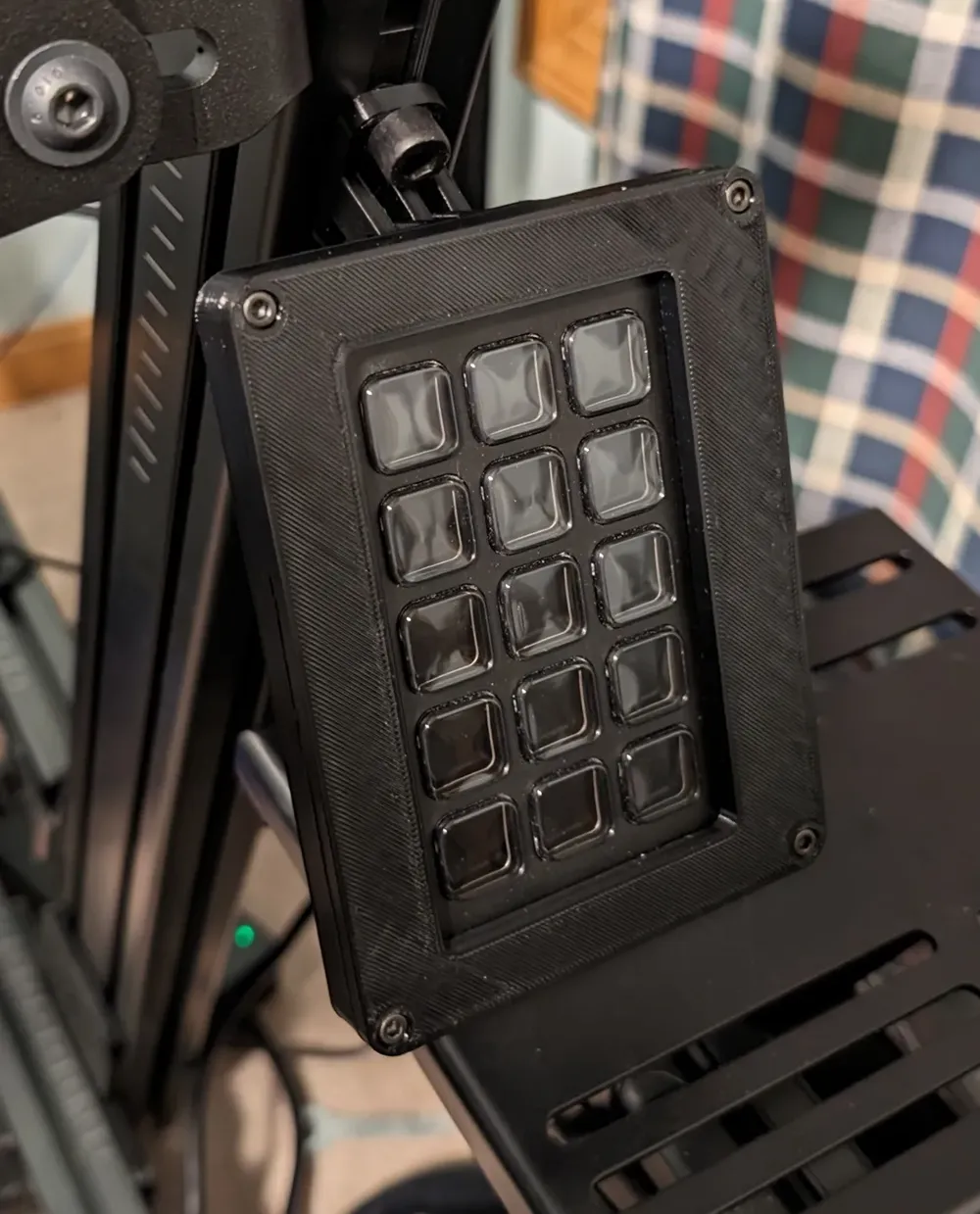

This mount sandwiches the Stream Deck between the two frame halves. The frame then attaches to an aluminum extrusion with a GoPro style mount allowing the angle to be adjusted. When everything is tightened down it is fairly rigid so it doesn't bounce around. There are also multiple holes on the back side of the bottom half of the frame to allow you to choose the orientation that best suits you or attach other items to the frame.

I have also included the Fusion360 file (has user parameters for hardware size) and step files if you feel you need to make any changes/remix the mount. I just ask that you submit it as a remix here just because I am interested to see the changes you make.

Requires:

• Frame
  • Four M3 x 8mm Screws
  • One M3 x 28mm Screw
  • Six M3 x 6mm Heat Set Threaded Inserts
• Mount
  • One M3 18mm Screw
  • One M3 Nut
  • Four M3 Washers (Optional)

Note:

• I used inserts from an assorted set by Hilitchi from Amazon. You may need to adjust the sizes if you inserts are too different from mine.
• You may want to add washers between the fingers of the mount halves to take up any slack and to make adjustment smoother (I do not use any but your milage may vary).
