Description

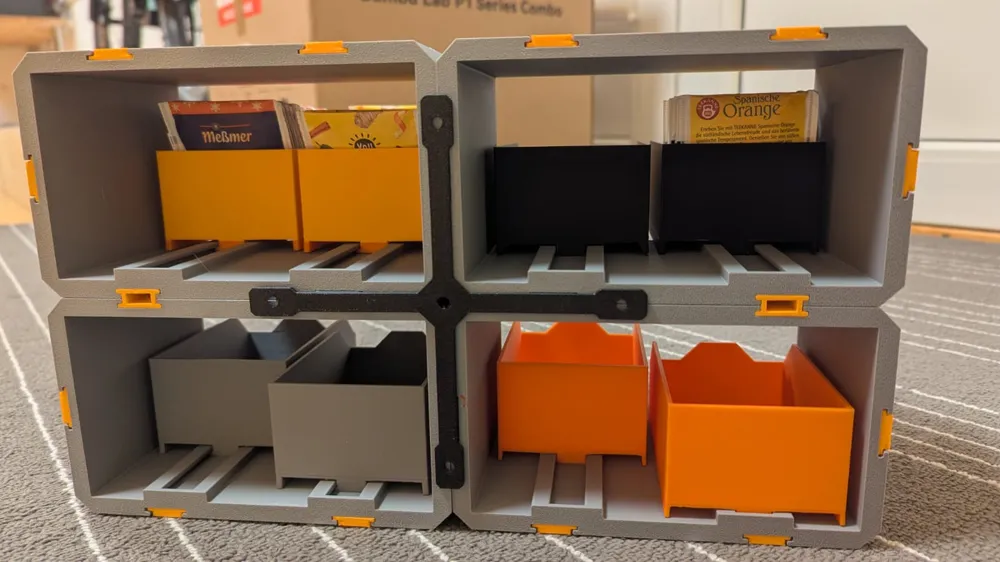

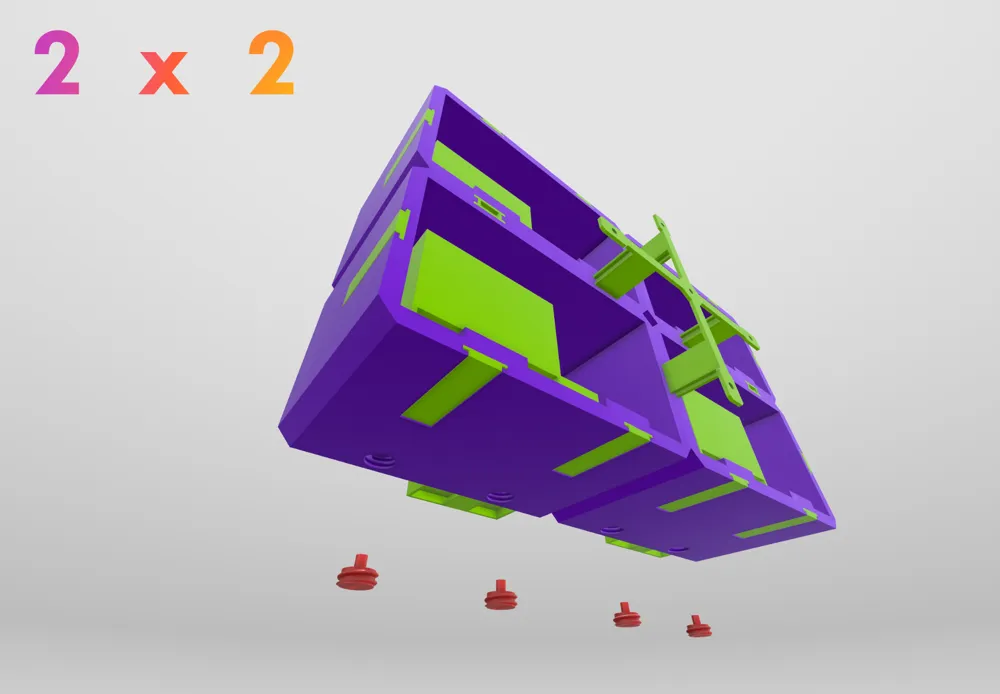

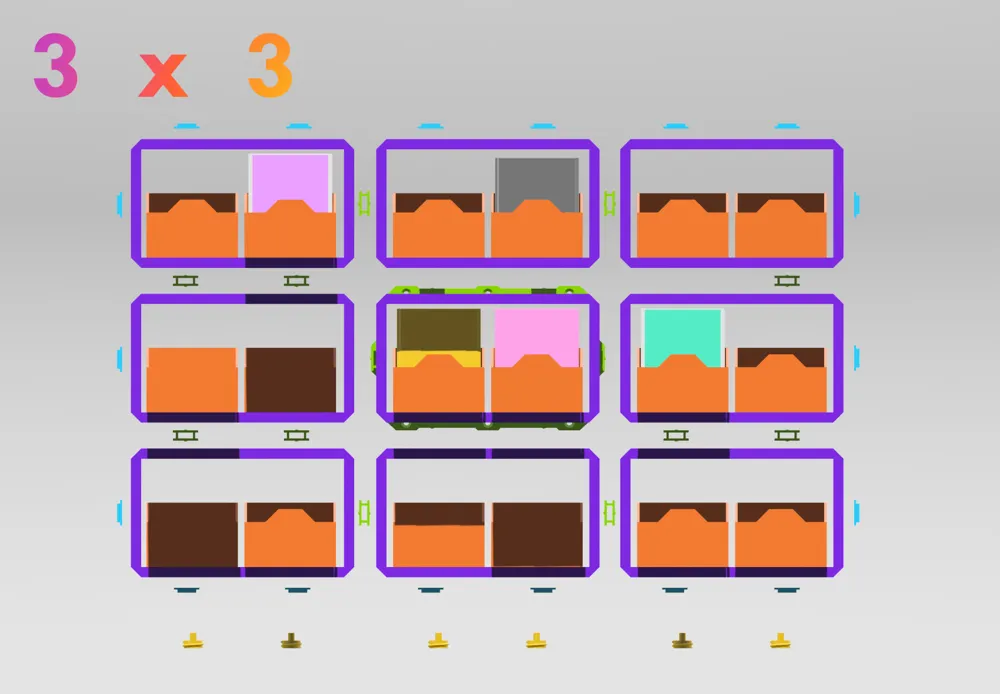

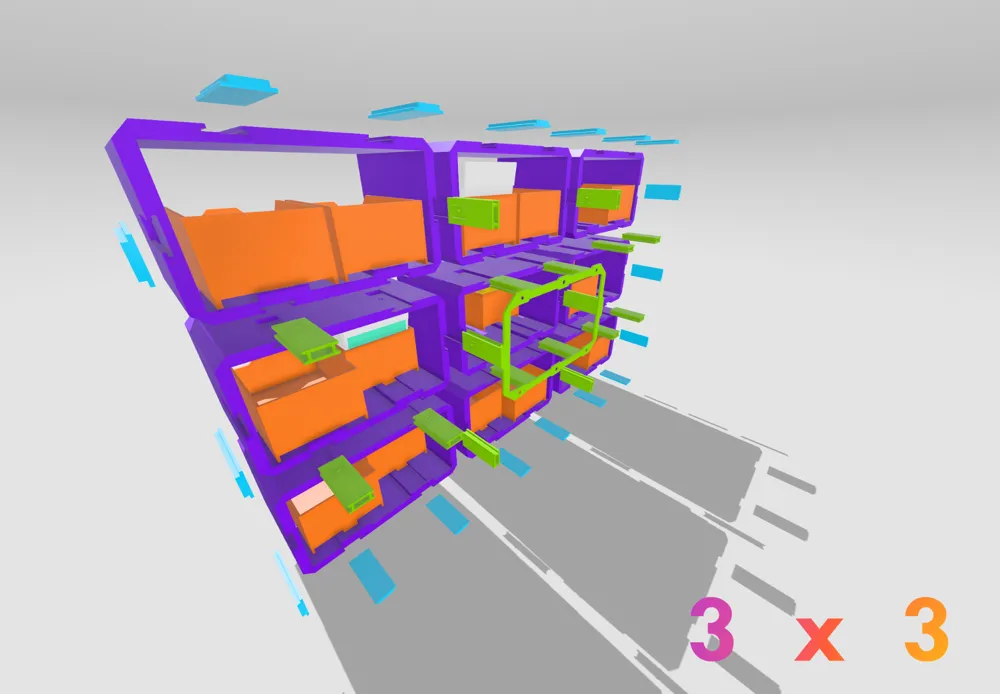

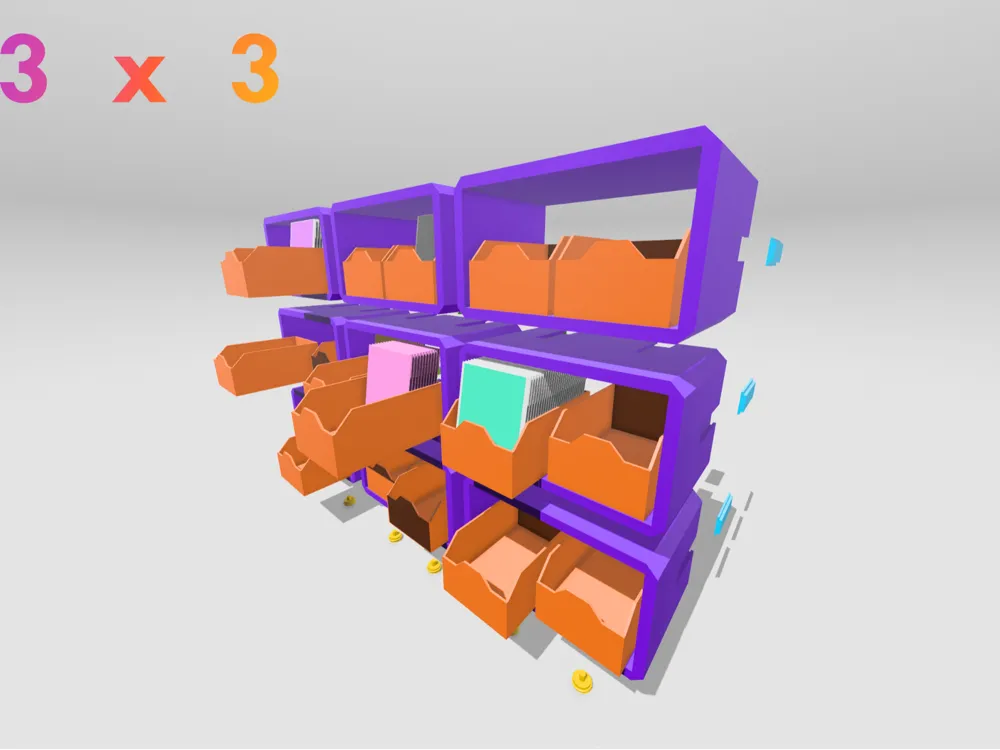

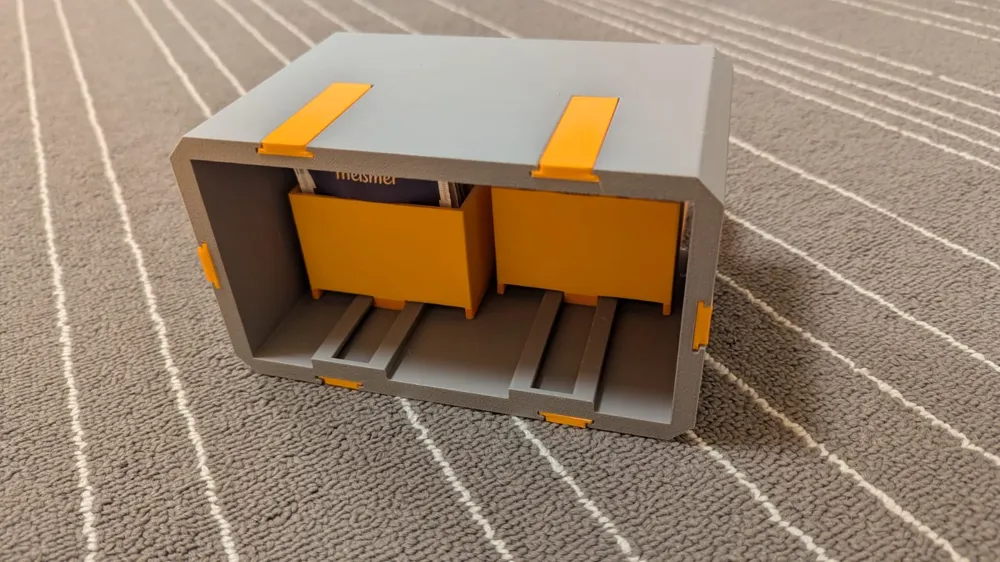

This is my first major project. It represents an organizer that can be adjusted to any size. It can be put together with connectors (clips). There are various wall mounts for different combinations with the boxes.

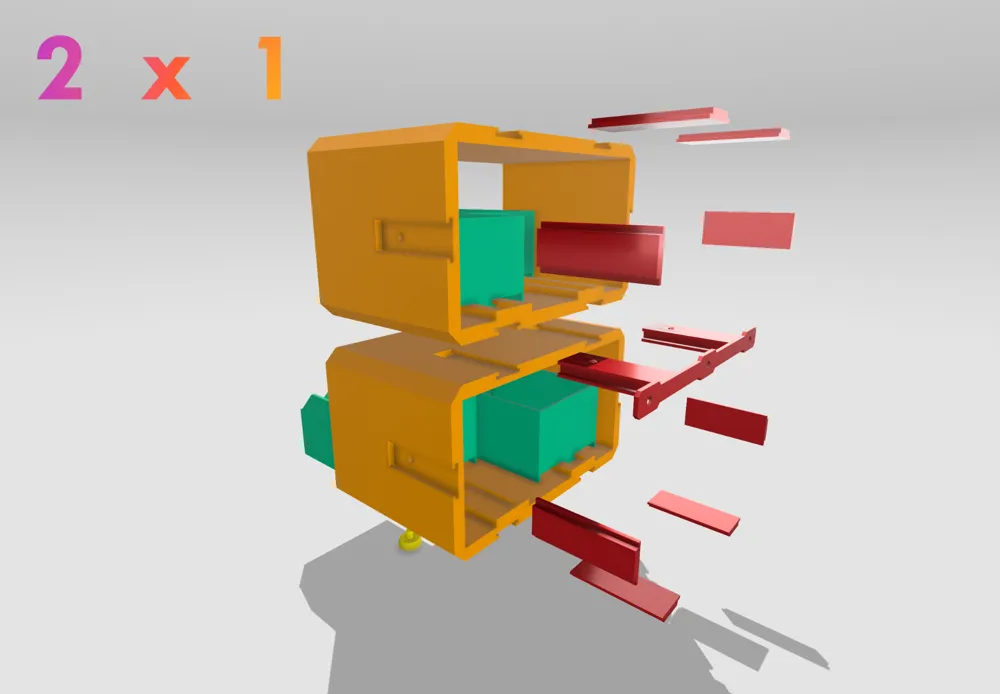

Depending on the printed seam, the connectors (clips) are sometimes tighter, sometimes less so.
I was able to adapt the parts to such an extent that most connections can be assembled and detached without much pressure. Some parts need to be pushed back and forth a few times to get them to work better.

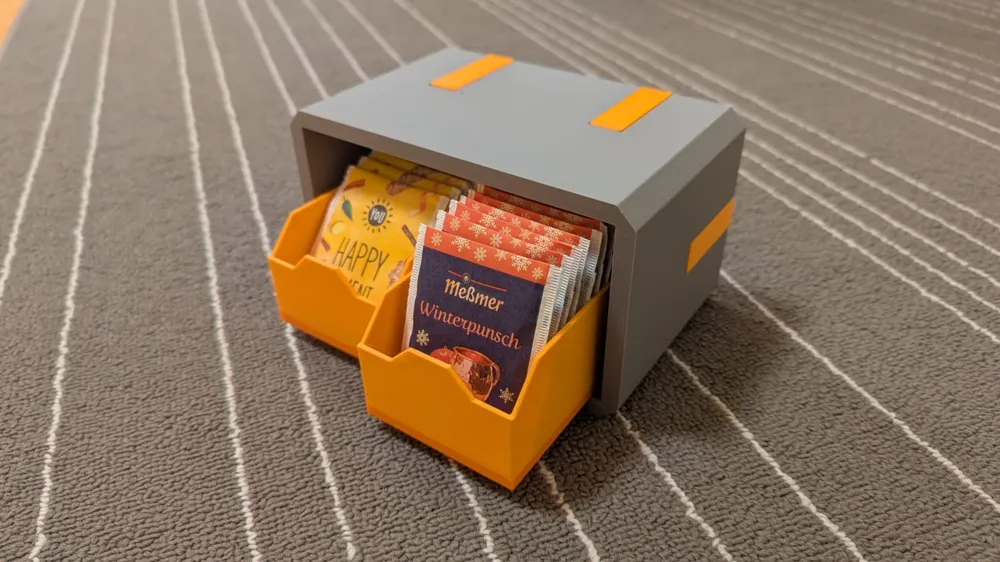

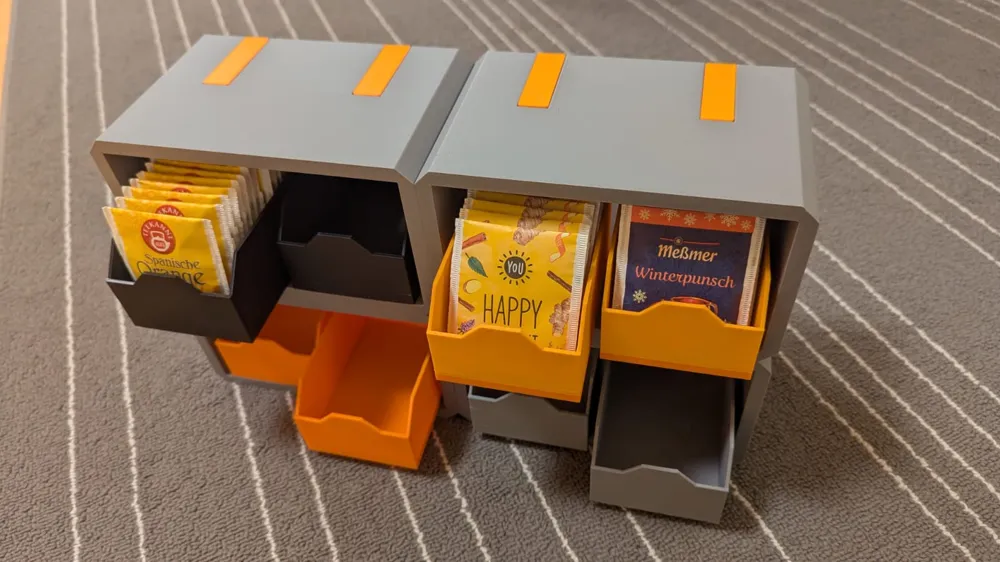

The drawers seemed a little austere at first. Move them back and forth a few times and then they fit.


The covers are deliberately designed to be loose. If the organizer is to be used free-standing, these can be attached with a little glue.

The project can be shared. You can also change it and do a remix.

I have attached blueprints for each part


It would be great if you gave me feedback for changes and suggestions.


Have fun


Documentation (5)

Other Files (5)
Box.pdf
Drawer.pdf
Komponenten TeaOrganizer.pdf
Wallmounts.pdf
Zubehör.pdf
