Description

Based on great work from AMS lite Tubes and Cable Helper



Strongly recommend printing this model in PETG because it is more durable and flexible than PLA which allows for mounting and dismounting without issues. The original model has problems with legs in PLA that just break when dismounting.



What this model improves to the original:

  • Lighter - multiple holes to minimize filament use but maintain similar stiffness and durability.
  • Stronger - multiple enforcements like:

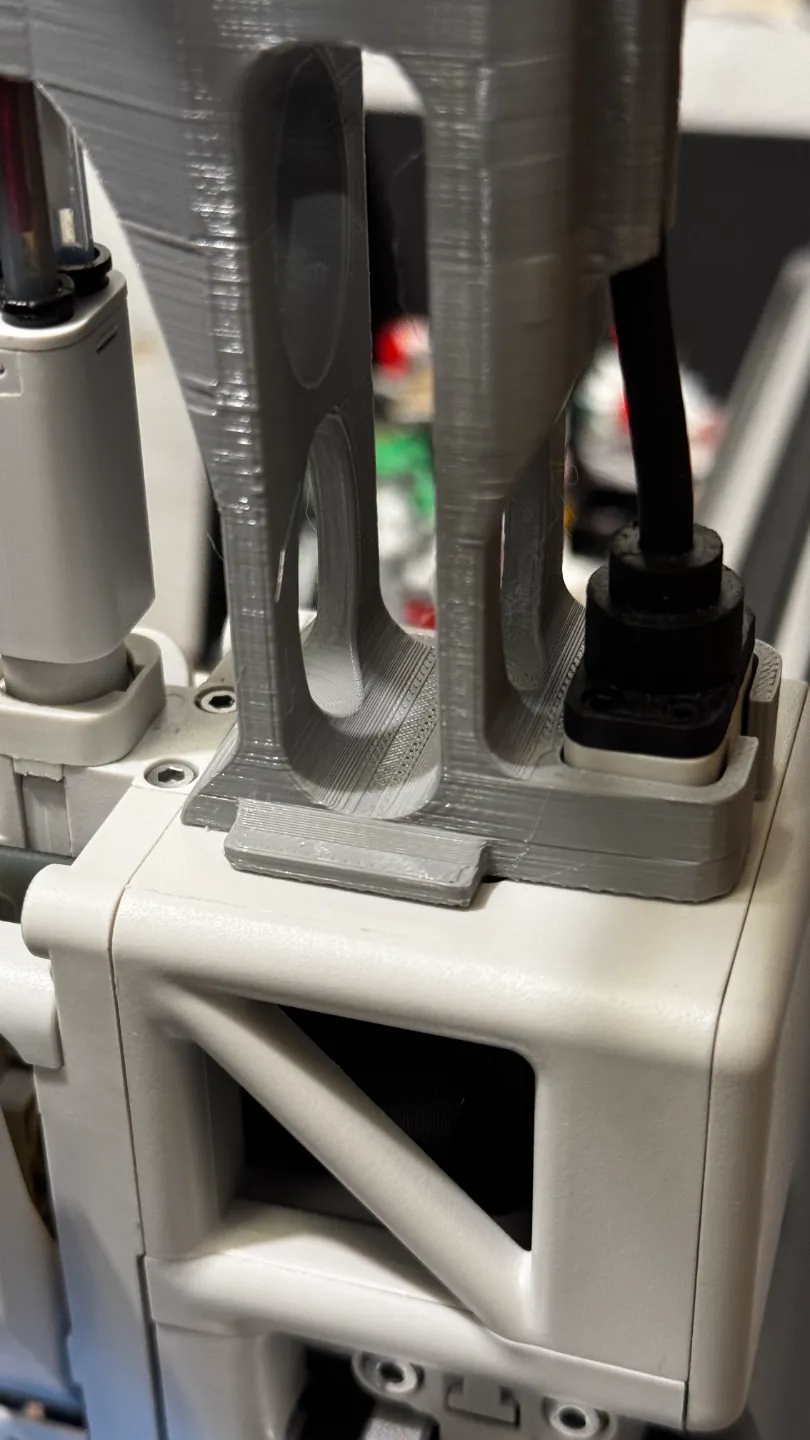

    • Legs - additional top horizontal wings to minimize the possibility of braking legs when mounting or dismounting. Also greatly improves stiffness when mounted.
    • Top tower - taller top which allows tubes to be more straight even in maximum printing position, minimizing too much bending of filament and PTFE tubes.

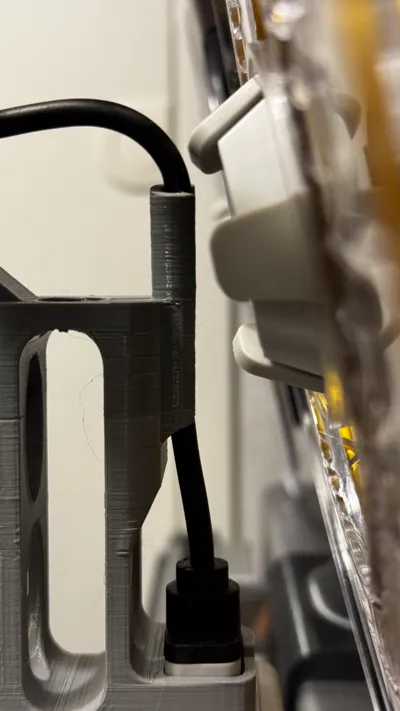

  • The cable holder is now closer to the main body which improves over the original and does not touch the AMS lite even in maximum printing position.
  • Holes for PTFE tubes are bigger allowing them to move freely when the AMS splitter hub needs it, almost just like without an adapter.
