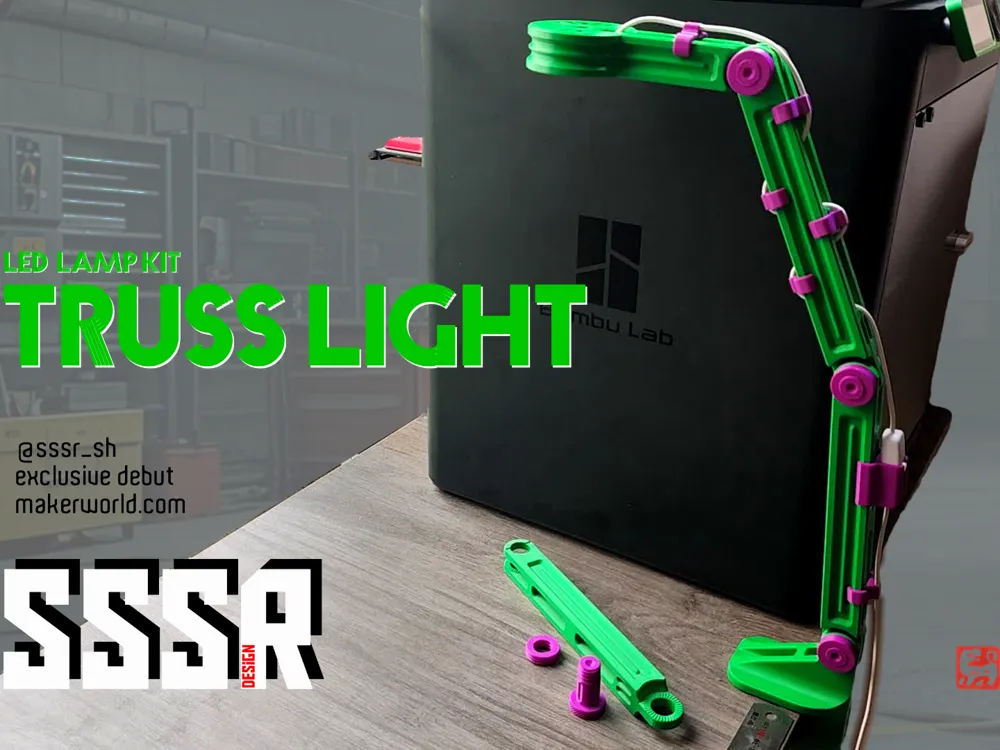

Truss Light

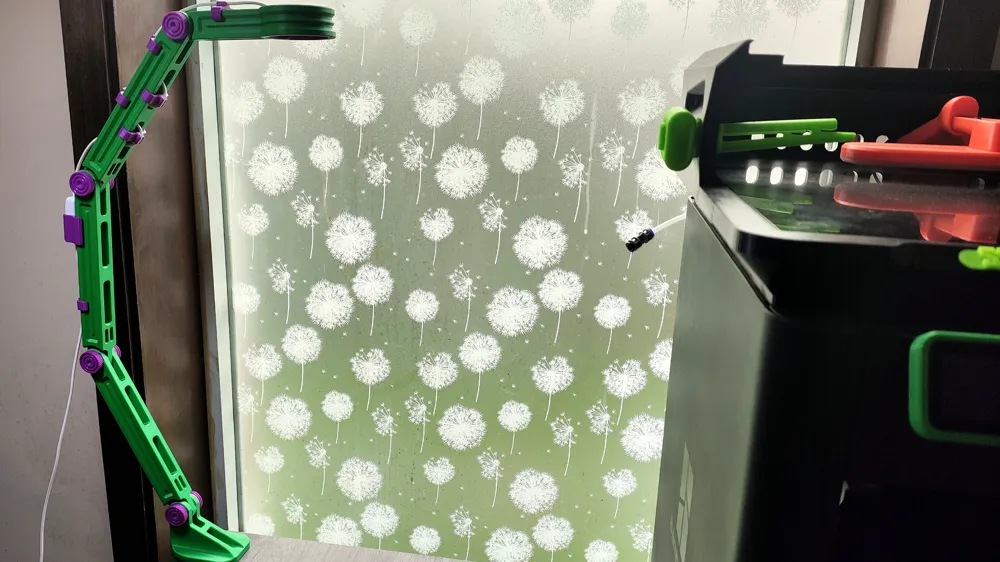

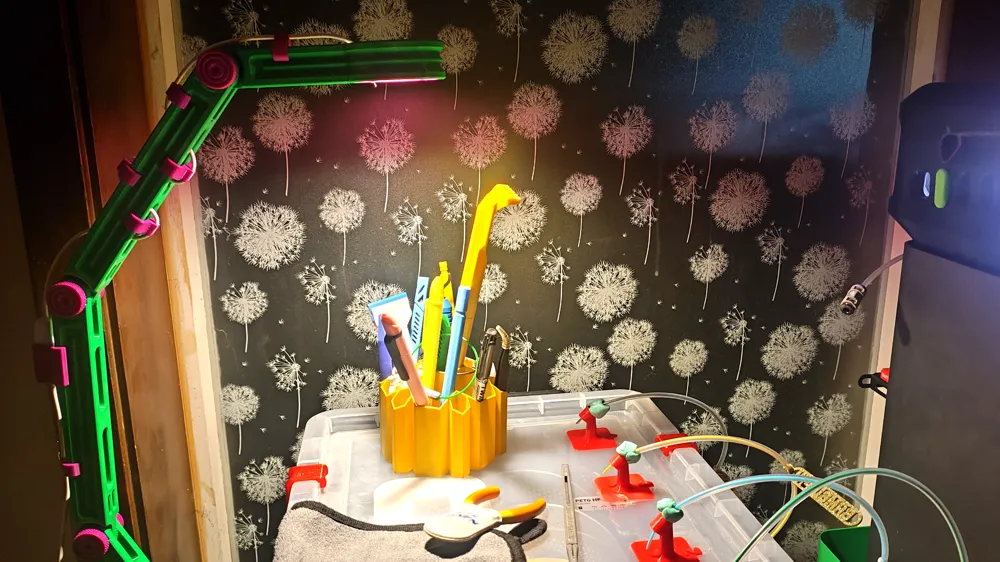

Desktop Work Lamp with Truss Frame Structure.

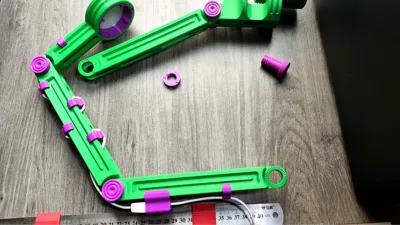

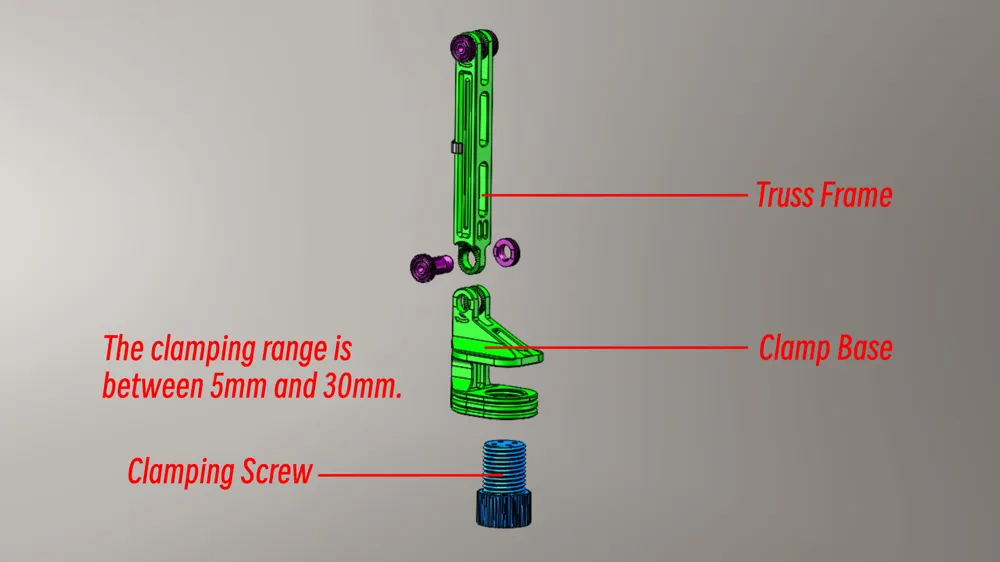

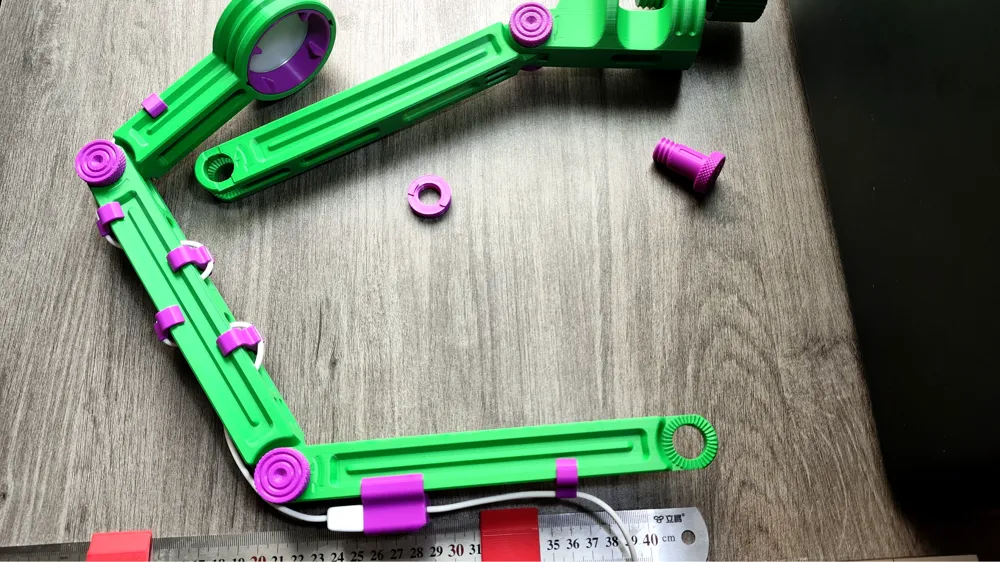

The height can be adjusted by adding or removing "Truss Frames" as needed.

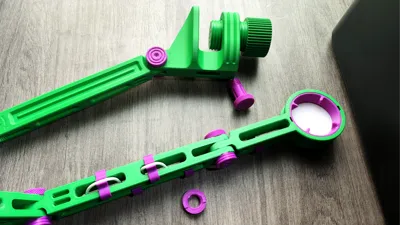

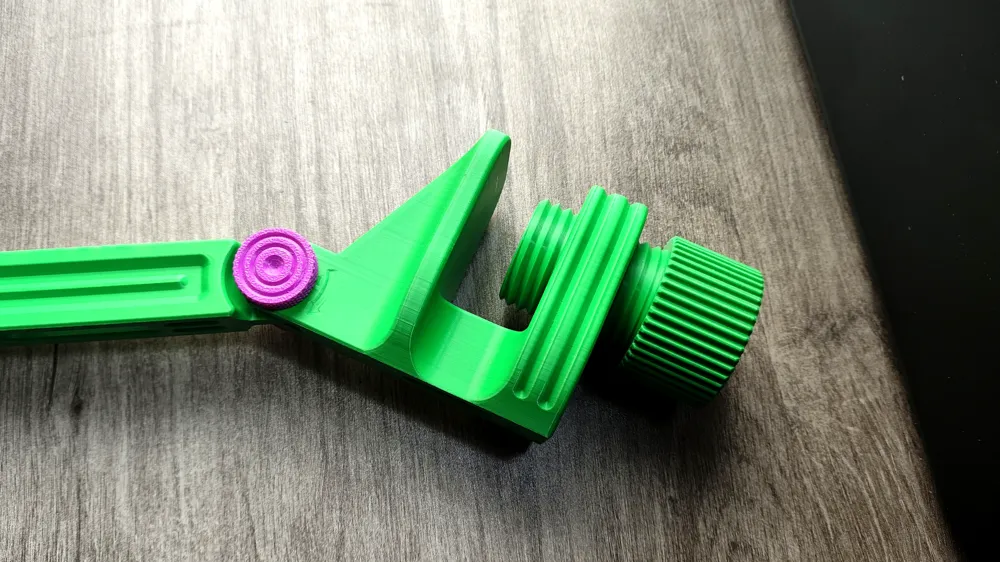

The angle is locked using bolts, nuts, and friction surfaces.

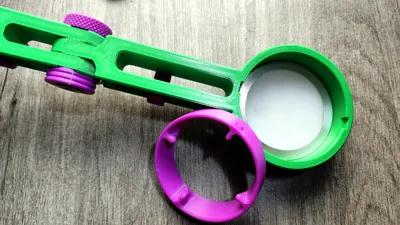

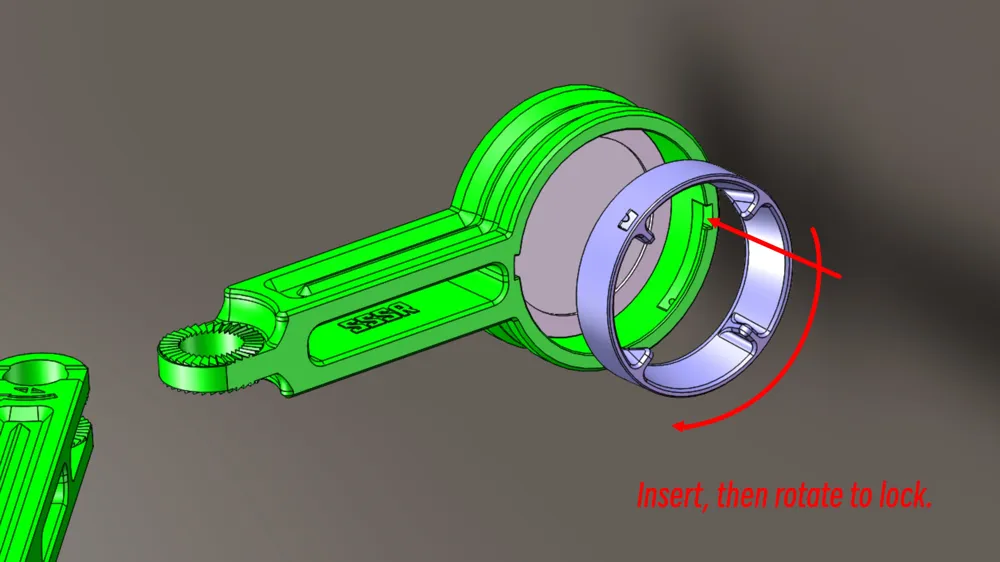

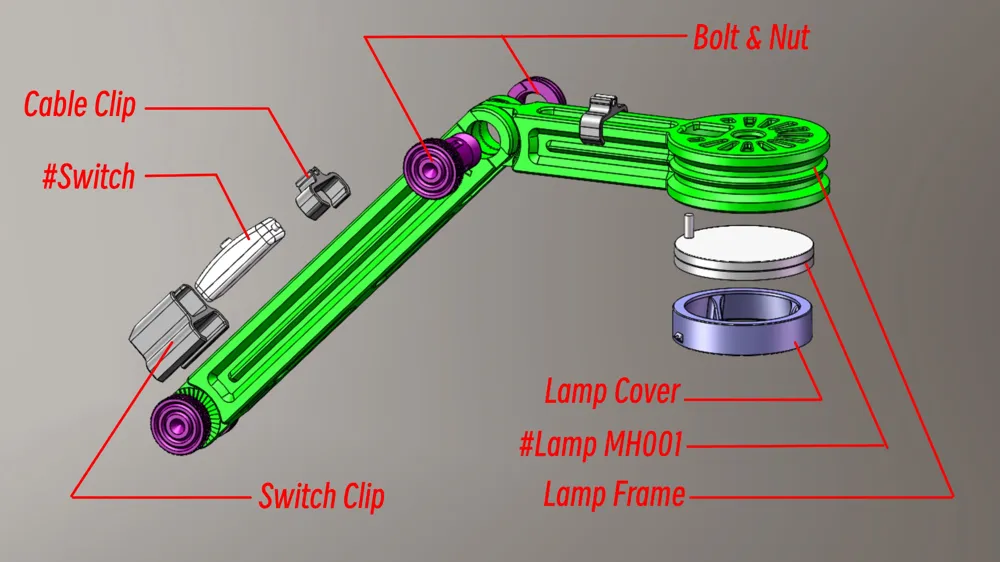

Easy to assemble: the lamp head is secured with a quick twist-lock mechanism.

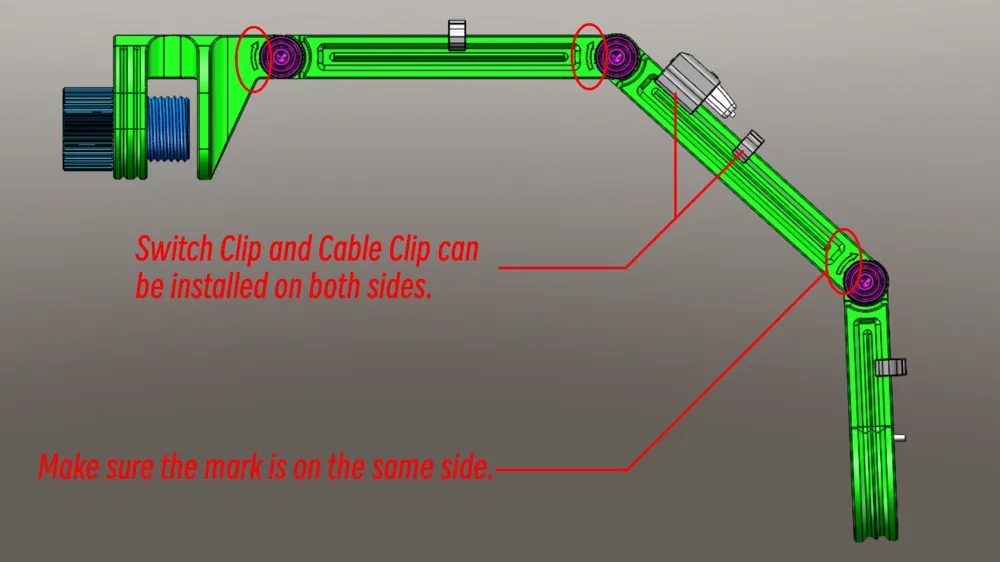

Switch Clip and Cable Clip can be installed on both sides.
Make sure the mark is on the same side.
Designed for use with the [Bambu Lamp Kit 001].
The entire structure requires no glue or metal components for assembly.

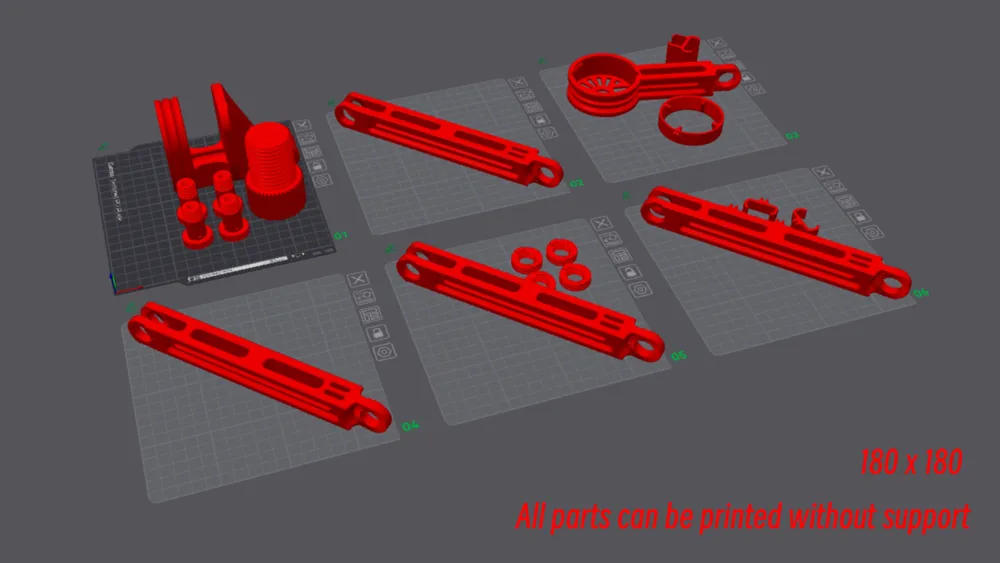

Compatible with the A1 Mini's 180mm print platform.

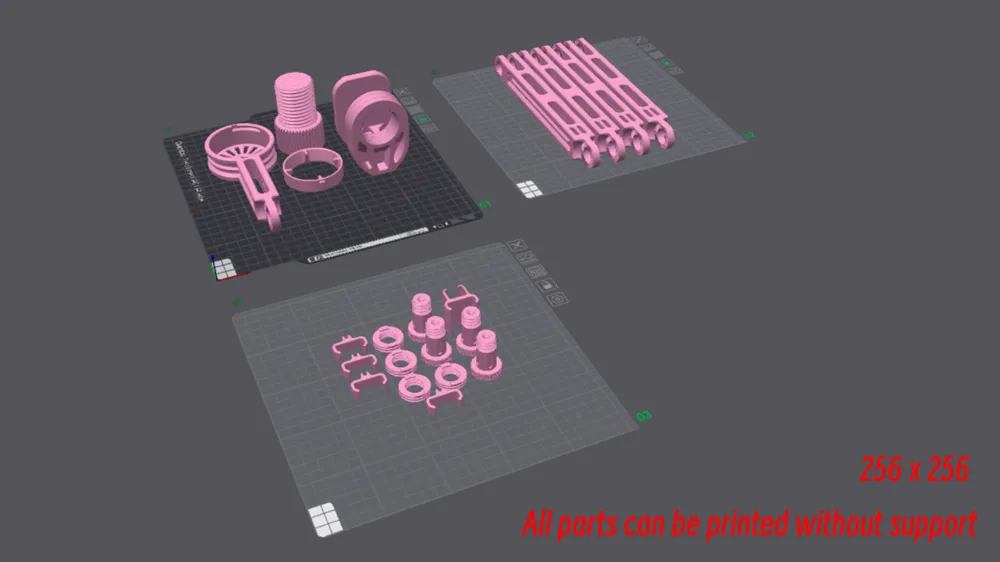

All parts can be printed without support.
Recommended Material: PETG
=================================================================================
2025.03.27 Update

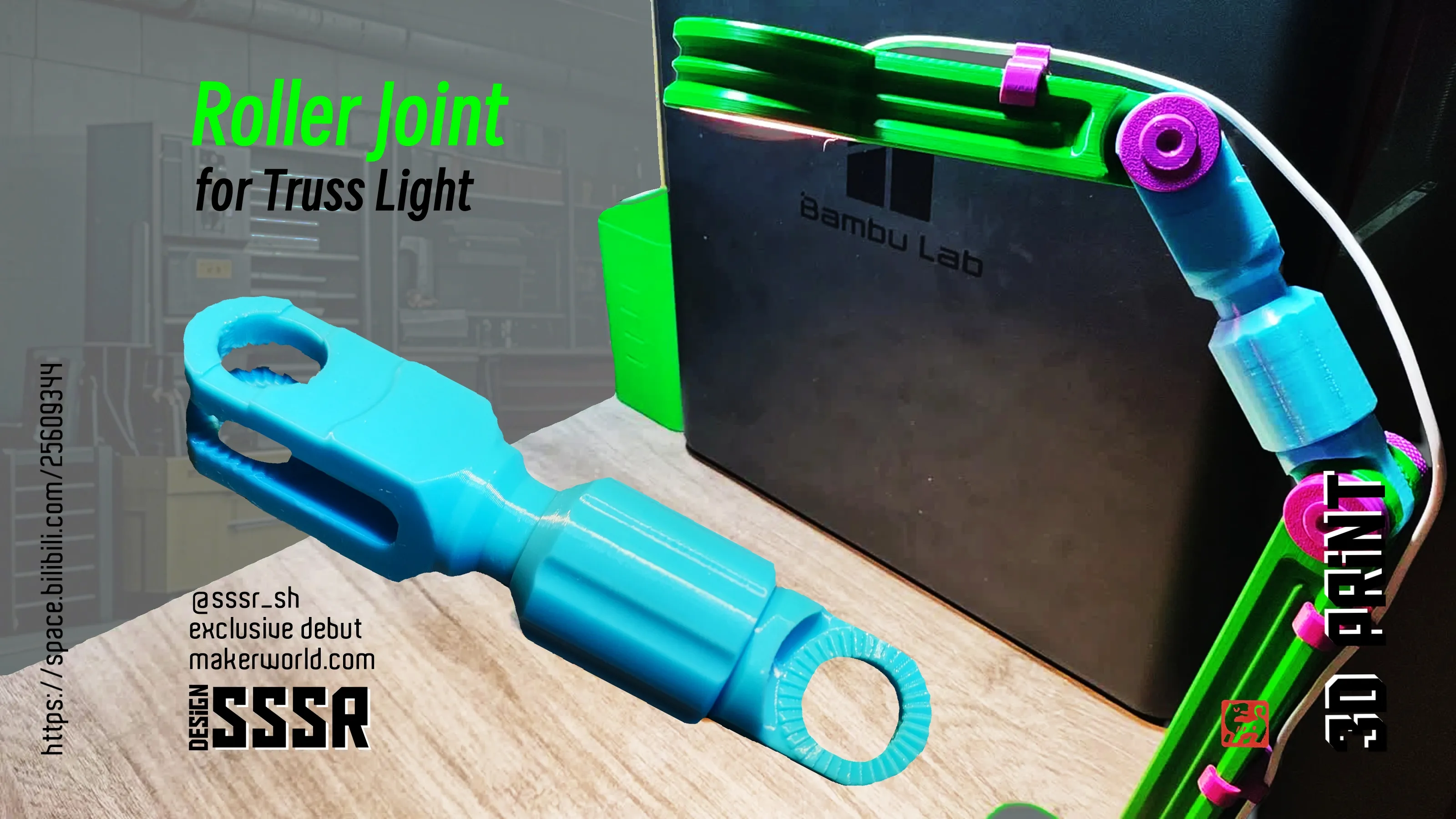

After the release of Truss Light, many fans wanted an additional rotation direction since it could only rotate in one degree of freedom. So, I designed this Roller Joint. Now, Truss Light has two degrees of rotational freedom. By combining multiple Roller Joints, it can achieve more adjustable positions to better meet various placement requirements.
https://makerworld.com/zh/models/1252346-roller-joint-for-truss-light#profileId-1275106
