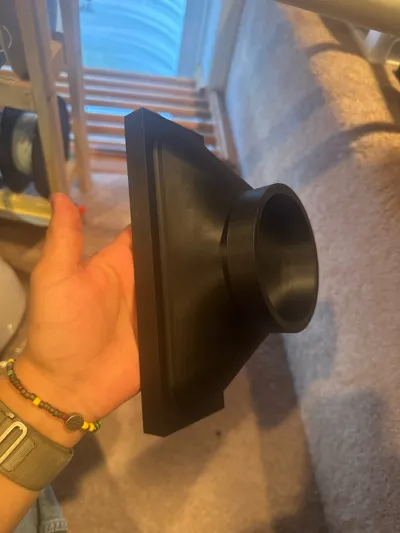

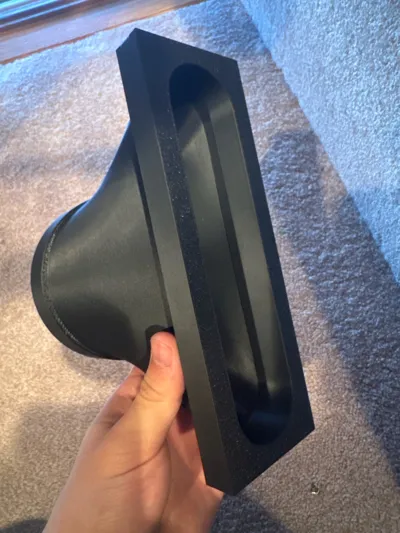

Window Adapter to connect 4" Ducting to a 35" window.

Window Pieces connect with 8x2mm magnets.

Window Pieces are 8.5" long. Final piece is 1" long to fill the crack. All intermediate pieces can be scaled in the X Dimension to fit your window size, do not scale the Window Adapter as it connects to the Ducting.

Comment & Rating (113)

@EricMakesStuff

Print Profile

0.24mm layer, 2 walls, 15% infill

clean print 4” dryer hose fits great

@user_1582600765

how are you connecting the 4” flex to the printer? I have the X1C

@EricMakesStuff

Replying to @user_1582600765 :

I printed a 90° vent hose adapter similar to https://makerworld.com/en/models/460730-p1s-x1c-with-ams-hub-exhaust-vent-4-hose-adapter?from=search#profileId-369283 and connected between the two.

@JLMIS_Designs

Boosted

Boosted. Love the design, solves a particular problem I was trying to figure out. However, what is the object on the first plate for? Saw the holes, saw the numbers, still not sure what it is for.

The designer has replied

@Howlingmuffin

It was a part I made to check tolerances on the magnet holes. I forgot to remove it from the project before uploading it.

@user_522956681

Print Profile

0.24mm layer, 2 walls, 15% infill

haven’t installed it yet but printed great with no issues. I used abs-gf and still came out just fine even though the profile is for PLA. instead of magnets for most connections I used some printed 8x4 pucks to permanently attach

@user_4289675391

Boosted

Worked great. Had to adjust the size to fit a 37” window and the magnet holes were tweaked slightly, but a very nice low profile solution for our laser cutter exhaust.

(Edited)

@HausofTaiT

Print Profile

0.24mm layer, 2 walls, 15% infill

really great.

@Hydra.Mac0801

Can someone please explain why the circular magnet holes are slightly oblong? The magnets do not fit inside the hole, I want to make sure there's not an issue before I print the rest of the pieces.

@Rc4Life2020

Print Profile

0.24mm layer, 2 walls, 15% infill

Printed in ABS from the BambuHandy app using the provided print profile. It printed beautifully and works well. Thanks for the great design!

@kendorama

magnets don't fit in the holes

@user_431674828

Boosted

I've not boosted anyone before but you get one from me for this design. Much cleaner setup for me now. Still not wife approved but I like it vs the metal window inserts. Printed pla+. I printed two air vents, one for the AC and the other for the printer exhaust fumes. Thank you.

(Edited)

@user_3691428256

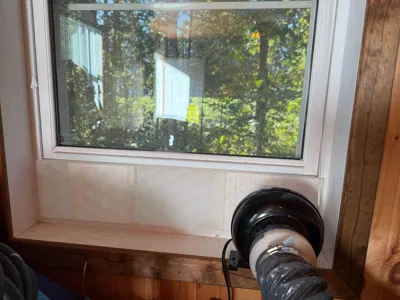

love this! worked perfectly to exhaust my laser printed out of translucent, ( white basically) pla+. I will add some weather stripping to keep it a bit more airtight but I was able to print a piece that had female on both ends and the female ends fit quite well in my window. I appreciate this a lot! saved me another Amazon order. I have included pics of the finished product and with it hooked up to the inline fan
