Description

NOTE:

  • Please read the instruction guide below
  • I do my best to double-check and test the print profile I create. They are up to date with whatever changes I made to the designs. If you are using profiles made by others, please check if they are updated.



INTRODUCTION

This pair of stabilization brackets for the A1 will help reduce the wobbling when you install the AMS lite at the top gantry.



Compatible with the A1 Purge Management System (PMS)



Easy, fast to print and uses only 35gm of filament. I have been using it with the GRIP bracket and PMS. No issue to date for normal operations of the printer.







INSTRUCTIONS

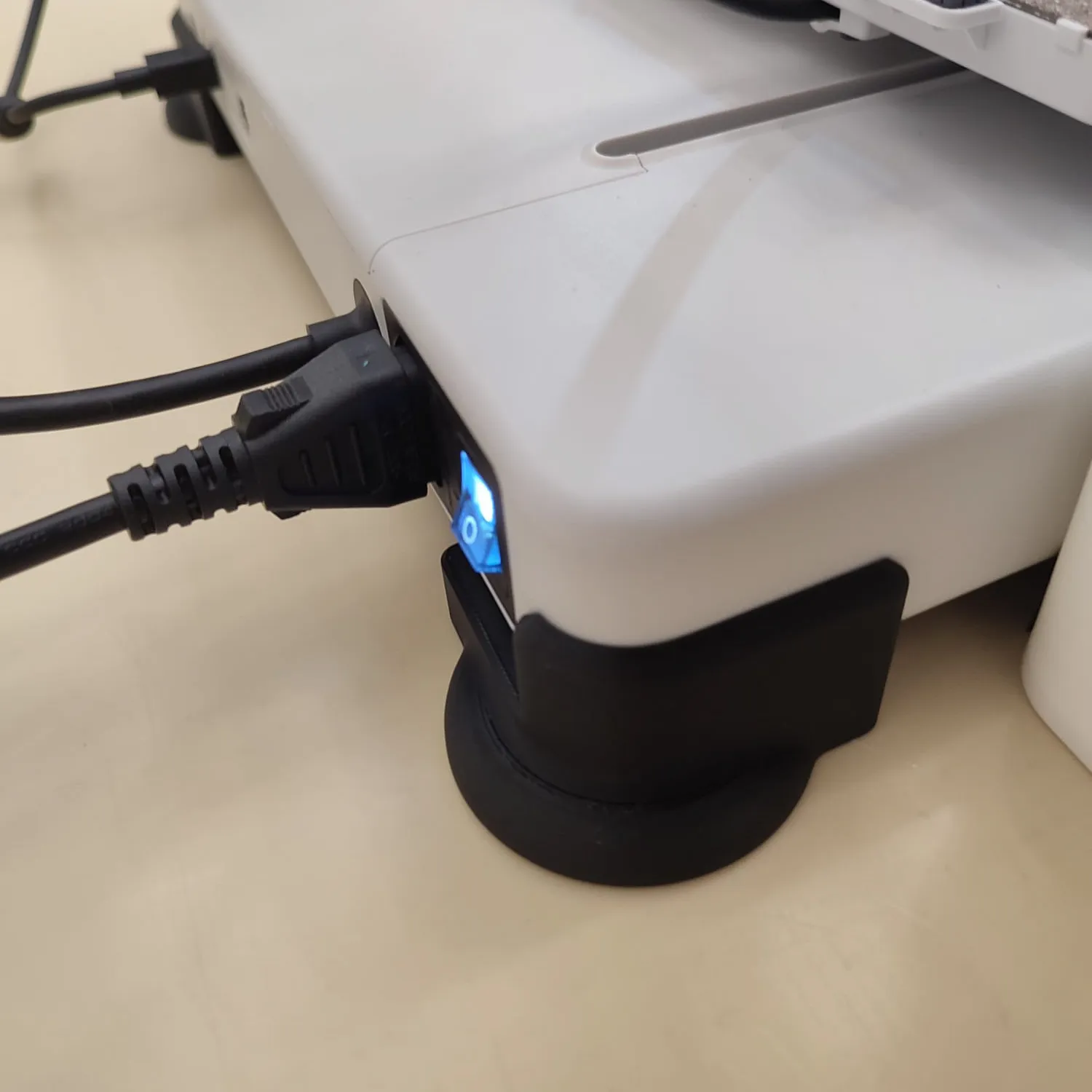

  • There are 2 brackets, left and right. The left version has space allocation for the switch.
  • Print out the parts in PLA or PETG.

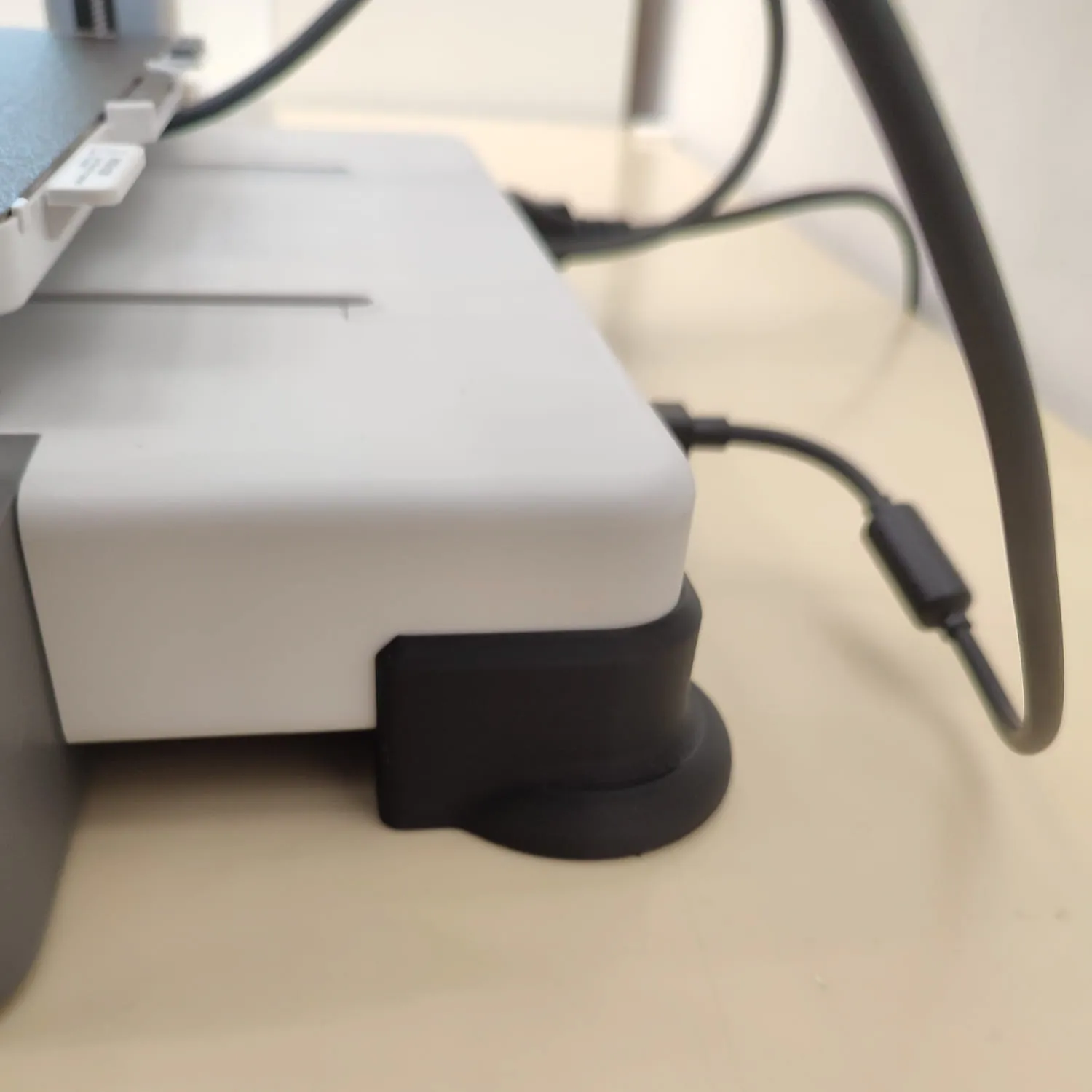

  • It should fit snugly to the curve at the rear (see images above)
  • Use thin double-sided tape to improve adhesion
  • Simple and effective.

CONCLUSION

To date, my designs are free to download and use. There is no Patreon or OnlyFan (hahaha). If you like my designs and wish to contribute to my coffee addiction & help fund the filaments and materials needed for prototyping, a donation of $5-$10 to Ko-fi or paypal.me will be greatly appreciated.



CAVEAT

As with all my designs, Prototyping and testing were conducted to ensure printability and meet my own expectations. However, I understand it may and may not work for you. I would request that you read all instructions and print and install them at your own discretion.
