AUDI LightBox
Print Profile(1)
Description
Total length 51 cm

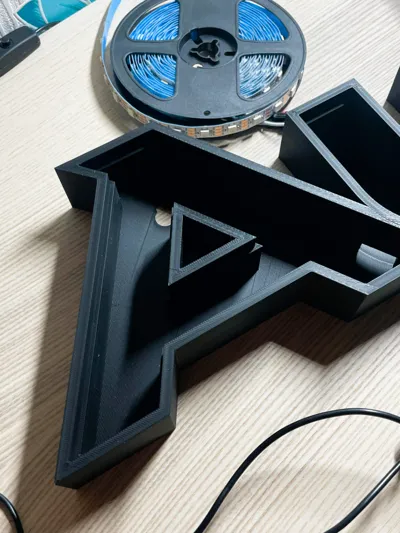

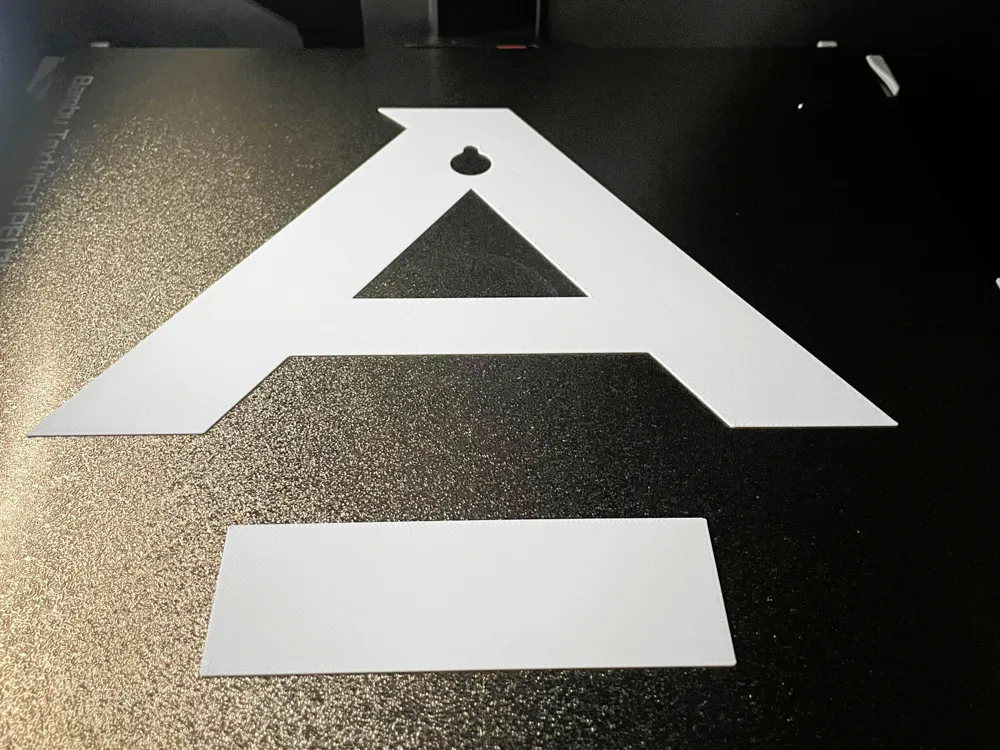

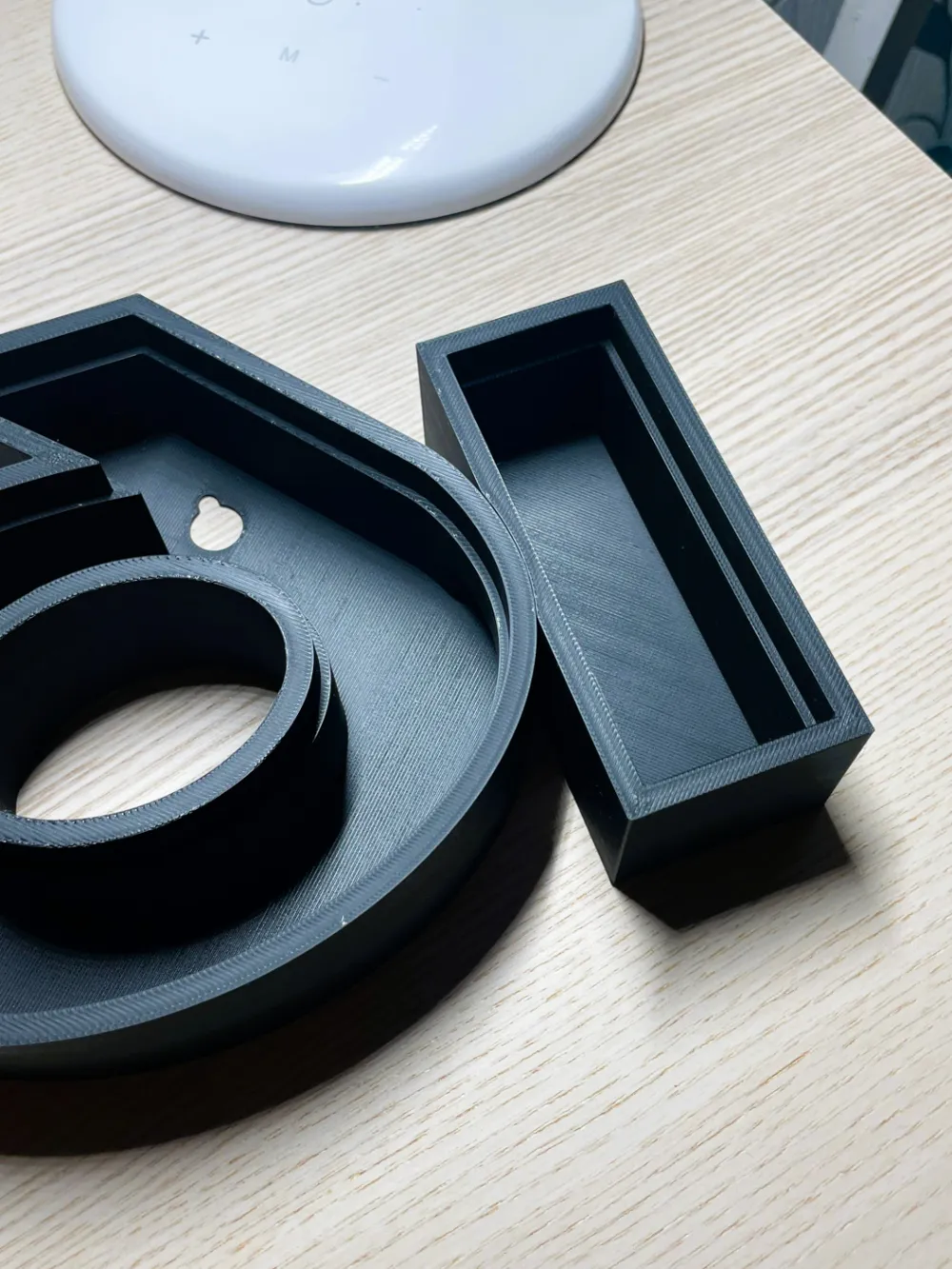

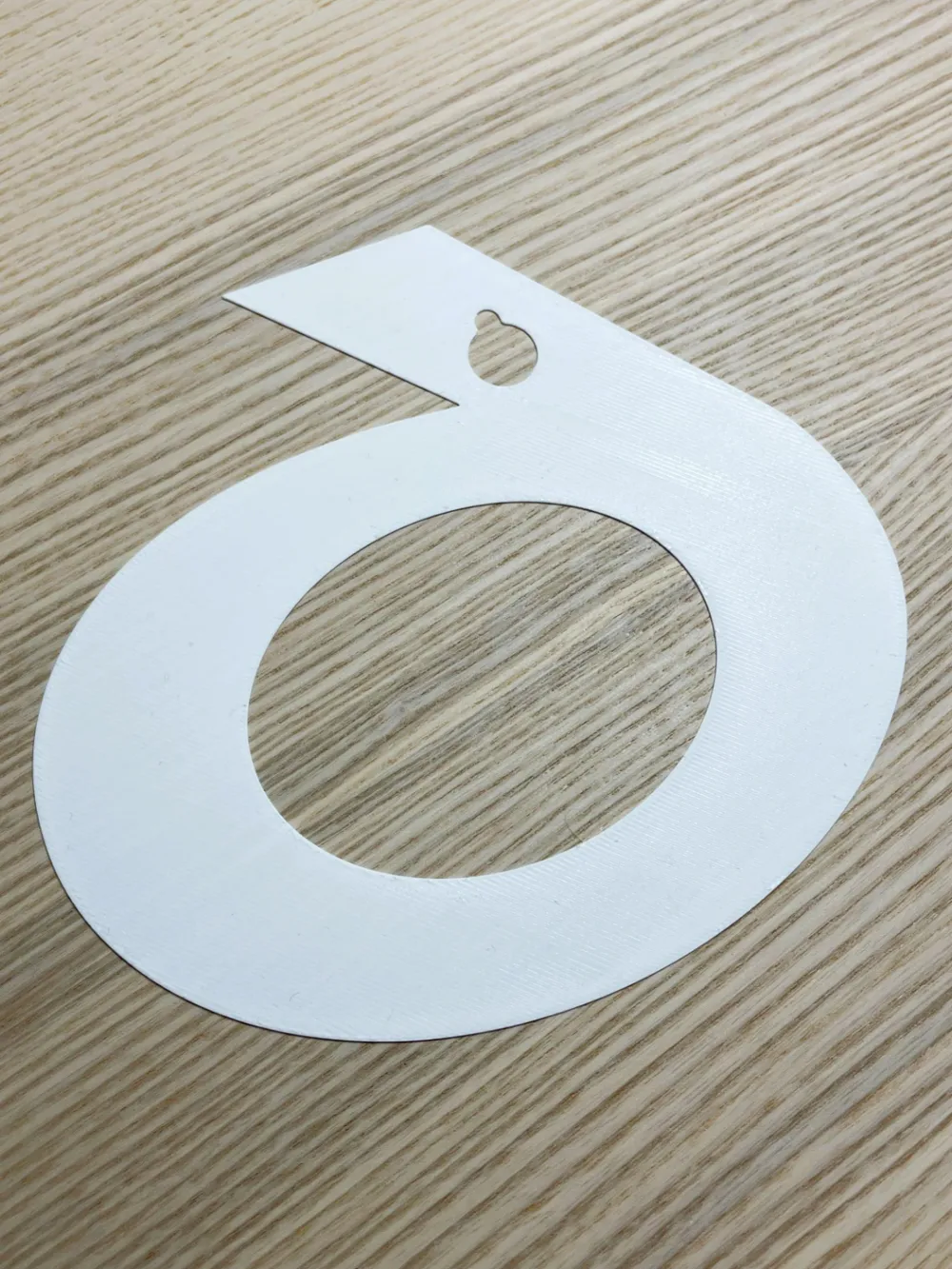

Each letter is printed separately. Then glued with super glue. White backgrounds in the bases of the letters for better light dispersion. White backgrounds are fixed with glue.

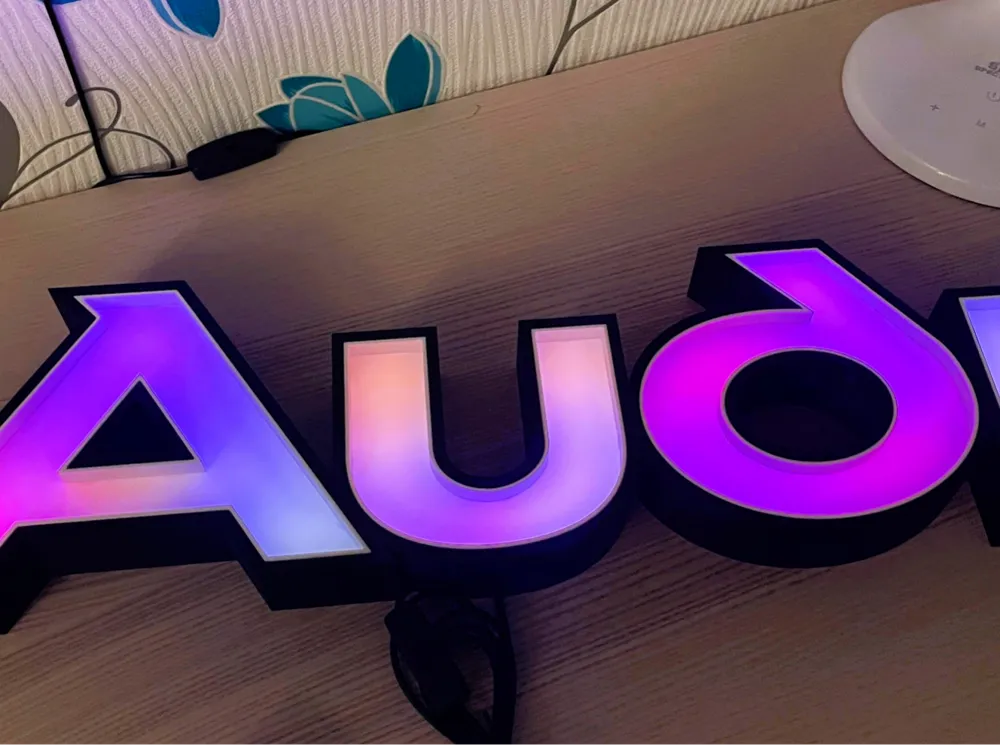

For lighting, I used a 2.5 meter long led strip.

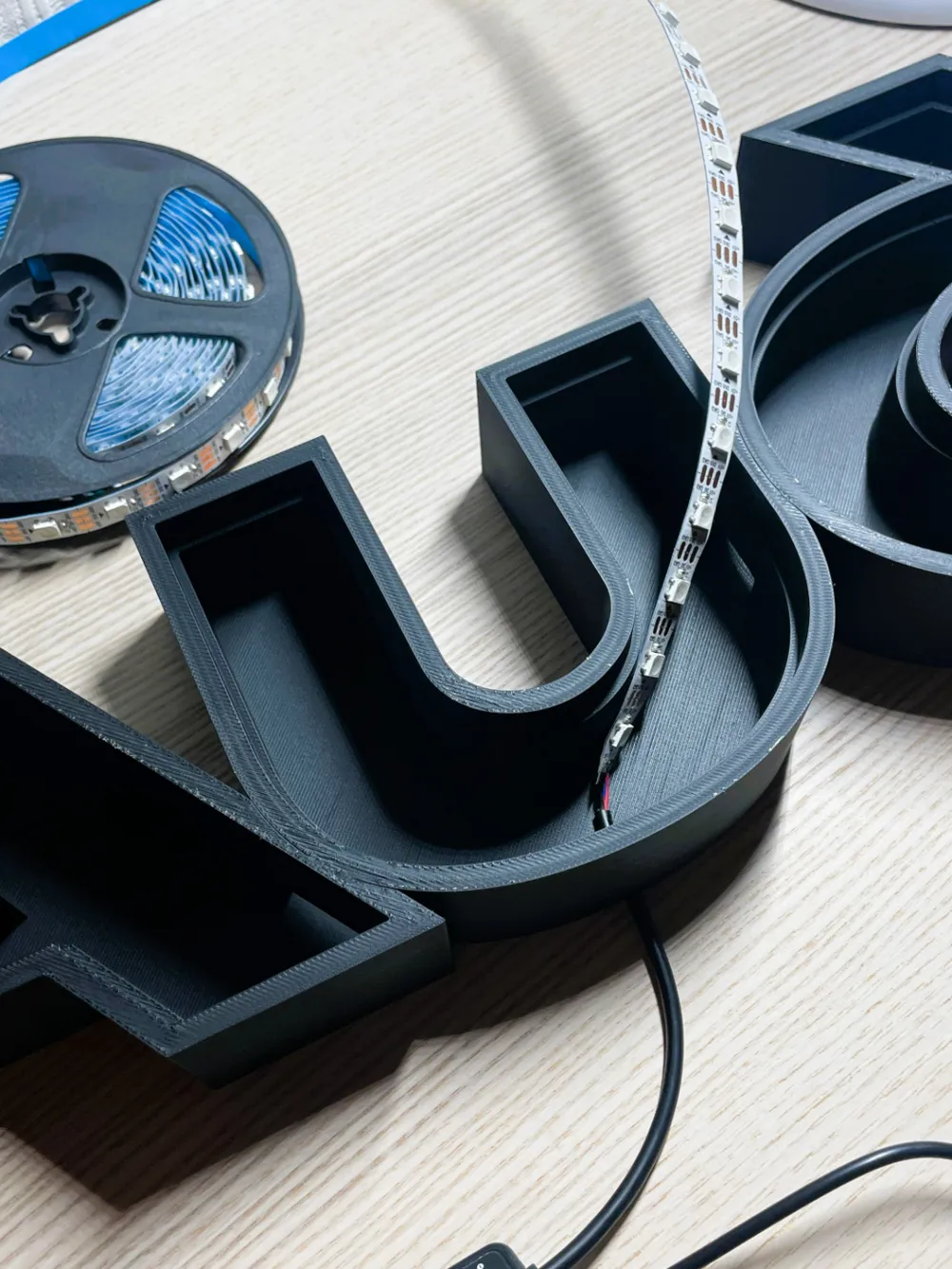

Before gluing the white front sides of the letters, make sure that the LEDs are fixed correctly and that everything is working.

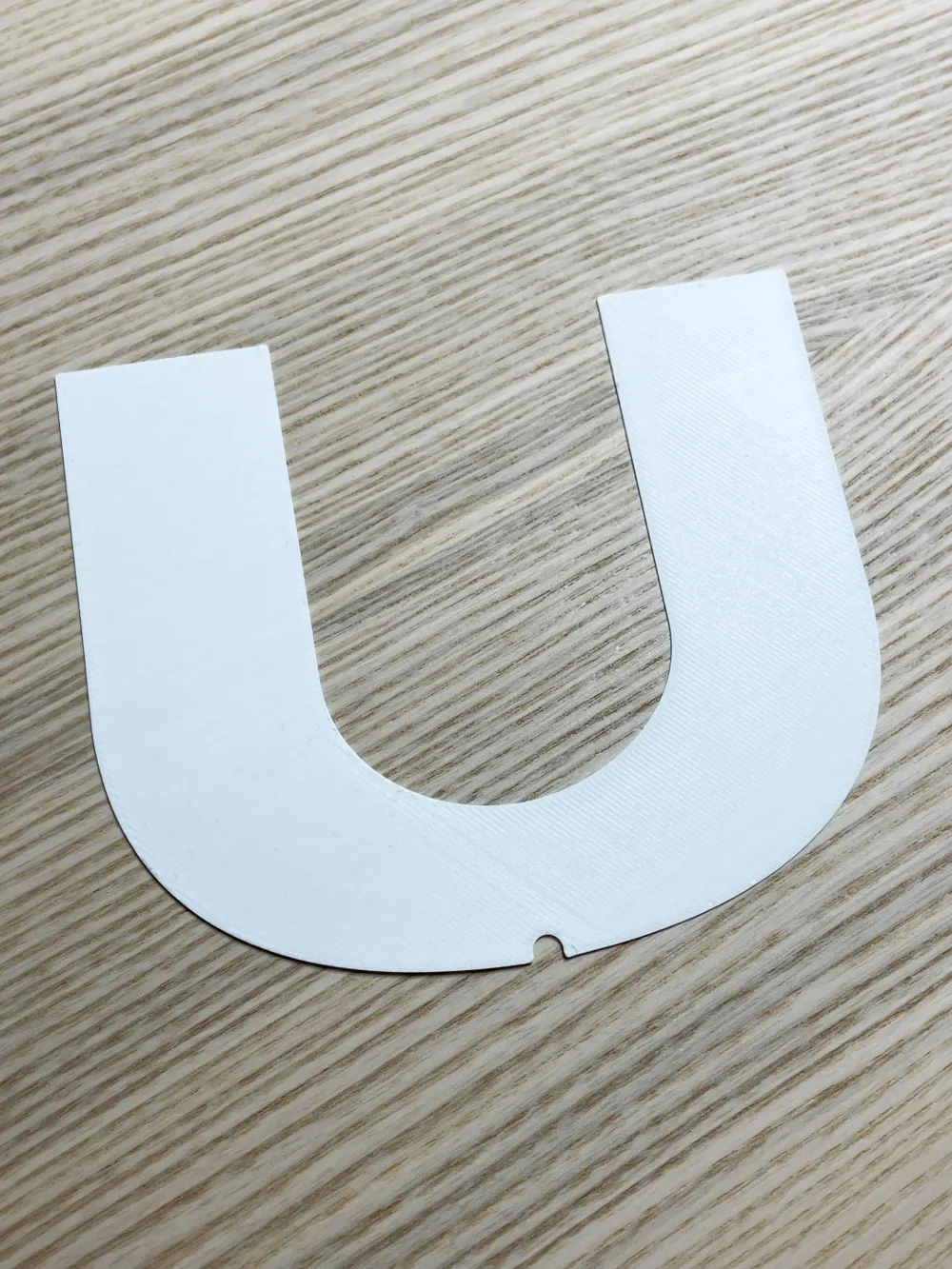

For the cable, there is a hole in the letter U, designed for a 3,5mm cable. If a larger one is needed, it can be melted with a soldering iron.
Printed with a 0.4 nozzle, with standard settings on PEI plate.
I sanded the front edges of the black letters for a perfect result. Use water sandpapers in the following order P180 - P240 - P600 - P1000 - P2000
Part List:
2.5meters of WS2812B DC5V LED strip
WS2812B LED Controller
https://www.aliexpress.com/item/1005004712701330.html?spm=a2g0o.order_list.order_list_main.98.b8dd1802t2cBJl
5V Switch Power Supply Wire 1.5M
https://www.aliexpress.com/item/1005005840496129.html?spm=a2g0o.order_list.order_list_main.59.b8dd1802t2cBJl
