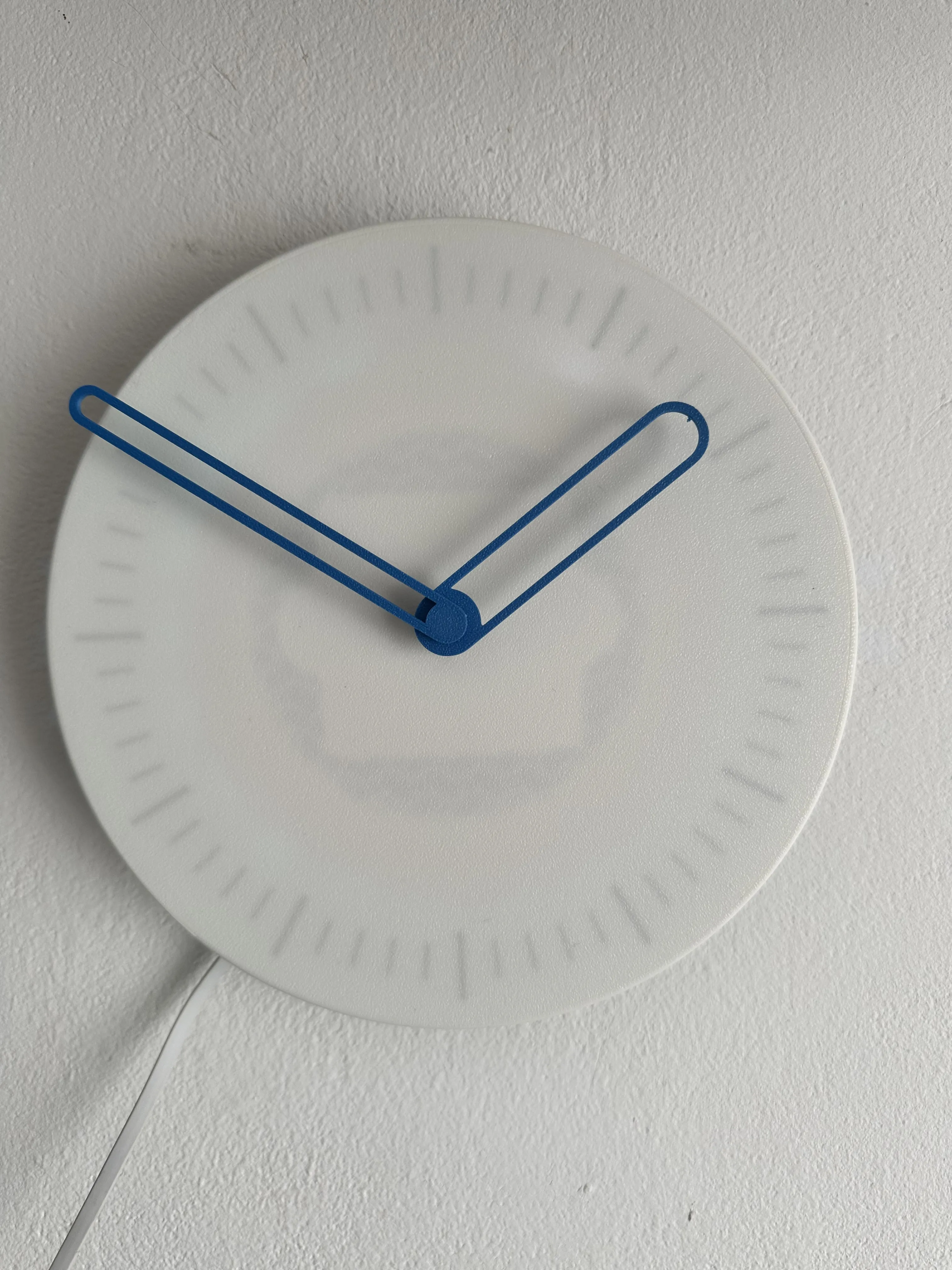

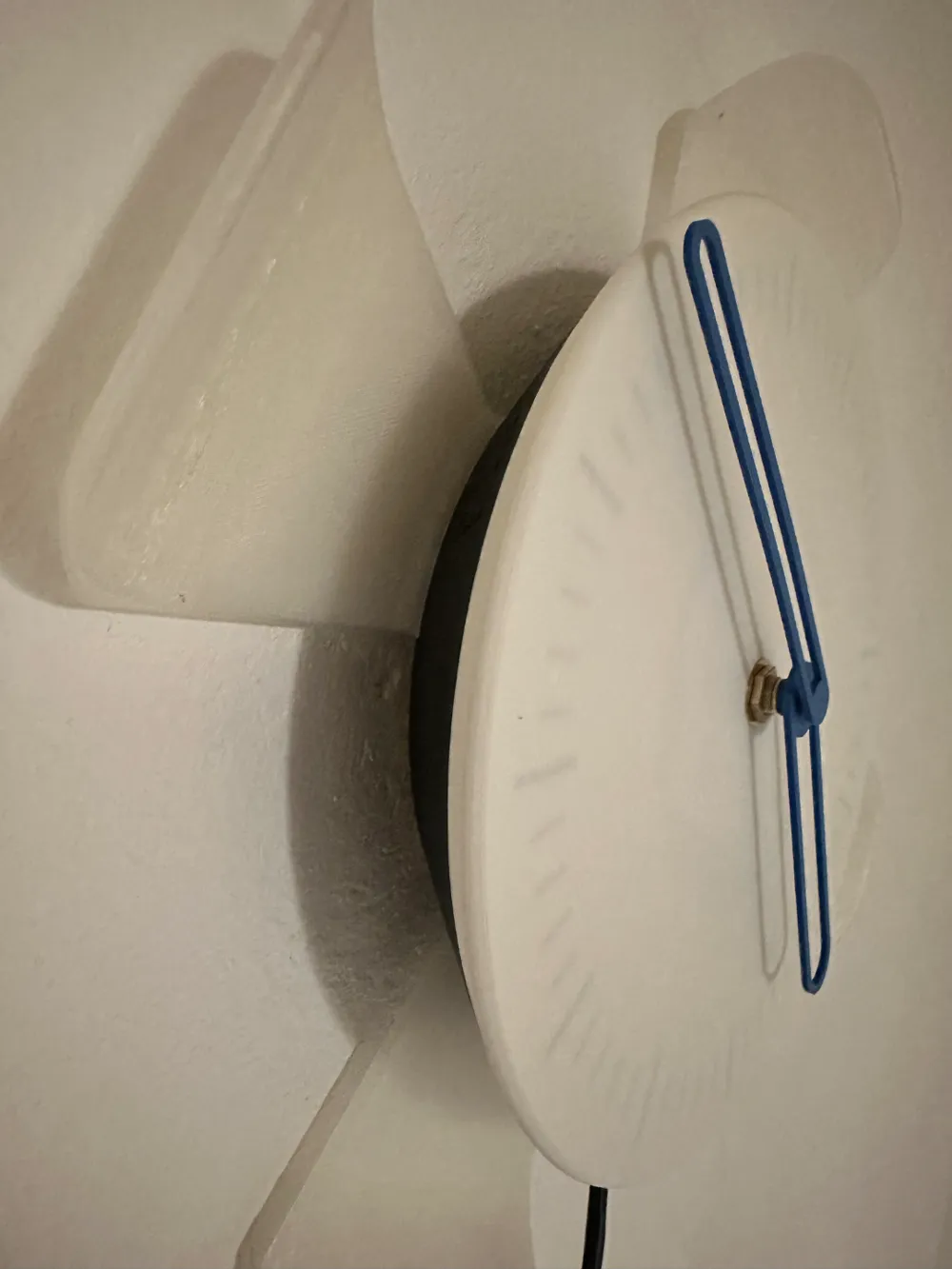

SmartLight Clock

This versatile clock doubles as both a functional timepiece and a soothing night light. Equipped with RGB lighting, it creates a calming ambiance with customizable colors and effects, or you can personalize it with your own lighting preferences.

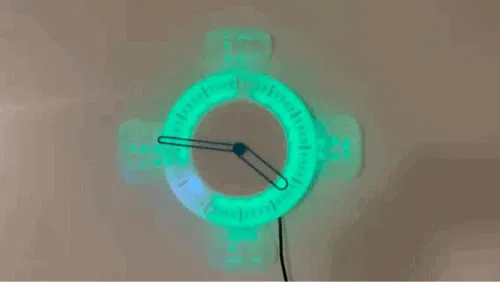

The spacious clock housing offers more than just aesthetics; it can accommodate electronic components or even serve as a discreet storage compartment. Instead of a traditional seconds hand, this clock features a captivating light effect. The LED configuration ensures the "seconds" complete a full rotation every 20 seconds, switching to a new color with each cycle for an eye-catching display.

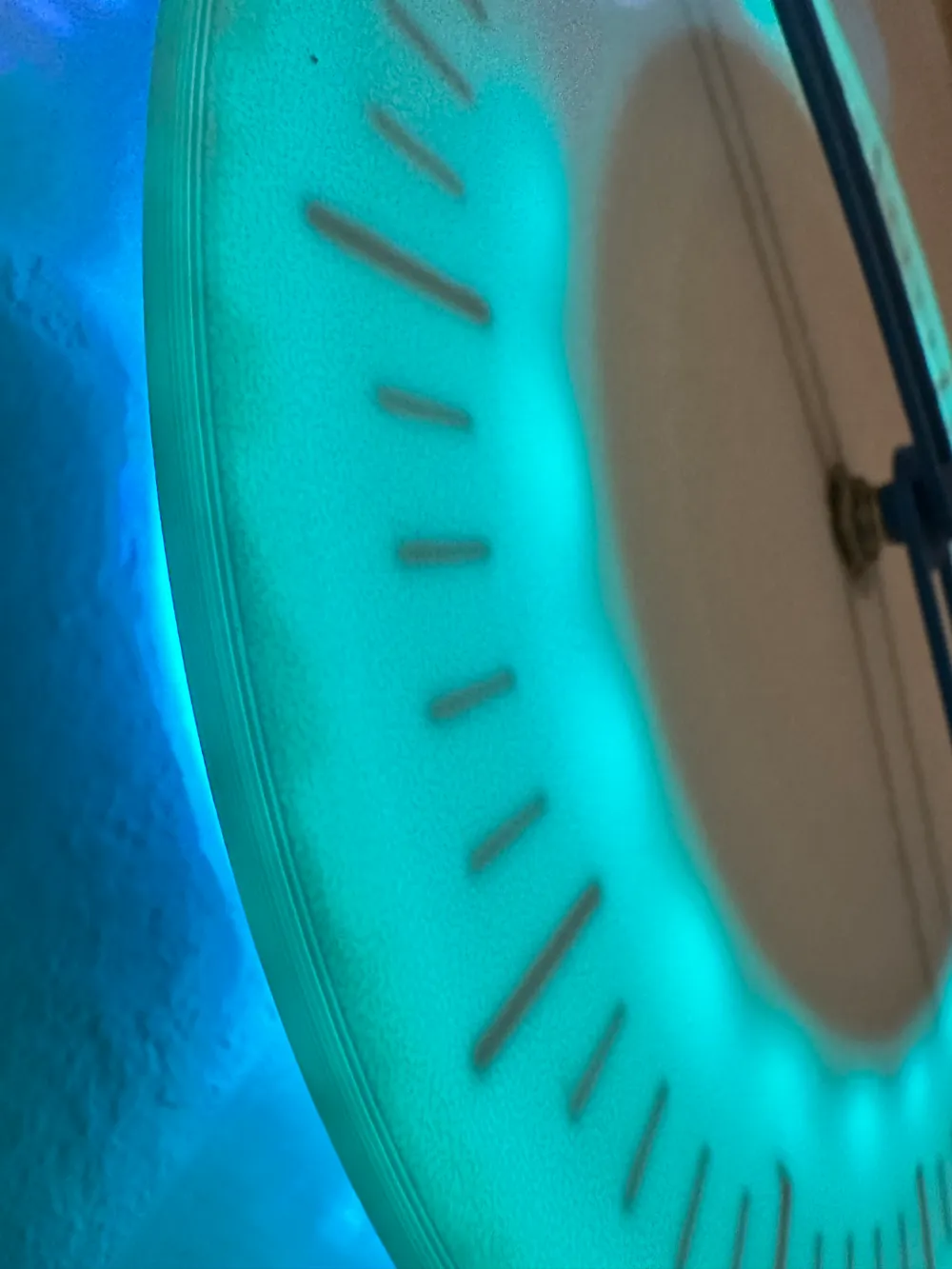

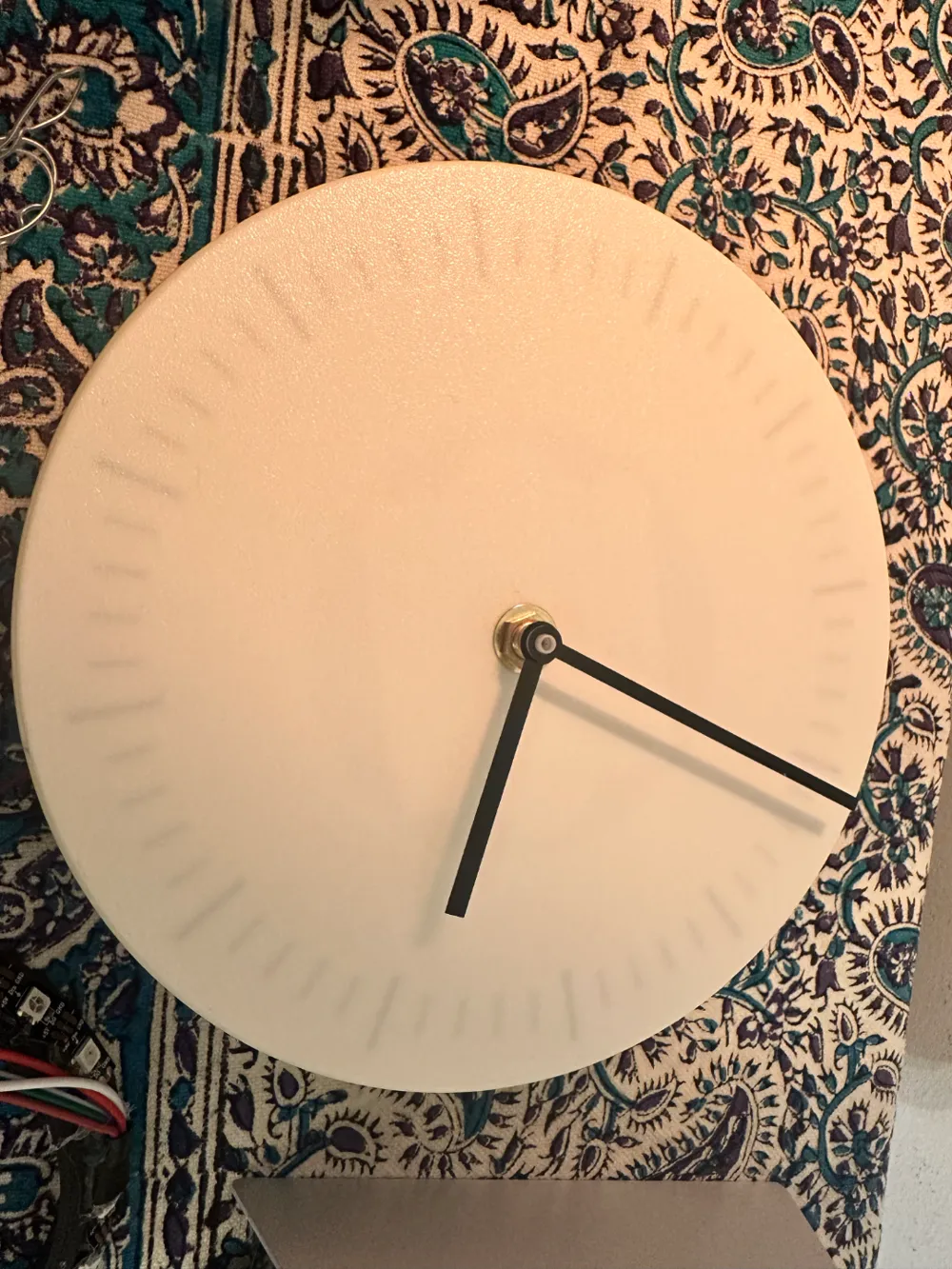

The minute and hour markers are seamlessly embedded into the clock's body, delivering a sleek, modern design with a smooth, flat finish.

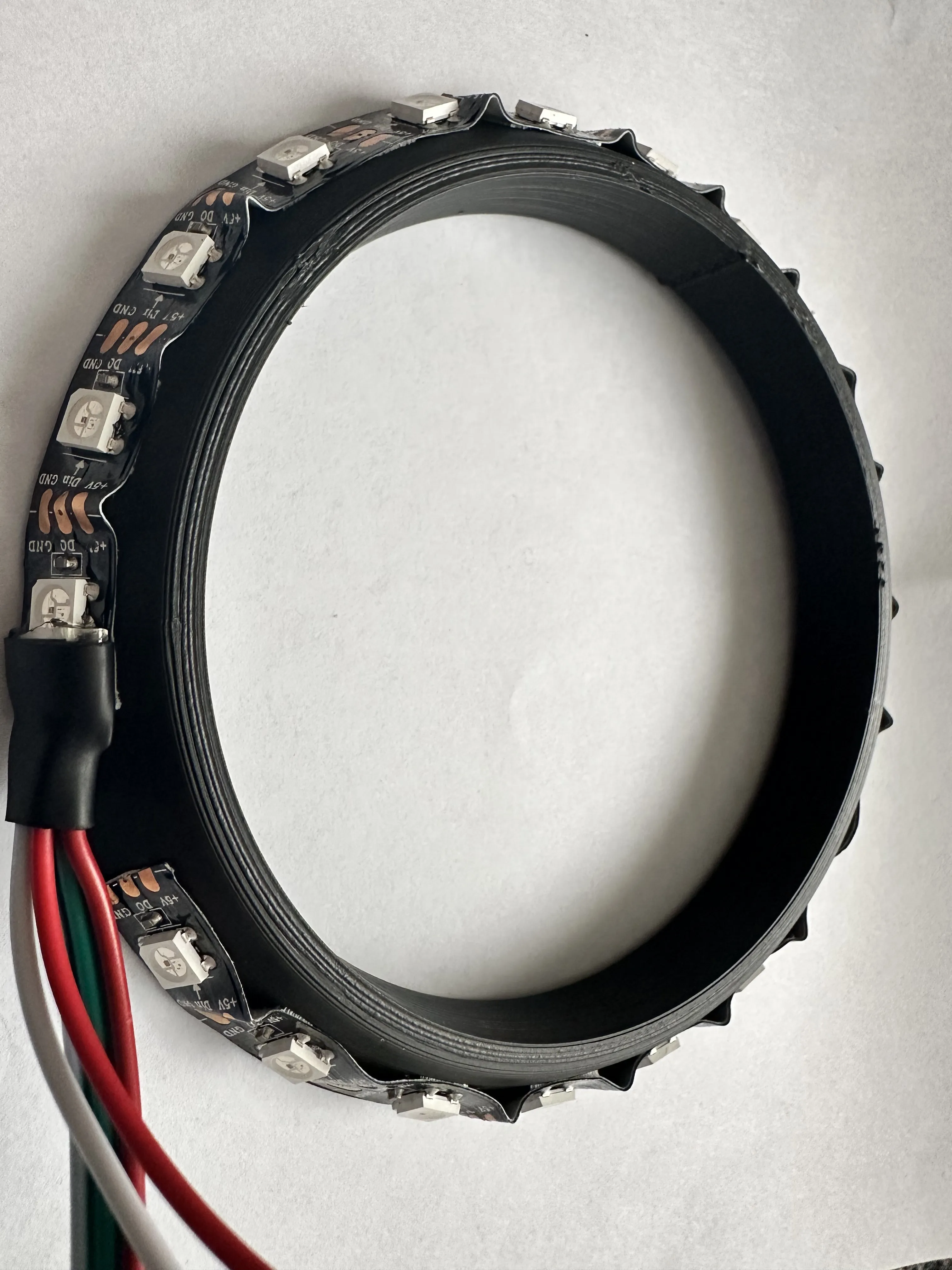

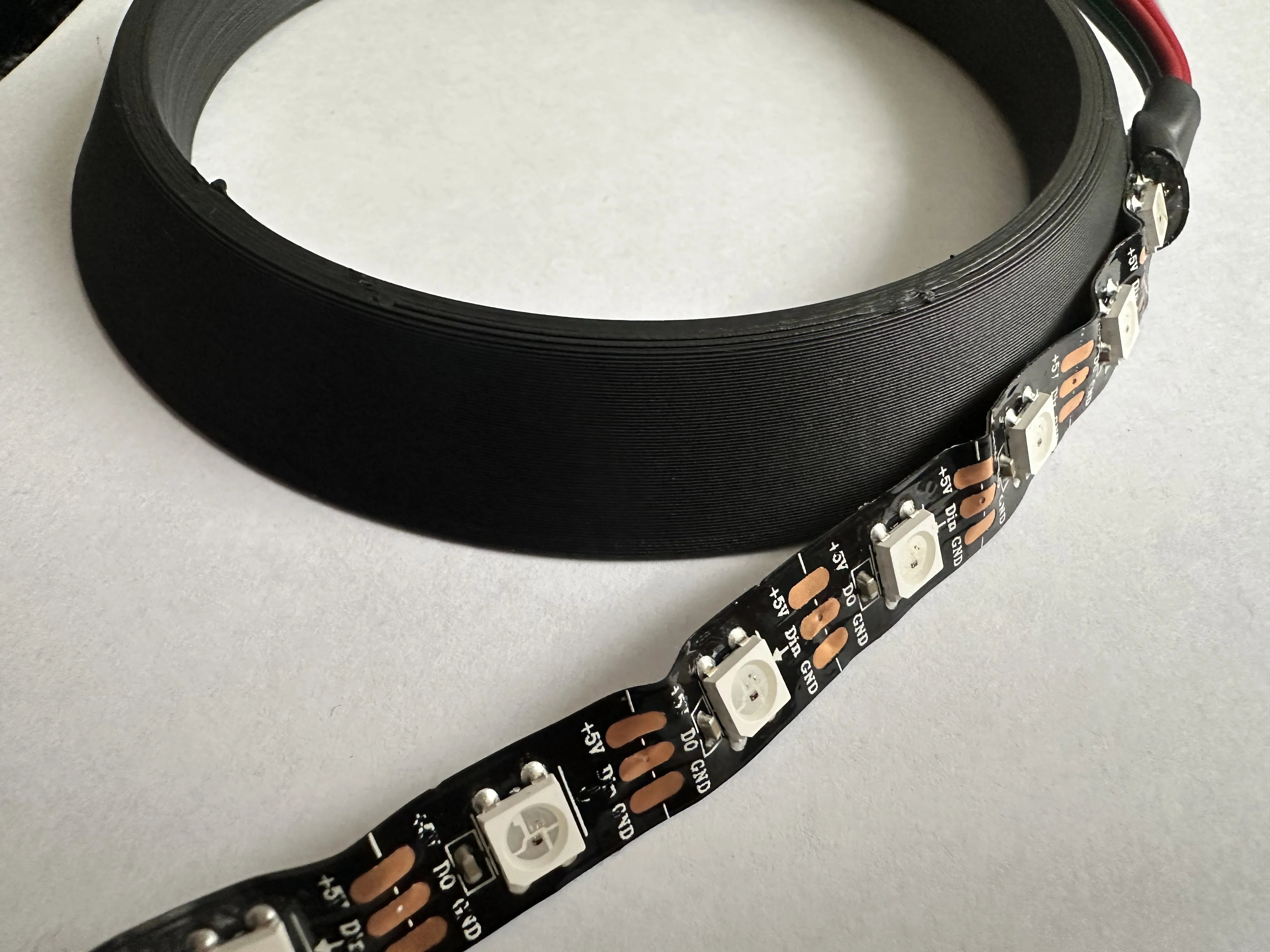

1. Wrap the LED on the LED support ring. (20 LED in my case)

You might need to bend and use hot glue to secure the LED strip.

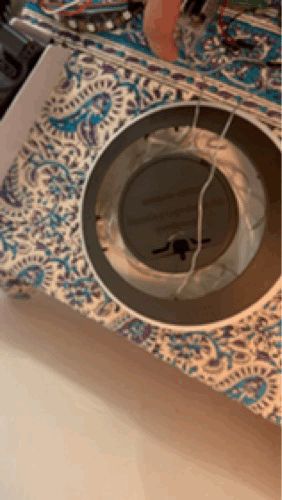

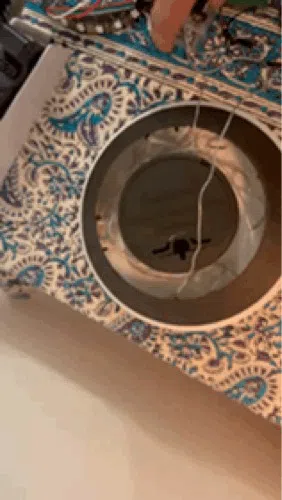

2. Slide the LED support inside the clock and push the cables inside the hole by the 12 o'clock.

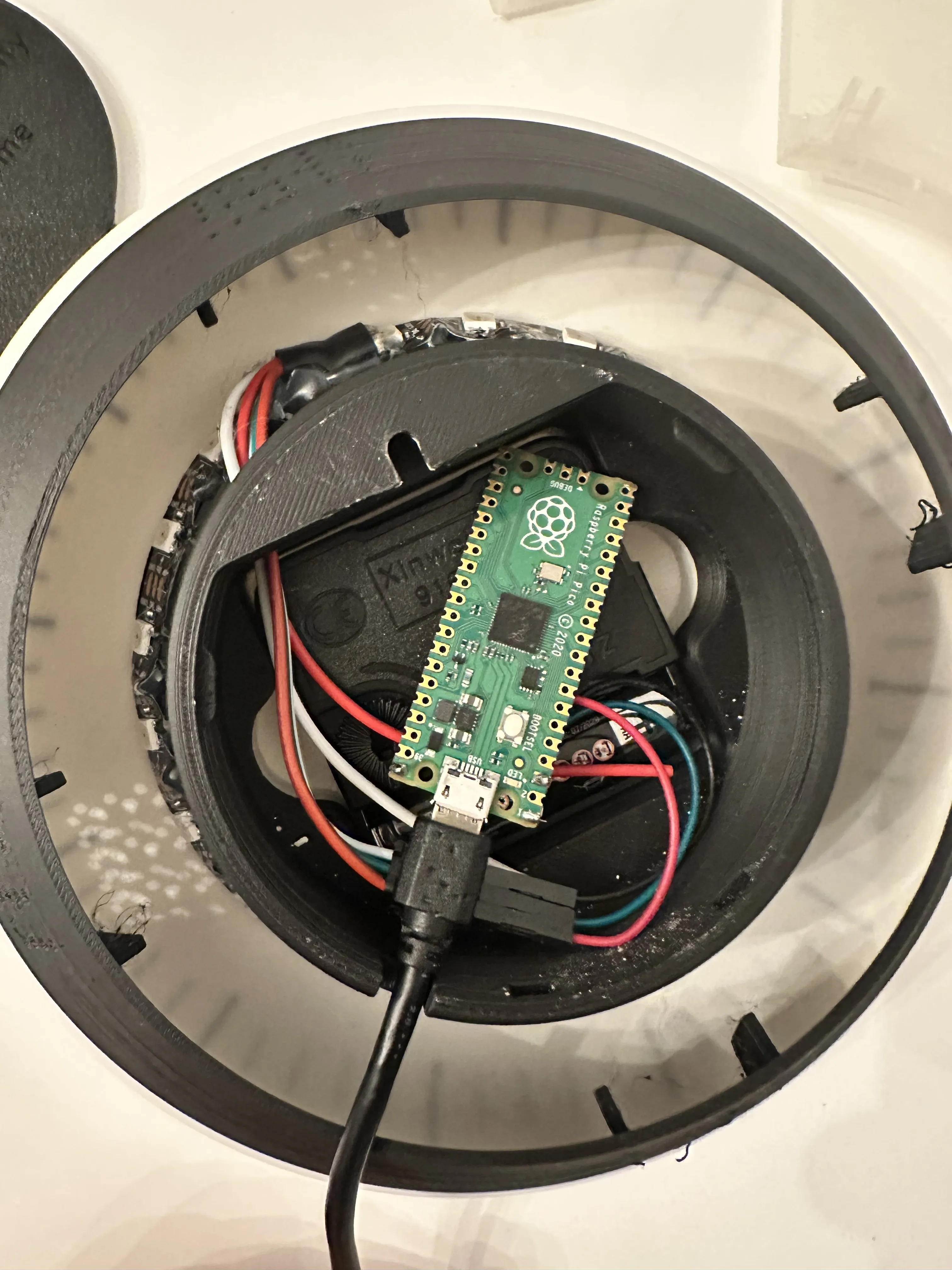

3. Connect the Light controller ( I used Raspberry pi pico )

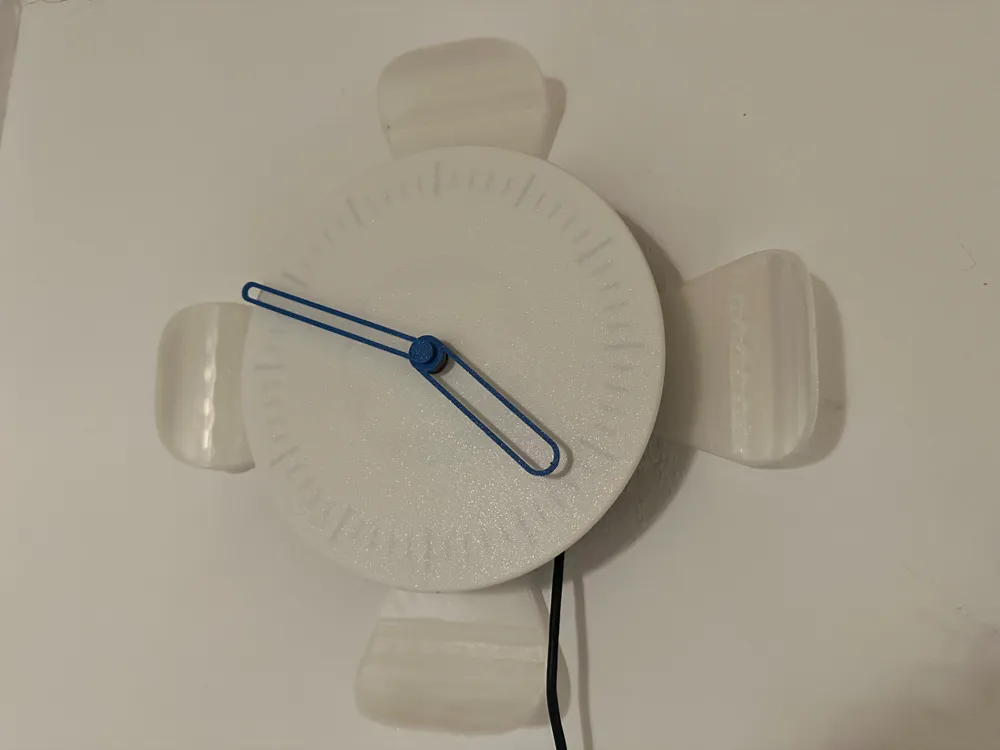

4. Optional Connect the light Catching leafs. The two without a number on them can go either on 3 o'clock  or 9 o'clock, The ones with numbers go to 12 o'clock and 6 o'clock respectively.

Disclaimers:

1. I used the Clock hands from: gongsdesign

https://makerworld.com/en/models/121630#profileId-130898

2. I used the Raspberry pi pico codes and instruction Cavenerd Youtube channel from this video and modified it to show the rounding seconds effect.
