Description

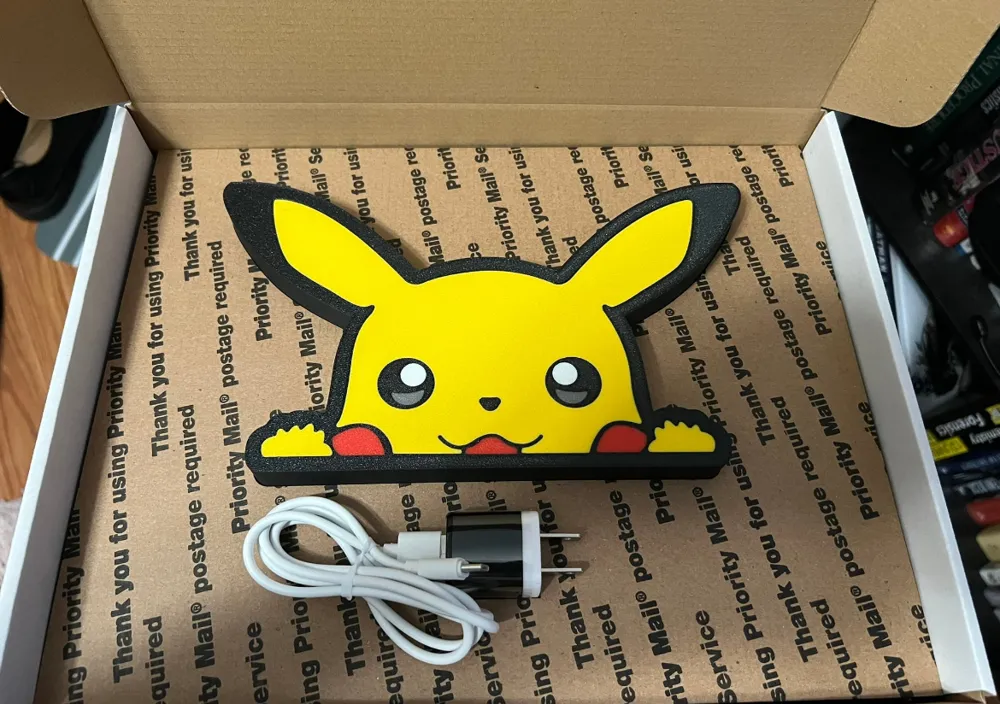

A Pikachu lightbox from the Pokemon franchise designed in Fusion 360. There is the main body which is printed face down at a .2 layer height, then the back panel which is printed face up at the same layer height. The back panel has two cutouts for the USB-C connected to power the internal LEDS as well as a switch to turn the lights on and off. Links for the USB-C connector, Switch, and LEDS I used are below. I included both a blank back panel as well as a back panel with the cutouts I use for the power and on/off switch

Link for LEDs, Switches, and other components used: https://bit.ly/m/Additive-Imprints

Documentation (1)

Assembly Guide (1)

Assembly Guide_d5cfa6d4-43ff-4cfd-b09a-cb6532ea9384.pdf
