Transfer case
IP Report
Print Profile(2)
0.2mm layer, 2 walls, 100% infill
Designer
3.2 h
1 plate
0.2mm layer, 2 walls, 30% infill
Designer
3.2 h
1 plate
Open in Bambu Studio
Boost
22
20
2
2
30
5
Released
Description
Content has been automatically translated.
Boost Me (for free)
Please support me, your support is the motivation for my updates. The source file (.SLDPRT) has been uploaded and can be downloaded and modified independently.

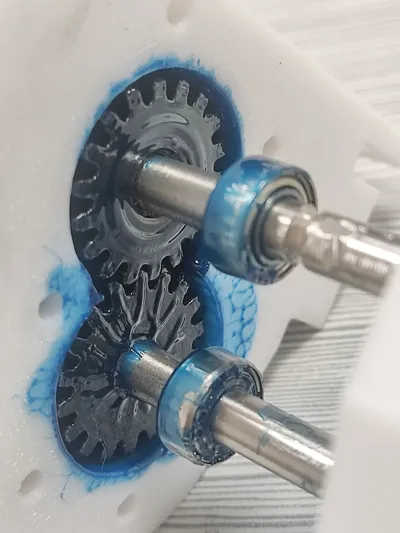

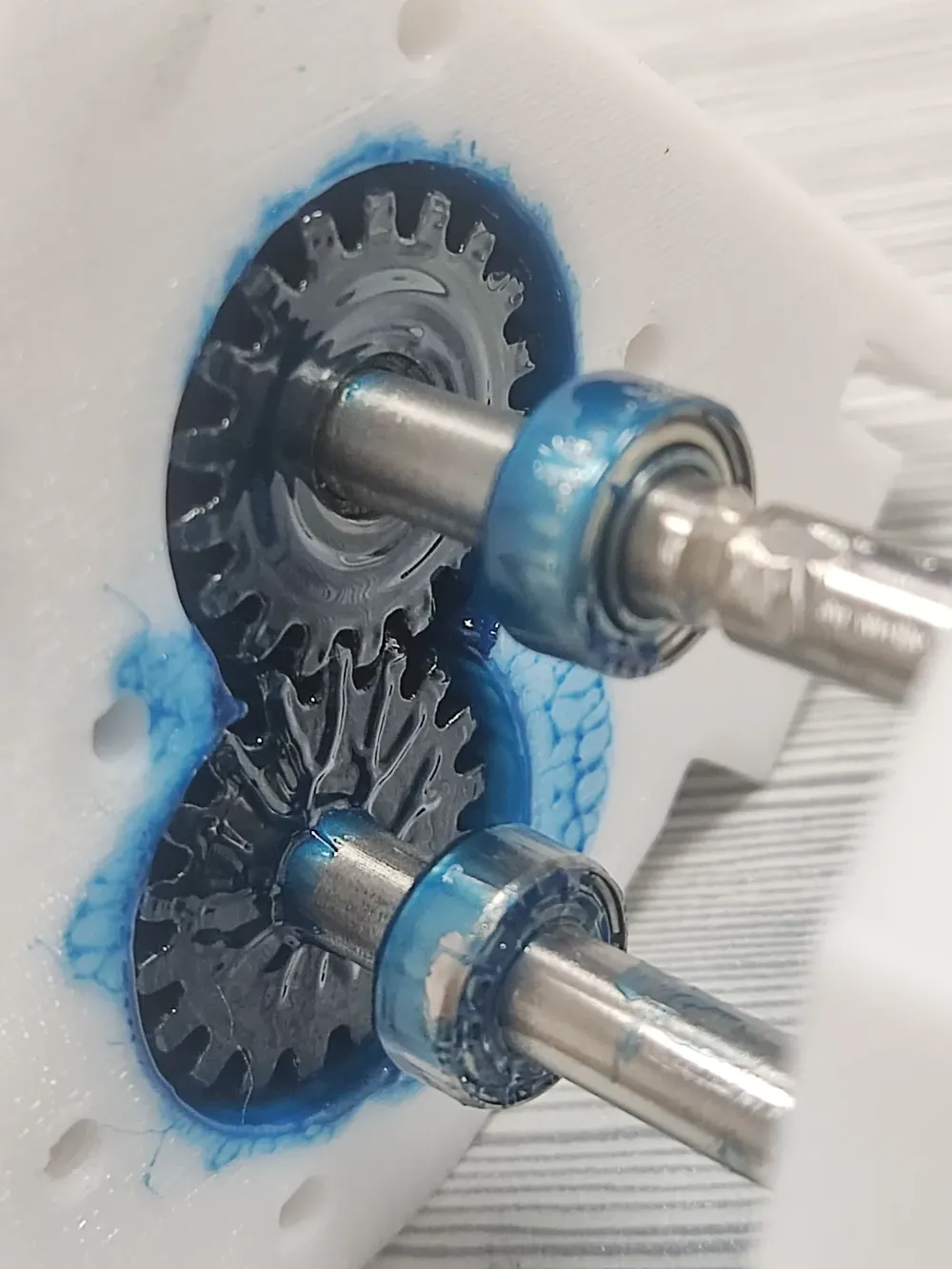

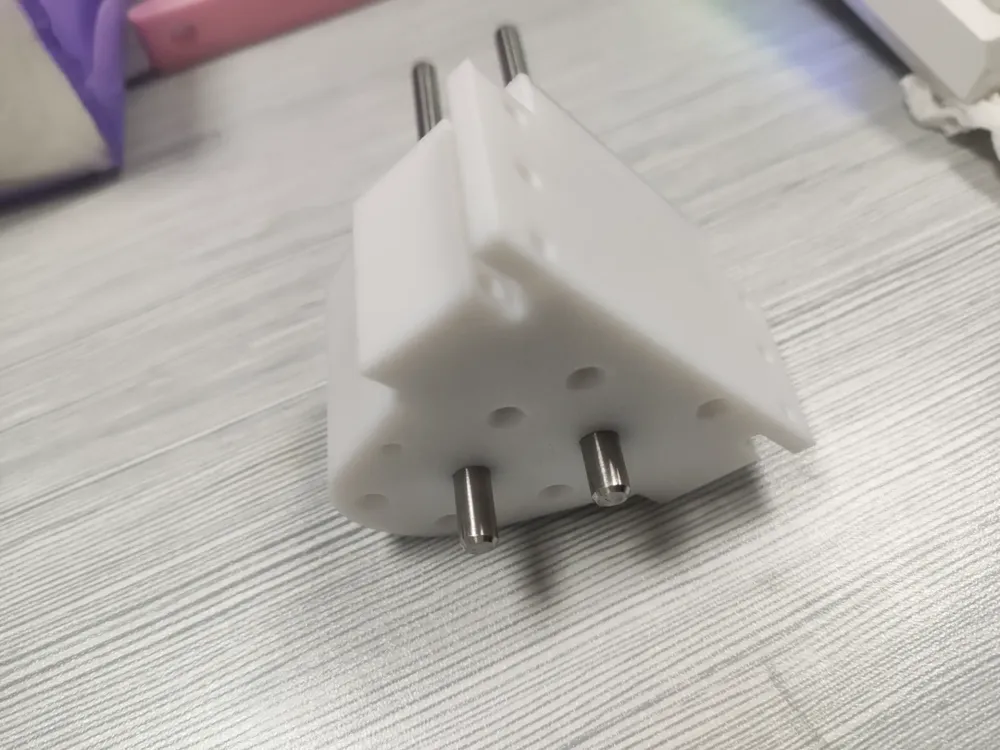

Transfer case, after multiple printing verifications and modifications, rotates smoothly and the gears mesh properly. Gears and shafts need to be prepared independently.
It is best to add lubricating grease inside.
Adaptable to the main beam I designed earlier.
Solidworks step file has been uploaded, and can be modified as needed.
Please also give a like to support this little friend.
Documentation (1)
Assembly Guide (1)
组装，配件指南.pdf
