Wall mounted spool holder, clockwise rewind

Wall mounted spool holder, clockwise rewind.

This wall mounted spool holder incorporates Bambu labs rotary spool holder for the AMS Lite and gives you the possibility to take advantage of the rotary spool holders ability to rewind the filament spool and keep tension on the filament.

The Wall mount can be mounted in any orientation, you only have to pay attention to the direction in which the filament must be kept tight.

Bambu labs rotary spool holder is available in two versions.

A yellow one that rewinds counter clockwise, and a green one that rewinds clockwise.

Please note that this wall mount is for the green rotary spool holder, which rewind clockwise.

If you need a wall mount that can rewind counter clockwise, then this is the one you should use.

Wall mounted spool holder, counterclockwise rewind by Voss - MakerWorld

The green rotary spool holder for AMS lite can be purchased directly on Bambu lab's website.

AMS lite Rotary Spool Holder | Bambu Lab EU Store

The wall mount also utilizes the PFTE tube holder from the spool holder that comes with the Bambu lab A1 3d printer.

PTFE Tube Connector - A1 | Bambu Lab EU Store

The PFTE tube holder can be easily removed with a 2.0 mm Allen key. And then mounted on the wall mount.

In addition, the wall mount is designed to be mounted on the wall with 3 pcs 4x25 mm self-tapping screws.

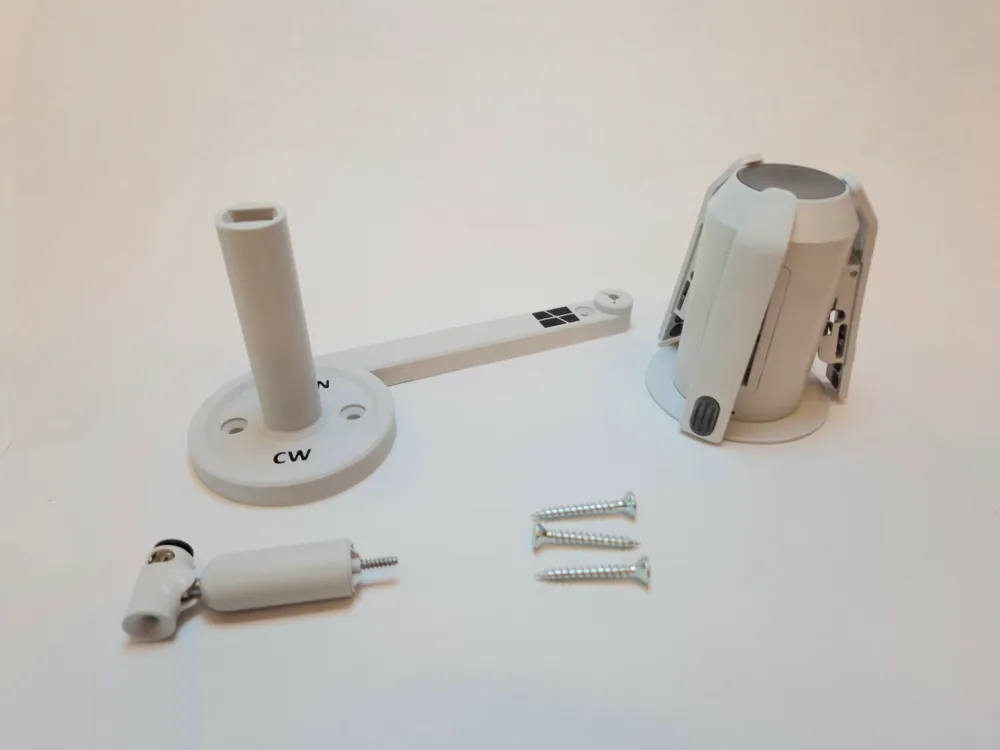

Complete list of materials:

• 3D printed wall mount.
• PFTE holder from supplied spool holder.
• 3 pcs 4x25mm self-tapping screws.
• Good mood and a smile. :-)

The wall mount can be 3d printed with or without an AMS or AMS lite, it is printed with Devil design LIGHT GRAY and BLACK PLA.

Happy printing.
