A mount for the Panda Touch that doesn't need disassembly of the Panda Touch, nor the P1 screen.

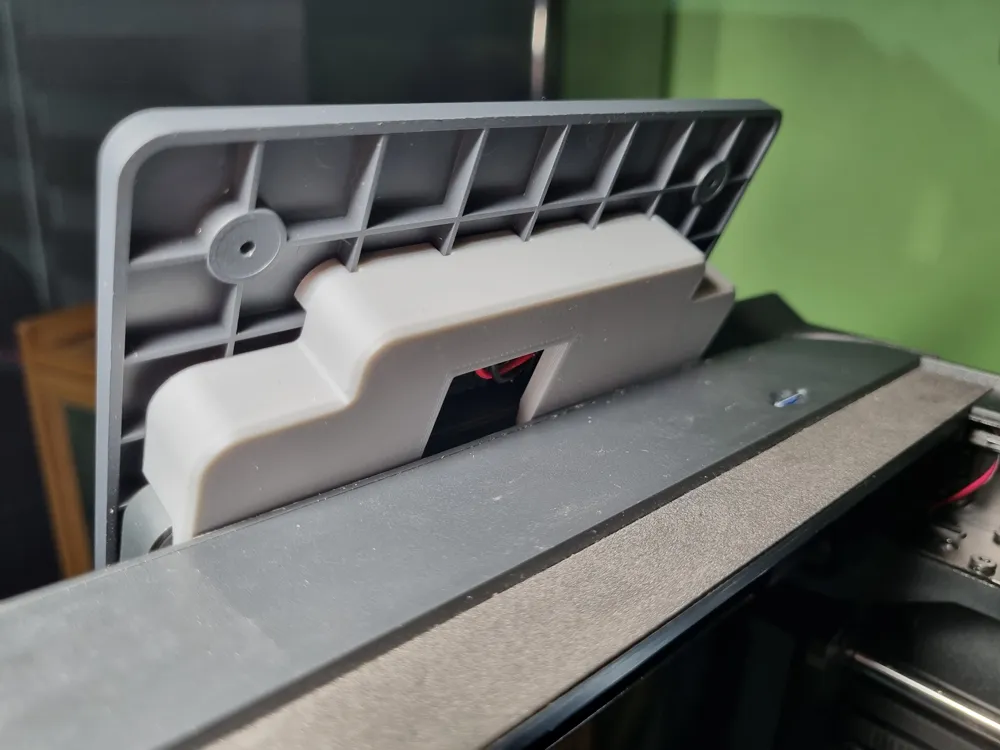

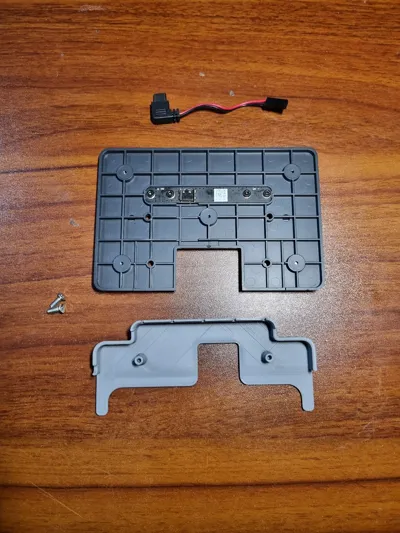

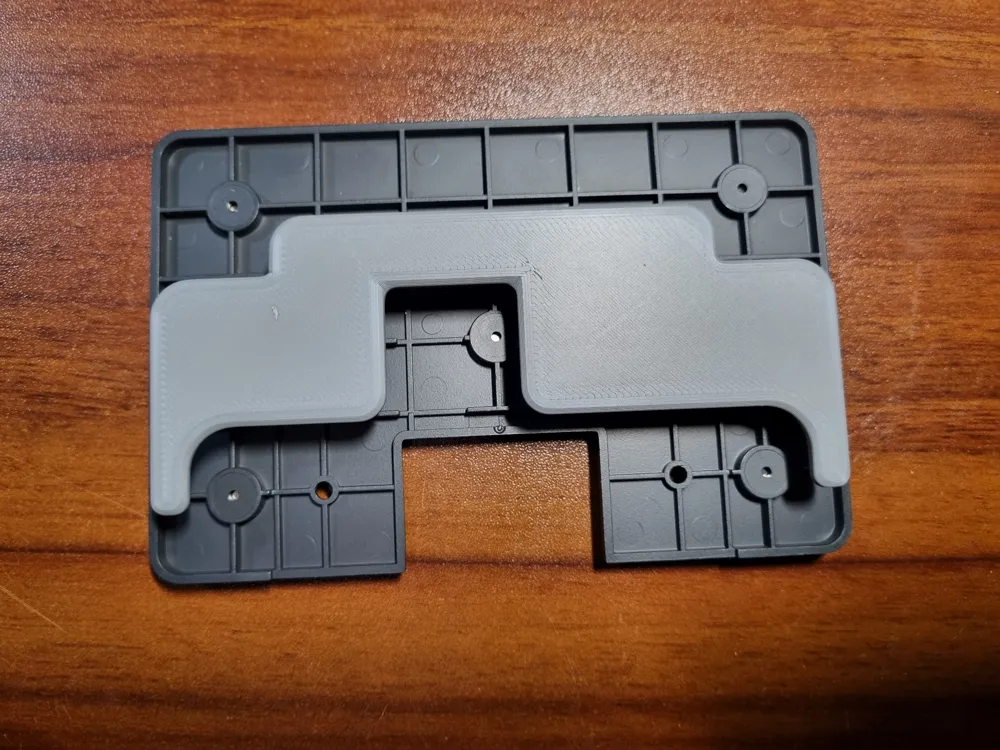

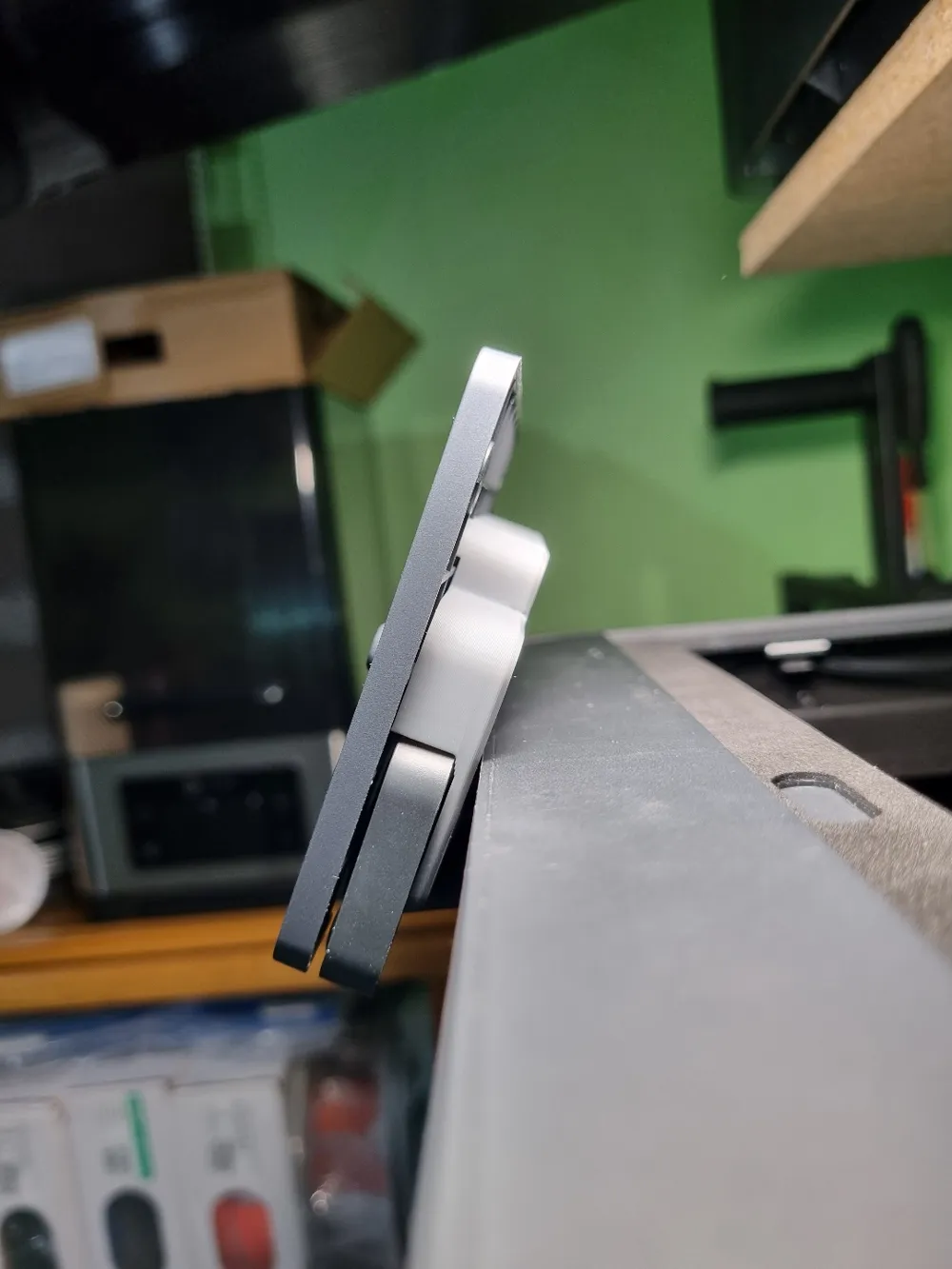

All you need are 2 M3x8 screws to attach the mount with the base of the Panda Touch and hang it in the P1 screen as shown in the picture. I tried to design the model with the intention of reusing the screws in the Panda Touch base, but it's a bit short to attach securely.

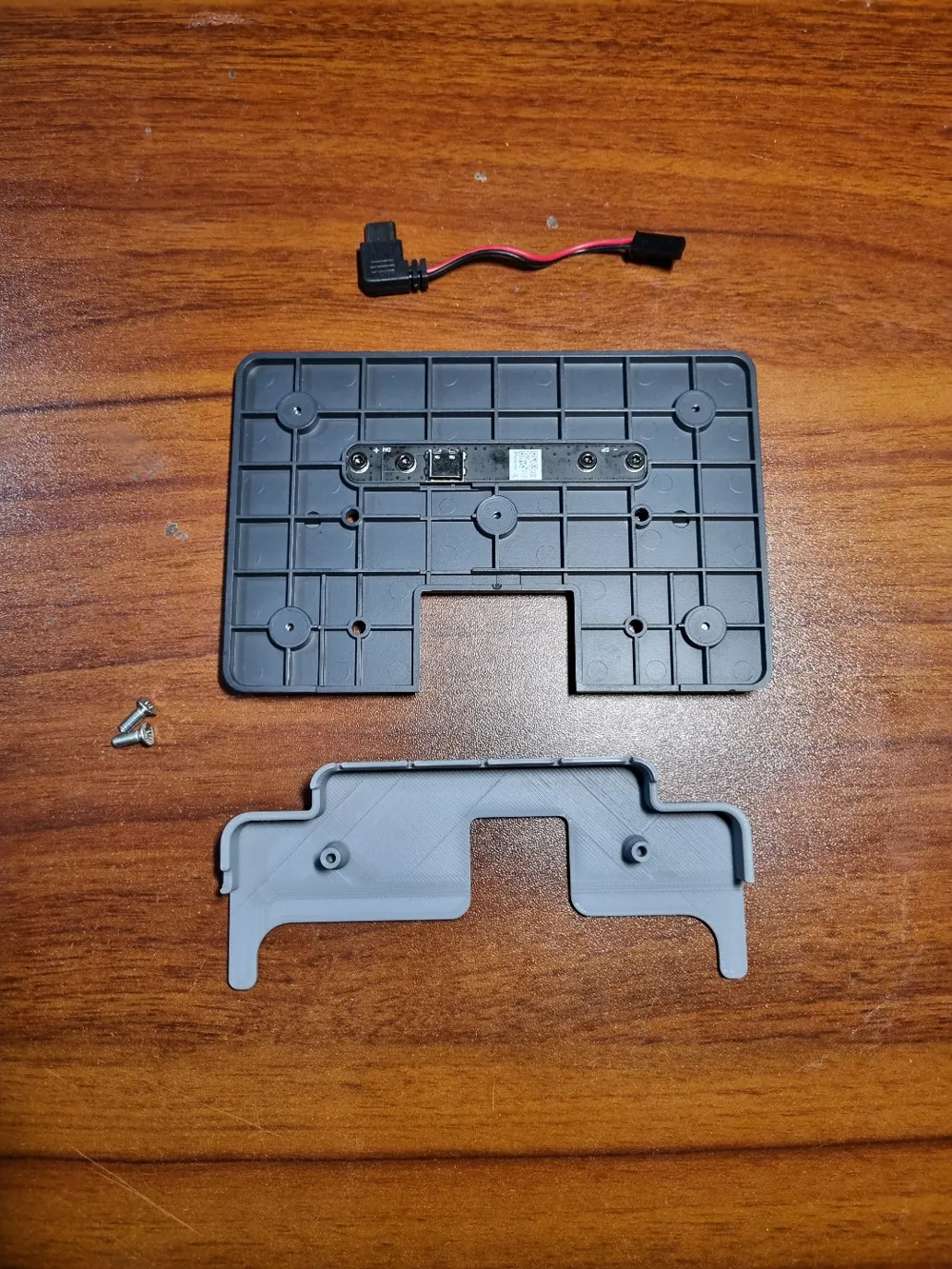

Also you will be limited by the type of USB cable you can use. If you happen to have a slim 90° USB cord, as shown in one of the pictures, then most likely this set-up will work for you. Please experiment and let us know.
Step file is available to modify.
