Description

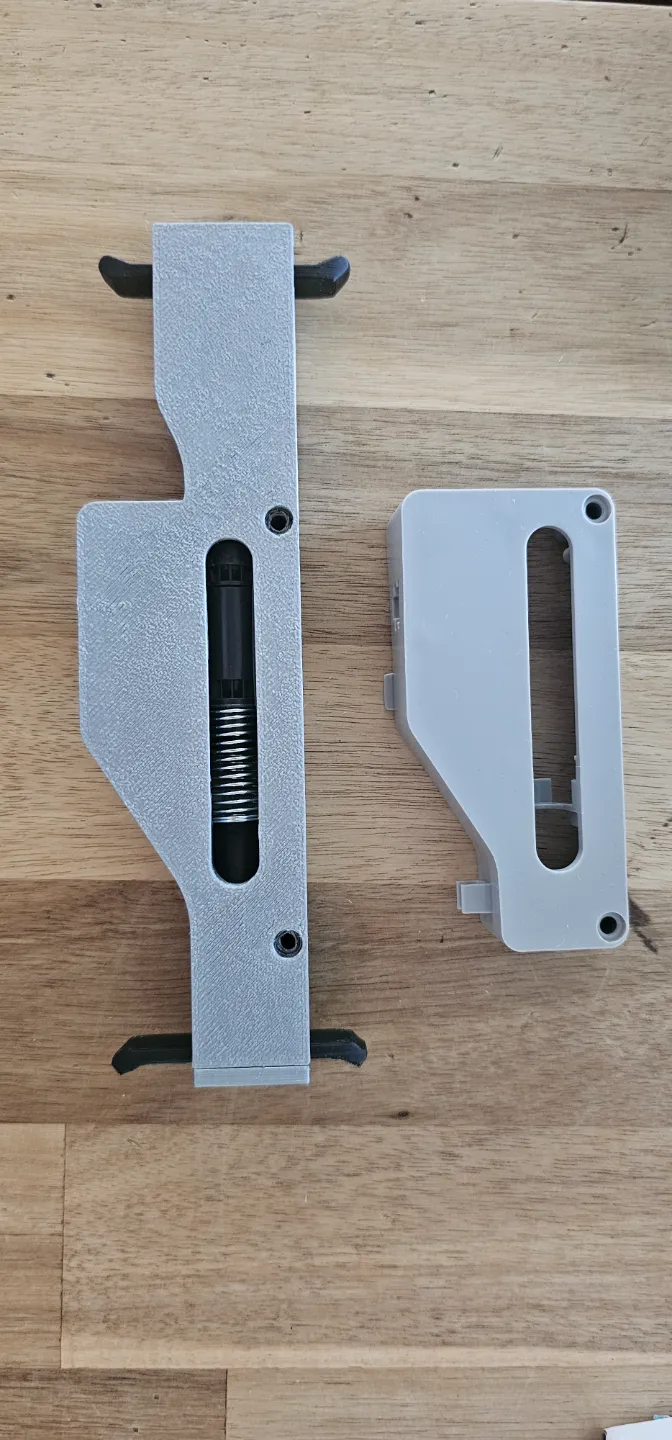

Utilizes the internals of the single buffer to create a hub to allow 2 AMS units to be used.

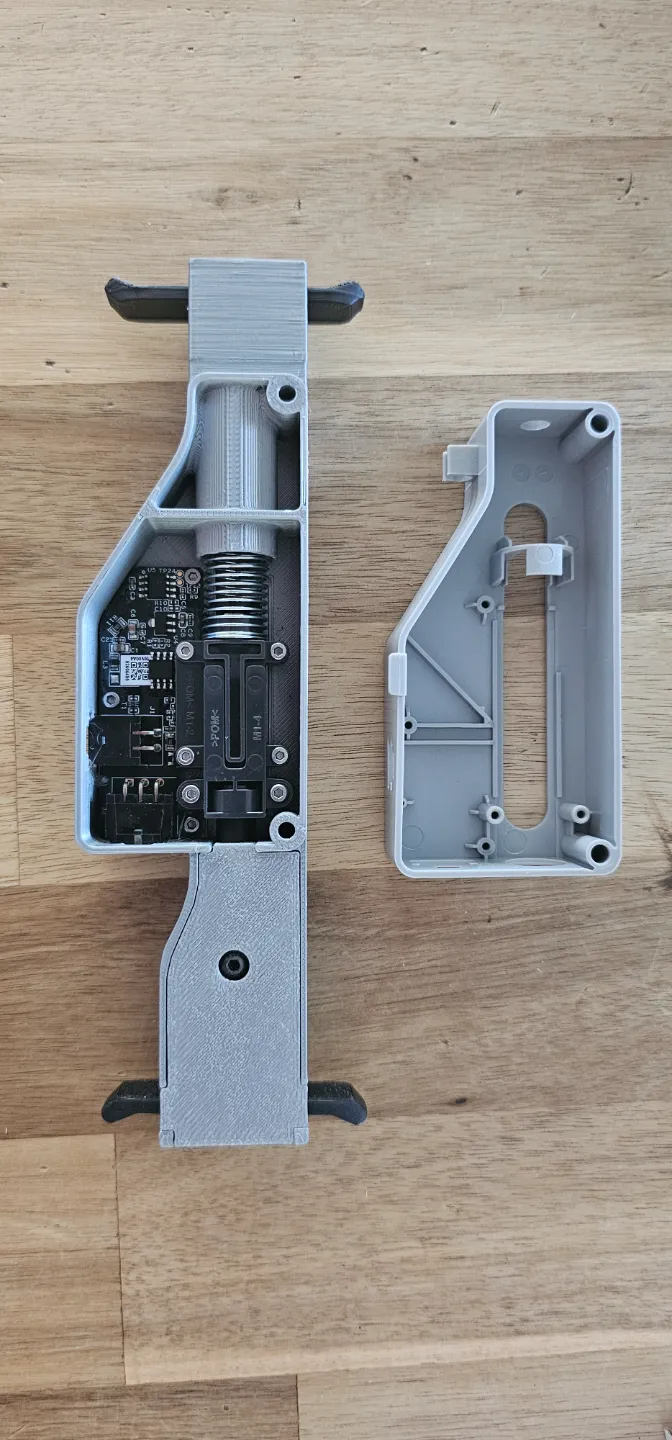

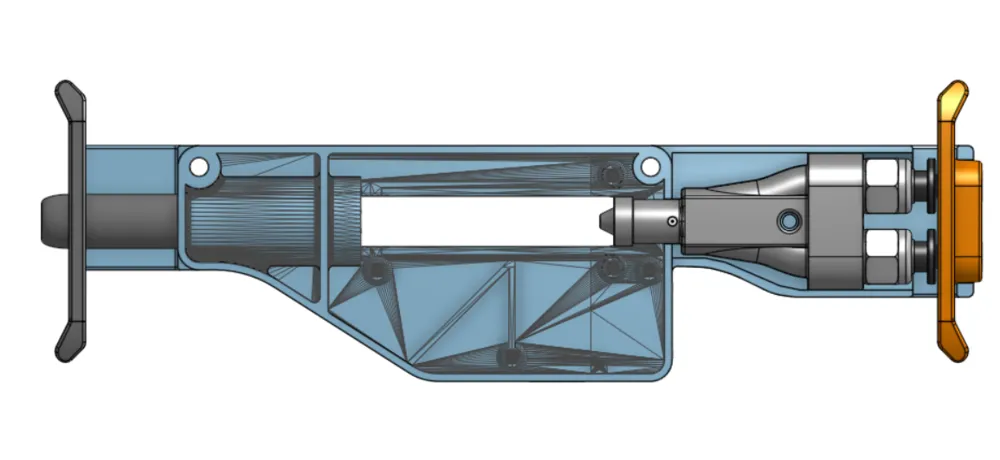

The hub was sold out at Bambu Labs Store and I didnt want to just use a splitter hanging off a short bit of PTFE, as this looked like a problem waiting to happen. I made this which uses the existing buffer and removes the need for a splitter and PTFE. The internal PTFE clamp is left out when relocating the buffer parts, and a new splitter which hard mounts to the buffer internals is used in its place. This allows 2 x AMS to be plumbed in.
Also incorperates inbuilt PTFE release levers for easy removal.
Requires 2 x PC4-M10 passthru connecters
