Jolt One-Button Ejection Optimized Version
Print Profile(2)
Description
Jolt One-Button Ejection Optimized Version
The main body can be secured using the original screws, requiring an extra-long screwdriver. The front seal uses the Zhu Rong suit's seal ring specifications.

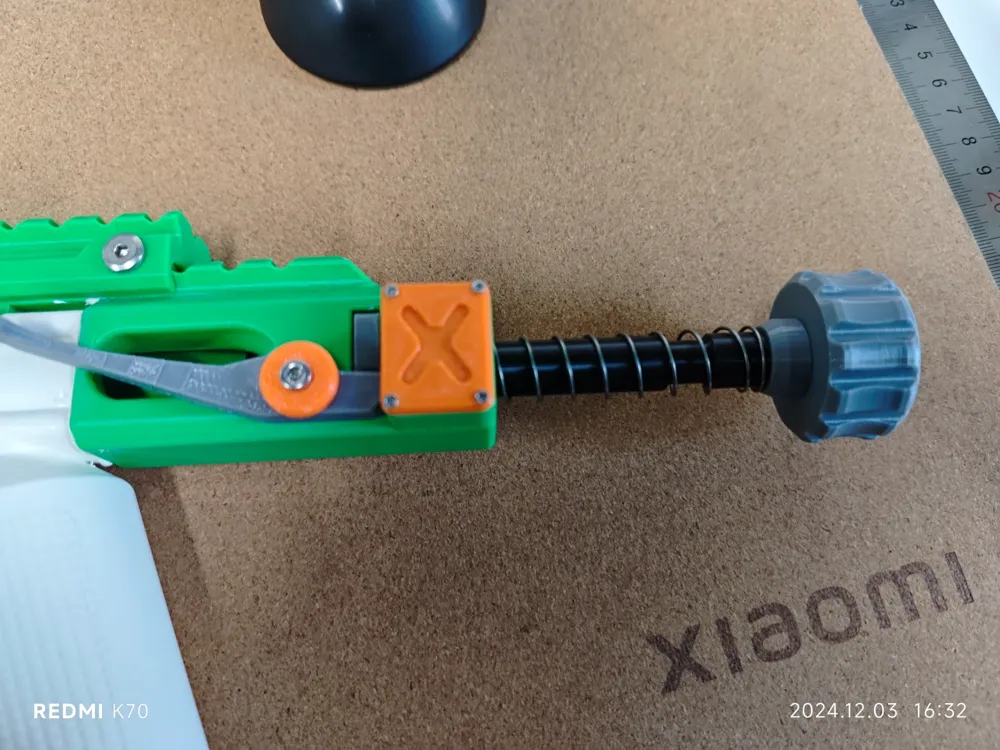

The ejection pusher rod seal ring uses a 10*1.5 O-ring. The spring uses a 0.8*14*60 mm spring; manually stretch it to approximately 80 mm before installation.

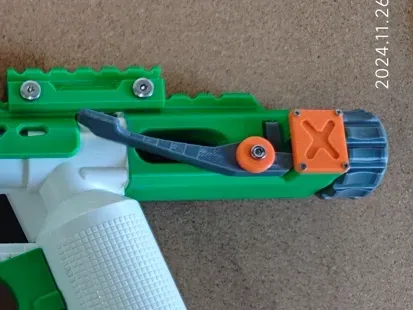

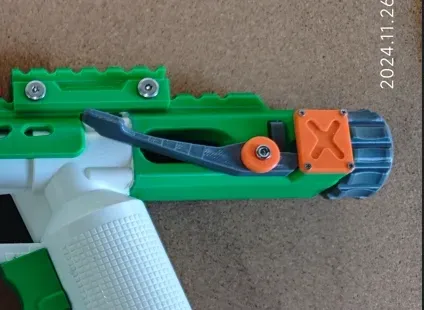

The rear knob can be replaced with my newly designed smaller knob for weight reduction and convenient tail drag addition. Secure it with an M3*16 screw.
The lever is fixed with an M3*16 flat-head or pan-head screw. The decorative cover is fixed with an M1.5*5 self-tapping screw or can be glued on.
For the lever and release limit block spring, use a spring from a disassembled ballpoint pen, cut in half. Alternatively, purchase a 0.5*4*15 mm spring.
