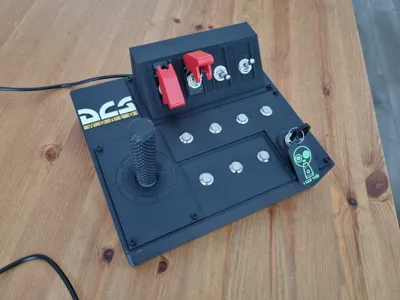

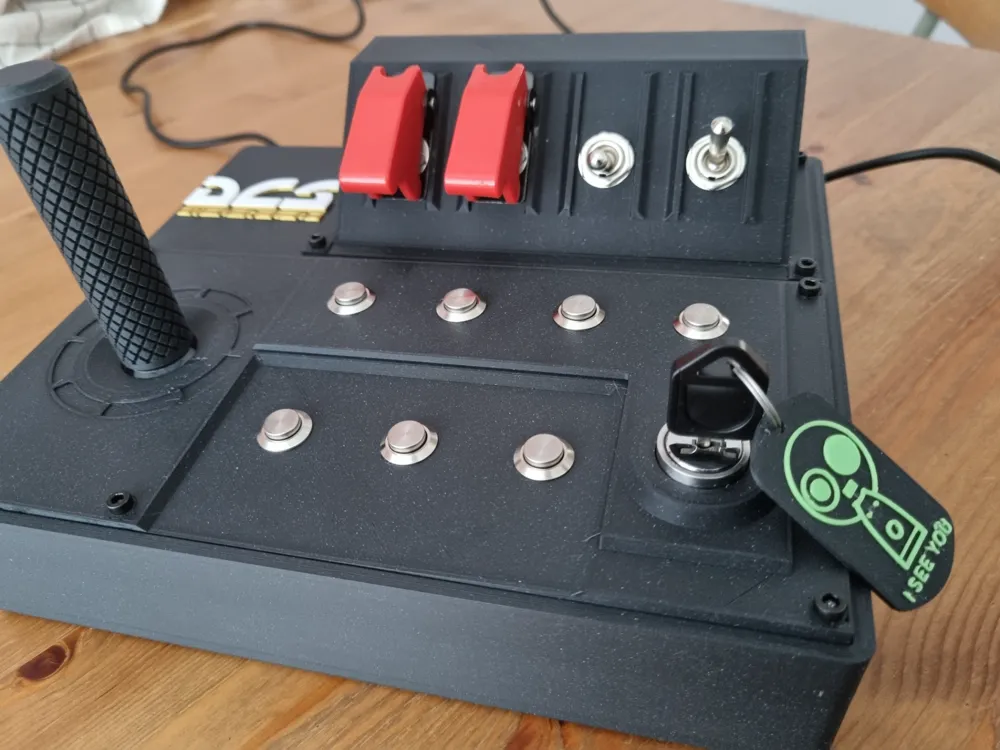

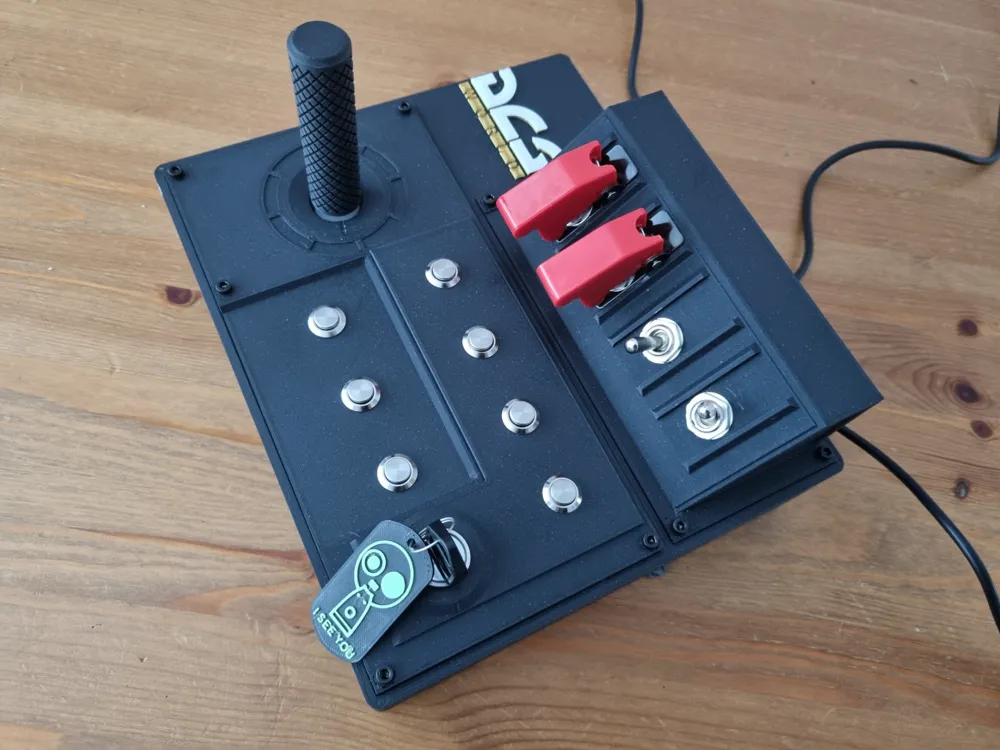

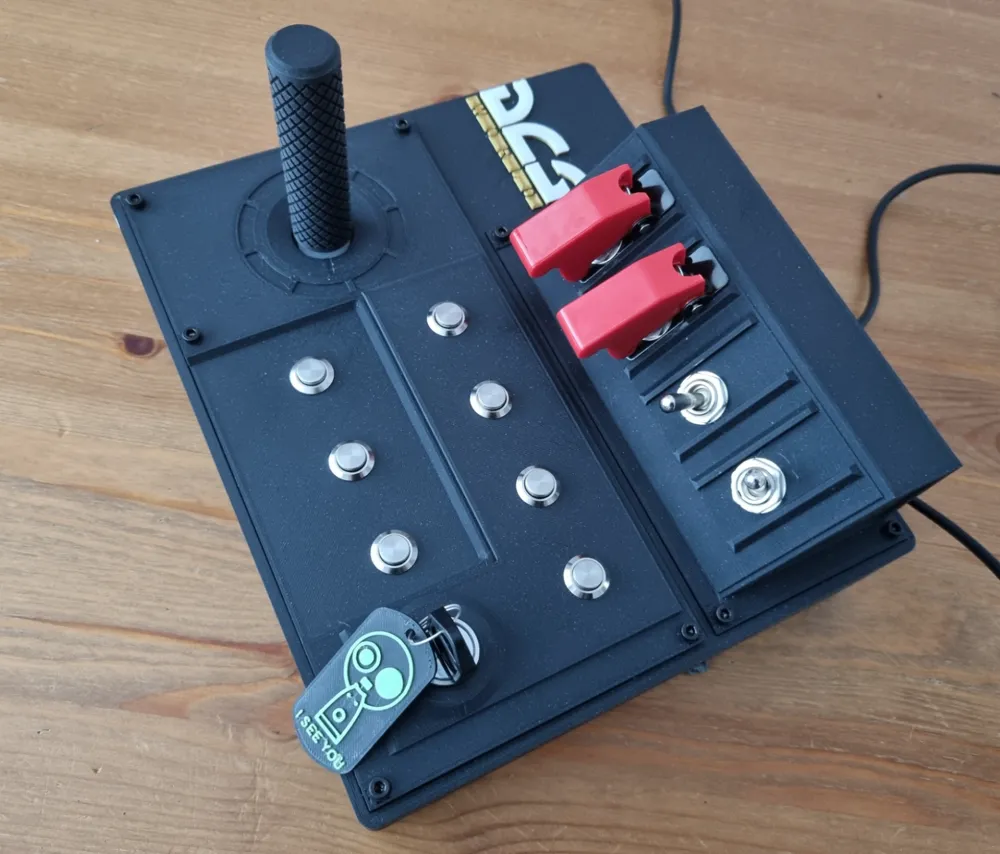

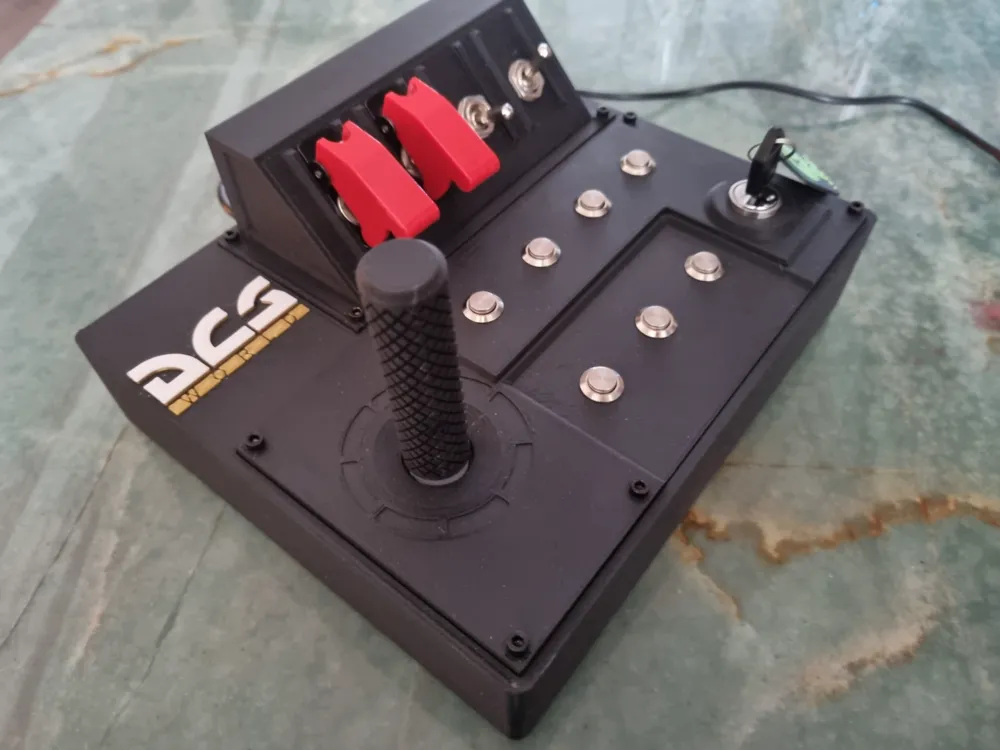

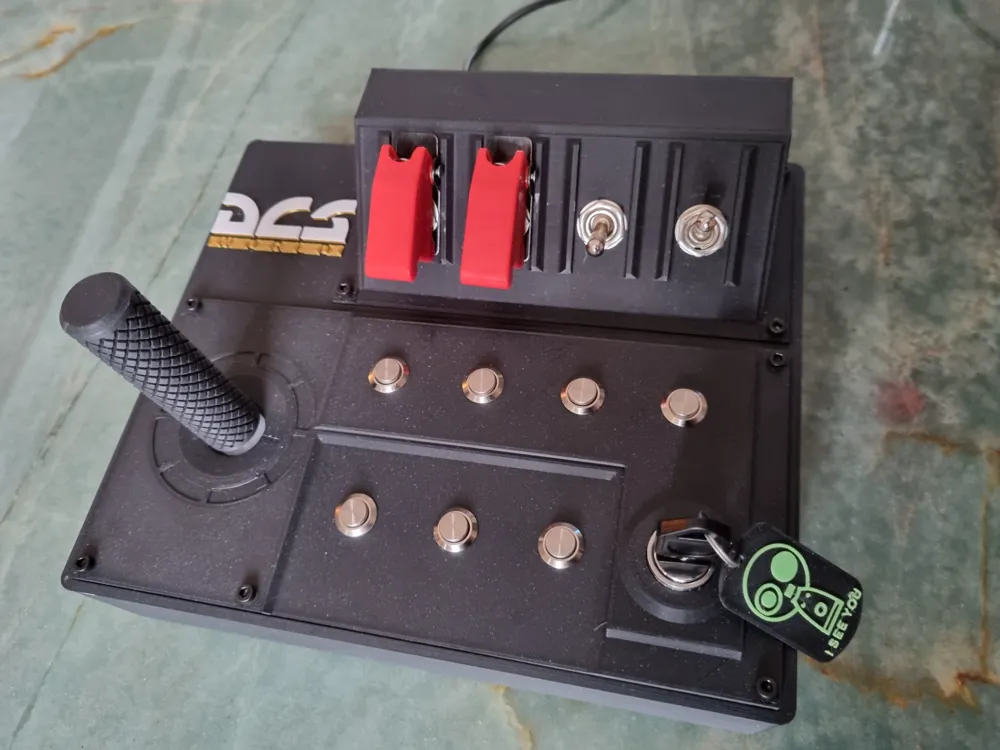

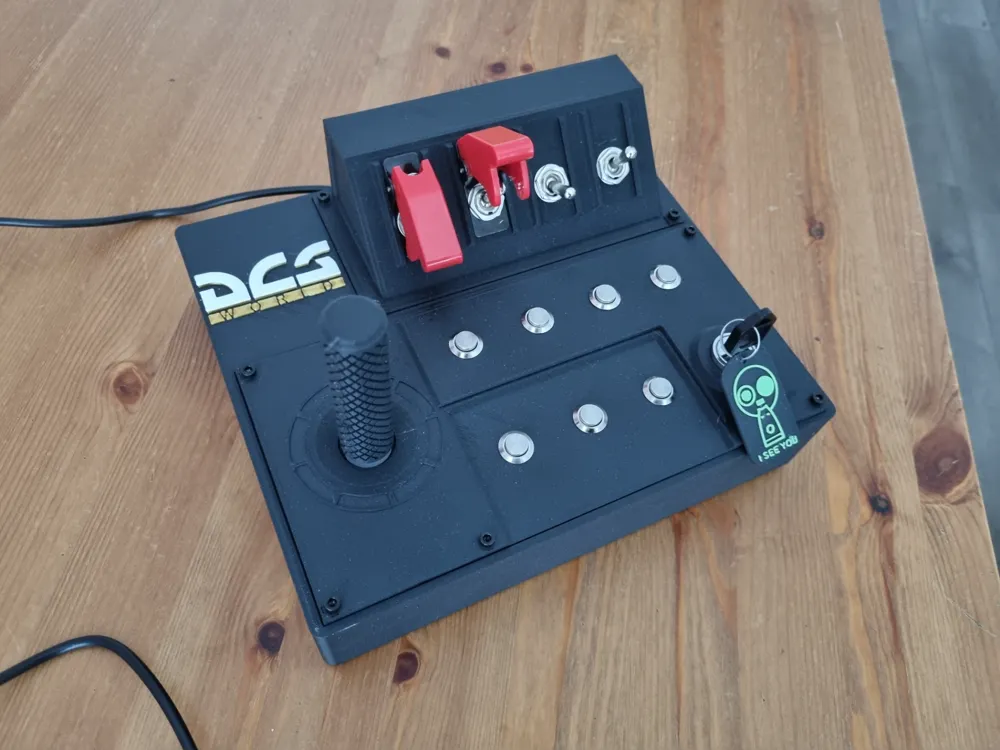

Sim Button / Switch Box

made this extra switch box to use in dcs.

but you can use it for other stuff aswell

you need:

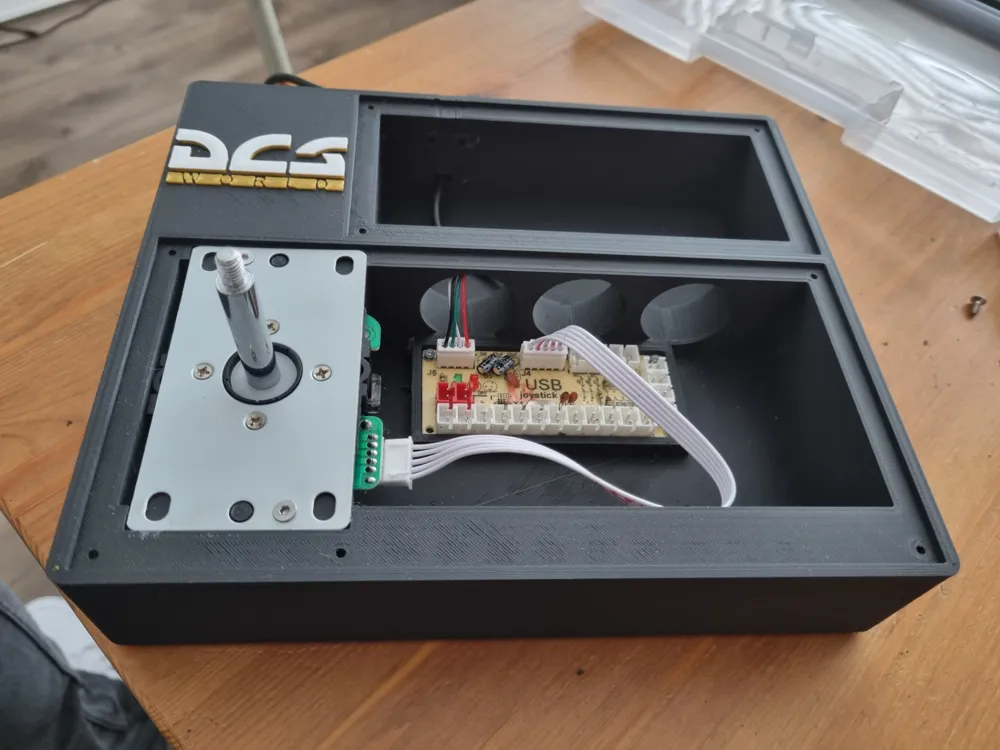

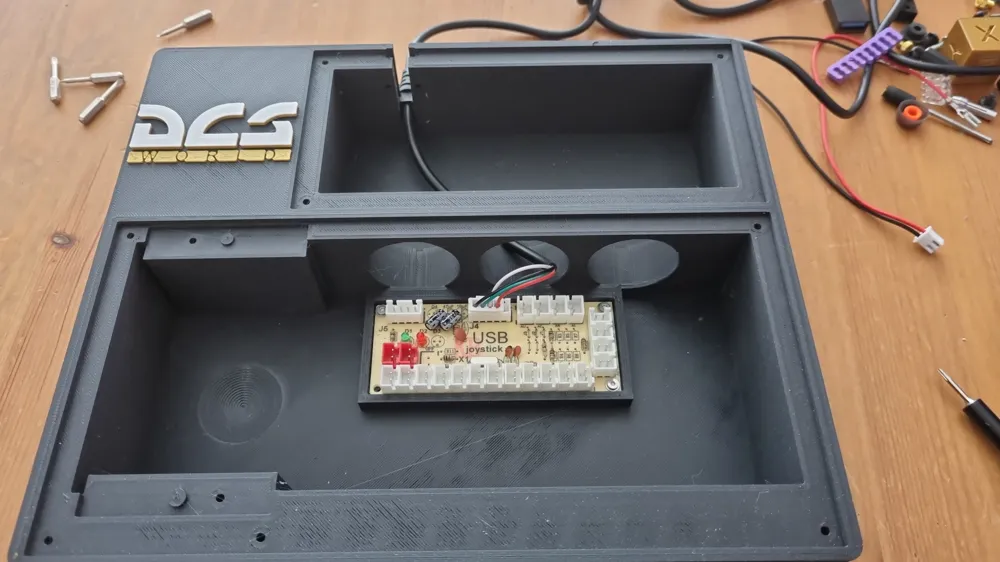

1x cheap arcade usb encoder board got mine from ali express was about 4,50 euro

4x a toggle switch ( I bought 2 with a cover)

5x a 12mm button

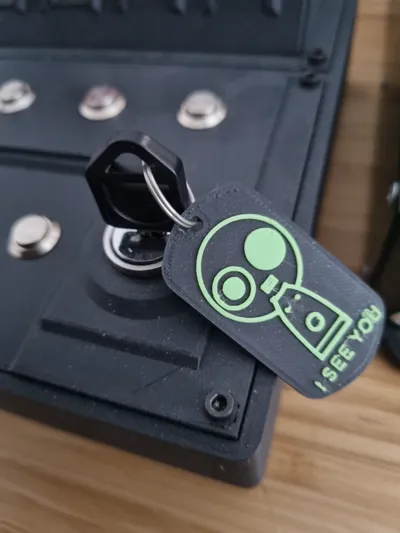

1x 16mm key switch (or extra 12mm button )

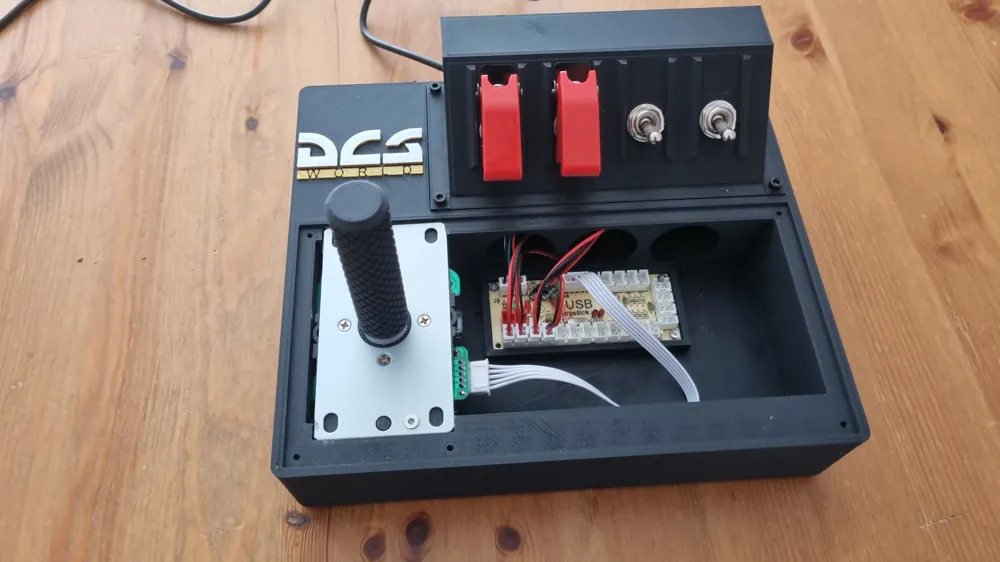

1x cheap arcade stick 9x m3 bolt

4xm2 10mm bolt for the board

2x m3 countersunk  bolt to fasten the stick

should be easy to print no supports needed.

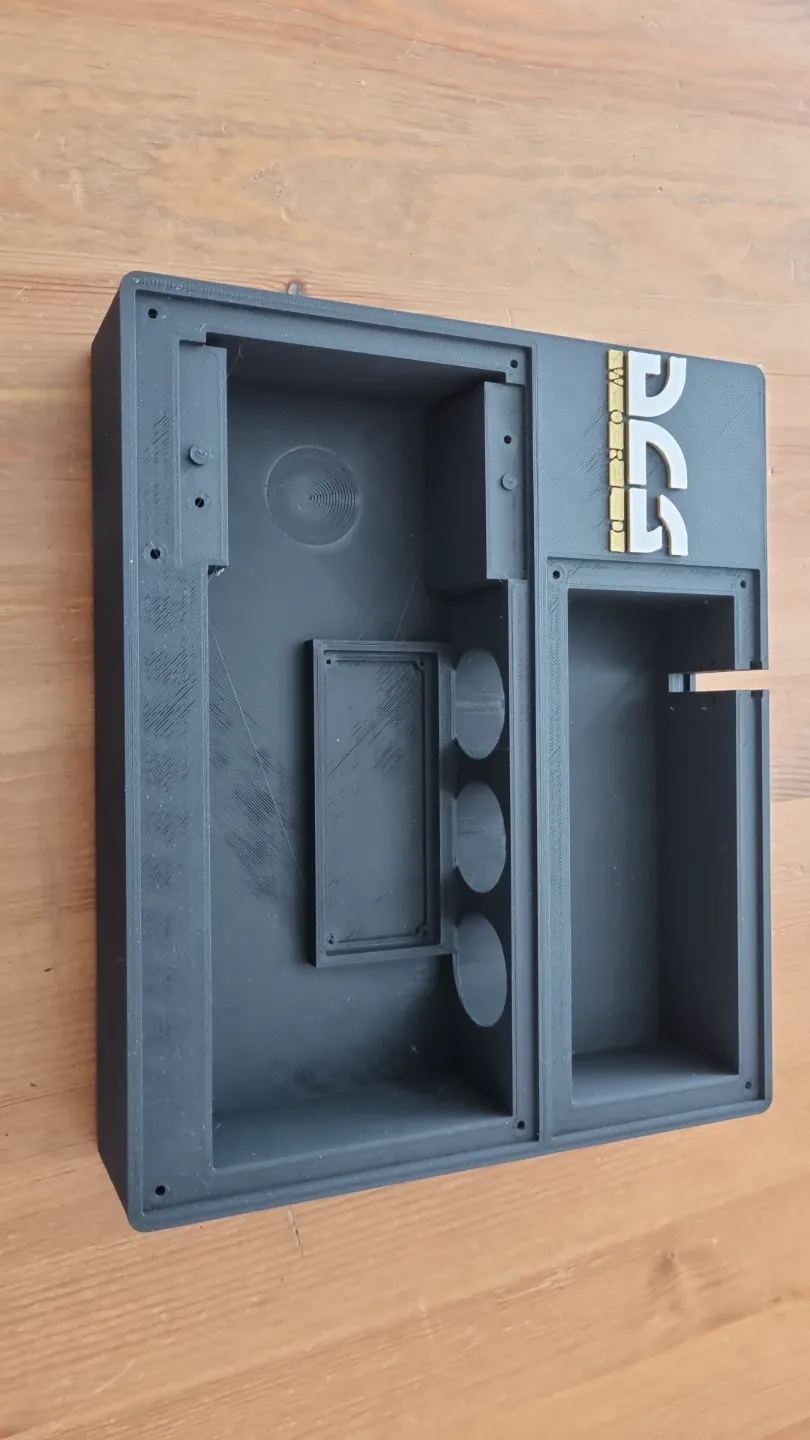

biggest part is the base it's 223x191x51 mm so should fit on most printers

(also posted a 2nd version of the base with a 12mm hole at the side so you can switch between the modes for the stick and still have 12 buttons at the top)
