Ultimate Drilling Guide
Print Profile(1)
Description
2个版本，可自行选择
一个为正常钻头放入版本
另一个孔位较大可放入轴承套耐磨，增加打孔器使用寿命
4mm对应轴承套外径为10mm
5-6mm对应轴承套外径为12mm
7mm对应轴承套外径为14mm
打孔角度为30°，45°，90°
后续会上其他孔位尺寸的版本

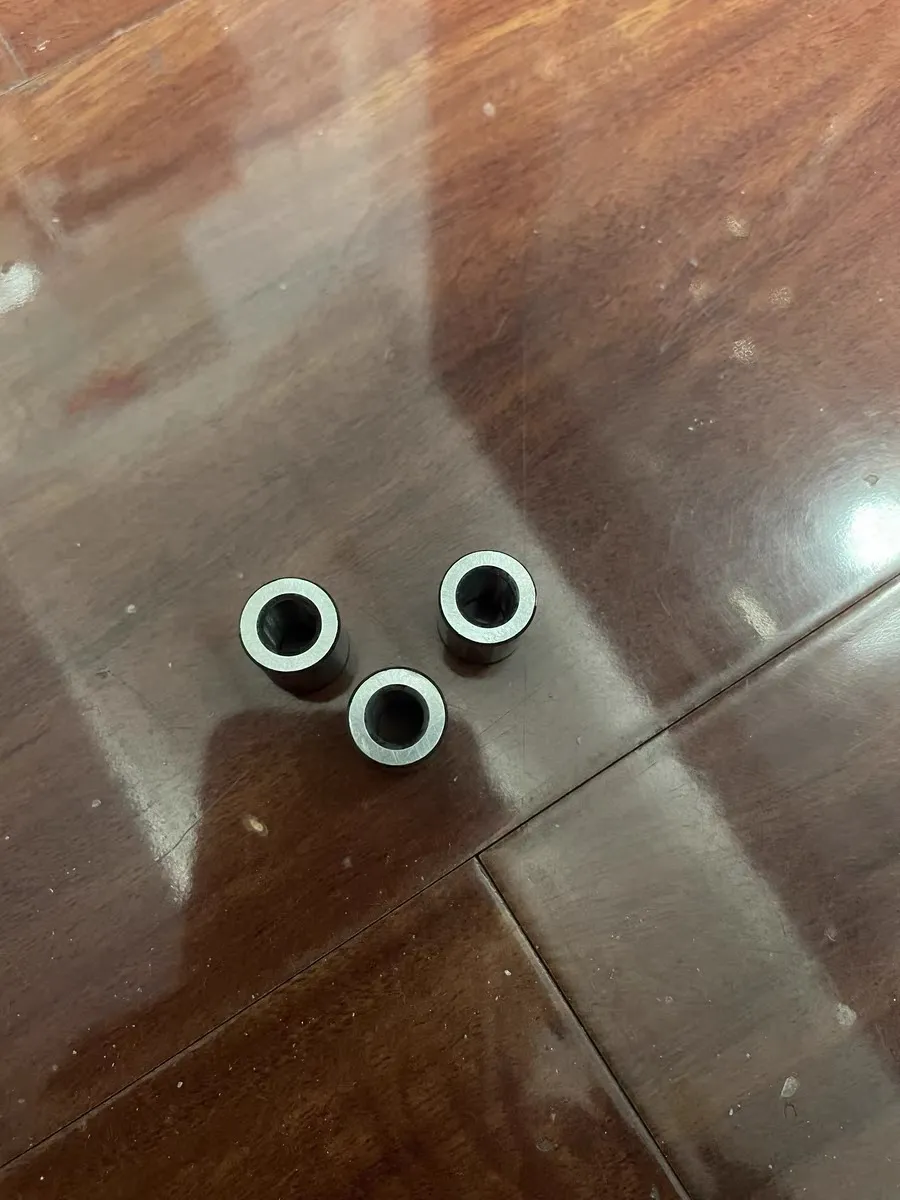

图为轴承套示意
2 versions, optional
A version is put in for normal bits
The other hole position is larger and can be put into the bearing sleeve to wear and increase the service life of the punch
4mm corresponds to the bearing sleeve outer diameter of 10mm
5-6mm corresponds to the bearing sleeve outer diameter of 12mm
7mm corresponds to the bearing sleeve outer diameter of 14mm
The punching angles are 30°, 45°, 90°
Later versions of other hole sizes will be presented
The picture shows the bearing sleeve
