Now, bringing to MakerWorld this DIY 80mm fan dust filter Noctua Fans and more!

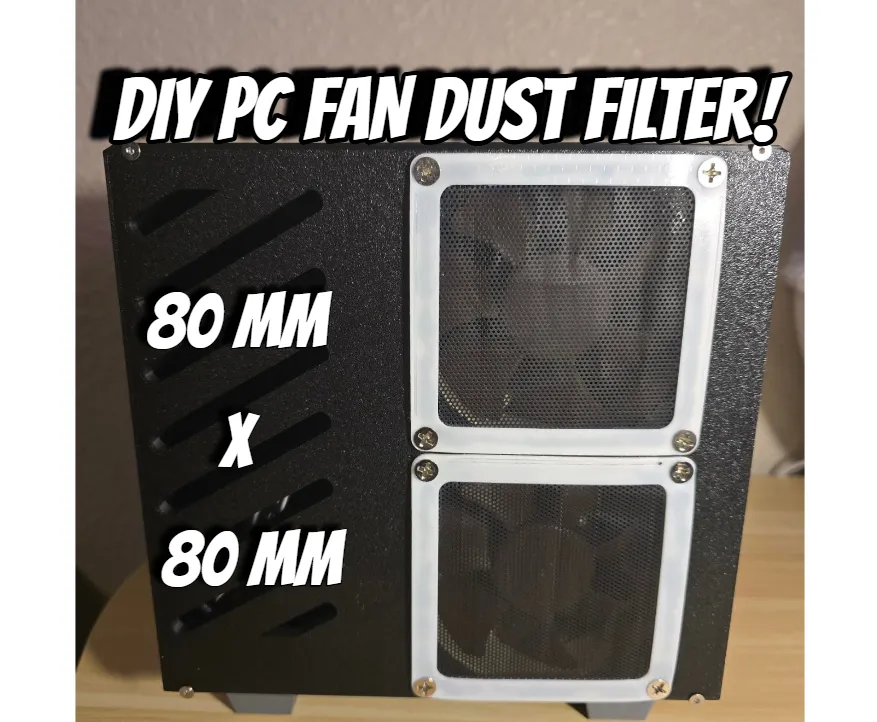

I designed these fan dust filters to fit the 8025 Noctua fans used on my Raspberry Pi 5 NAS for 3.5 HDDs enclosure to limit dust from the air intake!

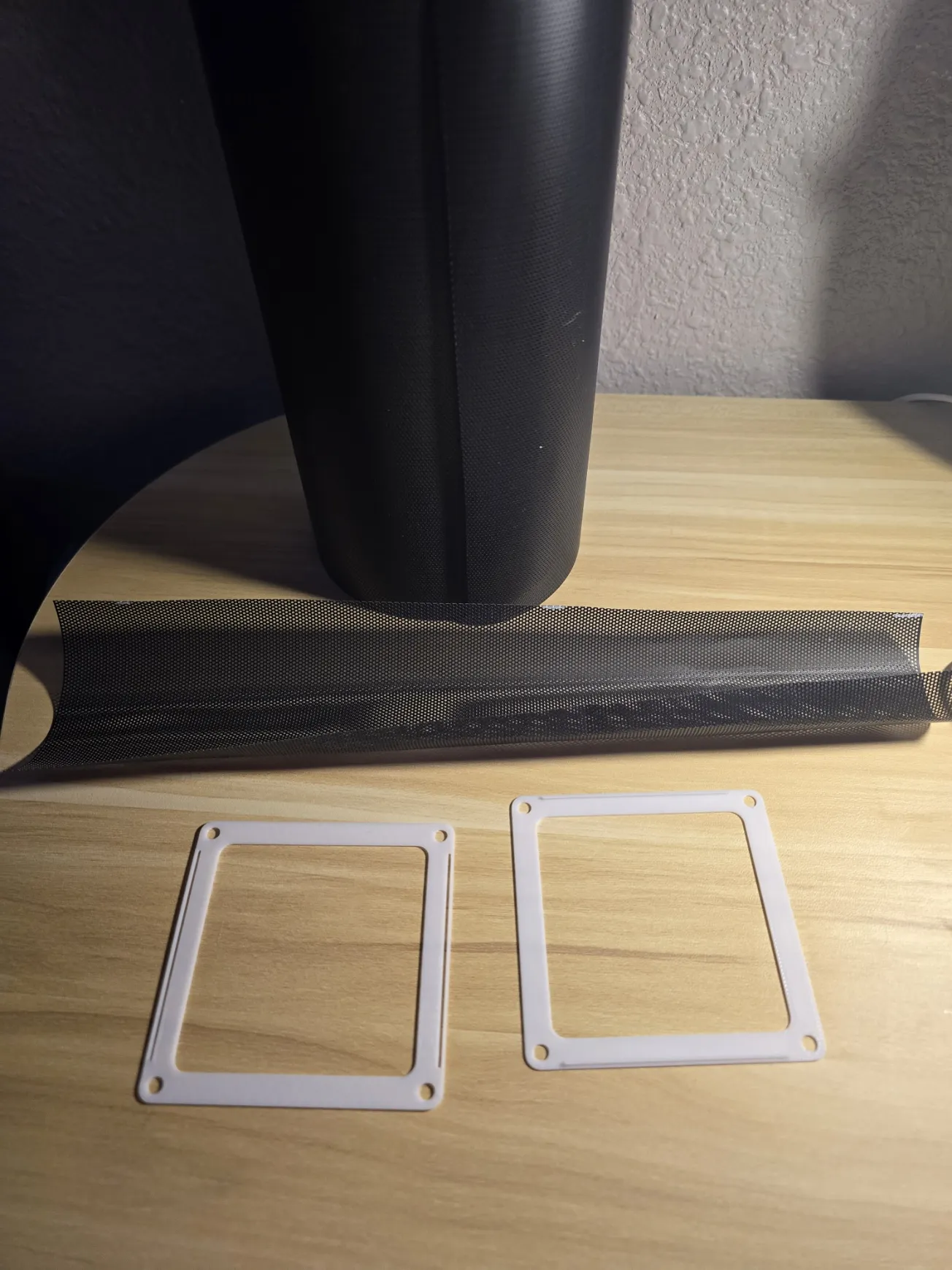

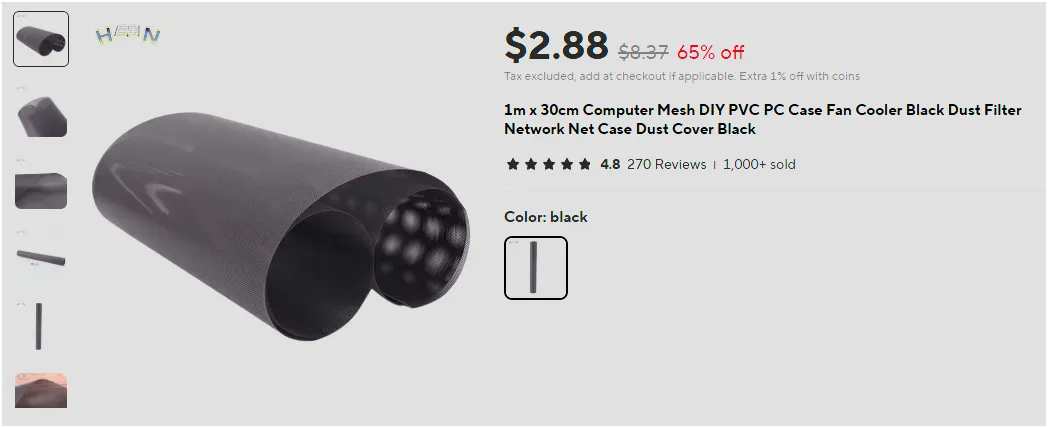

I recommend buying the cheapest mesh you can find, Here's the link of the one I got. 1m x 30cm Computer Mesh DIY PVC PC Case Fan Cooler Black Dust Filter Network Net Case Dust Cover Black
Instructions

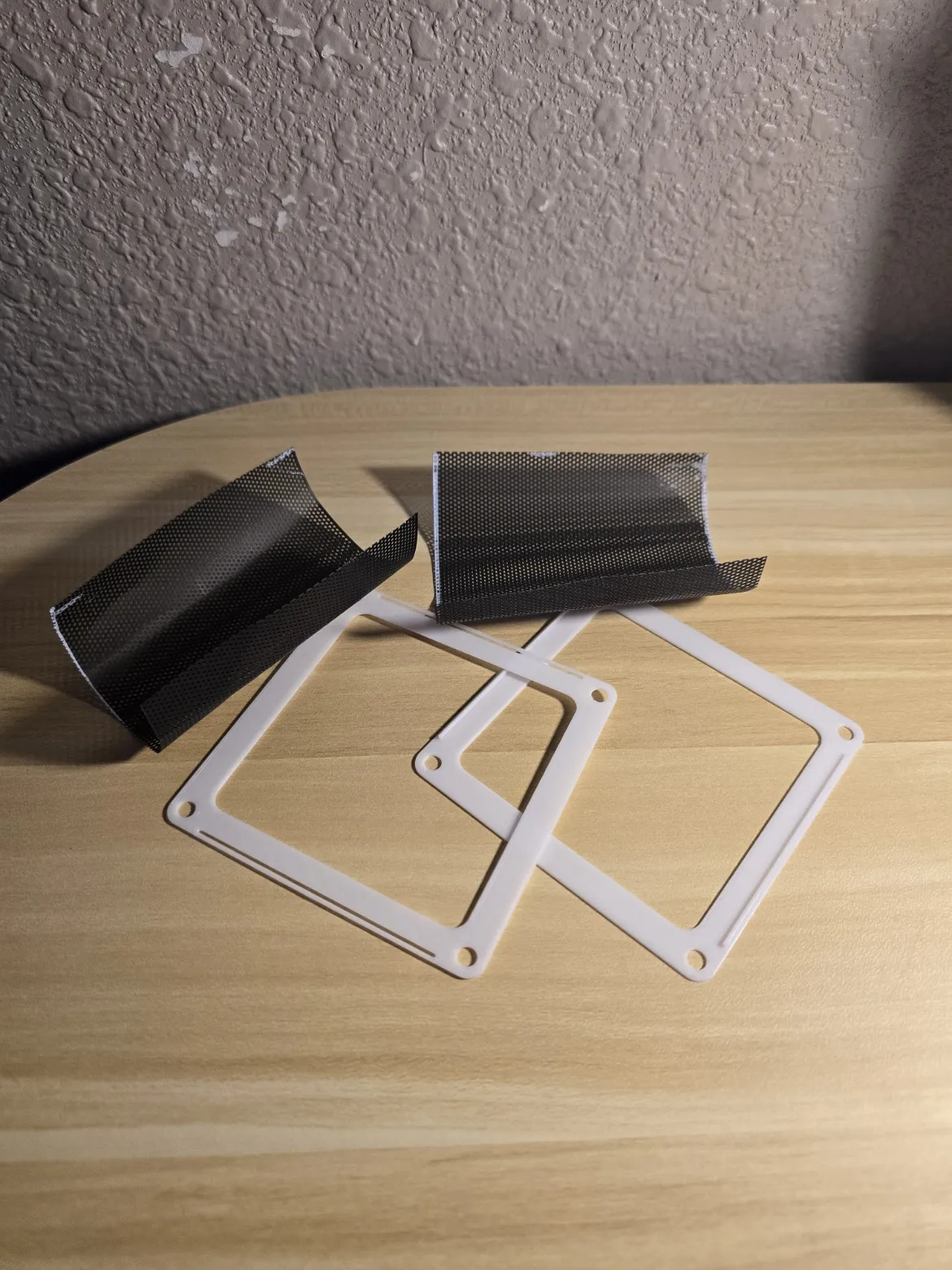

Cut a section of 76mm x 76 mm
Note: It does not need to be perfect. Just ensure the cut is less then 76 mm and grater than 70mm
Cut all four corners in a 45° (this will help clear the mounting holes. |  |
Note: This step is optional but will help with the filter placement.
Add a bit of glue to the edges to help secure the filter in place and avoid missalignment |  |

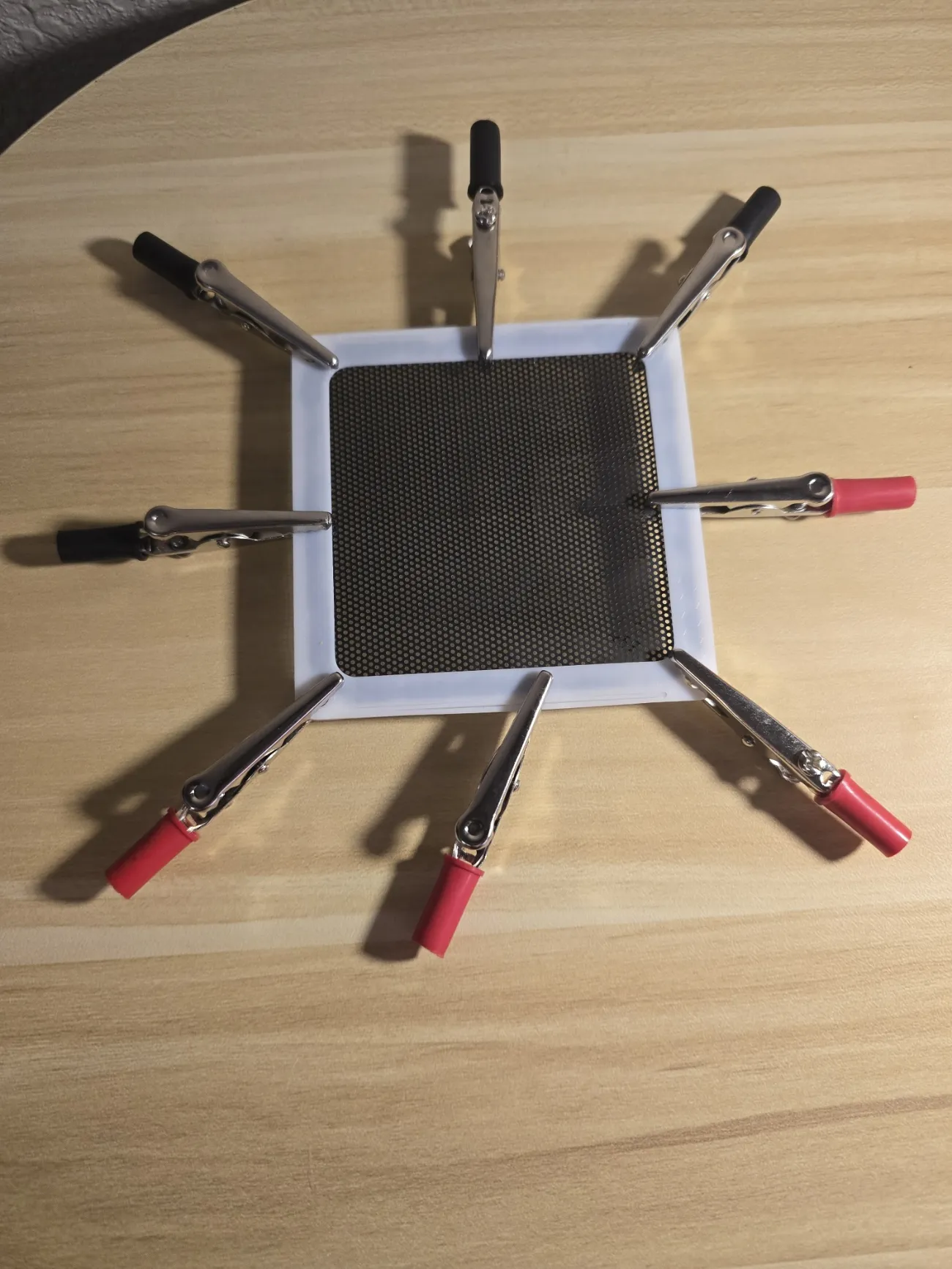

Clamp the both ends, ensuring the grooves clip on and the whole body lais flat.
Note: If you added glue, let it sit for at least 3-5 minutes to allow glue to dry |  |

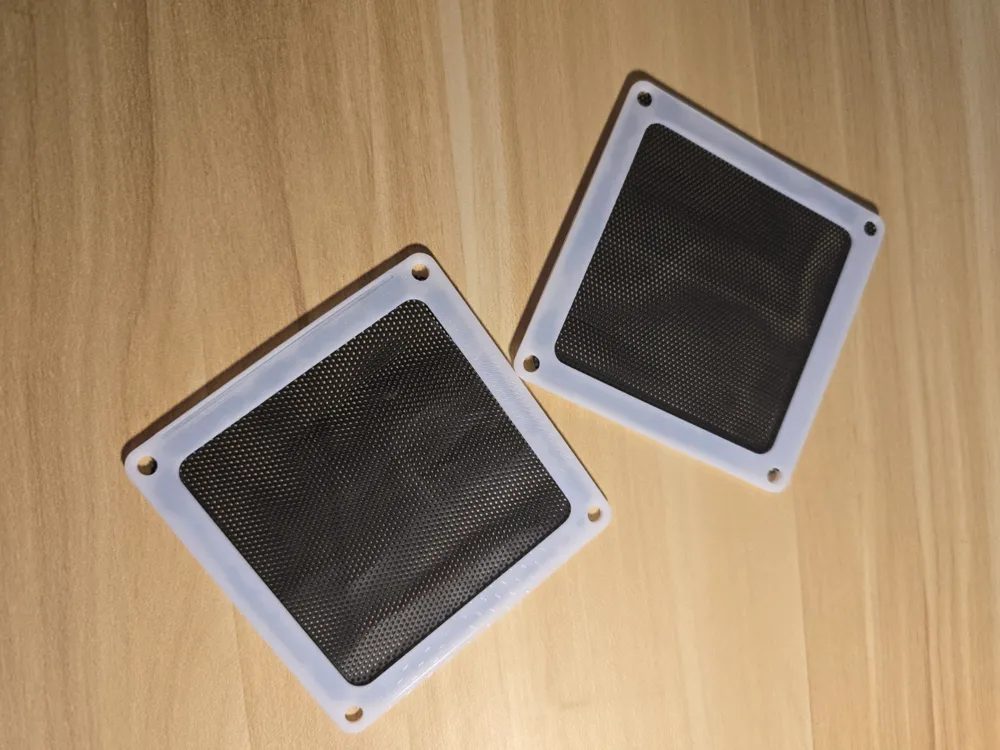

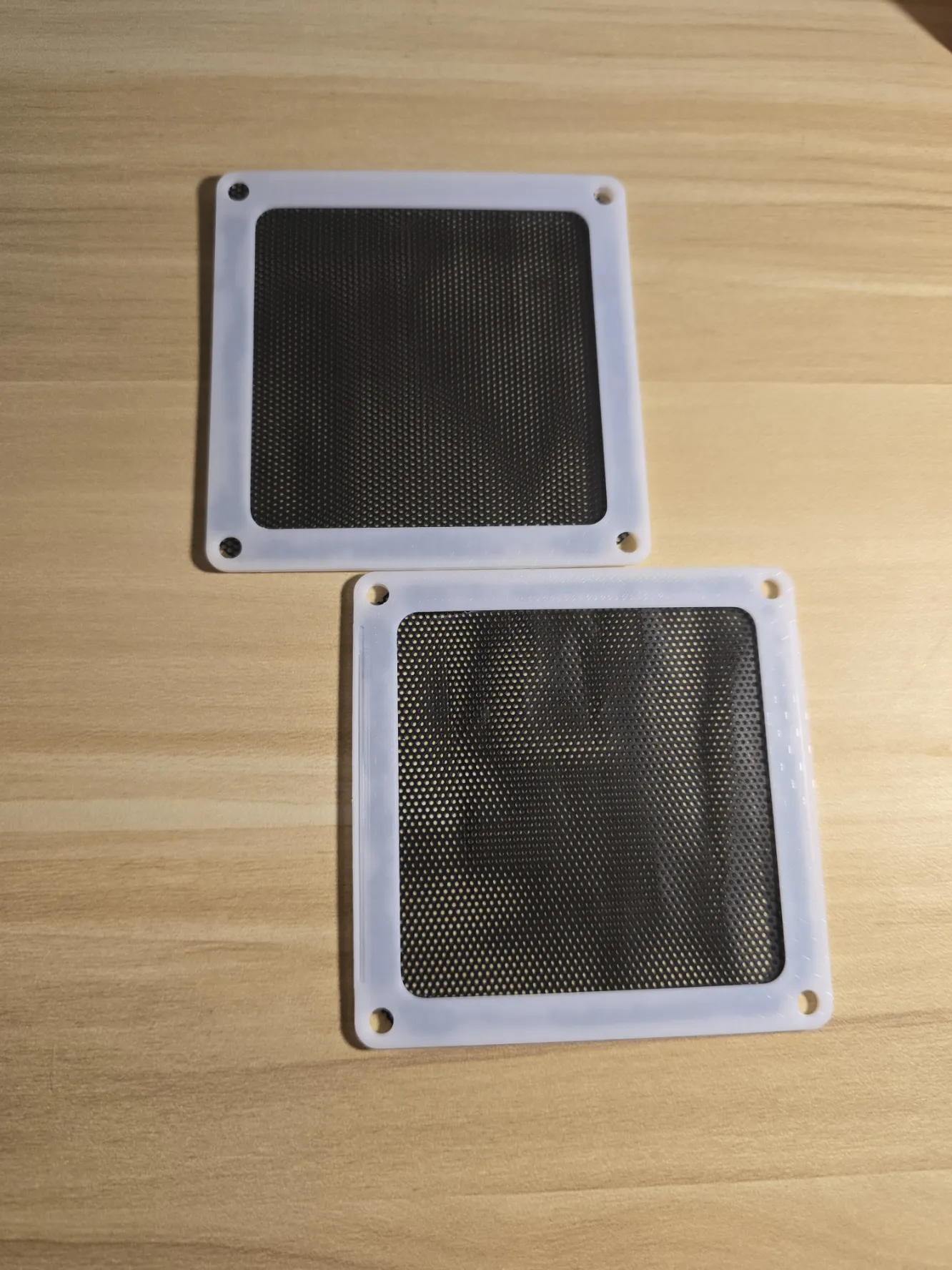

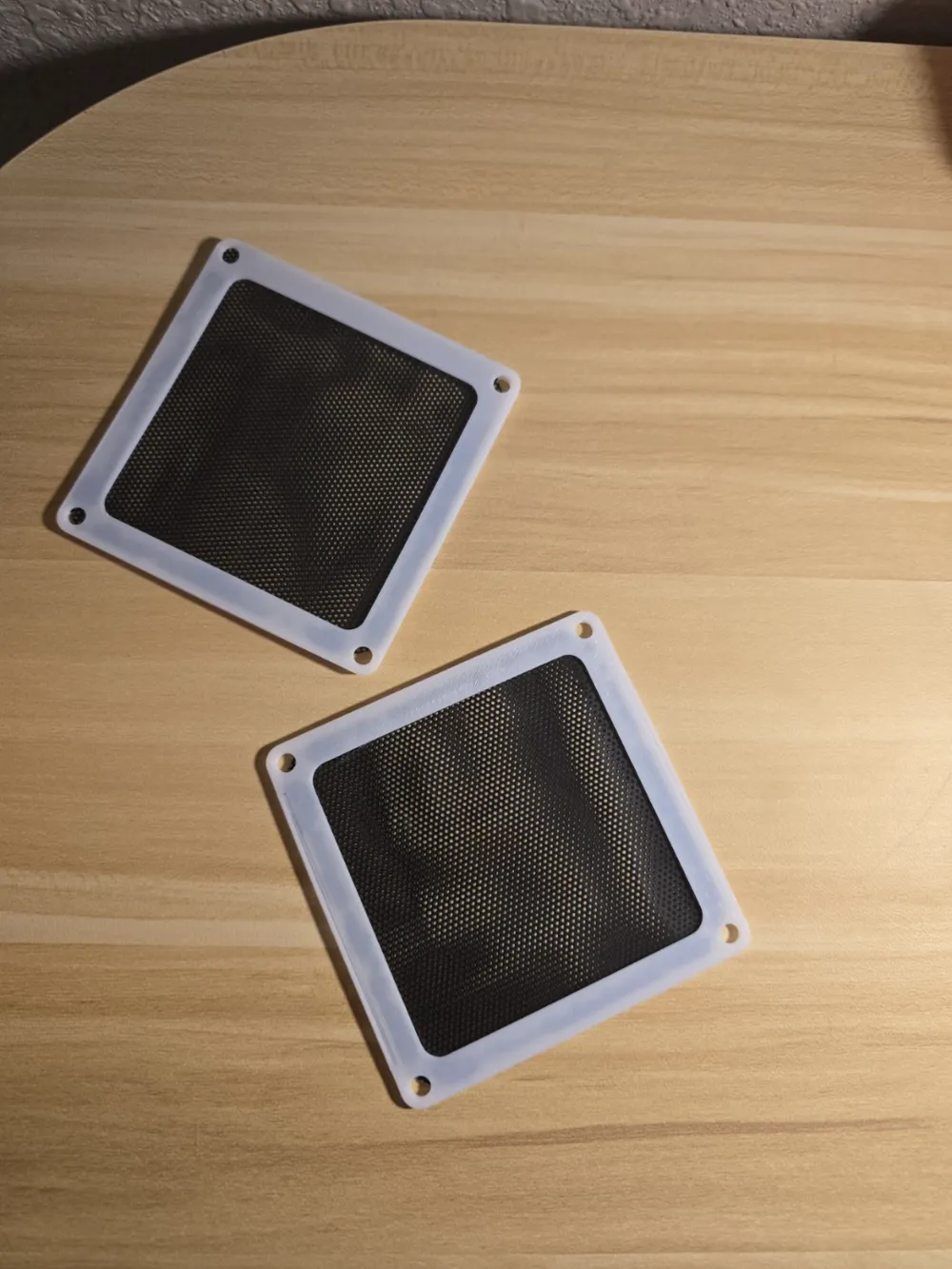

| You are ready to mount the filters now! |  |
