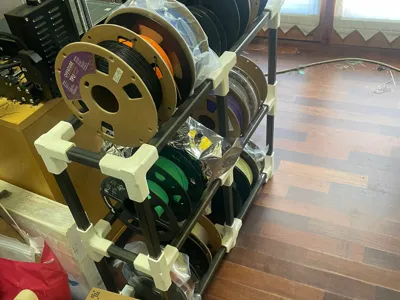

Mobile Spool Holder
A convenient mobile unit to store up to 18 1kg and 12 0.2kg filament spools.
The connecting components are designed to join 20mm x 20mm x 3mm thick steel tubes via interference fit.
For different materials, the seats and thicknesses must be adapted
Caution!! Many configurations are possible, but judgment must be exercised and excessively tall structures avoided (a maximum of four spool layers is recommended) to prevent hazardous instability.
Tube Measurements:
280mm 12 pieces
140mm 9 pieces
240mm 12 pieces

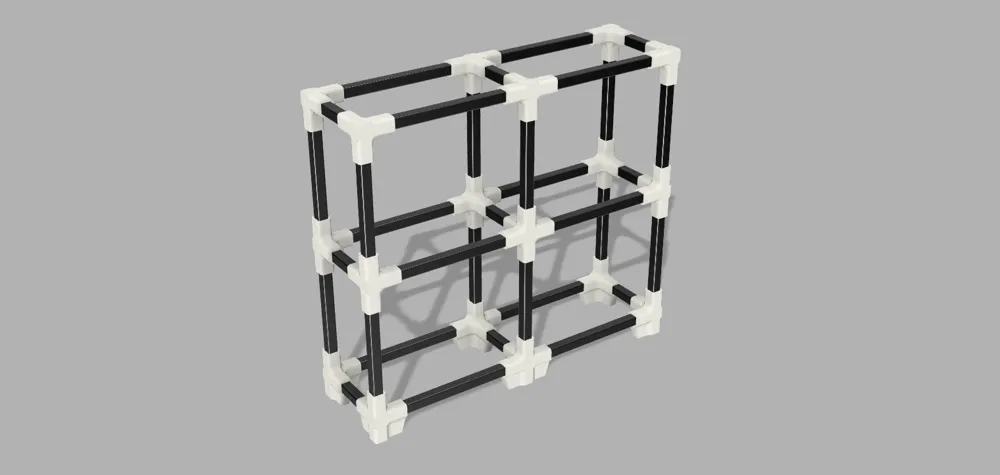

The number of tubes and measurements refer to the standard 3x2 model (see photo)
Modifying the 280mm length is not recommended to avoid creating excessively long shelves that overload the 3D printed joints
