Brick Clock + Rechargeable LED Option!
Print Profile(4)
Bill of Materials
- KitLED_Wobane x 1: https://a.co/d/6Al03nN
- MicroUSB_to_USB-C_ADAPTER x 1: https://a.co/d/2ei9X8V
- M3x40mm x 8: https://a.co/d/huEvq8j
- ⌀250mm_Clear_Plexiglass x 1: https://amzn.eu/d/atfNUaF
Description

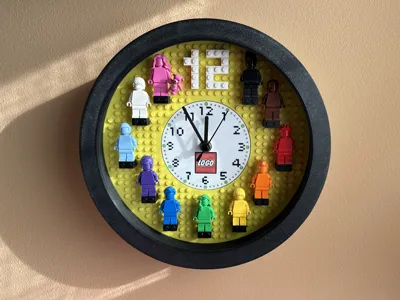

"Brick Clock" ⌀255mm
Edition Fully Printable

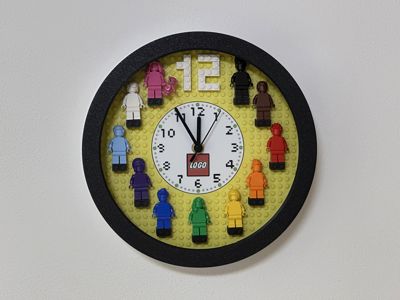

2 variants, with and without LED lighting
- 100% dustproof

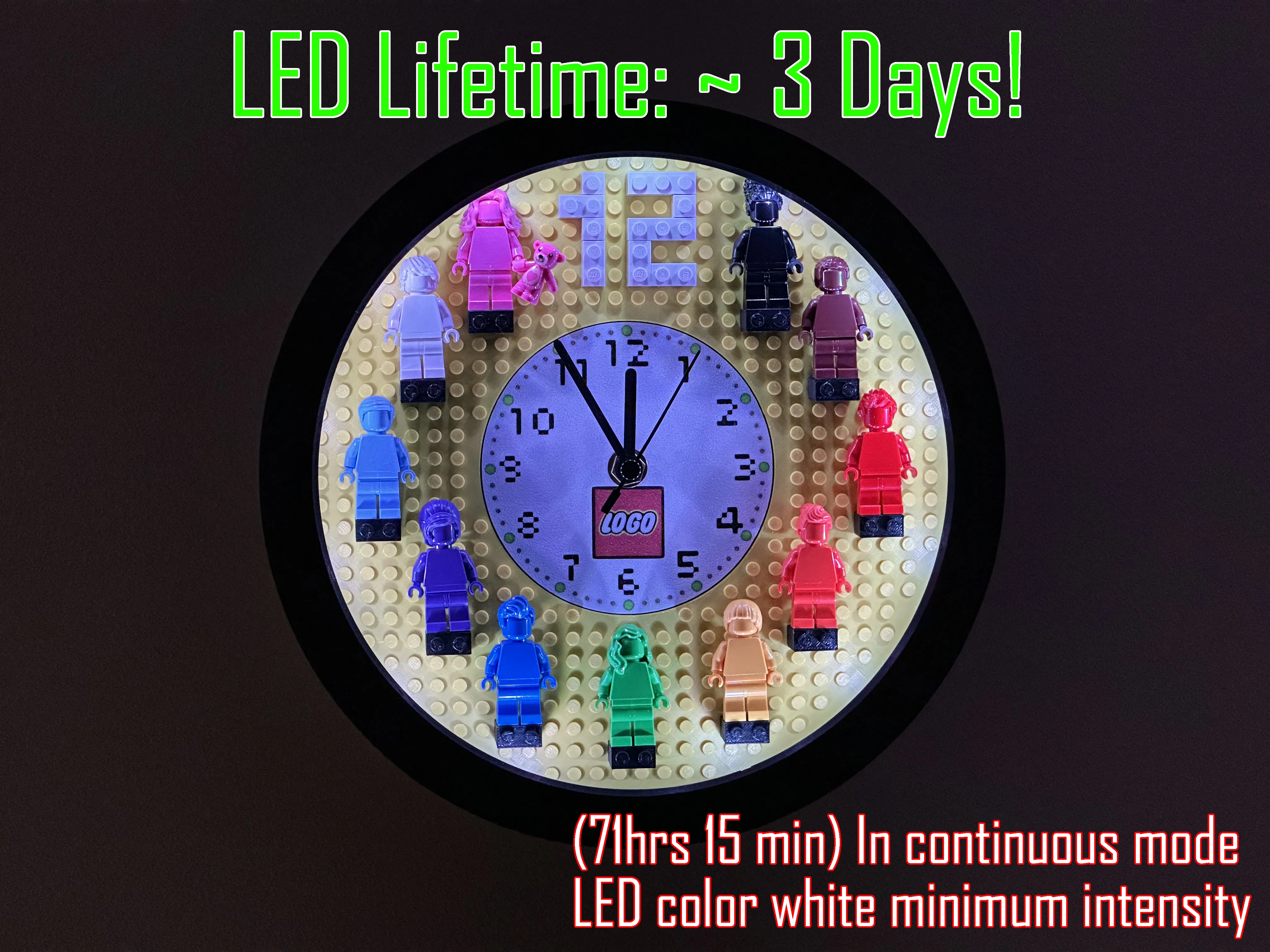

- Fully rechargeable LED lighting
(with built-in 2000mA battery - USB C) - IR remote control for various game/light combinations

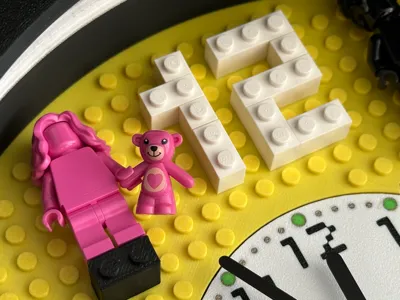

- Ready to accommodate 12 Minifigures or a "brick" setup as you like
- Customizable to your liking in colors
- 100% Printable (excluding minifigures ^_^)
Hardware Parts Required:
(in addition to the 3D prints already included in the printing profiles)
- 1x Rechargeable LED Kit "Wobane" (LED Strip + Controller/Battery)
- 1x Adapter from microUSB male to USB C female
[Only needed for the light version]
- 1x Clock KIT 001
- 8x M3x40mm screws
- 8-16x M3 washers (depends on the thickness)
- 12x M3 nuts (normal)
- 4x M3x12mm screws
- 1x Plexiglass Disc diameter 250mm and thickness 3mm
- 1x AA Battery

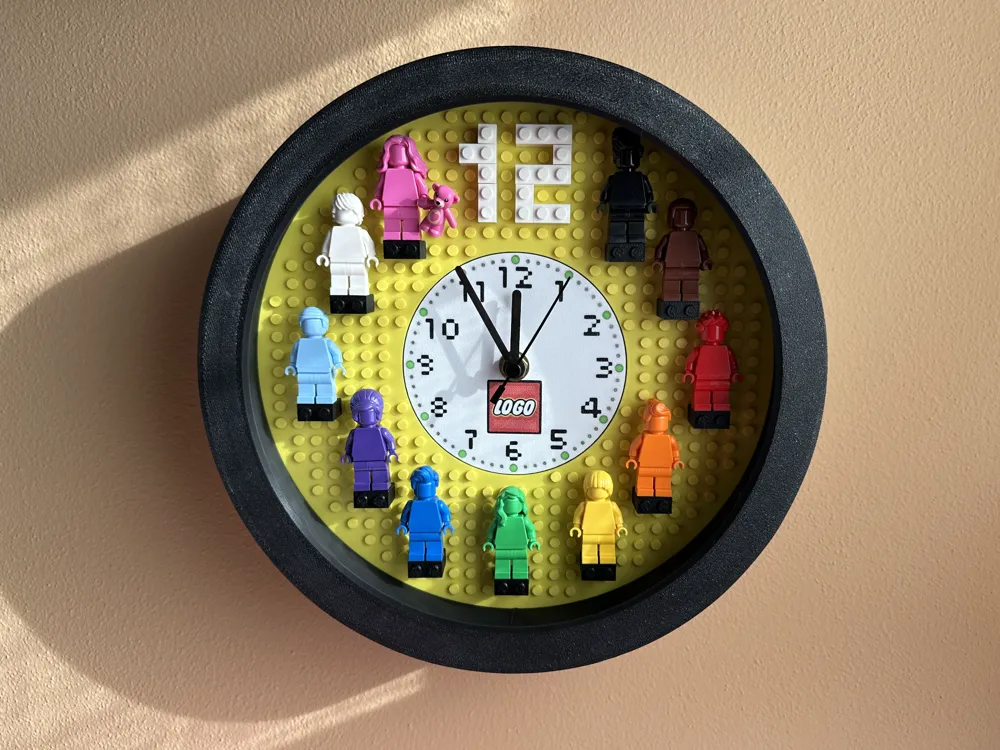

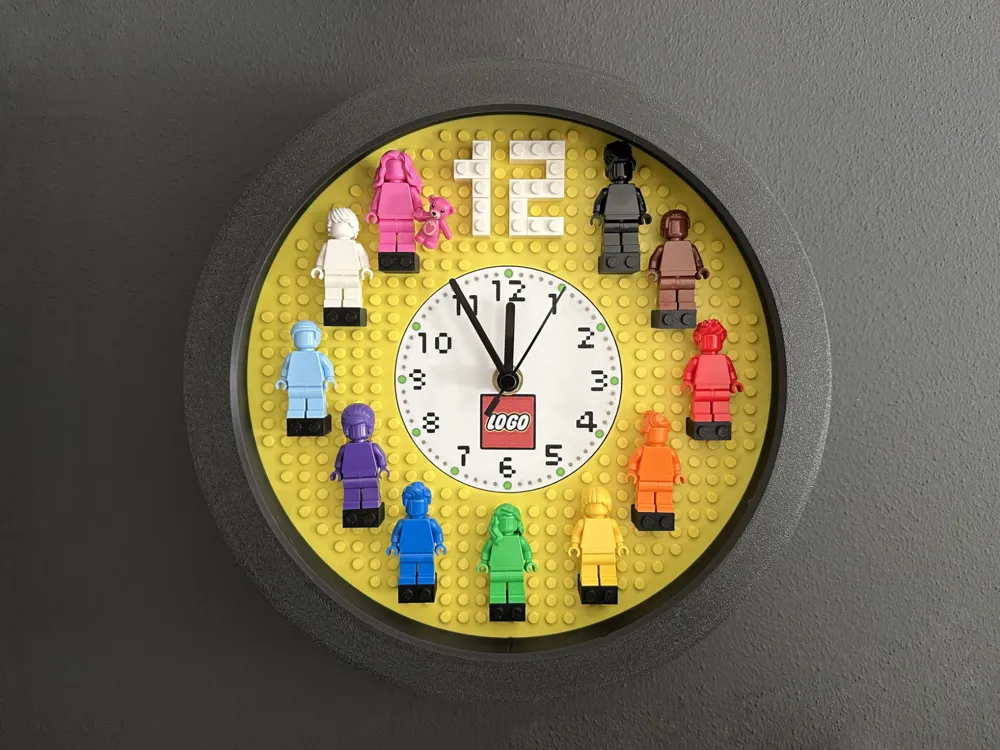

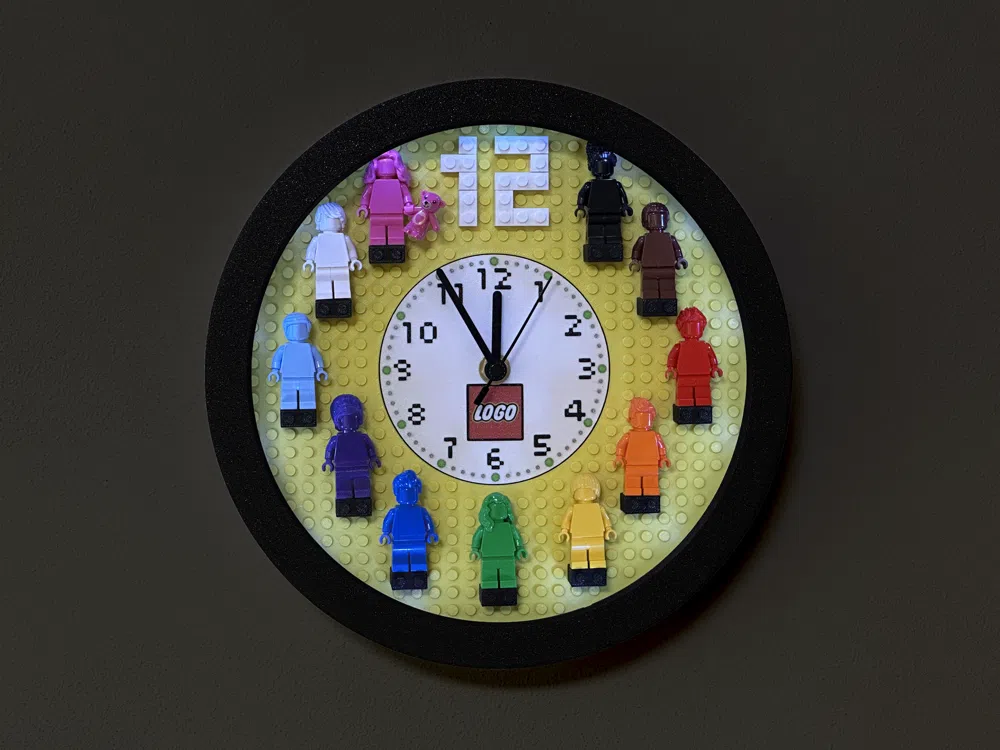

(in this photo the front plexiglass is still missing)
All the components present in the printing profile:
[LED EDITION]
- Outer ring (two-tone of your choice to make it look "slimmer").
- Base containing the clock mechanism, LED battery and hook for hanging.
- BrickLego base of the color of your choice (Yellow in the photo)
- Black thickness ring
- Ring containing LED strip (With transparent material, PETG in my case)
- Numbered dial (choose the color combination you want)
- USB adapter lock closure
- Wall fixing hook
- Hour/Minute hands (Second hand to use the original from Kit011 BambuLab)
- Tab for easy removal AA battery
[The non-luminous version is slightly different in the parts to be printed]

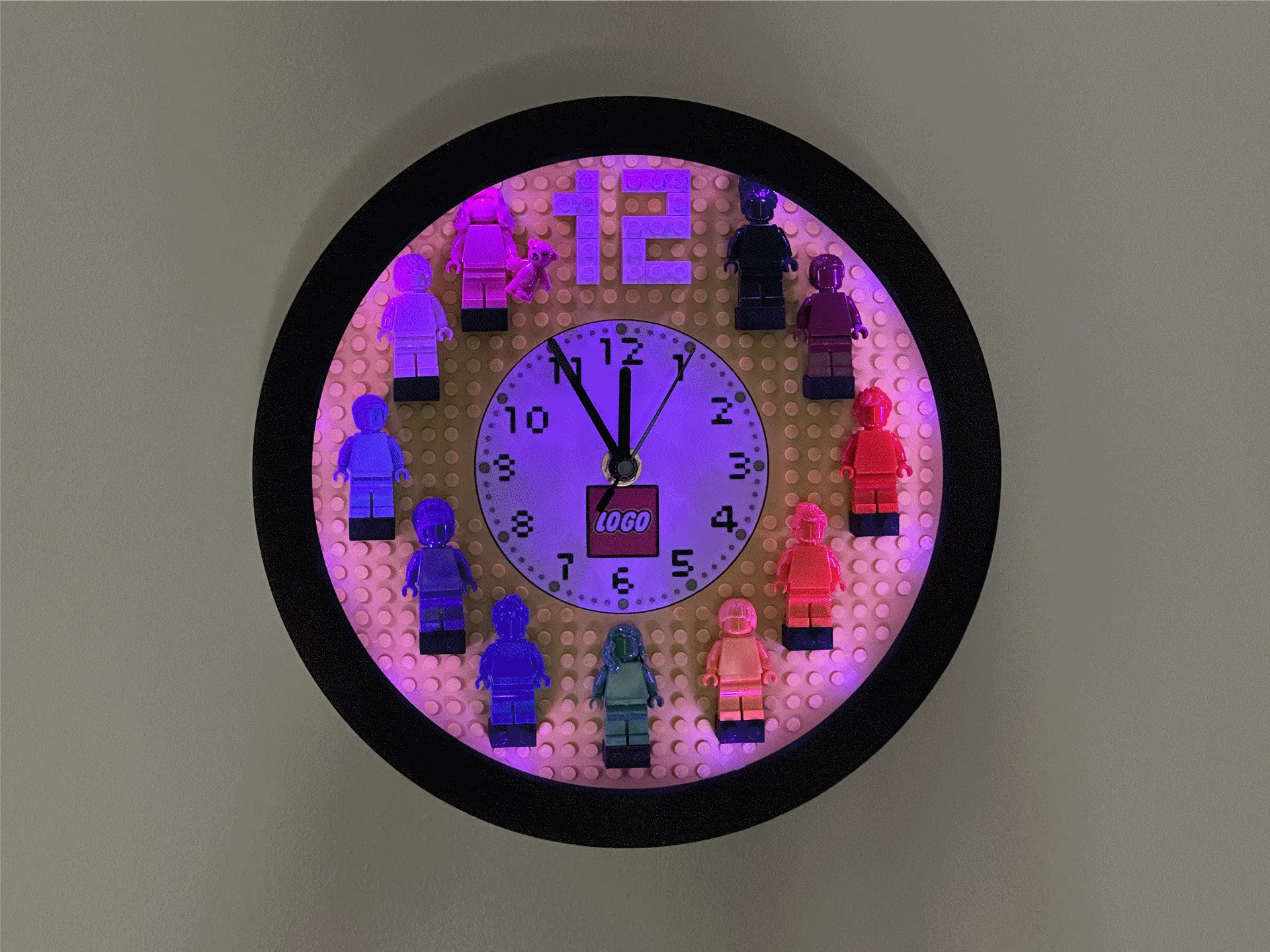

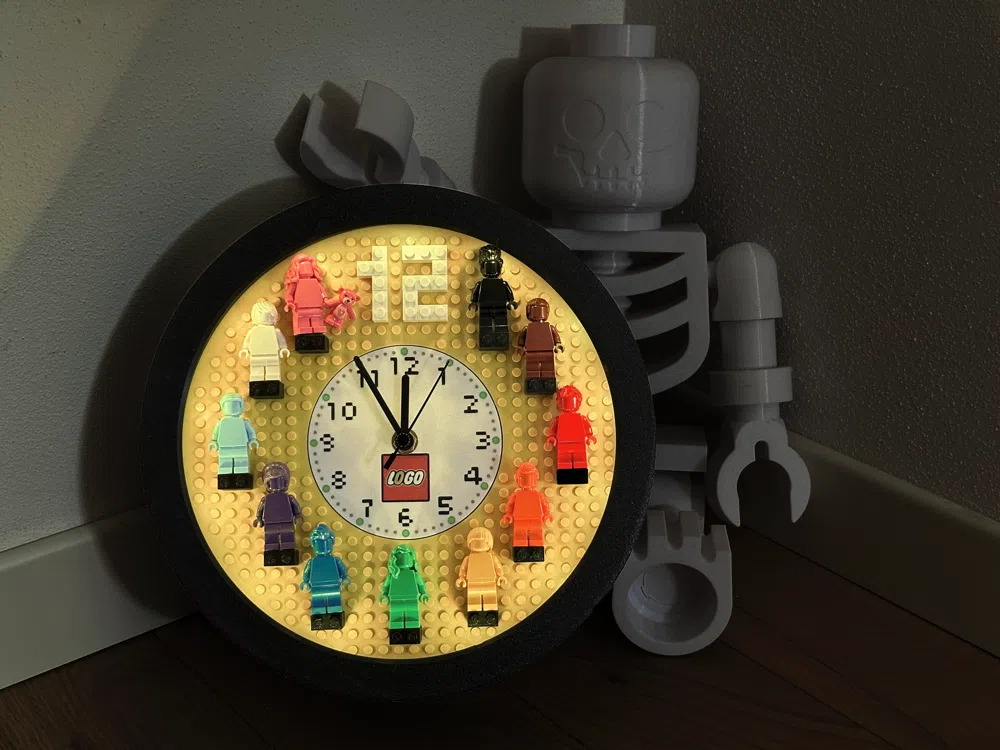

For RGB lovers!
(The pictures don't do it justice. The lighting is even more beautiful in person!)
Various tips and tricks
Use tweezers to easily remove all supports.
In all prints there is a pause before starting the print to allow the removal of any bleed lines.

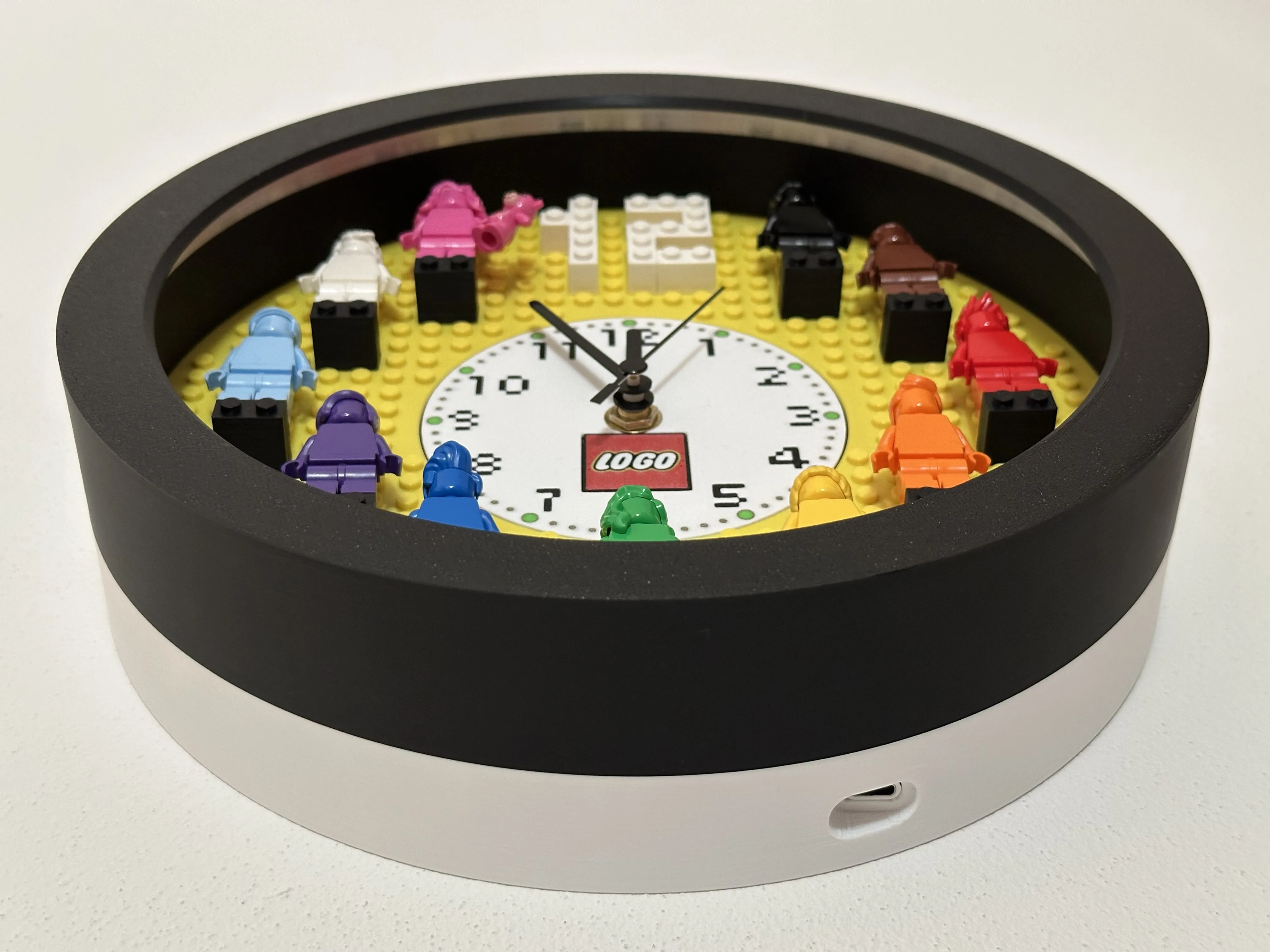

Lines that would otherwise alter the final aesthetic result.Behind the 5 o'clock minifigures there is a hole for receiving the IR signal from the remote control.

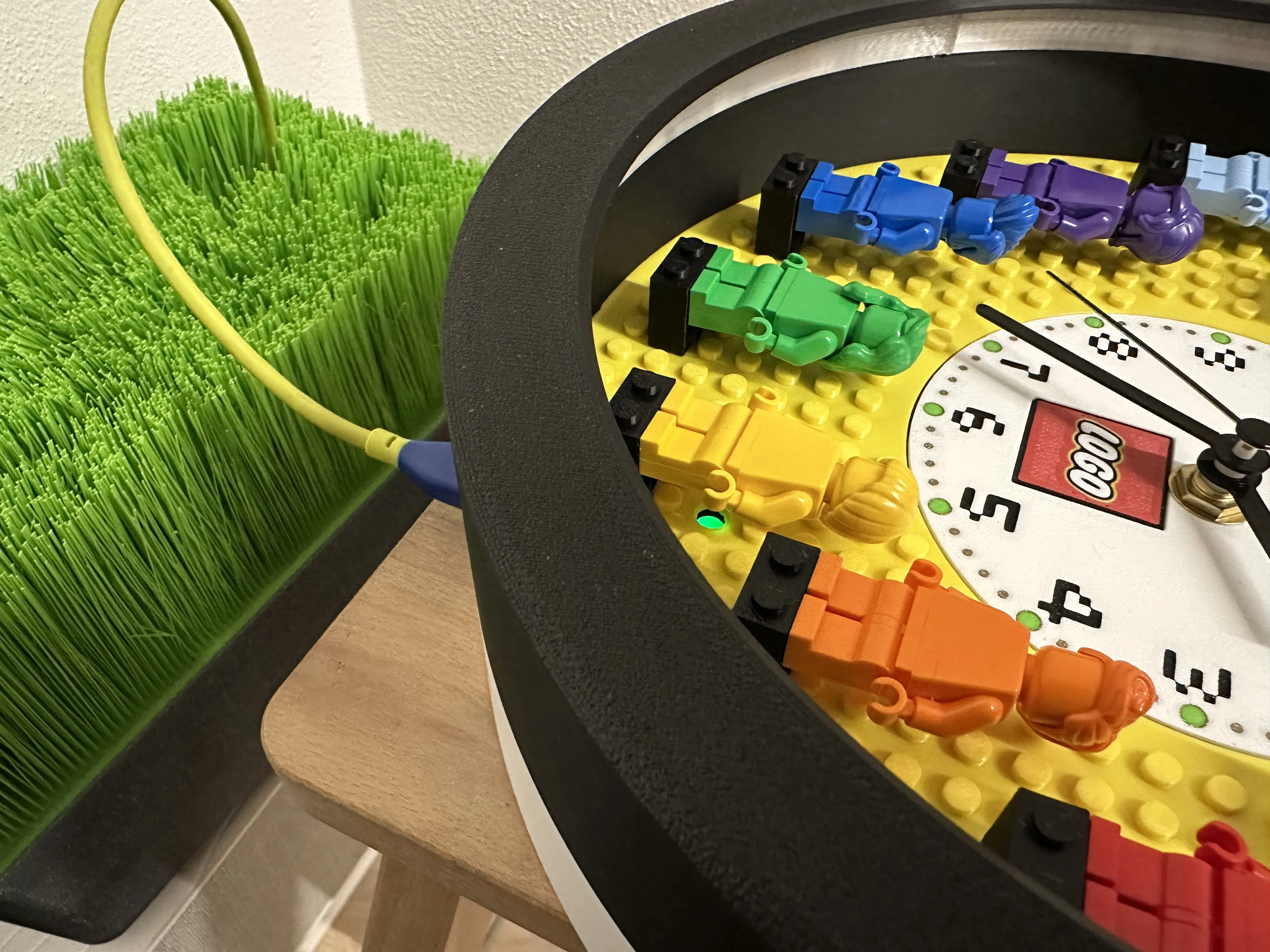

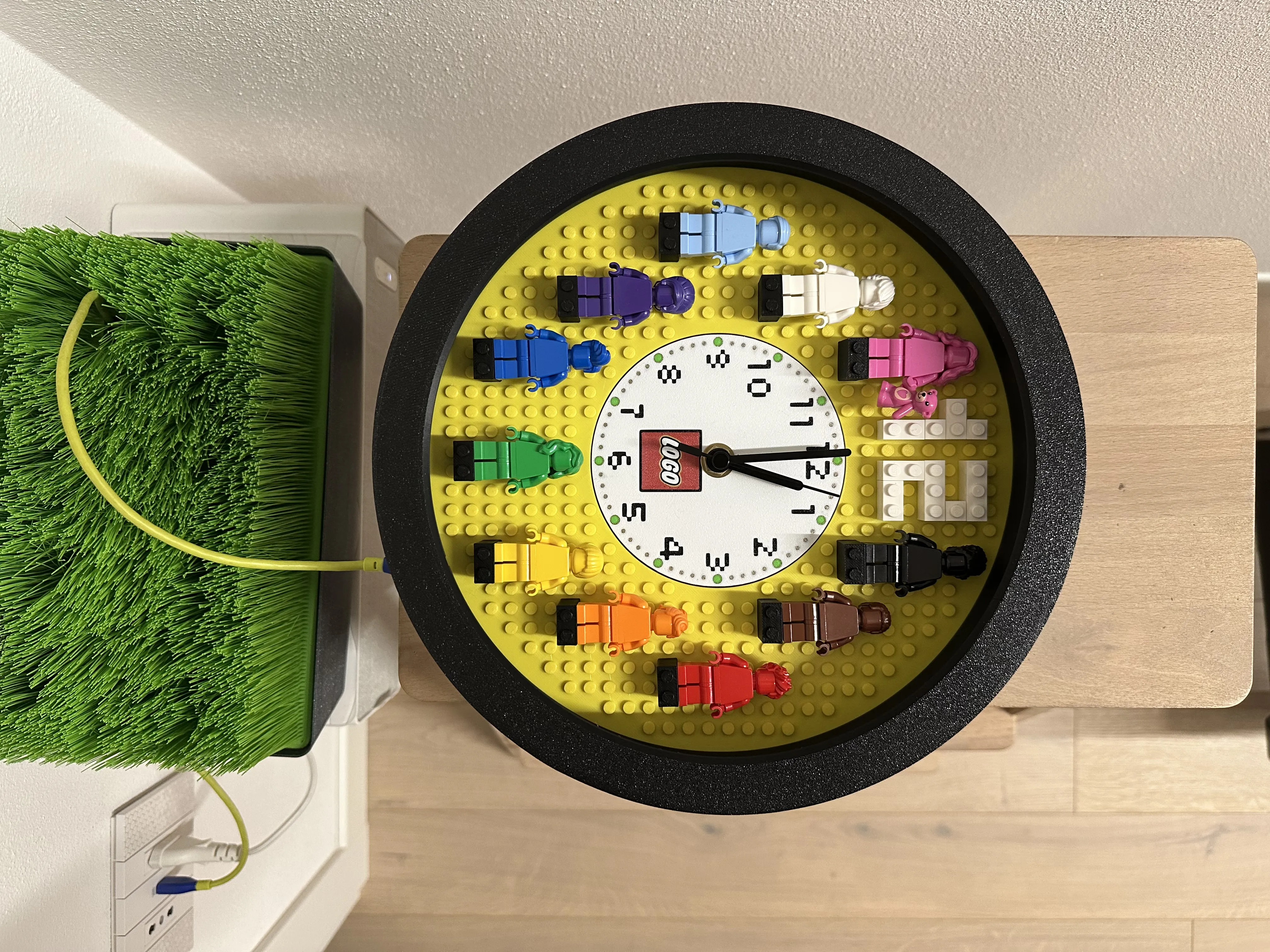

The charging phase is also monitored from this hole. Red LED "charging", Green LED "full charge".The watch can also light up while charging (or always connected to the power supply, although not recommended for a battery!)
Differences on the different versions available:
Refer to the list of materials in the various assembly guides.
Both the LED or WITHOUT LED editions are available in the SCREW version.
These versions avoid glue, thus making the dial re-accessible in the future. [For a variation of minifigures or brick arrangement for example].
They will therefore have the screw heads visible from the front of the clock.
Longer screws will be needed (see list of materials), including the need to drill the plexiglass panel.
