Project:Tech - Switch mount
Print Profile(1)
Description
Boost Me (for free)
Hi, I'm designing these 3D models in my free time (it's just my hobby), always providing all of my designs for free here on Makerworld. Often prototyping requires a lot of material, so if you like my work, consider supporting me for free by dropping a boost. =) But whatever you decide, enjoy the models and happy printing! :) - Oli
Switch Housing for On/Off Control 🌟

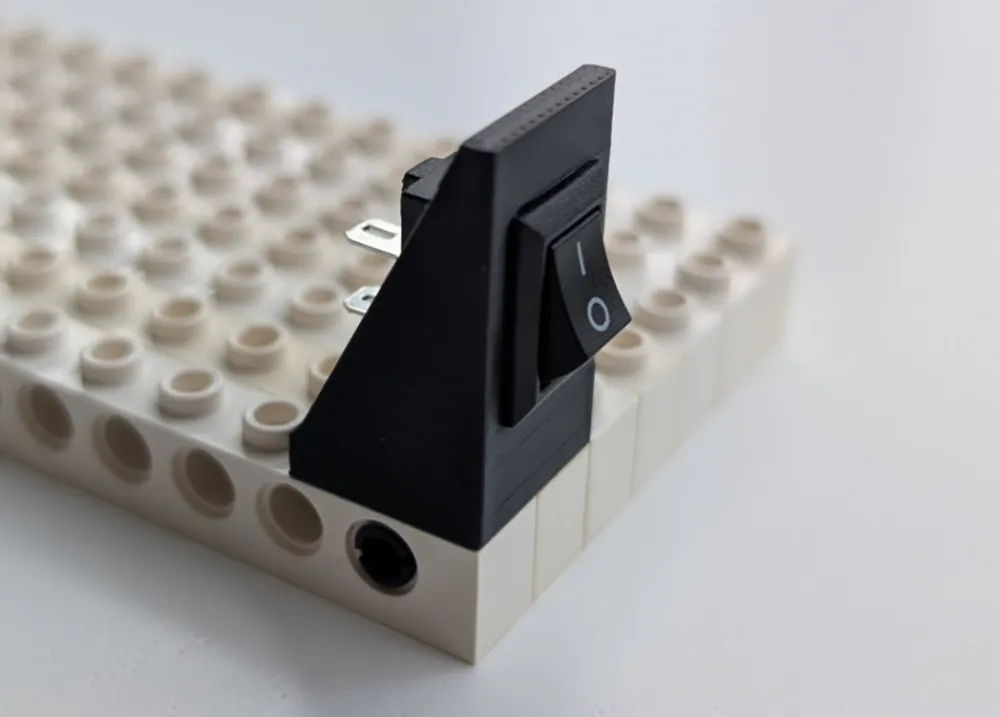

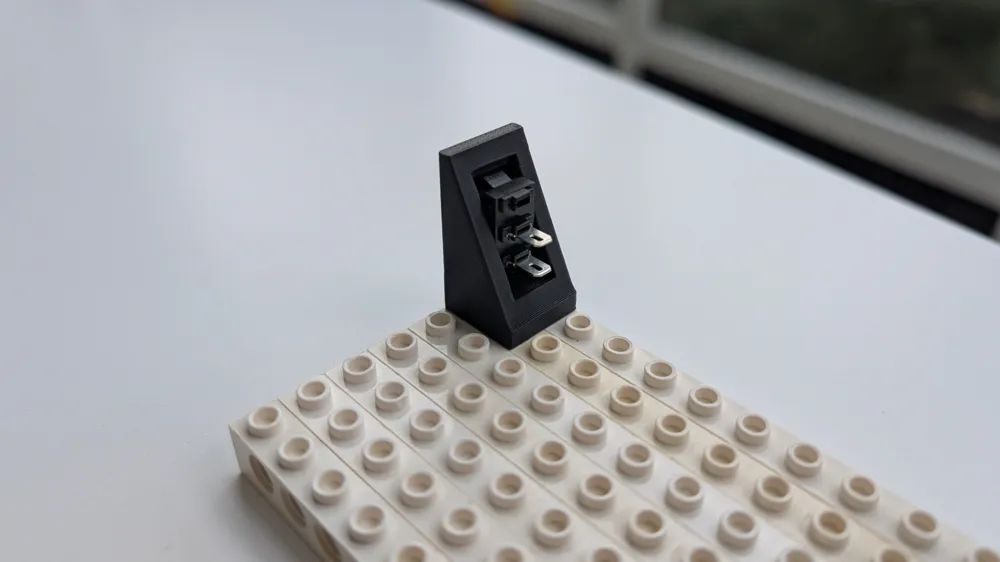

This 3D-printable housing is designed to securely hold a toggle switch like the one found here. With its compact dimensions and compatibility with block systems, it offers an elegant solution for adding an On/Off function to your projects.
🖋️ Key Features:
- Secure Mounting: The housing is custom-made to fit the switch tightly, keeping it secure and aligned during use.
- Block-System Compatibility: Designed as a 4x4 interlocking brick plate, it snaps directly into your modular block structures, making integration simple and effective.
- Accessible Design: Features an opening that allows the toggle handle of the switch to move freely while maintaining a clean and professional look.
- Compact & Modular: With its small size, this housing is perfect for adding switches to compact builds without compromising functionality.
- Easy Wiring: Provides space for routing wires underneath or alongside the switch, ensuring a neat and organized setup.
📦 What's in the Model?
- A 4x4 housing for securely fitting a toggle switch.
- Built-in mounting compatibility with standard block systems.
🖨️ Printing Details:
- Material Recommendation: PLA or PETG for a sturdy and reliable build.
- Infill: 15% for lightweight strength.
- Wall Loops: 4 loops for durability during frequent use.
- Support: No support required.
- Layer Height: 0.2mm or finer for a smooth finish and precise connector alignment.
🛠️ Project:Tech - Revolutionize Your DIY Robotics! ⚡

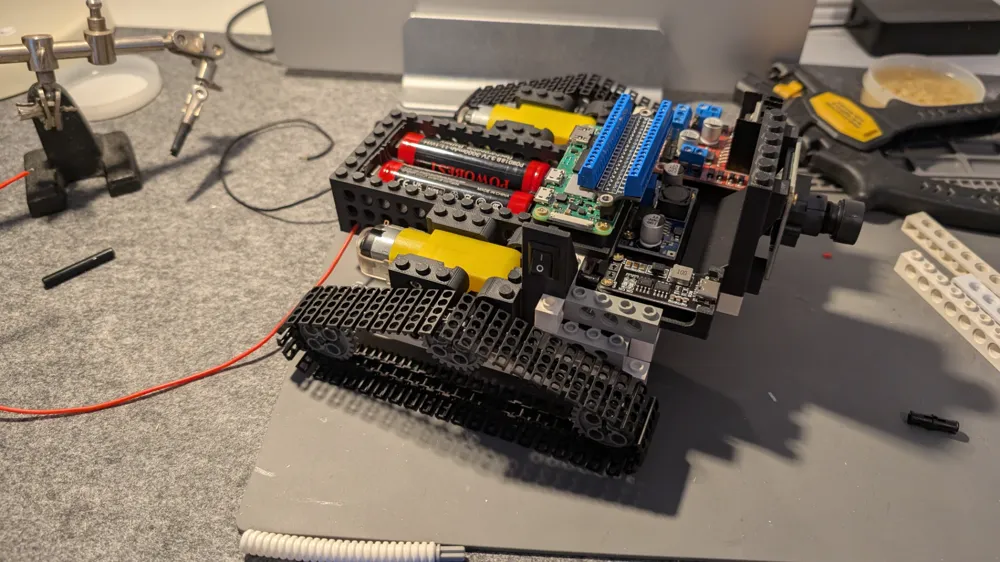

Welcome to Project:Tech, your ultimate solution for integrating electronics with modular block systems.
What is Project:Tech? 🚀
- Purpose: Make prototyping easier by merging affordable electronic components with block-based systems for modular builds.
- Why?: Spend less time on structural design and more on innovation using old building blocks.
- What's included?: A collection of 3D-printable models for:
- Motors
- Battery holders
- Raspberry Pi mounting plates
- Motor drivers
- Switch housings for power control
- And more!
🎉 Join the Project:Tech Community!
- Explore more components to level up your builds.
- Combine this switch housing with other Project:Tech models to create fully modular and customizable projects.
- Share your creations with a global community of makers. 🌍
🛠️ Start switching your projects on and off with ease—thanks to Project:Tech!
