🛠️ Gypsum Vibrating Table - Compact and Efficient!

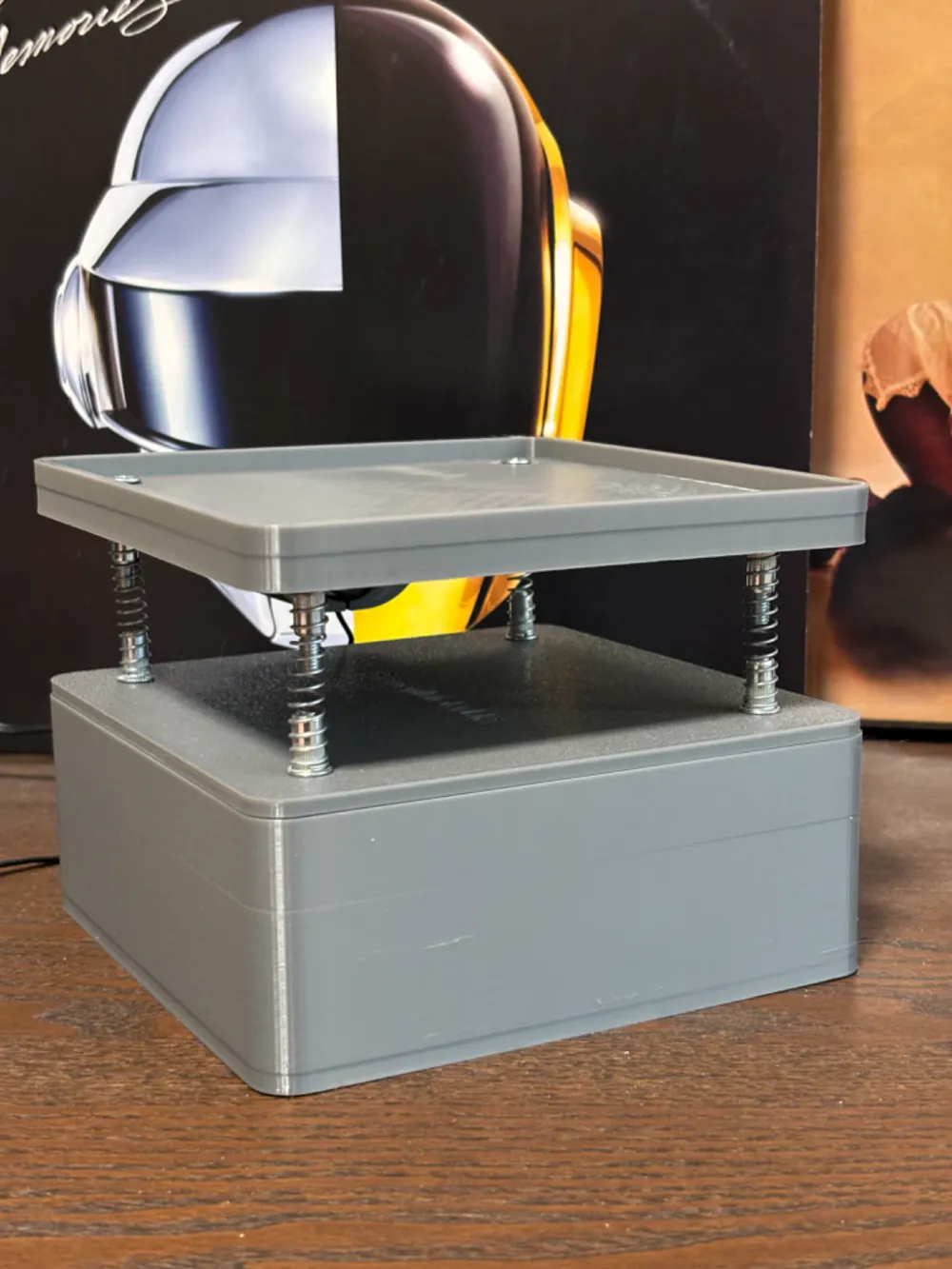

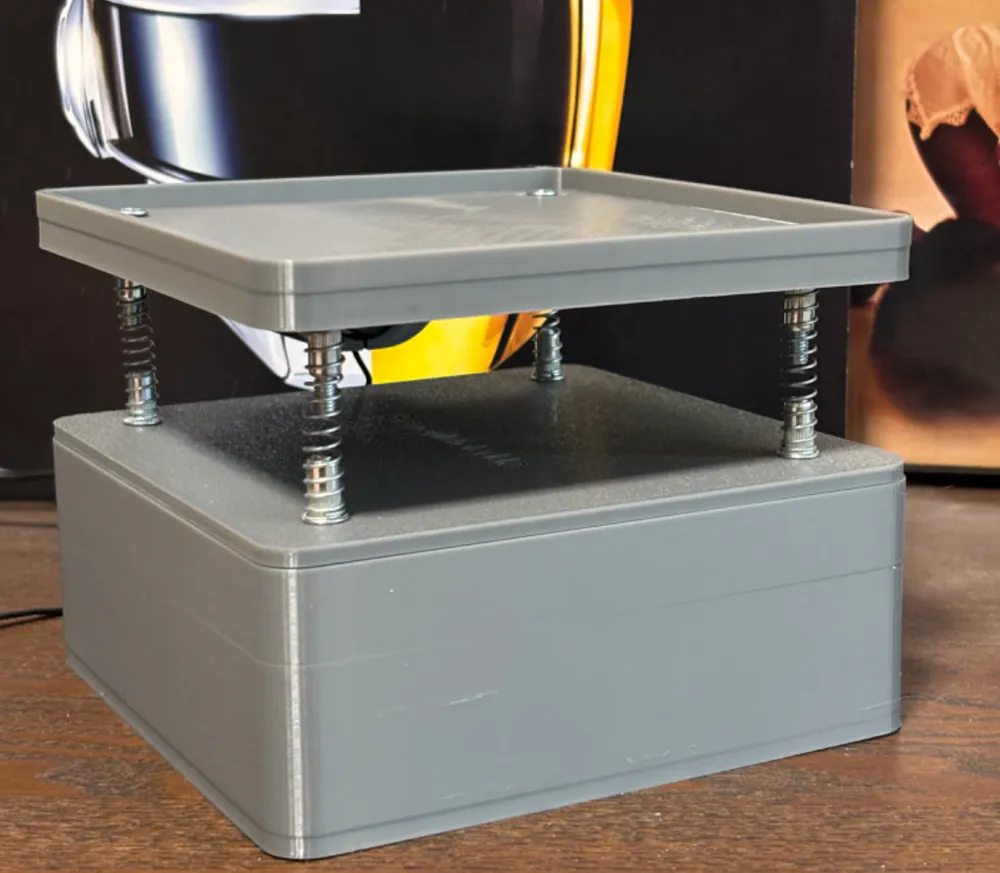

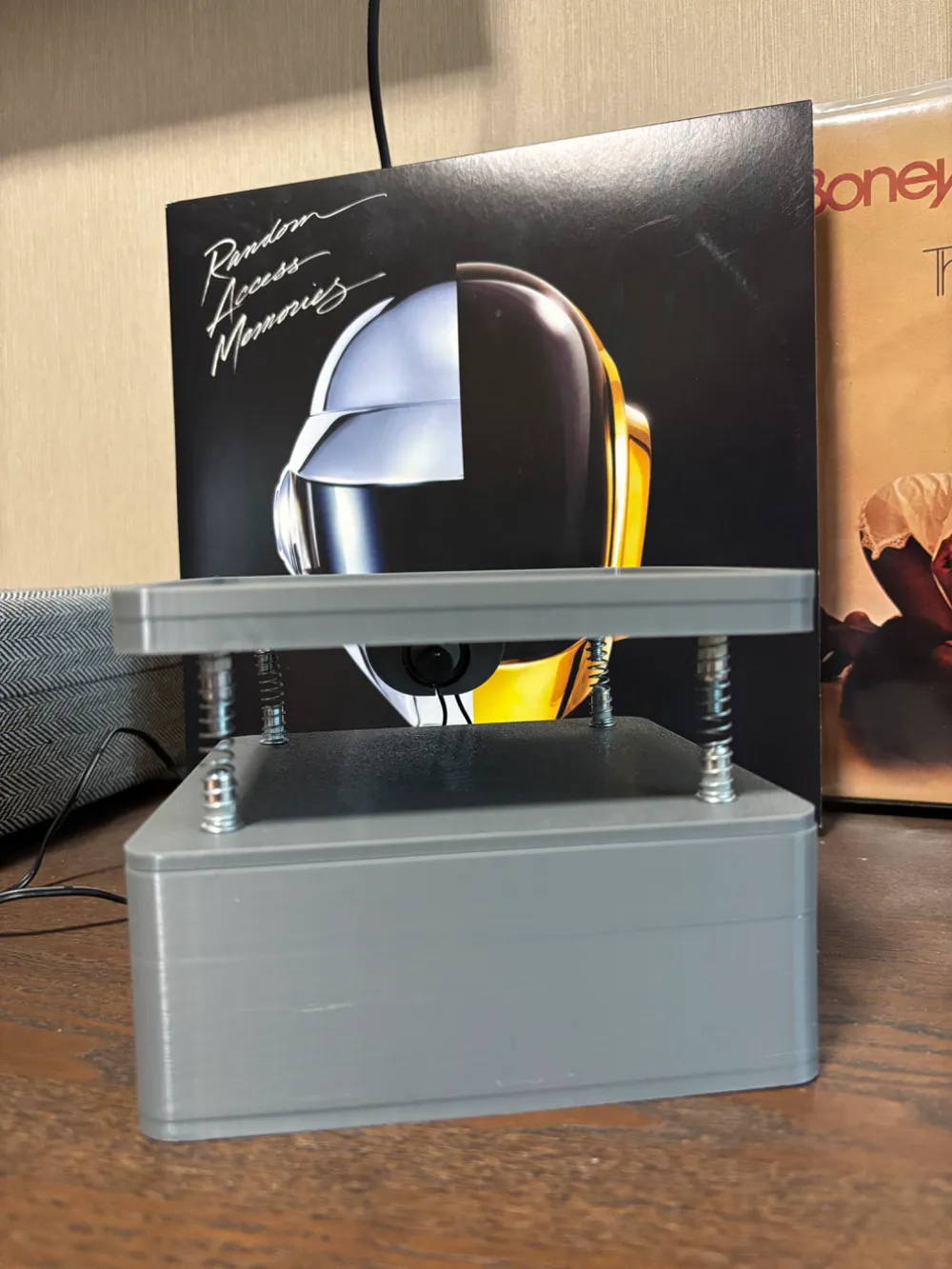

This 3D-printed vibrating table is designed to compact gypsum in molds efficiently and with precision. Ideal for DIY enthusiasts and makers, it ensures consistent results with minimal effort. The simple assembly process and customizable design make it a must-have tool for your creative projects. Future updates will include a motor control mechanism for even greater functionality!
Instructions:
- Required Parts:

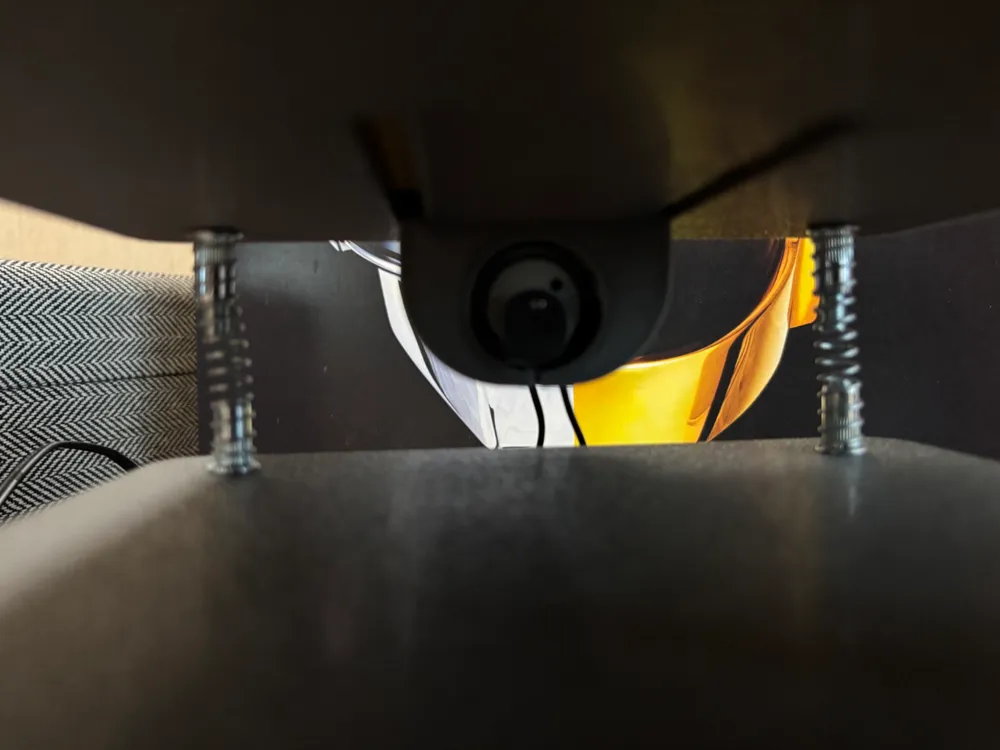

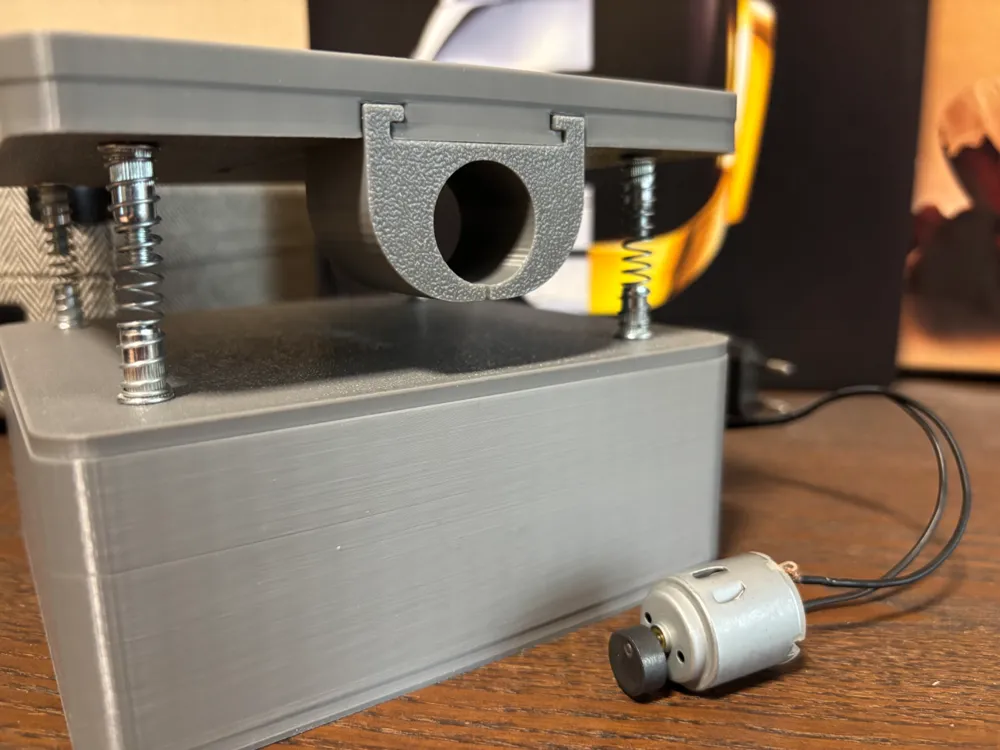

- R260 vibration motor and a compatible power supply.

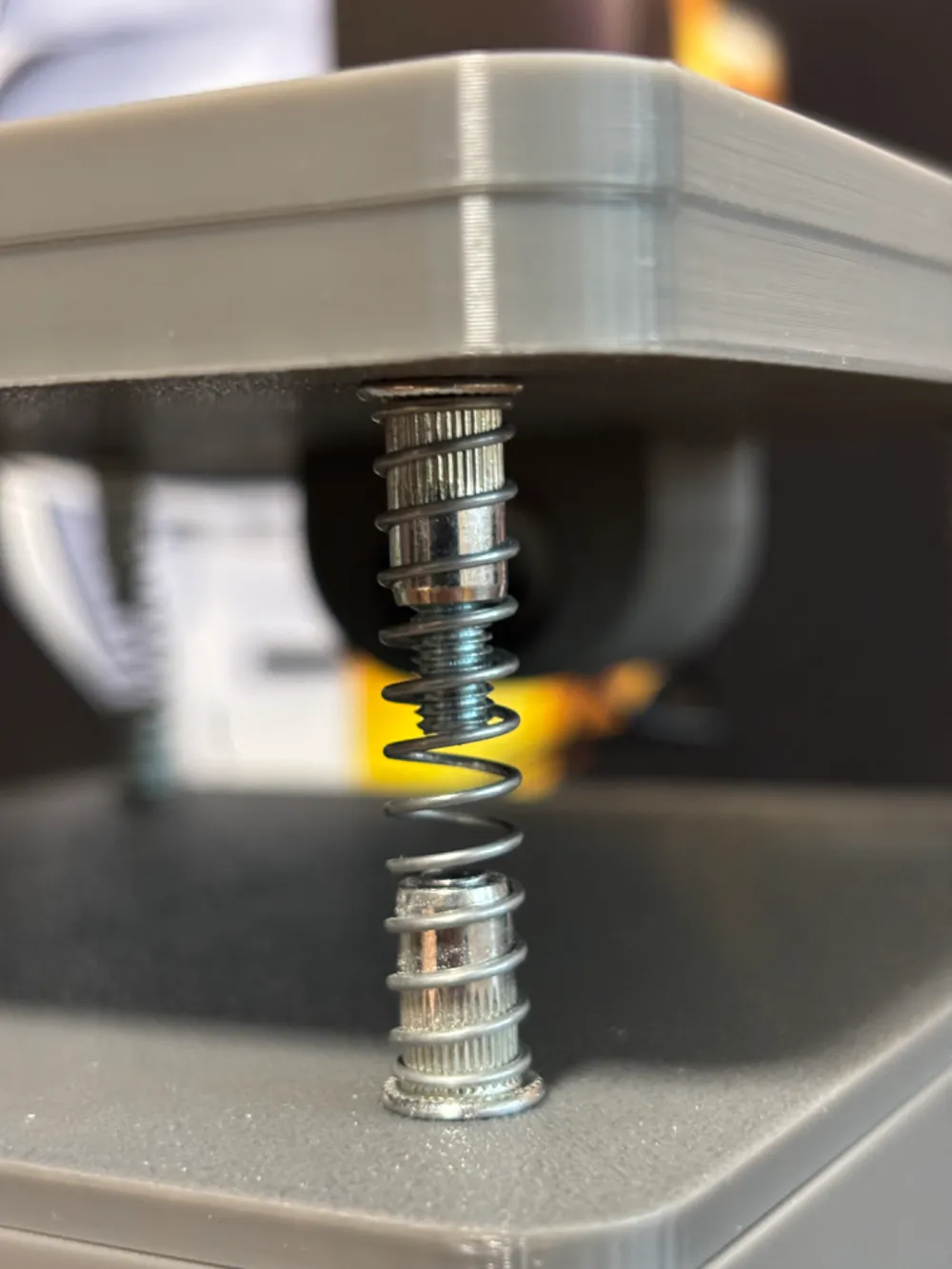

- 4x M5 threaded rivet nuts.
- 4x M5x50 screws with countersunk heads.
- 4x M5x25 screws with countersunk heads.

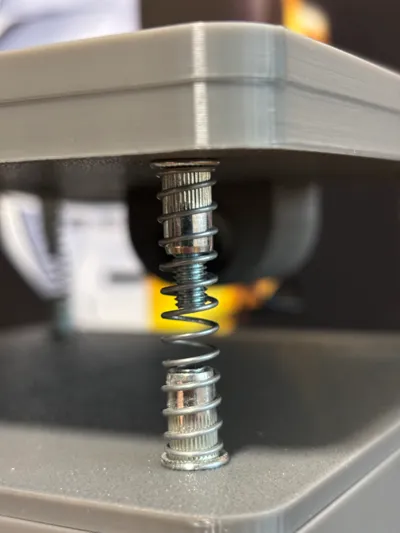

- 4x 8x40mm springs (available at bambulab.com).
- 4x M5 nuts

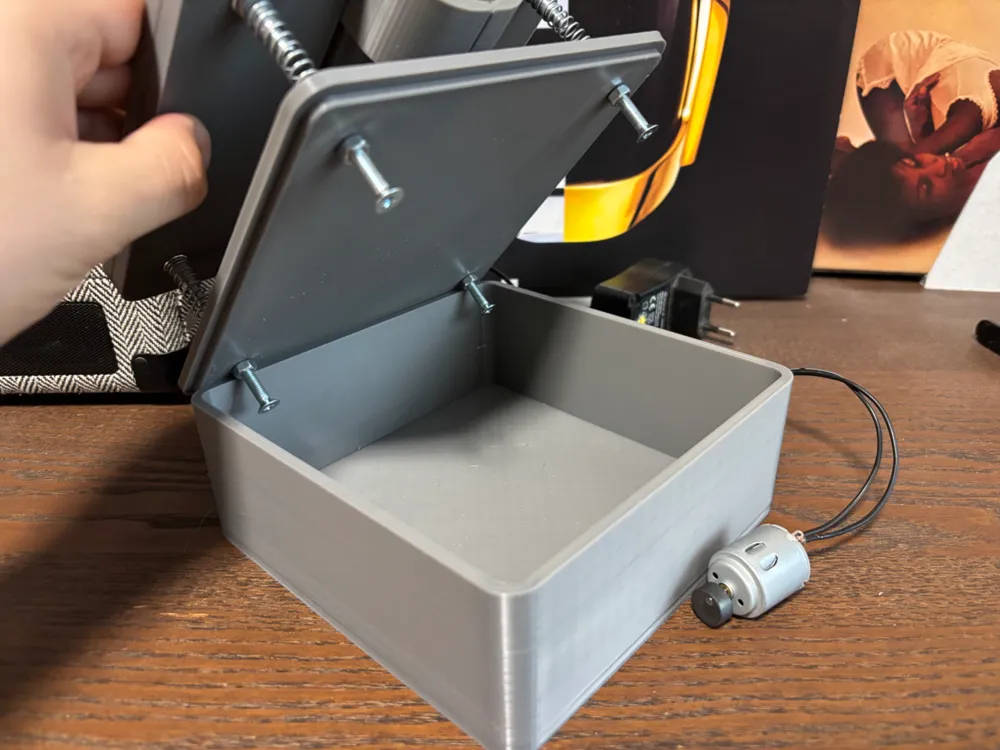

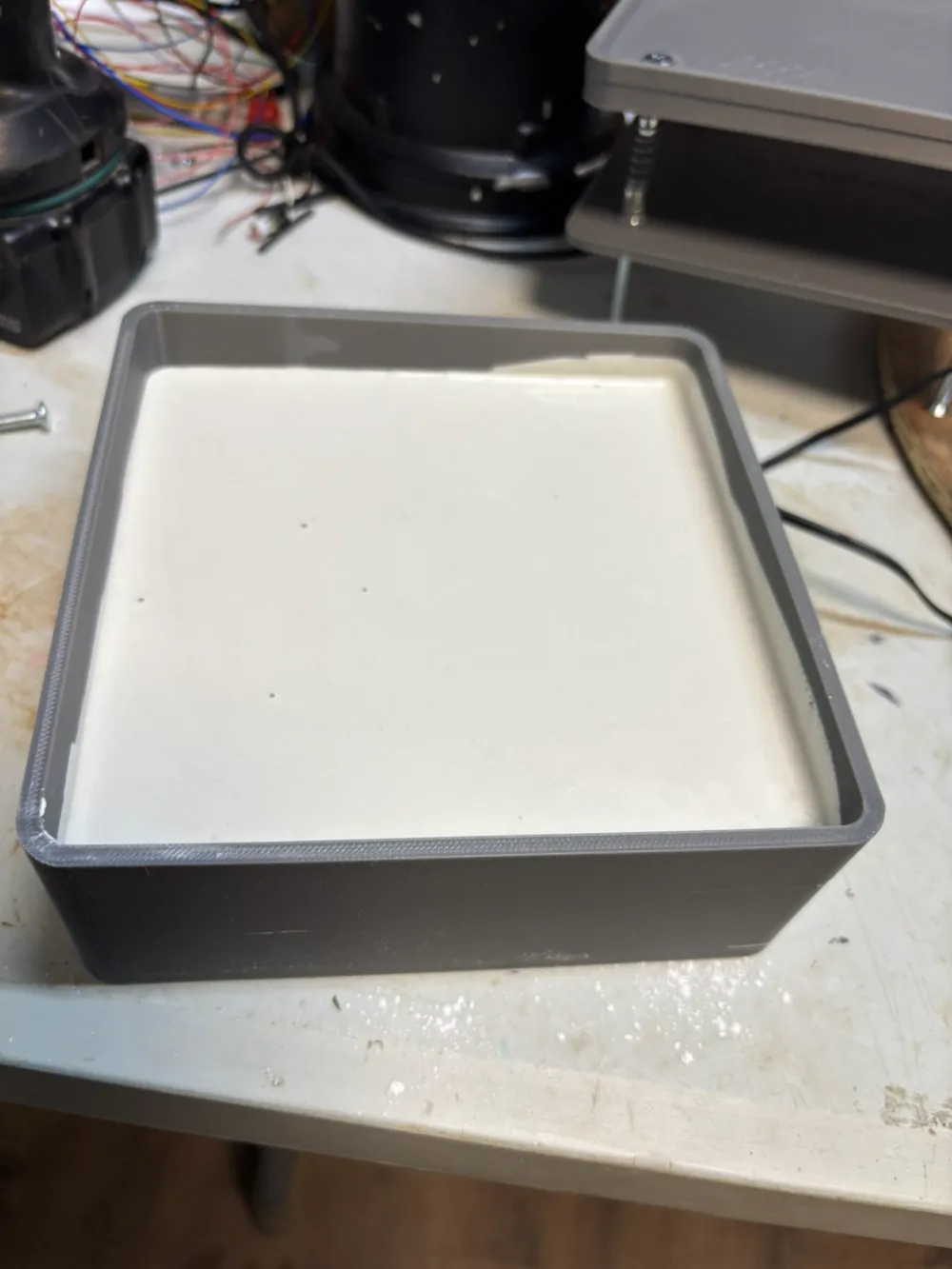

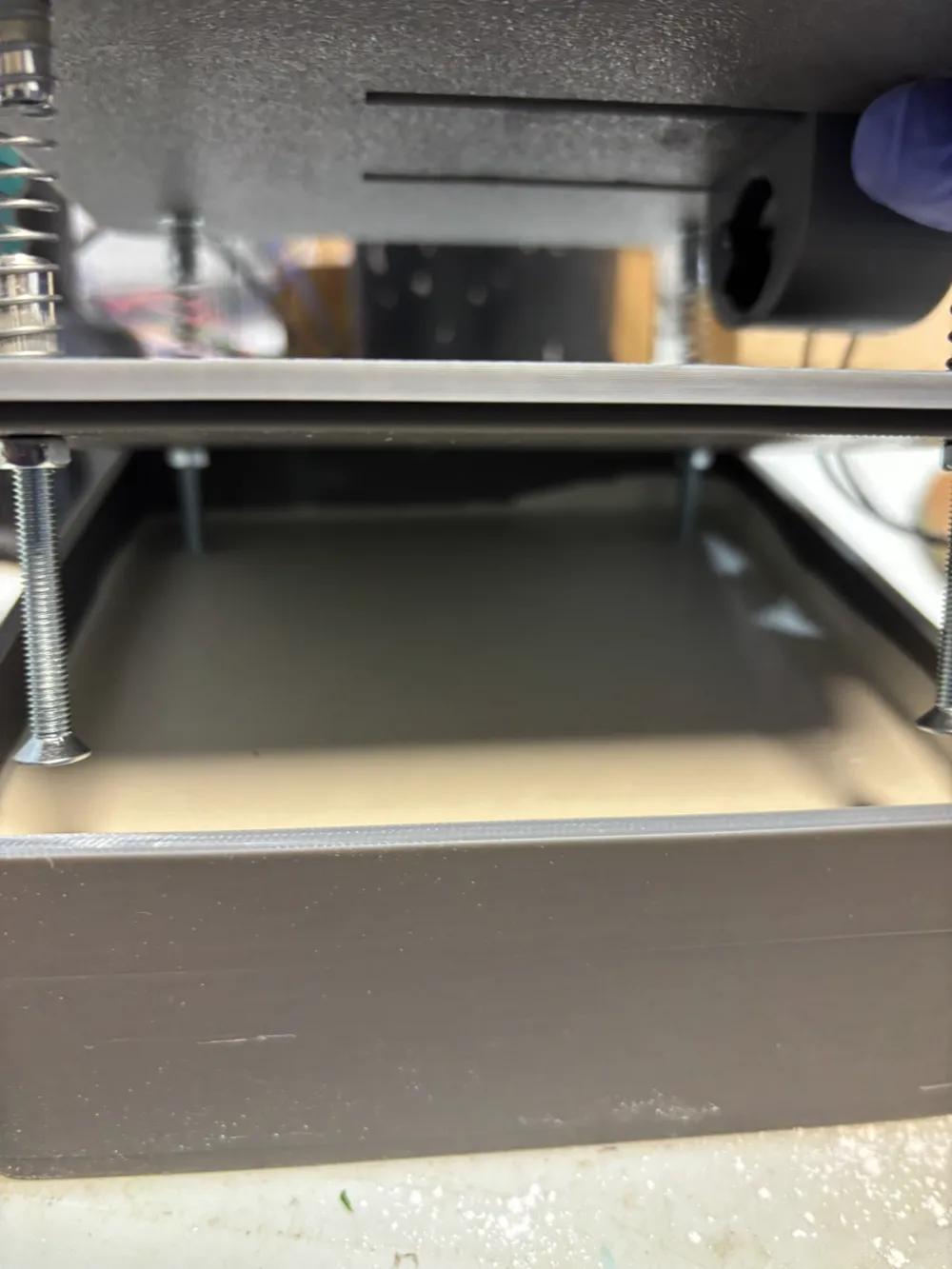

- 1kg of gypsum, cement, or concrete to fill the lower box for stability and to secure screws.
- Coming Soon:
A motor control mechanism is currently in development and will be added in a future update. Stay tuned for more features!
