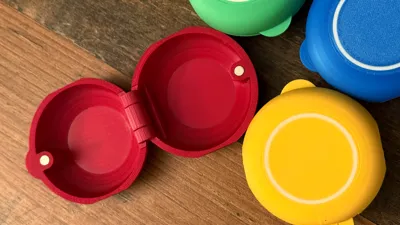

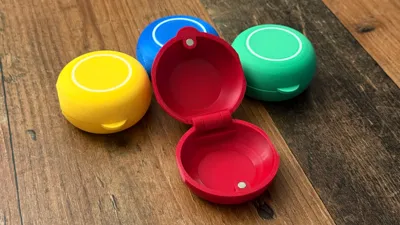

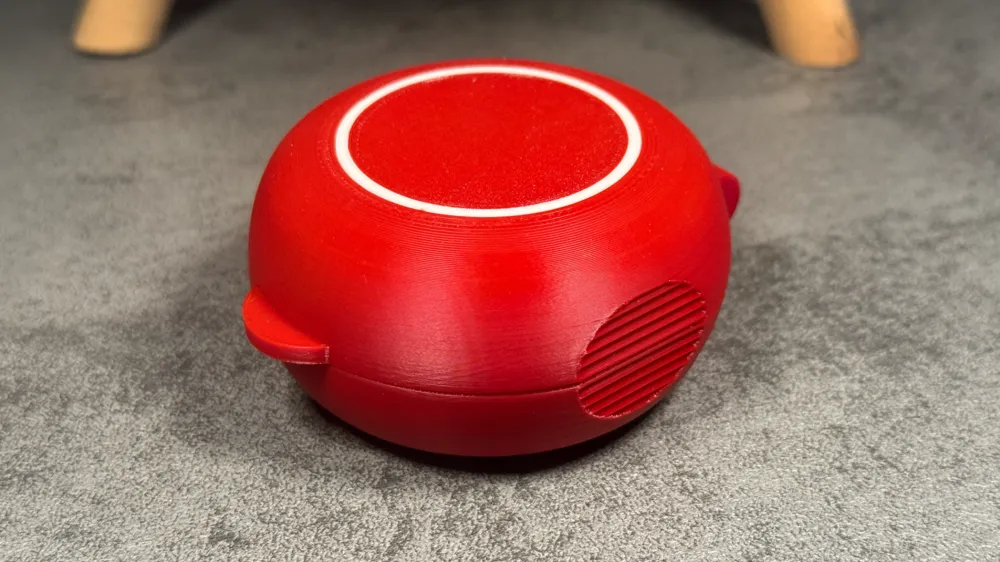

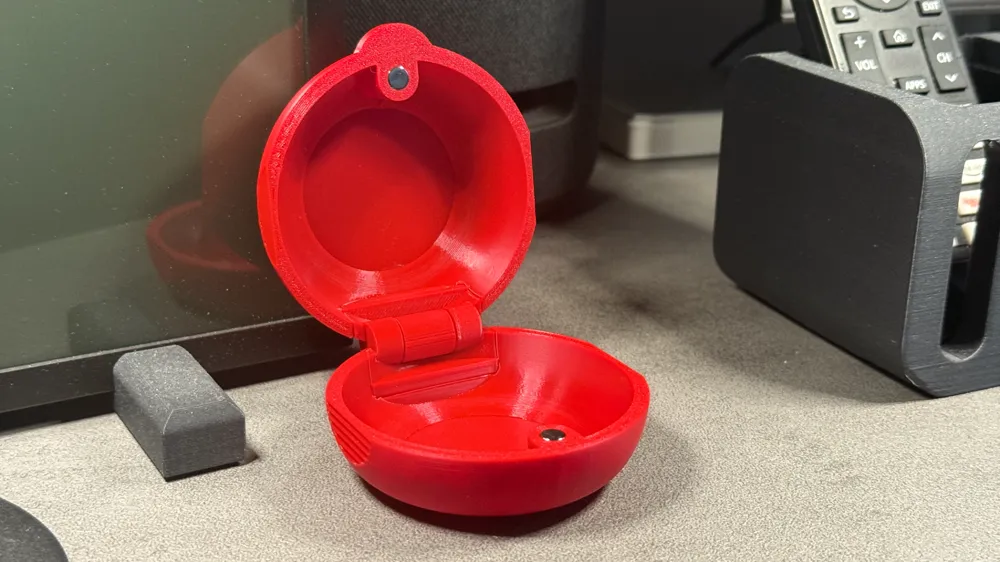

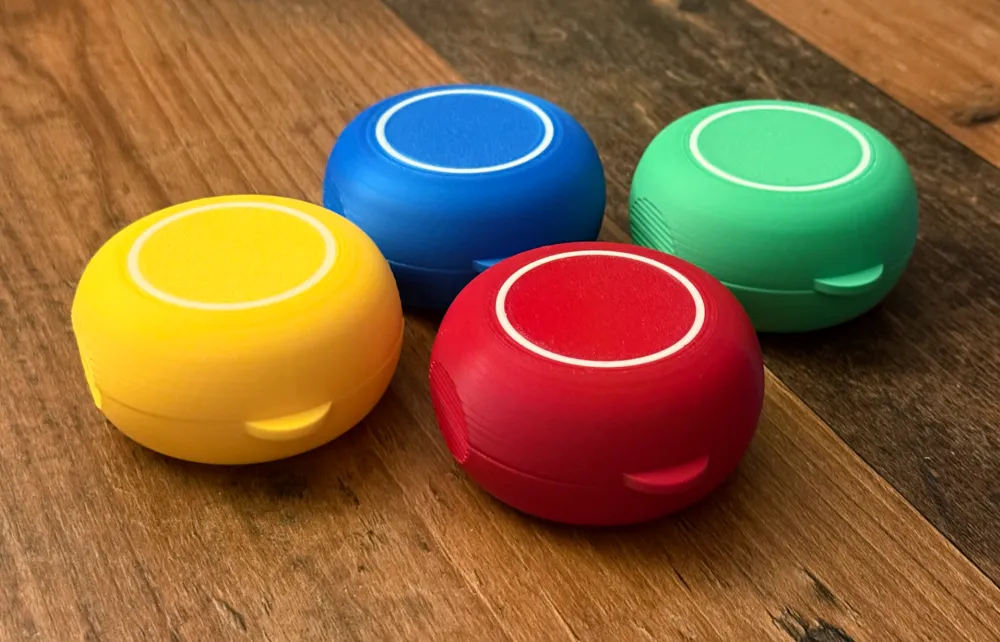

This is a neat pod container with a hinge which prints easily. By adding two magnets, the container stays safely closed when taking it with you. Looks great in all kind of colors!
Required tools/parts:
- Super glue
- 2 round magnets (6mm width, 3mm height)
Diameter: ca. 75mm
Height: ca. 40mm
Print & build instructions:
- Set colors as you like in your slicer
- Print with the provided profile which also takes care of required supports
- Let all parts cool down properly
- Remove supports
- Gently open the hinge - you can use the back of a knife to apply some force if need be
- Use super glue to attach the hinge to the top and the bottom part of the container. Do not apply too much glue to avoid spills on the print
- Use a screw clamp to fixate the container and allow the glue to dry fully
- Push two magnets (6mm width, 3mm height) into the top and bottom part of the container. Important: Mark the magnets with a pen before placing them in the print so that you will know which sides of the magnet will need to face each other.
Have fun with this print and let me know what you think!
