PCB Wall Clock
The clock has been designed so that the casing and the dial are printed separately to make printing easier and I plan to add more dials, in which case you will just need to print a new dial to change the look of your watch.
I find printing difficult so I remind you of the basic rule for such prints:
Before you start printing, make sure you have a clean board (Wash it in warm soapy water or IPA). The first layer has many small elements that must adhere well to the board.
The project requires a shelf mechanism: Clock Components Kit 011

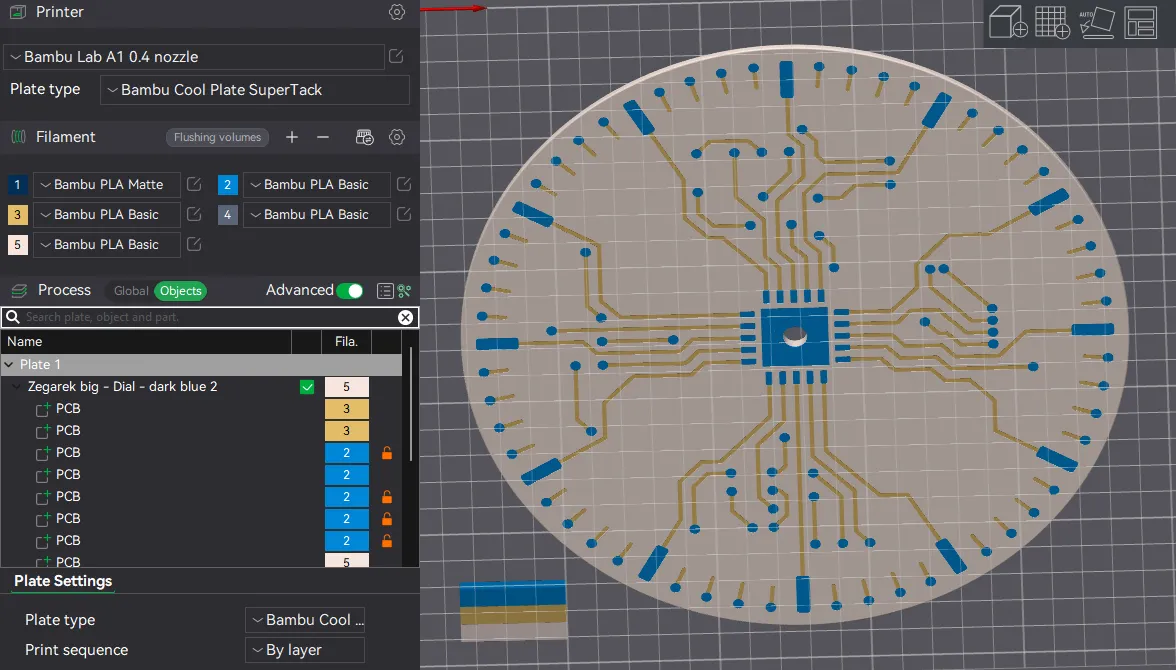

The project has been divided into separate groups of individual elements so you can color the dial however you want.

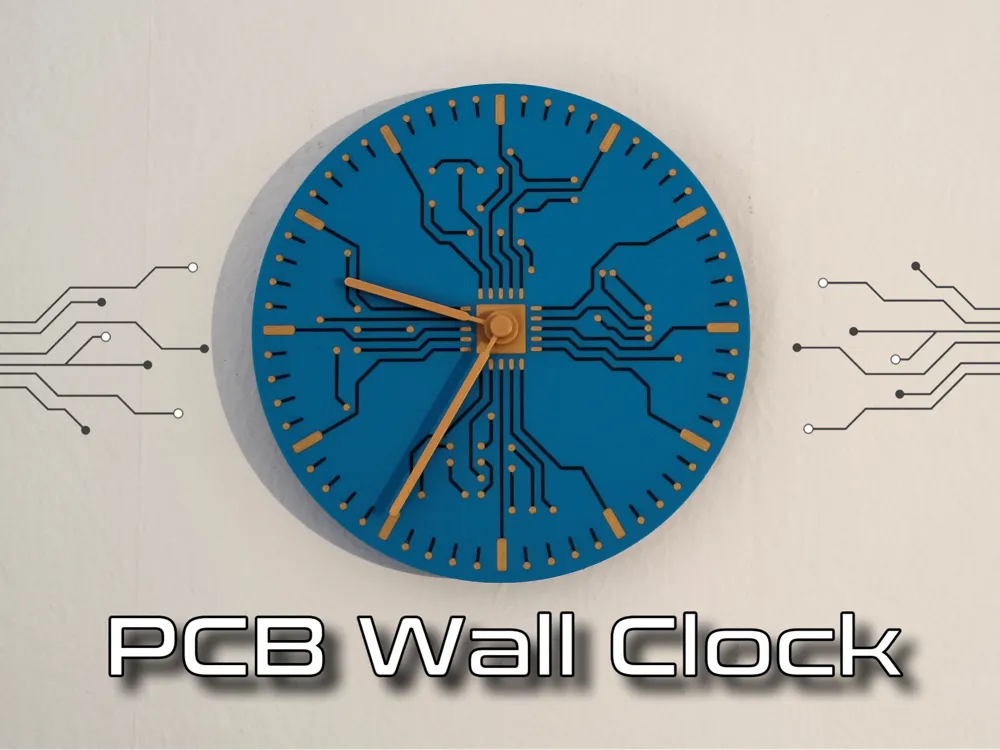

I tested two sets of colors which are shown in the pictures:

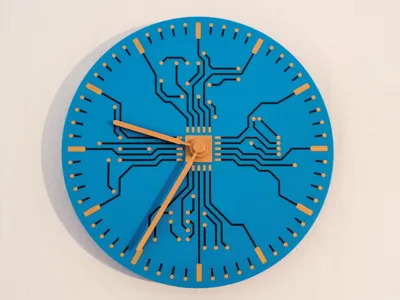

Set 1 colors:
- Background - PLA Basic Cyan
- Pads - PLA Basic Gold
- Paths - PLA Matte Dark Blue
- Clock Hands - PLA Basic Gold
Set 2:
- Background - PLA Basic Beige
- Pads - PLA Basic Cyan
- Paths - PLA Basic Gold
- Clock Hands - PLA Matte Dark Blue
I printed the case in PLA Basic Blue Gray.
