Fantasy Football Trophy | Rose Bowl | Customized

Edit #2

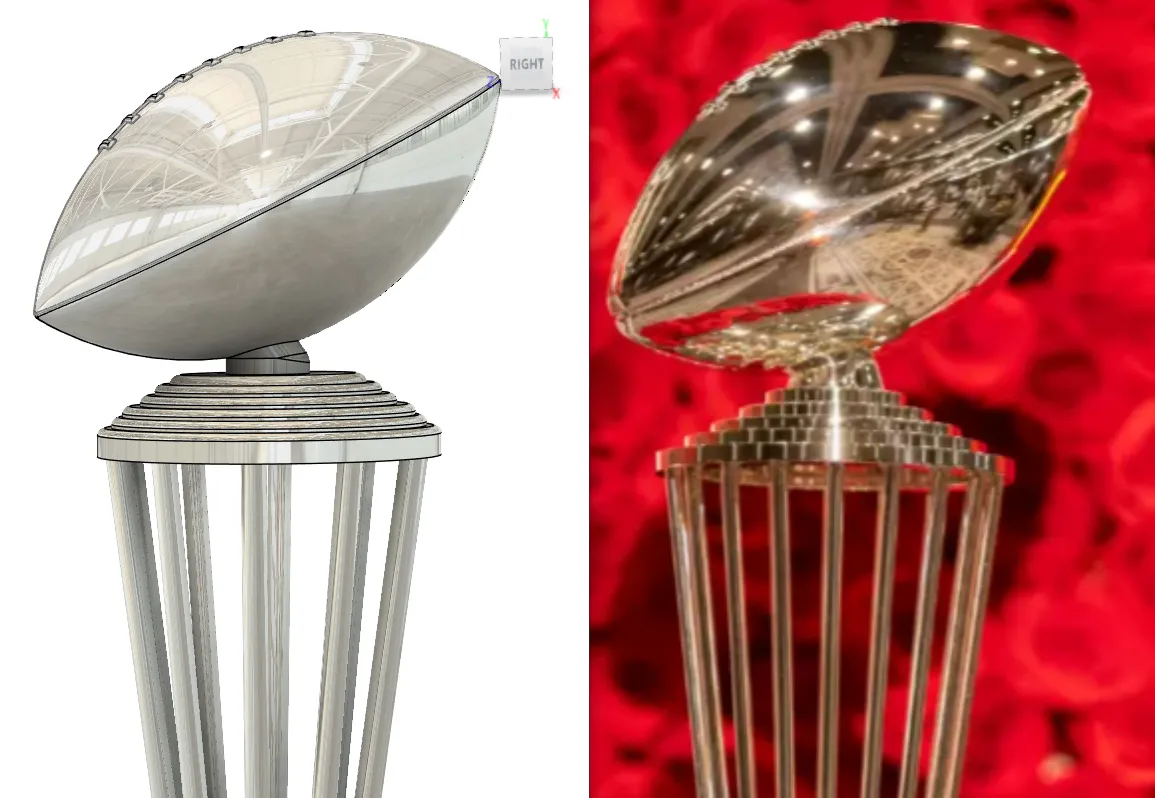

• Added a larger size football in the files that is more dimensionally proportionate to the actual Rose Bowl trophy in both size and kneck
• designed the same way as the previous edit, where it comes in two pieces to save time and filament.  Needs a bit more supports and minor clean up

•

Edit #1:

• Updated file to have a two piece version
  • this version saves 2.5 hours of total printing time and 51.18 grams of filament if you use the same settings.
  • easier removal of supports

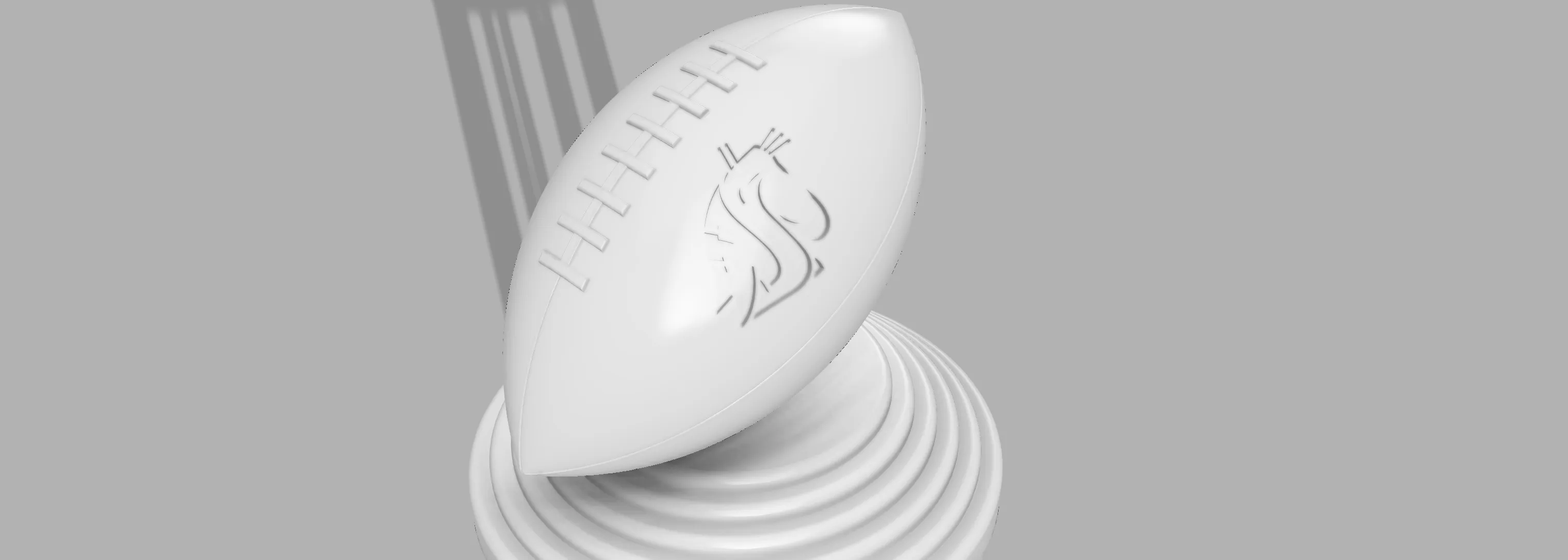

  • Could slot in different footballs (new football designs available upon request, patreon members get first designs

  •

• One piece version is still available.

NOTE when editing text: When editing and moving the text, before you move be sure to change the drop down to World Coordinates and NOT Object Coordinates.  World coordinates will keep the text flat to where it needs to be!


Print your very own fantasy football trophy!!!!

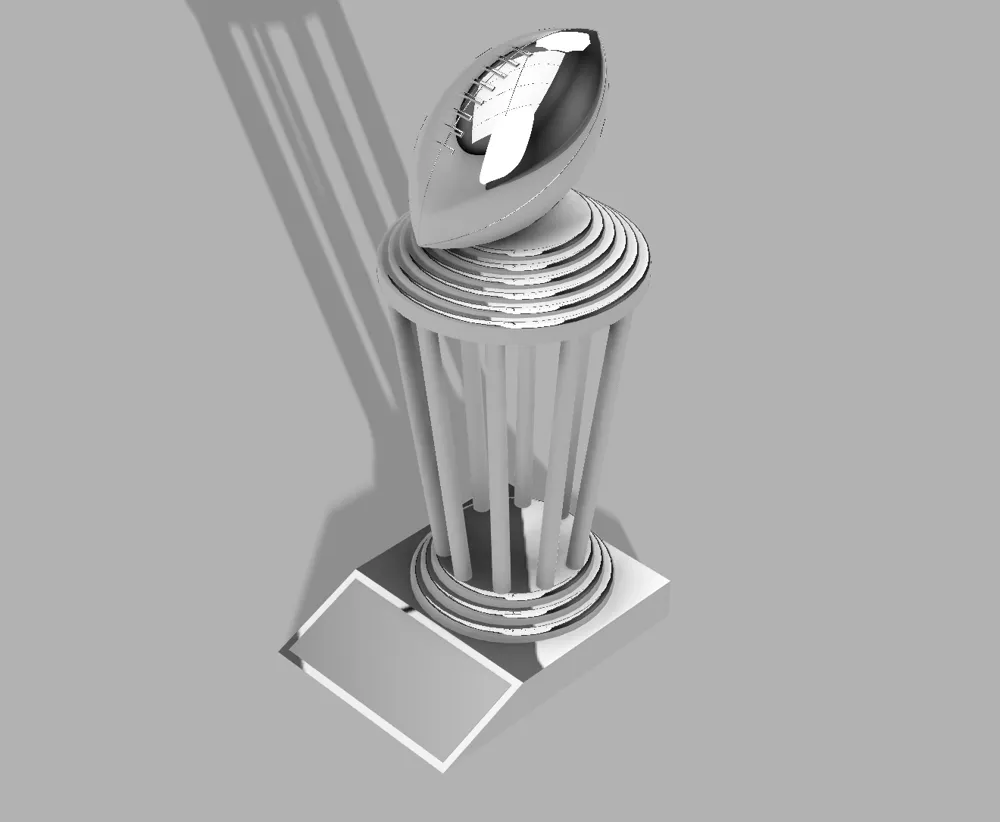

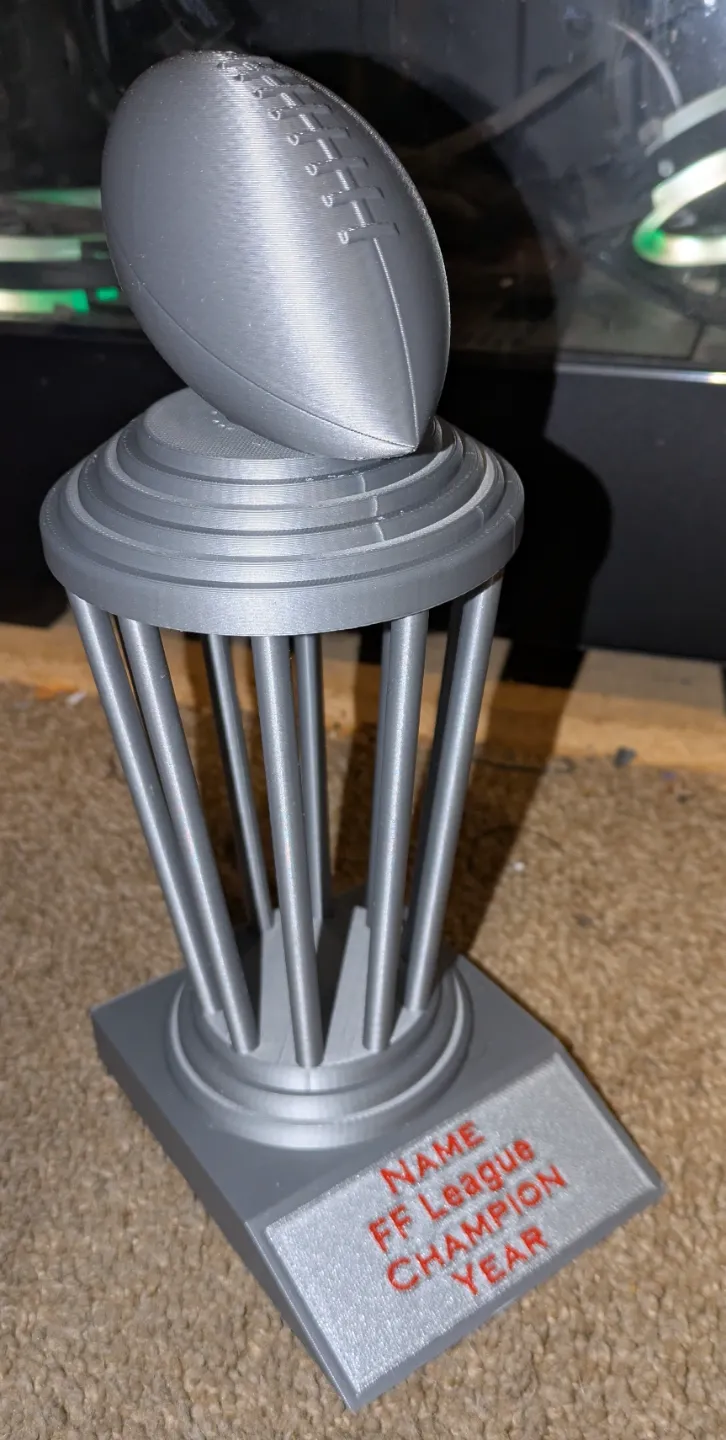

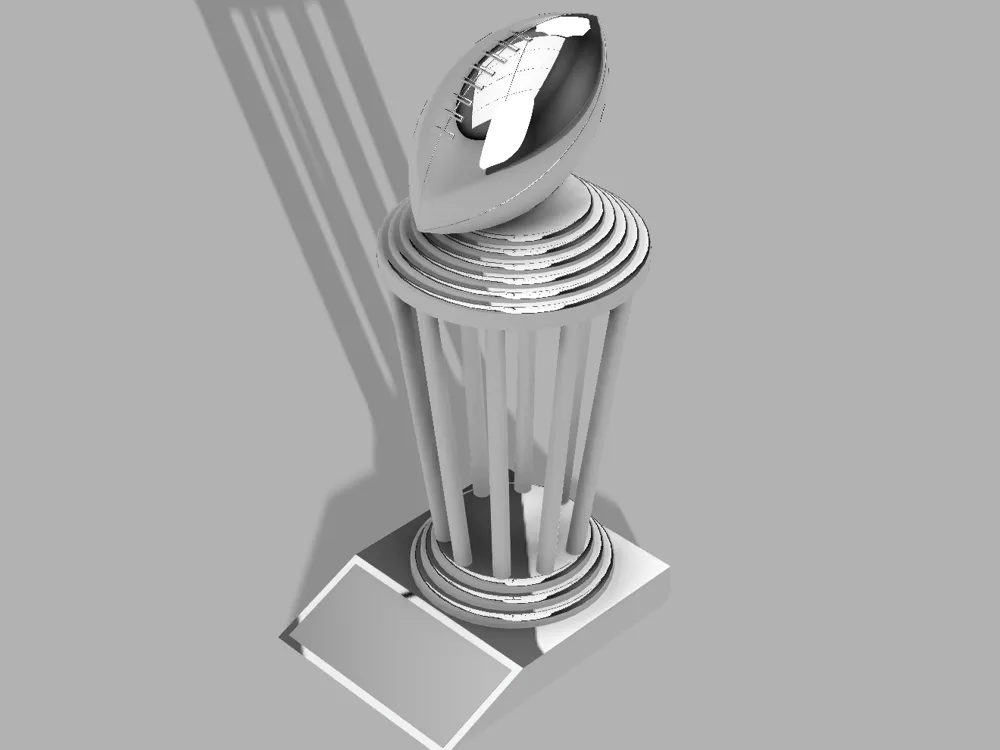

Designed off the Rose bowl trophy (PAC-12 fan) and customized with a name plate to fit any league, name and year!

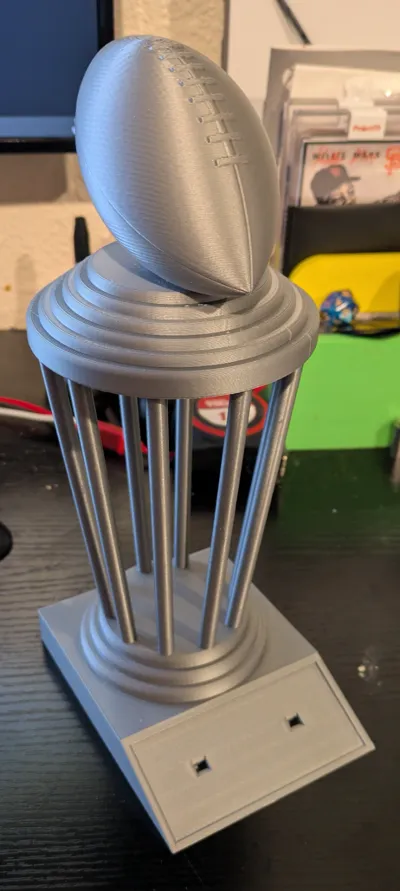

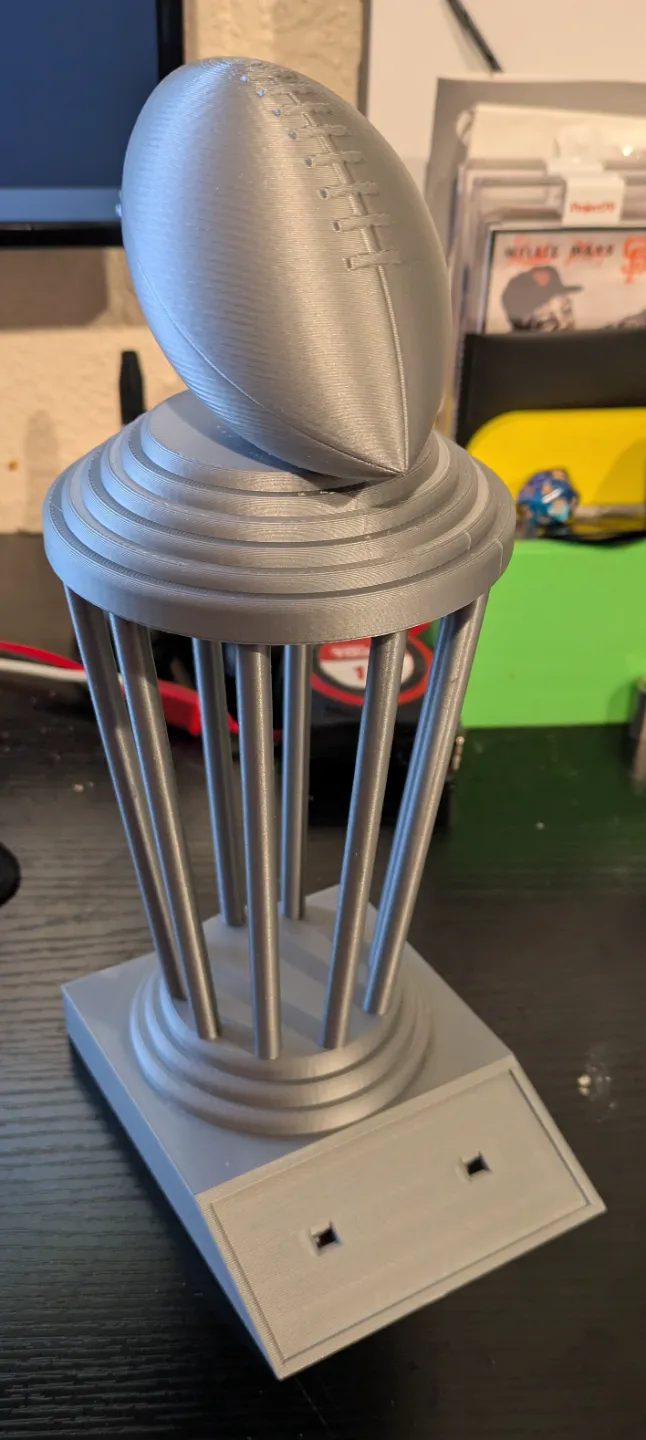

Tree supports came off like butter, but you will need some snippers or pliers to Bonsai tree cut it out of the “cage”. Took less than 5 minutes and easier than trying to piece and glue trophy togethe; trust me. Printed this trophy 4 times now, with minor adjustments, and having a Bambu printer saved me some headache!

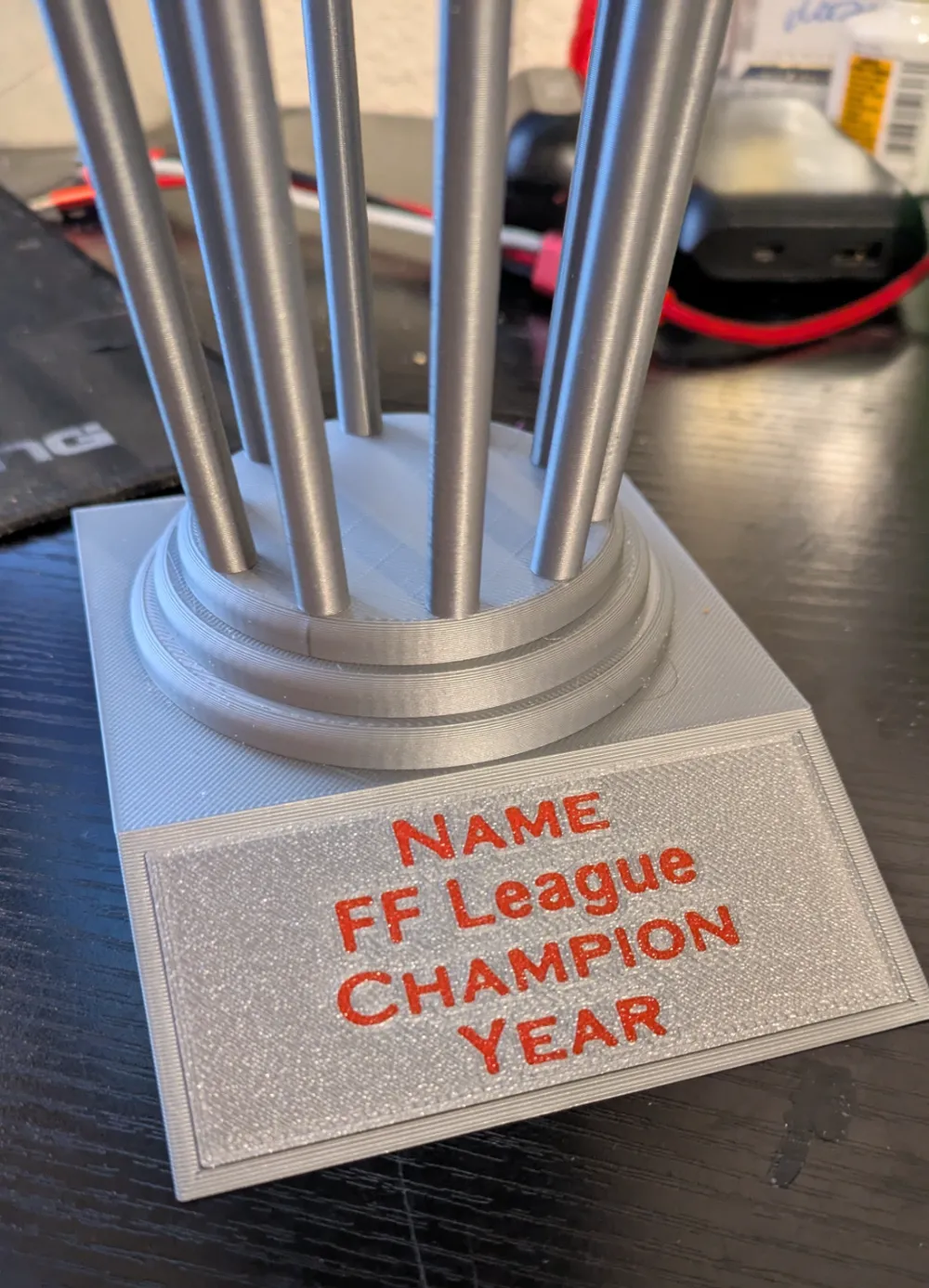

Add a couple dabs of glue to the name plate to lock it in place, slots help line up and center with ease

To edit name plate:

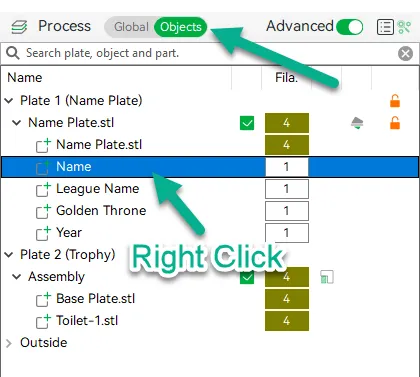

• In the Objects menu right click the name you want to start editing then find the edit text and select it

• Once in edit mode you can change lots of settings
• Font Style
• Size
• Text Gap (spacing)
• Input Text (whatever you want the next for that line to be)
  • DO NOT (red circles) adjust Embedded Depth or Thickness. This is set to print flat on your build plate and changing it could cause issues. You can change the Embedded Depth up to 1mm if you choose, but .6 is more than enough for most dark colors to pop, so I highly recommend not adjusting that either.

• Once you are satisfied with your text, select the next line you want to edit in the Name Plate Object menu and the edit screen will adjust to edit the next line of text!



• Note: Adjust text may result in off centering of words. 95% of the time just click the name you need to adjust, click Move (M) and adjust left or right with the arrows. This will keep it on the same line.
  • If you are having trouble centering with your eyeball, right click the text line you want centered, a drop down menu will pop up and find center. This will CENTER the object, but you will then need to adjust it up and down accordingly.
  • Unfortunately Bambu Studio is perfect for text editing, but they have made some improvements. Please send me a message if you're having issues or have suggestions.

If you're looking for the trophy to not slide around, the base comes with 4 indents for Rubber Feet. I designed them to match these Rubber Feet that I use in all my base and coaster designs and other items I design that I do not want slipping

Filament I used for trophy (feel free to use whatever colors you think match, I love hatchbox and sunlu and they continue to work great with my X1C printer):

Silver: Hatchbox Silver
