Metric Measure Stand
Print Profile(1)
Description

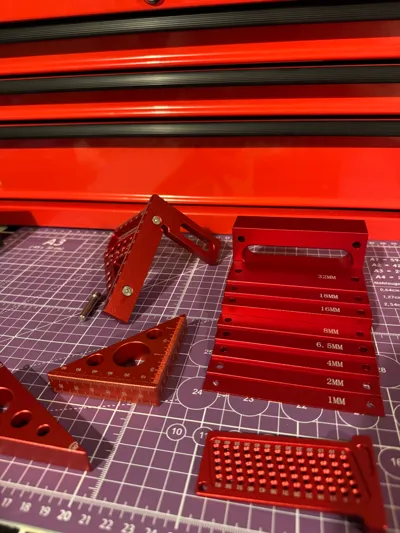

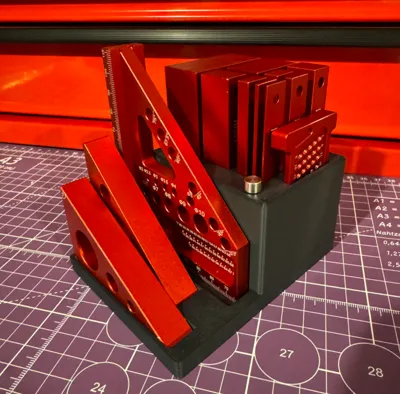

This is a Compact Setup Block Storage Stand to sit on your workbench to keep everything together and show off your measuring tools. This is the metric version and has slots for 9 blocks with the following sizes:
25x50x100
32mm
18mm
16mm
8mm
6.5mm
4mm
2mm
1mm
It will also hold your pocket squares so they are easy to find and use. The ones that fit this model are:
30° 60° 90° pocket square
45° pocket square
Combination square plus a slot for the angle pin
Pocket T-square with incremental measures up to 65mm
Its designed to be loose enough to rest the tools, but not grip them so they won't fall out. There is a tolerance sheet so you can print the guide to make sure your tools will fit and dial in your settings. Scale up or down by 1% depending on how tight or loose your fit is.
I originally submitted this with a simple Setup Block stand, so if you are looking to organise just your metric setup blocks you can find the model here: https://makerworld.com/en/models/868150#profileId-819586
