AMS Riser
Print Profile(2)
Description

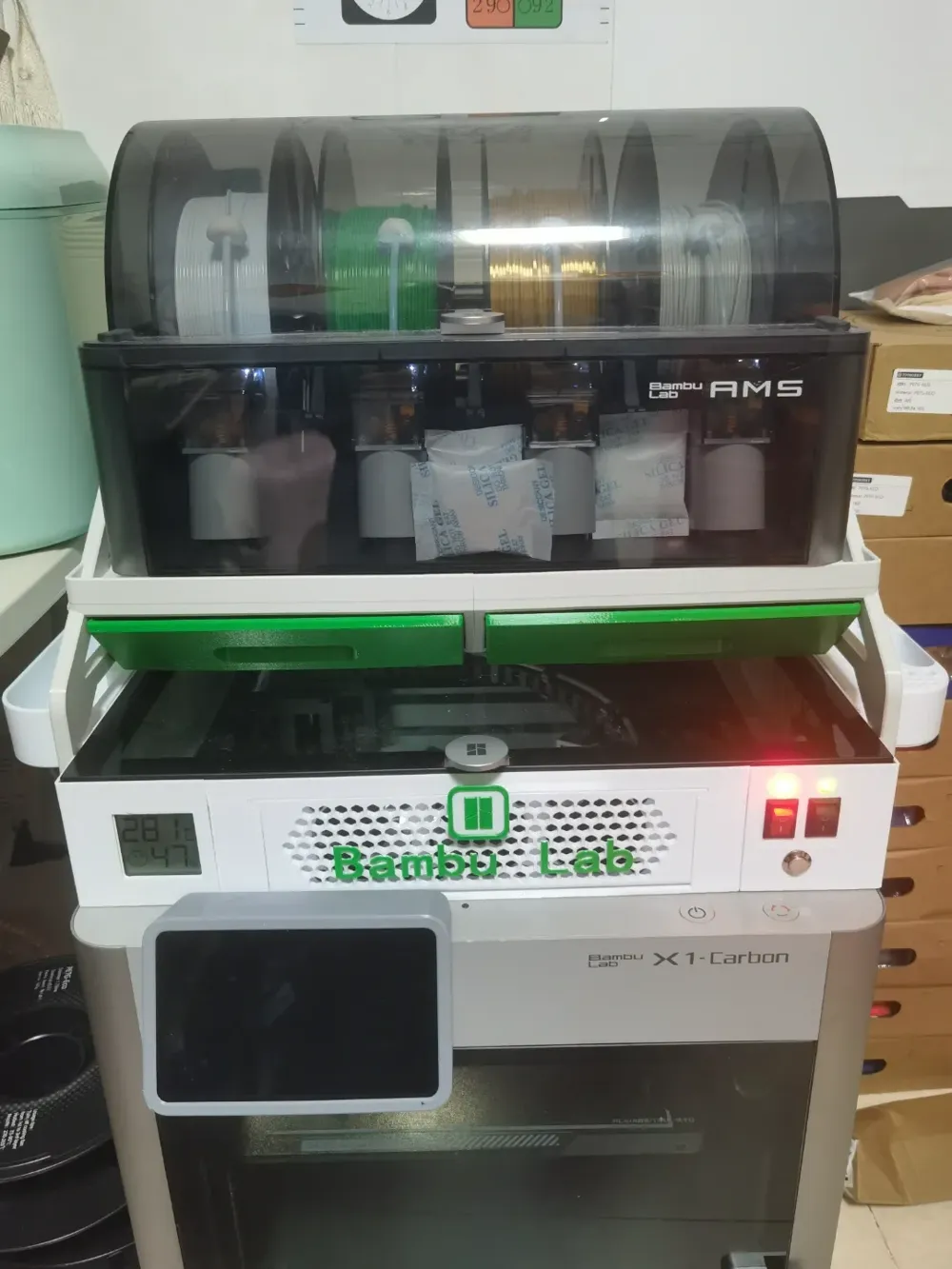

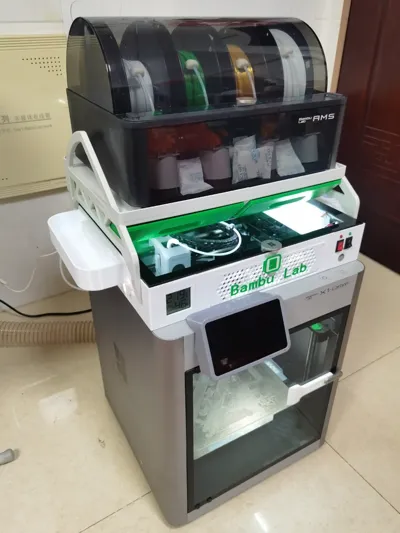

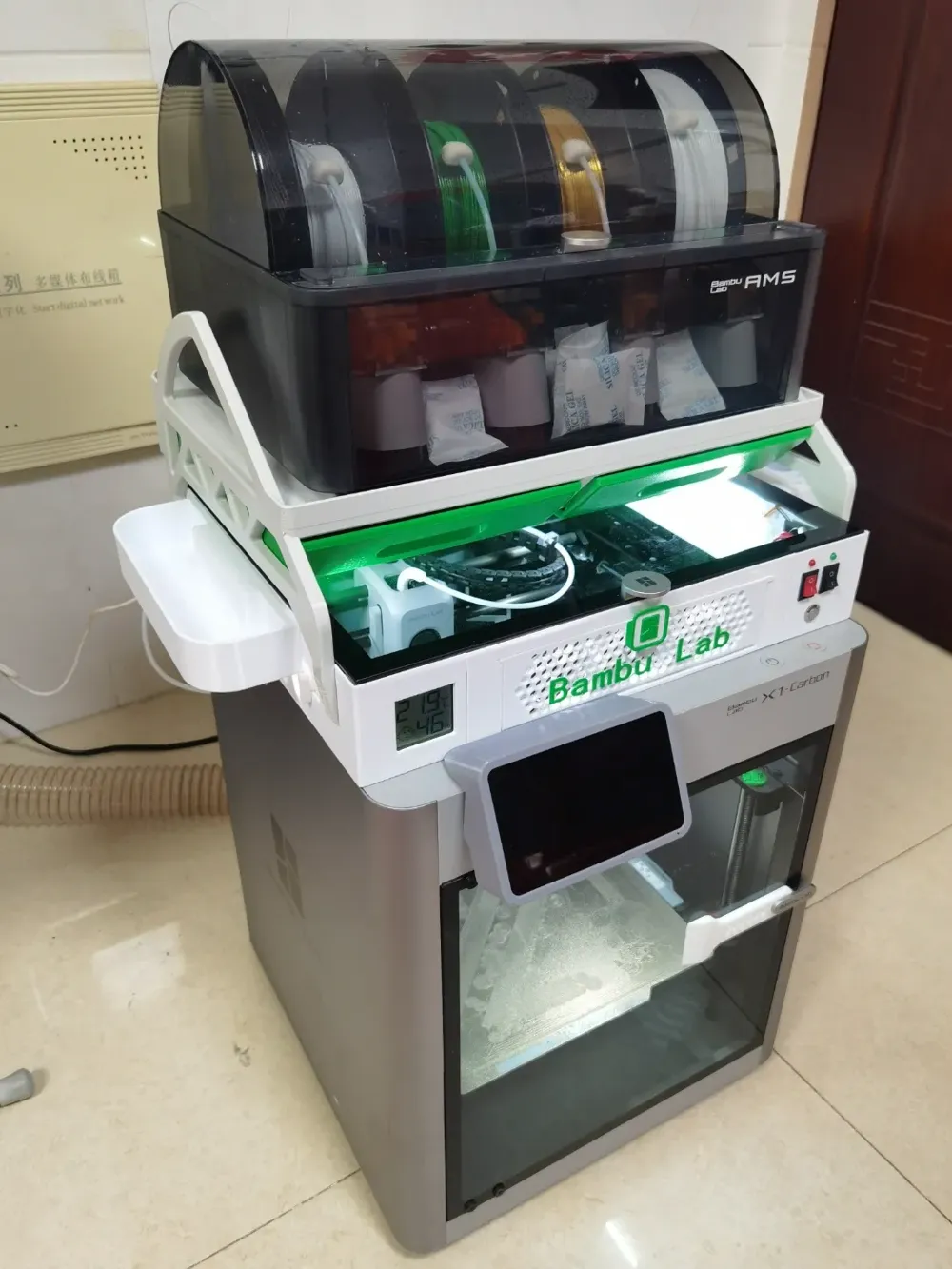

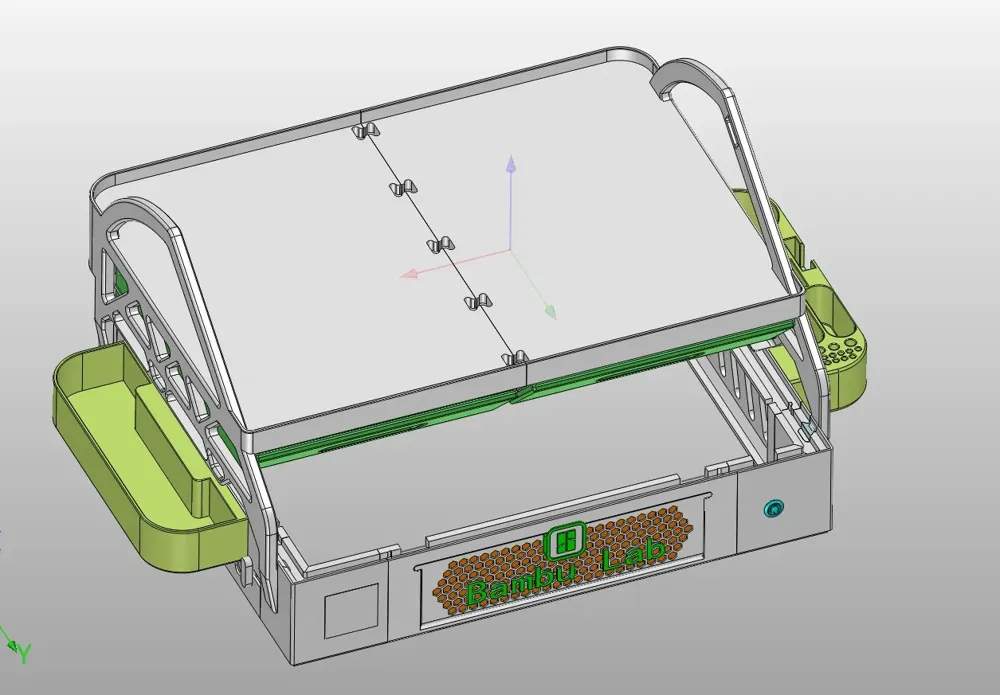

This model combines an AMS bracket with the JNZW riser to elevate the AMS, improving print observation, storage, and cooling, thus enhancing usability.
Detailed Feature Explanation
Convenient Glass Panel Removal:

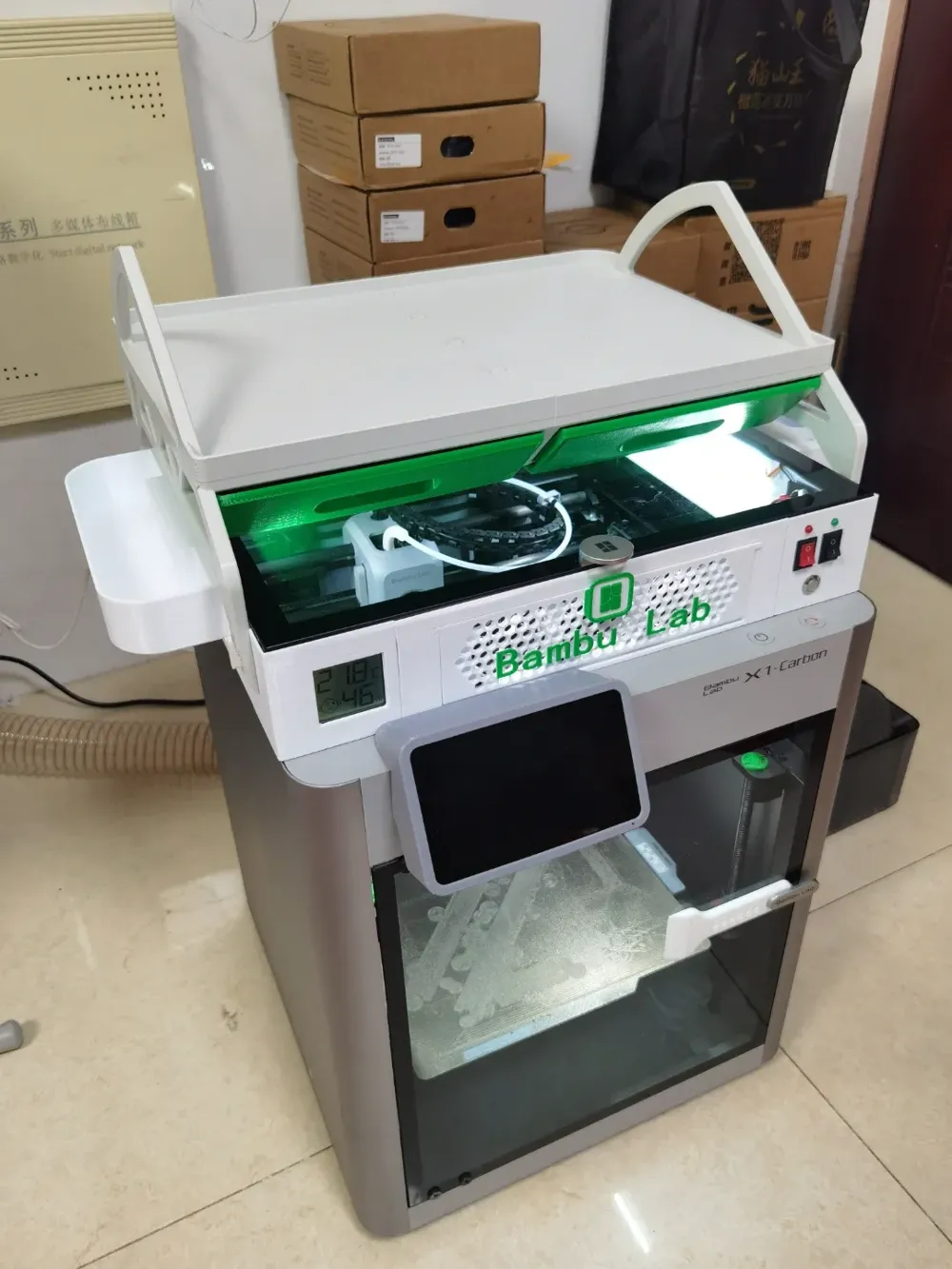

This bracket allows users to easily remove the glass panel without moving the heavy AMS, simplifying maintenance and cleaning.
Expanded Print Observation View:

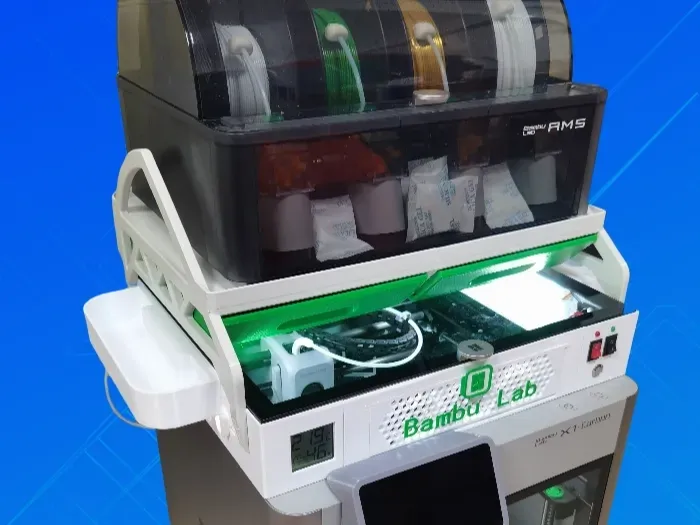

The bracket reduces the AMS enclosure's obstruction of the print area, enabling clearer observation through the glass. This improves visibility and facilitates timely problem identification and resolution.
Increased Storage Space:

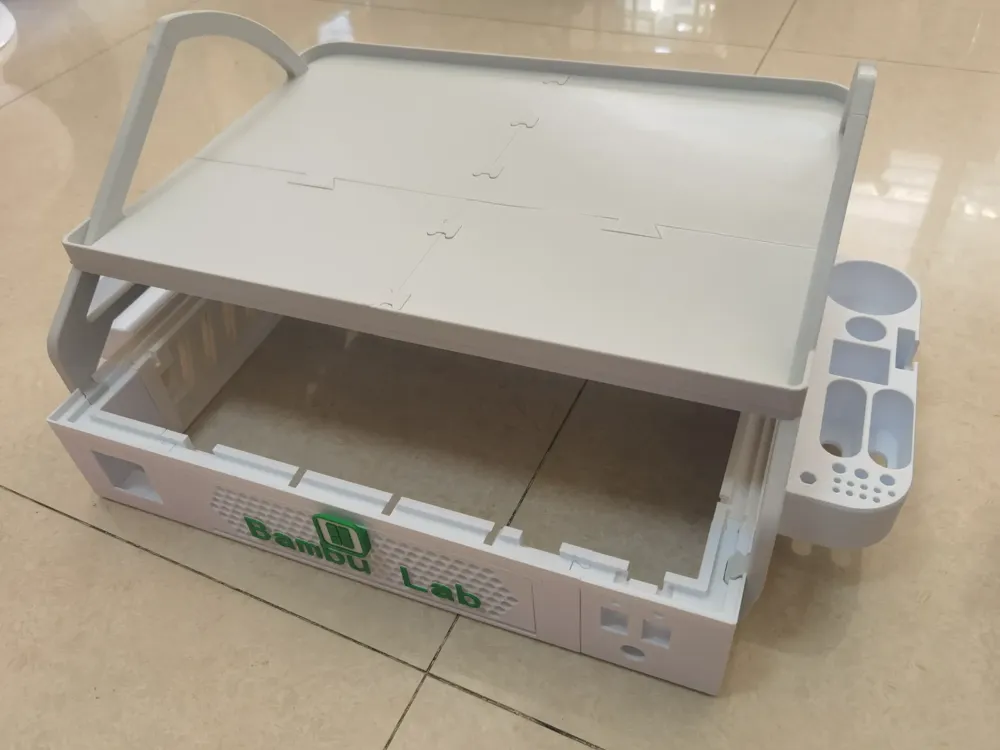

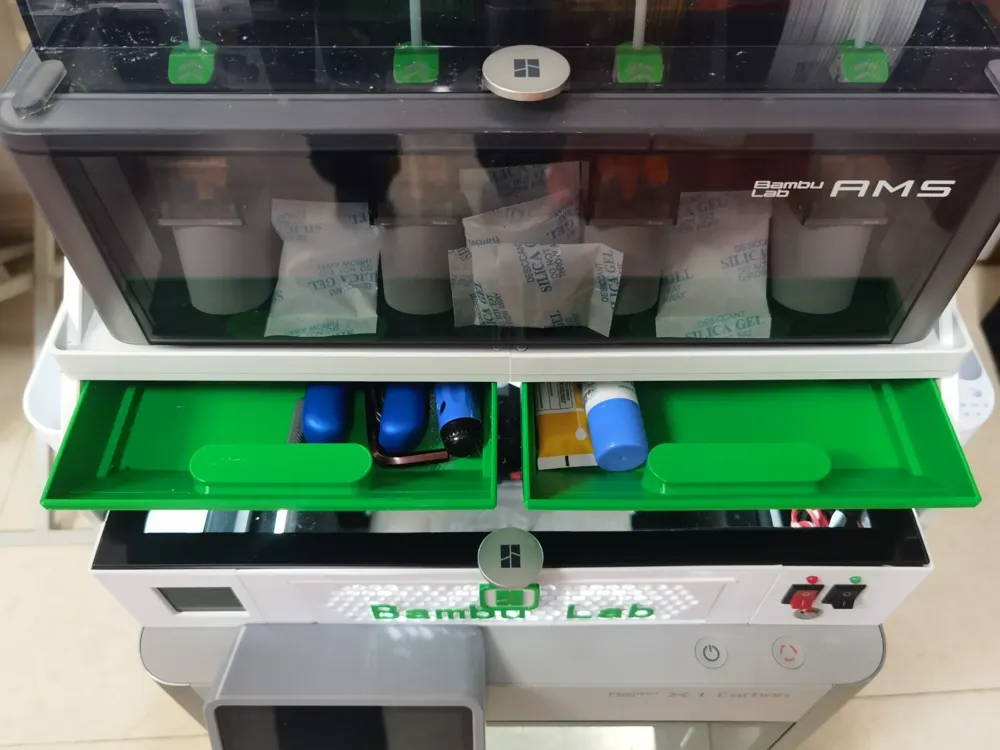

The bracket incorporates two spacious storage compartments for tools, spare parts, or other printing necessities. This design significantly improves space utilization and maintains a tidy workspace.
Robust Support Structure:
The bracket uses rivets and adhesive for secure fixation, eliminating the need for screws. Testing demonstrates the bracket can robustly support up to 7kg (AMS net weight 2.5kg plus 4 filament spools totaling 6.5kg), ensuring stability and safety during printing.
Glass Panel Resting Slot Design:
The bracket includes a designated slot for temporarily storing the glass panel after removal. This design also optimizes cooling when used with the simplified JNZW riser.
Required components:
4 x 10*2mm magnets
Adhesive
Printing notes:
Due to the component's size, apply adhesive to the build plate to enhance adhesion and prevent warping.
Follow assembly instructions sequentially to avoid repeated disassembly. Refer to the attached “AMS Bracket Installation Instructions” for details.
The accompanying riser model is available for download via the links below. Feedback and suggestions are welcome.
If you appreciate this design, please like it, boost it, and share it with others. Follow me for regular model updates. Thank you!
