Description

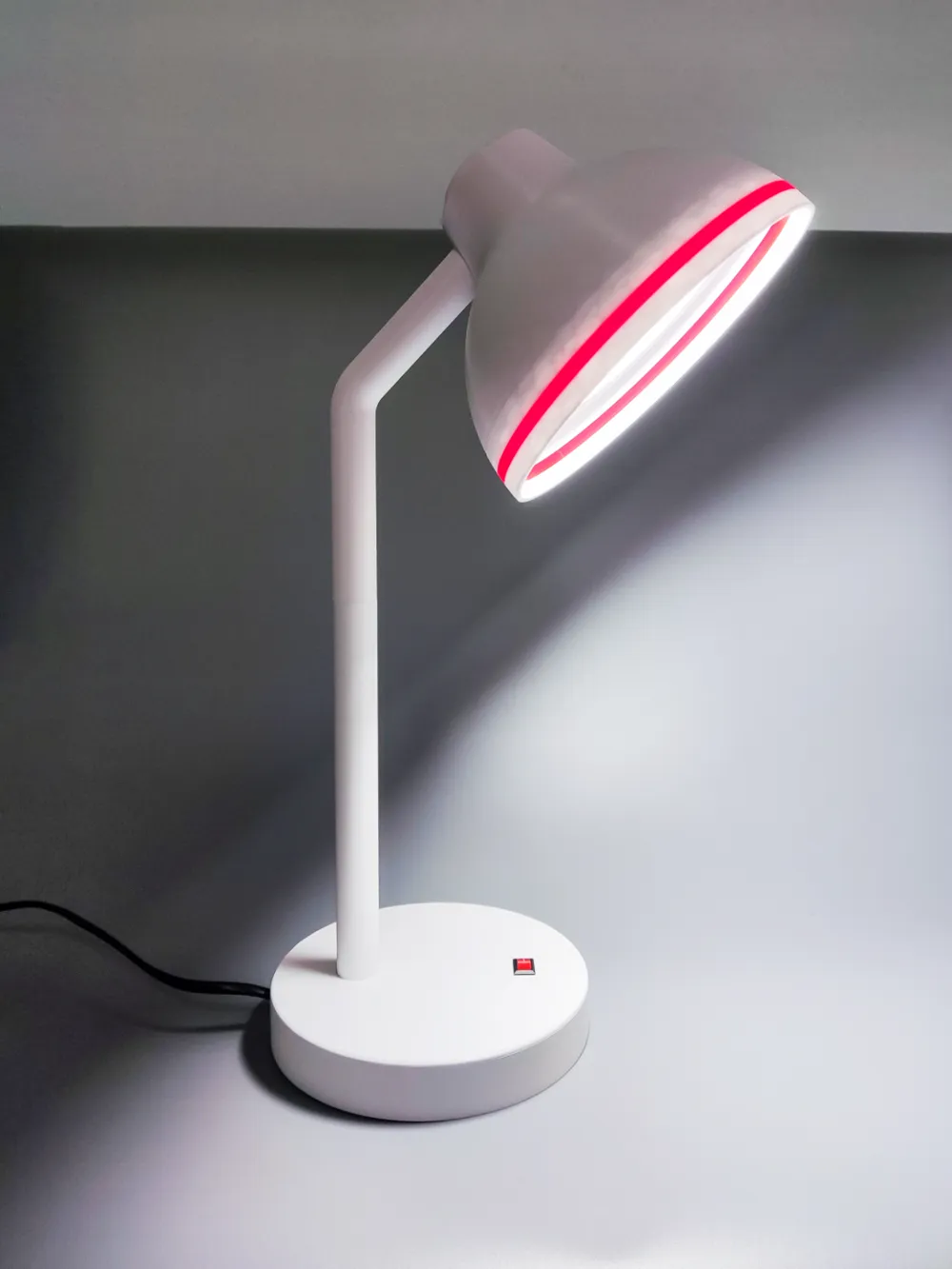

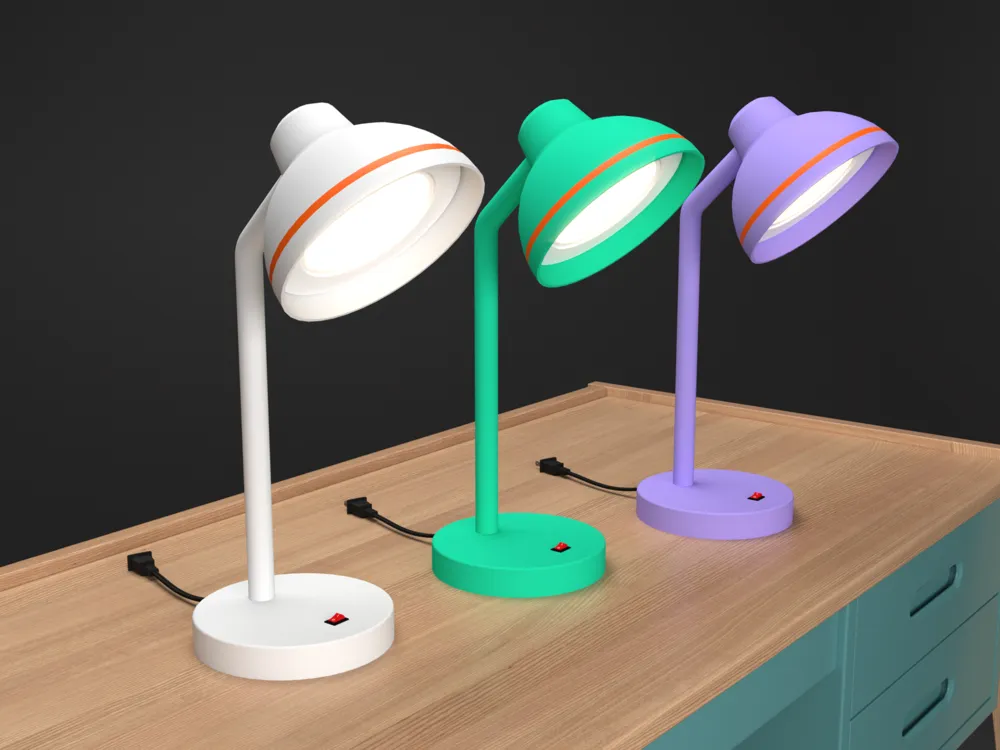

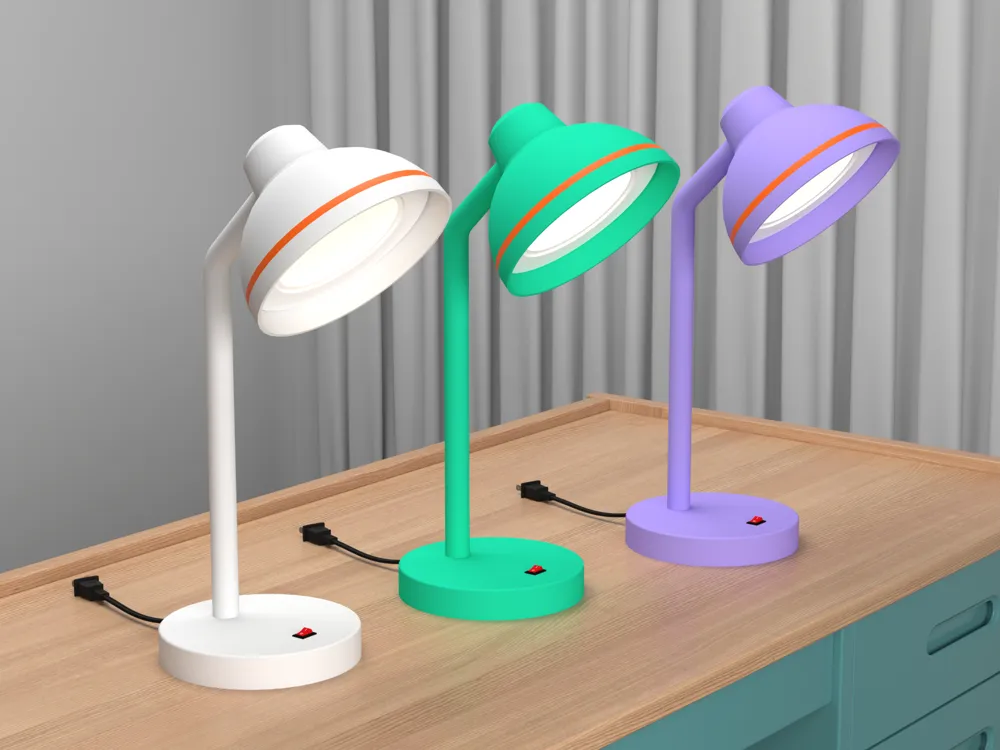

This is a truly usable and easy-to-use study and work desk lamp. You can use any leftover downlights from renovations or extra downlights at home. You can freely match the colors and make your own desk lamp.
Boost Me (for free)
Thank you for your support！
BOM list:
- One downlight with a hole size of 12cm
- One KCD11 rocker switch
- One two-core power cord plug
- Three M3×6 countersunk screws (for pressing wires and fixing lampshades)
- Three M3×10 countersunk screws (for fixing the base)
- One wire
Description：
- Since it is powered by 110~220V, it should be operated with certain hands-on ability, and safety comes first.
- The current and power of the downlight are generally not large, and a power cord of 0.75 square can be used.
- The downlights can be the same size, and the wattage is bright anyway. Choose warm light or white light according to your needs.
- The switch can be soldered or a special plug-in spring cold-pressed terminal, which is safe and convenient.
- The wire connection is glued with heat shrink tubing or electrical tape to prevent short circuit.
- When assembling, be sure to pass the power cord through the base first and then pass it upward through the connecting rod.
- Some small-sized stones or sandbags, iron blocks and other heavy objects can be placed in the base for counterweight. It is also okay not to use it.
- A few self-adhesive silicone strips can be used on the base to increase the anti-slip performance.

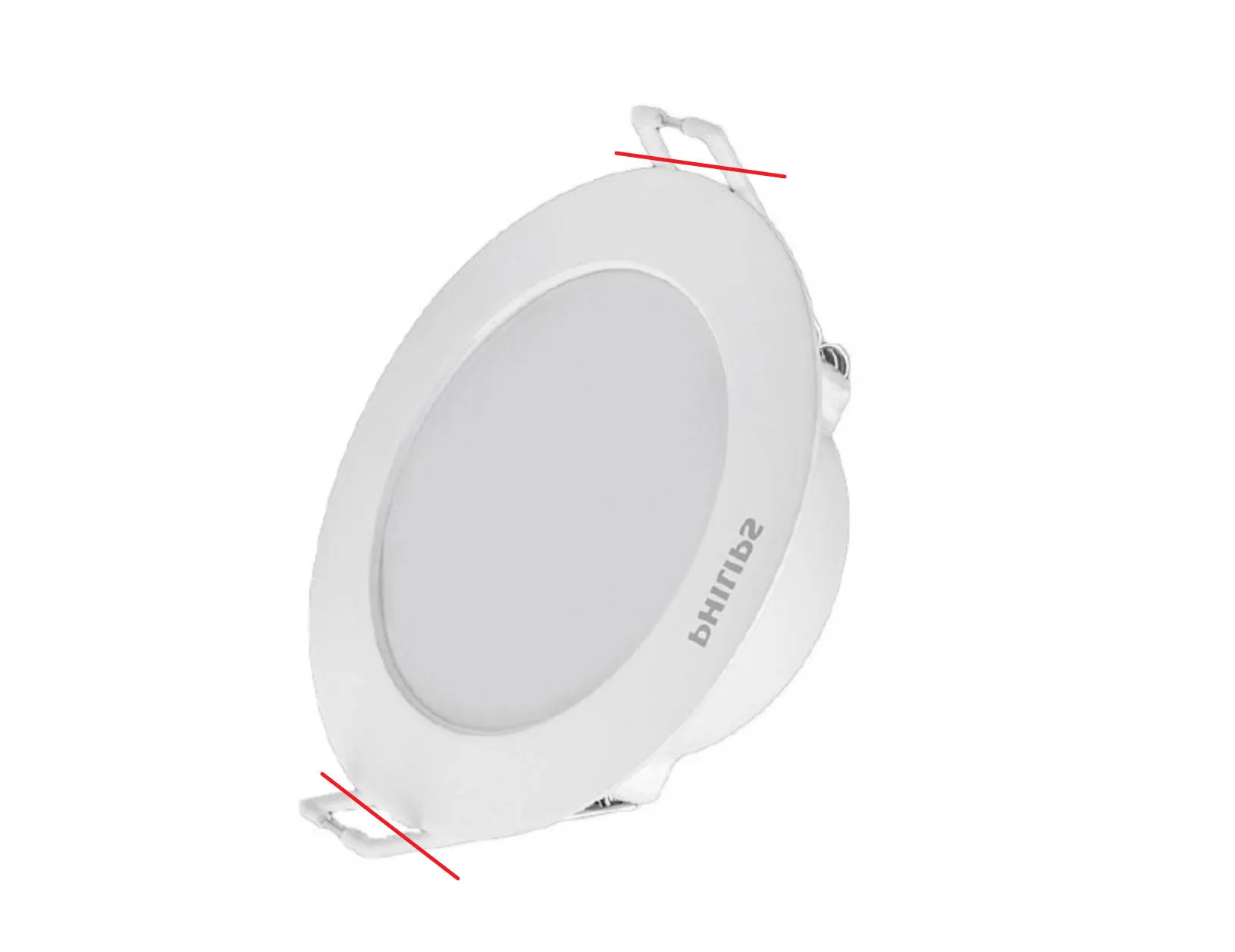

- The downlight fixing buckle needs to be cut off with pliers (as shown in the figure below) before it can be installed. If it shakes unsteadily after installation, it can also be glued to the edge with hot melt glue.
Model cross section:
