Lithophane Lantern

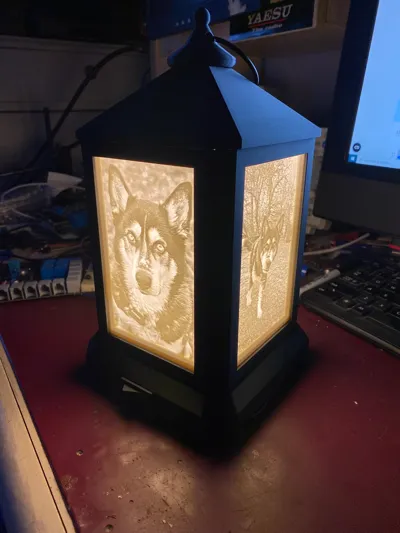

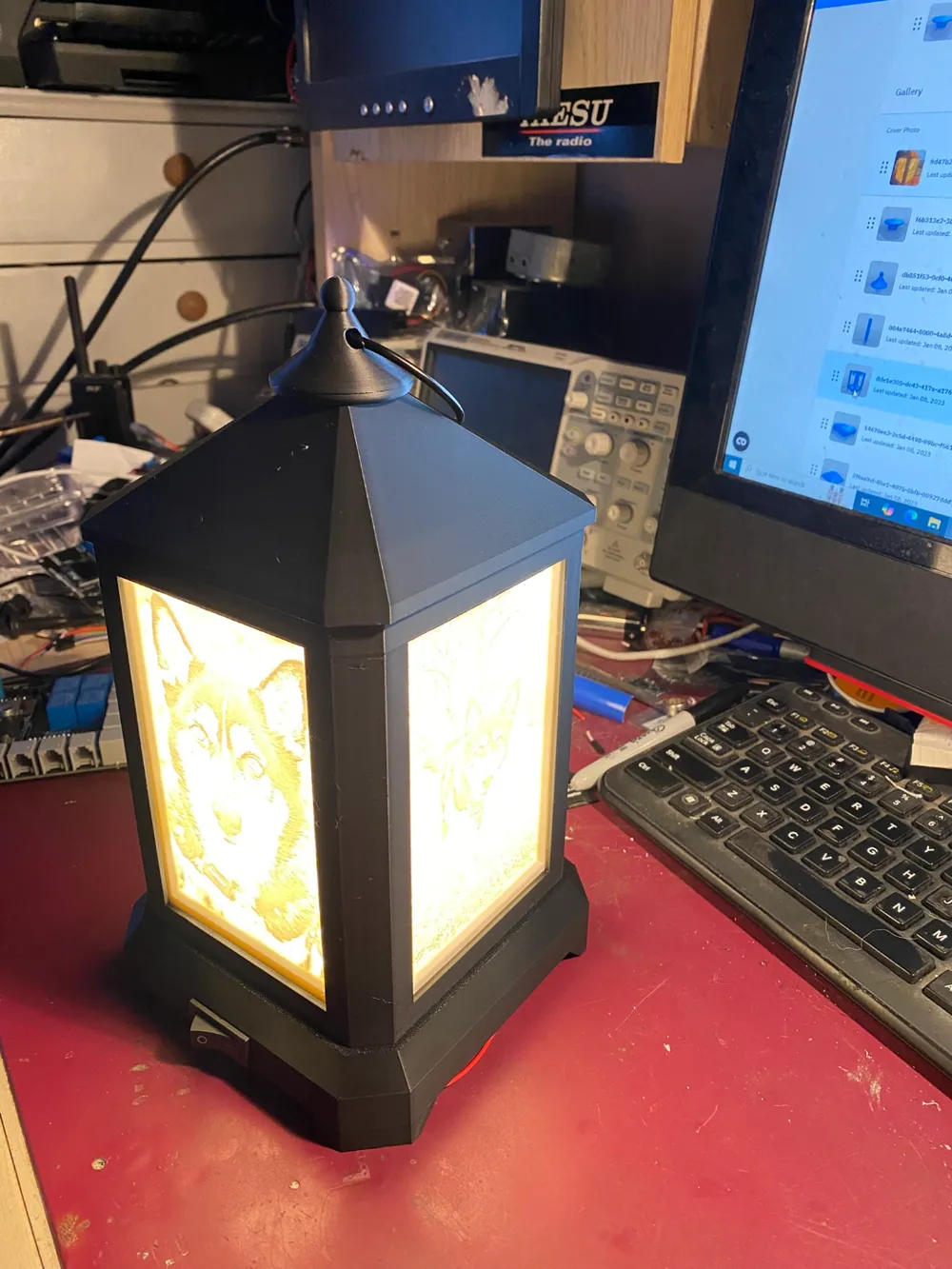

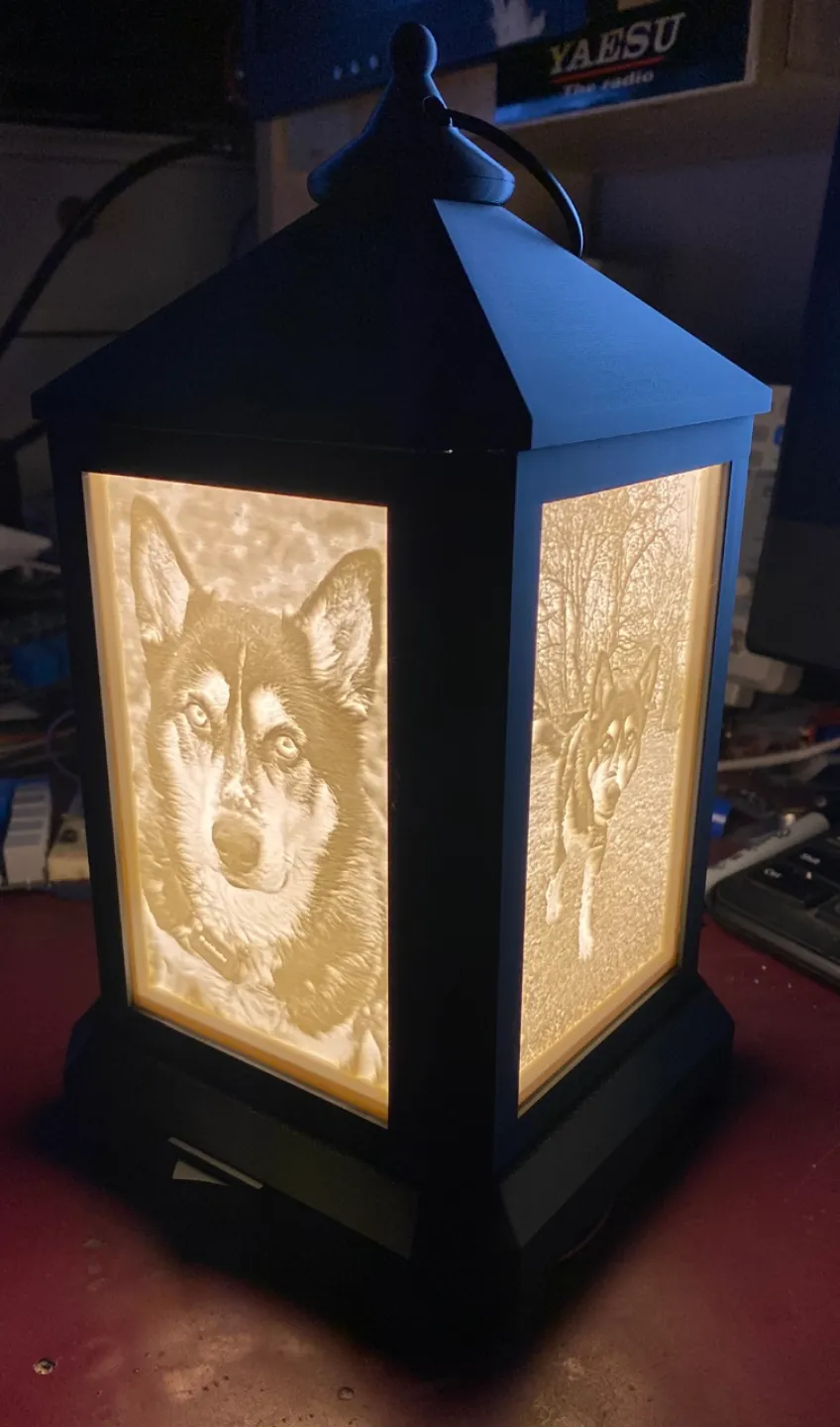

This is a remix of someone else's beautiful design. I just didn't like having to use wood dowels so I remade the lantern to incorporate dowels in the top for the lid plus added an STL so you can print dowels for the base. I also remade the base to include an ON/OFF switch on the front and a DC power jack for the wired power. I repaired the internal dowel as the hole was too large for a 4 mm knurled nut. The original designer has a great video for assembly so if you having issues watch his assembly video. This is my first upload so hopefully I have done everything correct. Here is a link to the original design I remixed…

https://www.thingiverse.com/thing:5666695

Here is a link to the lithophane creator I used and the settings I used.

https://lithophanemaker.com/Framed%20Lithophane.html
Frame Options: Frame Only
Lithophane Resolution: 0.2
Base Length: 100
Base Width: 7.5
Base Height: 7.5
Overhang Angle: 45
Maximum Thickness: 3.0
Minimum Thickness: 0.6
Height: 150
Support Thickness: 2
Support Angle: 75

Here is a list of parts from amazon to complete the lamp.

Front Switch
https://a.co/d/7OrIBiS
LED Strip
https://a.co/d/41Gj9ss
Brass Nuts
https://a.co/d/csOPd9P
Kit of 4mm screws used to hold lid
https://a.co/d/8TOJZzg
Black Ring to hang lamp
https://a.co/d/16YSg3U
Battery Box
https://a.co/d/iqHTH1o
DC Barrel Jack
https://a.co/d/cLPj6xz
