Skadis Multi Board Wall Mount
Print Profile(15)
Description

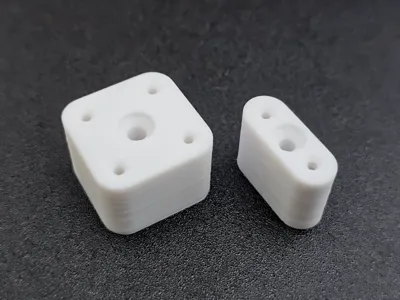

This wall mount is specifically designed for my IKEA Skadis Boards with integrated M4 Screw Mount Holes. It simplifies installation by reducing the number of wall holes required—from 4 to 1 or 2 to 1 per connection.
For optimal performance, I recommend using M4 screws to secure both the wall mount to the wall (recommended: M4x40-60) and the boards to the mount (recommended: M4x20). However, M3.5 screws also work effectively, and based on my tests, M3 screws provide sufficient grip as well. The design maintains a 20mm clearance between the board and the wall, ensuring stability and proper spacing.
Note: Boards without neighboring connections at the corners will still require a dedicated single wall mount.
Updates
02. Feb. 2025: Upon request I added variants for M4 Pan Head Screws. I tested M3.5 screws too and they will work as well.
Drilling Jig
After receiving requests for a drilling jig tailored to this spacer—especially to address the uneven spacing between the quad and double spacers—I’m excited to announce the release of the matching jig:
Skadis Collection
I am constantly developing more IKEA Skadis attachments. Check out my
Boost Me (for free)
Hey friends! I’m doing this purely as a passion project in the little free time I have (juggling two full-time jobs and a family). If you have questions, requests, or feedback, feel free to shoot me a DM — I’d love to hear from you when I get the chance. Boosts and support mean the world and help keep this hobby alive — thank you so much!
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
