In order to use this model, you'll need to implement the bottom exit remix https://makerworld.com/en/models/848655#profileId-796197 (or turn your enclosure around backwards).

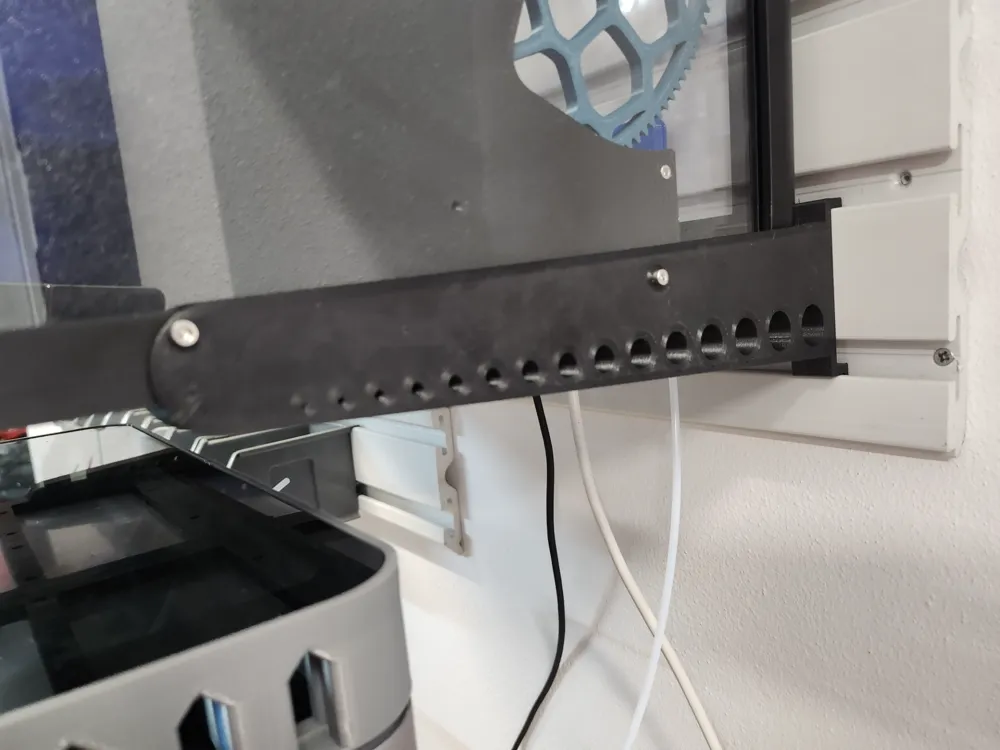

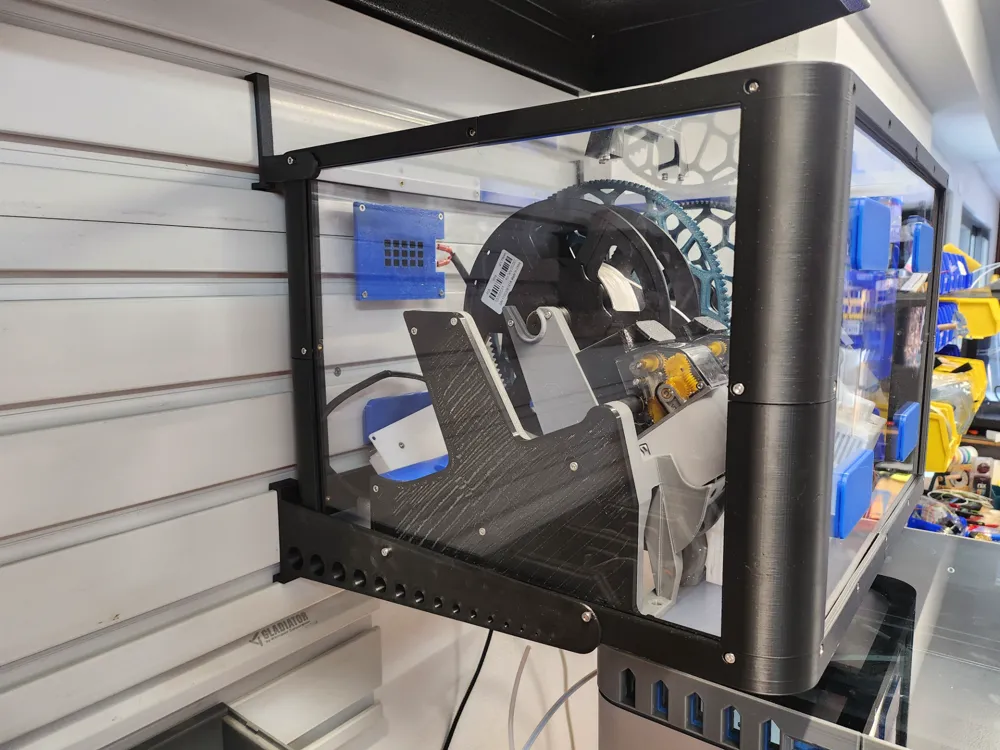

The brackets attach to the enclosure using existing screw holes; replace the M3 screws in those locations with slightly longer ones. The top brackets are not required, but help to keep the enclosure perpendicular to the wall. I printed the brackets in PETG-CF → they are very strong.



I provided two sets of brackets, one set for gladiator wall panels which I use, and a second set for generic use (with M5 or M4 screws). The generic brackets are untested, please let me know if I have overlooked something.



Thanks to 🚀 and 👍 if you find this model useful.
