Furniture leg

The furniture leg is specifically designed to facilitate the operation of robot vacuum cleaners under furniture with insufficient leg height.

Model Features:

1. Height:
   The leg has a height of 110 mm, allowing robot vacuum cleaners to maneuver freely and clean even in the most hard-to-reach areas under the furniture.
2. Shape:
   • The rounded conical shape minimizes the contact area with the robot vacuum cleaner’s body, reducing the risk of wear and scratches on the device.
   • The thickness of the upper part of the leg is 70 mm, while the lower part is 35 mm. This ratio optimally distributes the weight load, enhancing the reliability of the structure. It also reduces the likelihood of leg deformation and floor denting, especially when furniture is placed on soft or delicate surfaces.
3. Mounting Methods:
   The leg can be attached using three methods:
   • First method:
     Mounting with four screws with a head diameter of 6–7 mm.
   • Second method:
     Mounting with a bolt and nut with a diameter of 22.5 mm, providing additional fixation strength.
   • Third method:
     A combination of the first and second methods. This ensures secure attachment to virtually any furniture, offering maximum versatility.
4. Testing:
   The leg has been tested on Xiaomi robot vacuum cleaners with top-mounted LiDAR systems. The design ensures smooth operation and prevents interference with the robot's navigation or cleaning process.

This model combines functionality, furniture protection, and enhanced cleaning efficiency, making it an ideal solution for modern interiors.

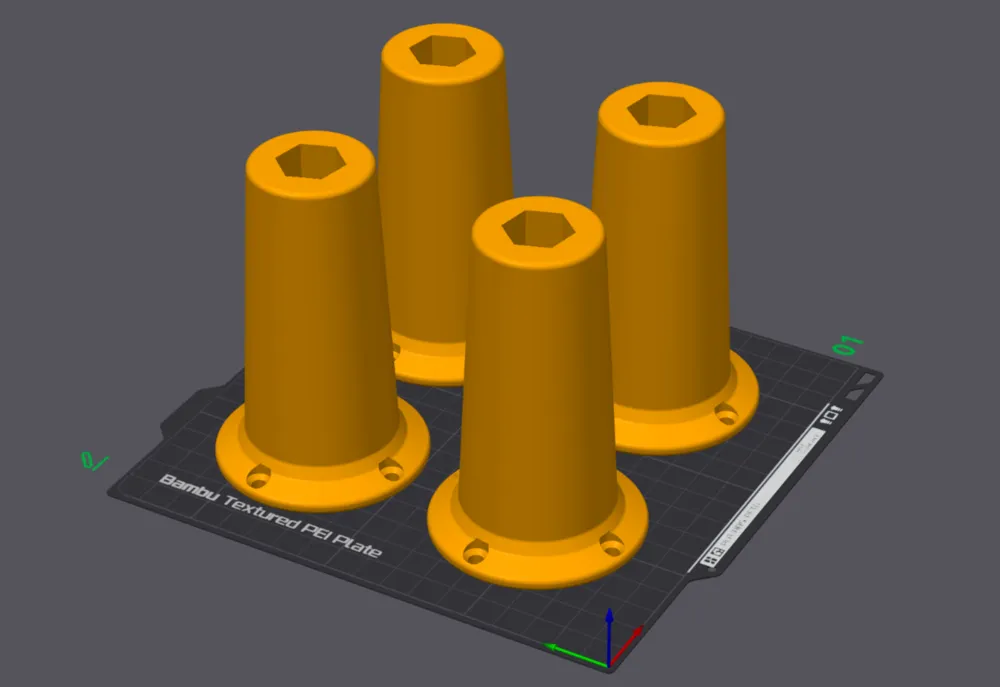

Model dimensions:

• Height: 110 mm
• Top width: 70 mm
• Bottom width: 35 mm
• 4 mounting holes: 7 mm
• Nut: 22.5 mm
• Filament type: Banbu PLA Basic

Profiles available for print:

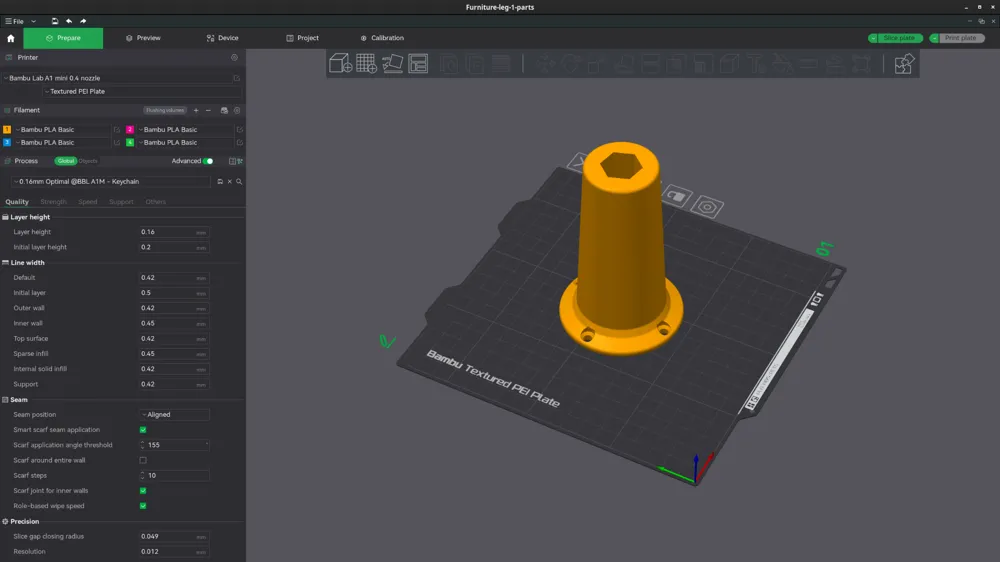

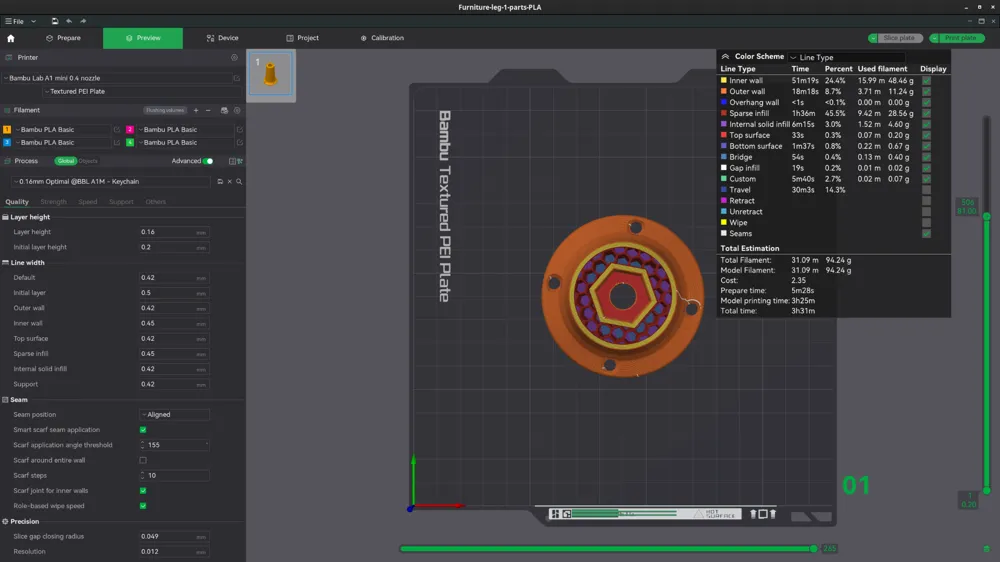

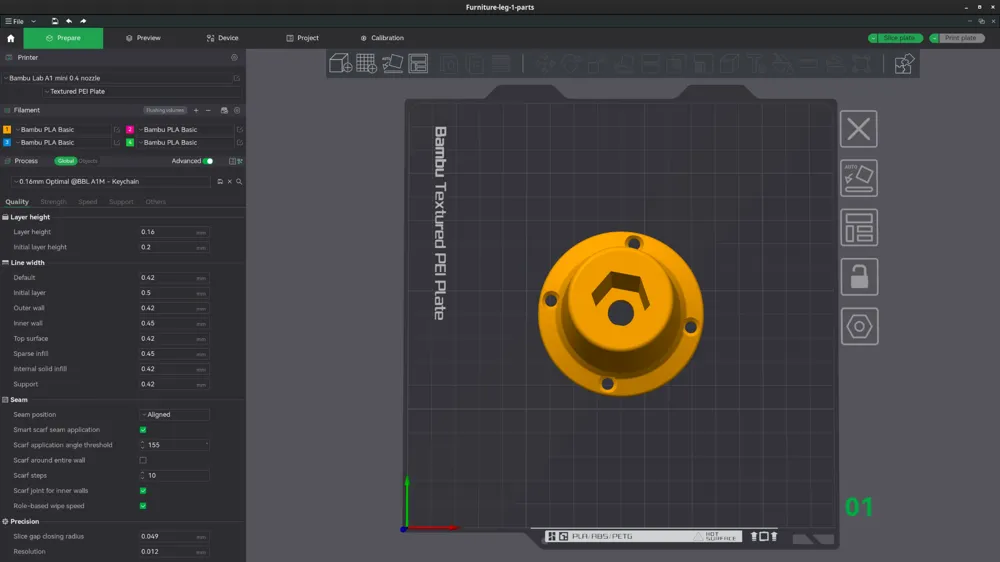

• 1 x Furniture leg

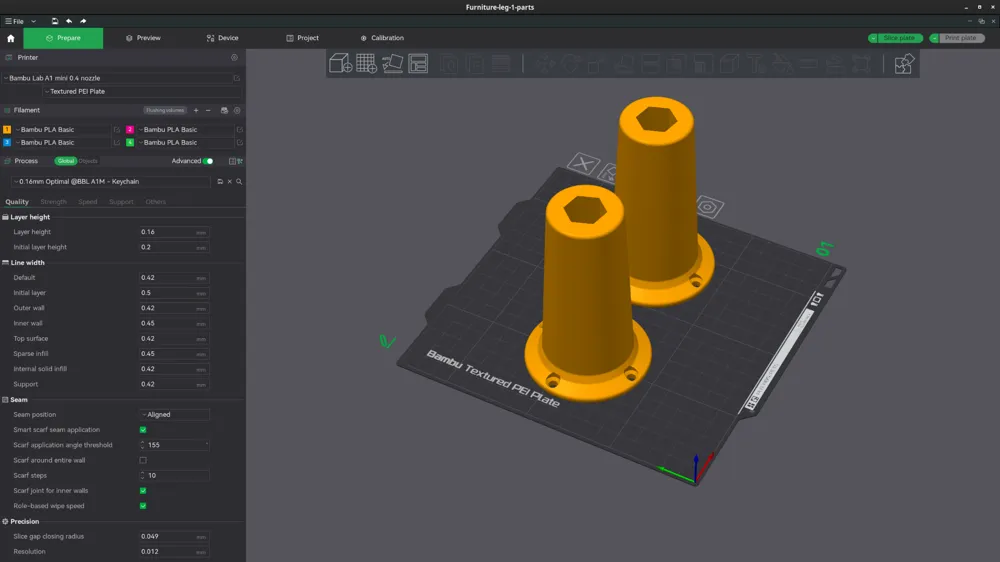

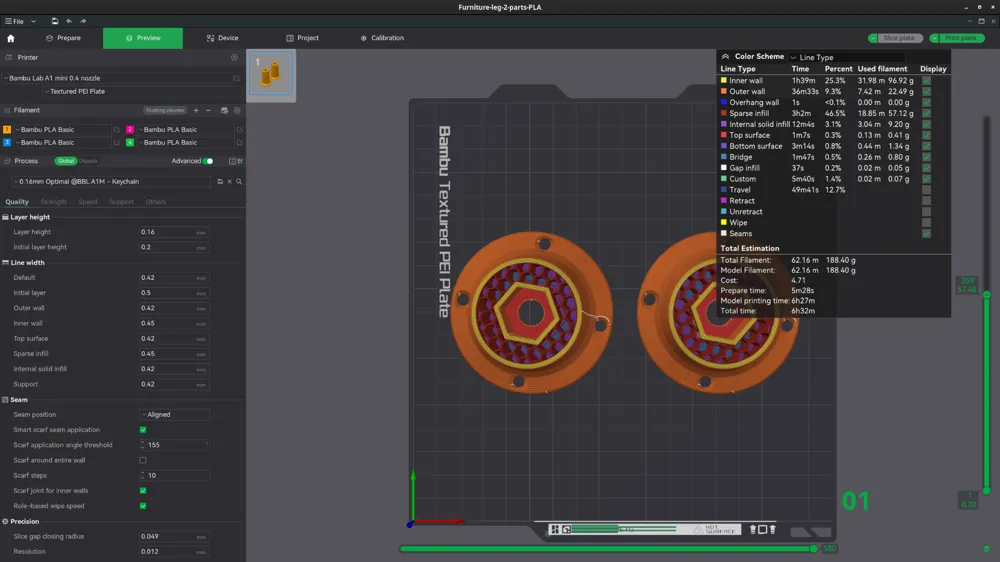

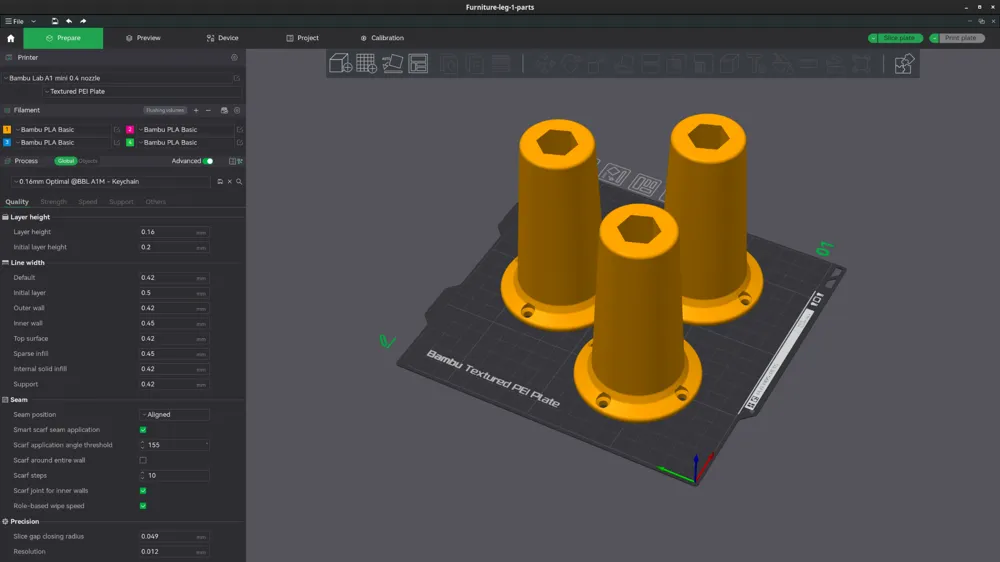

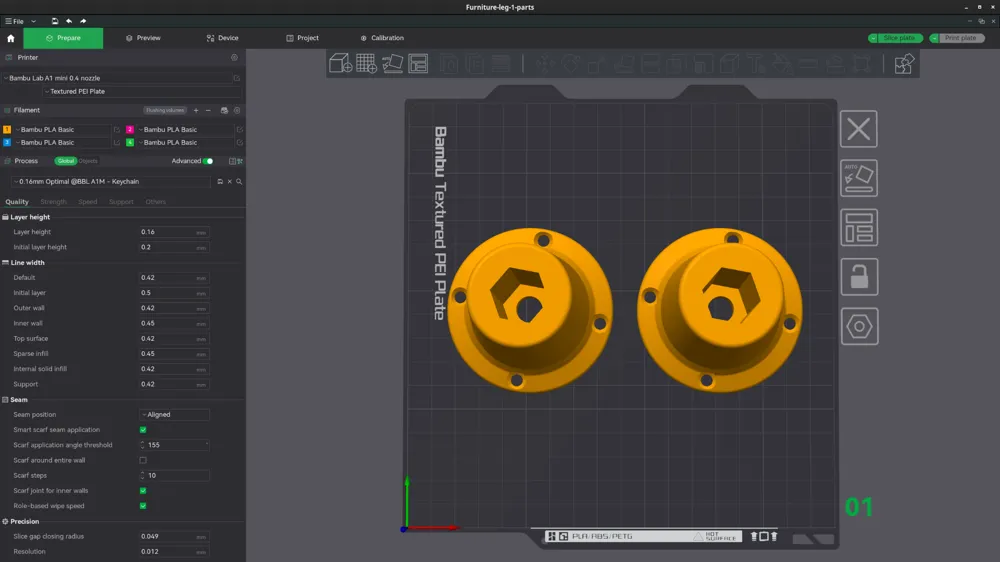

• 2 x Furniture leg

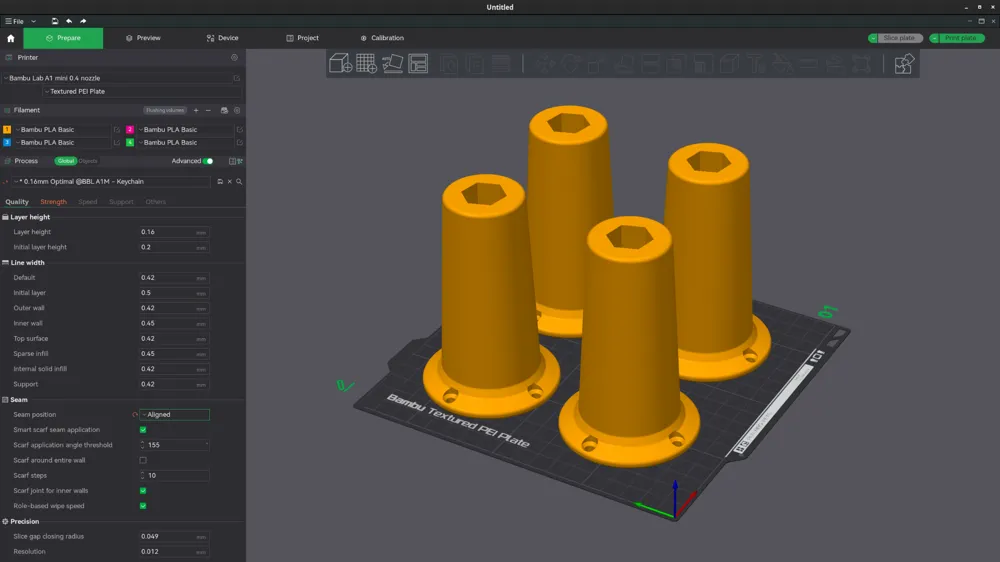

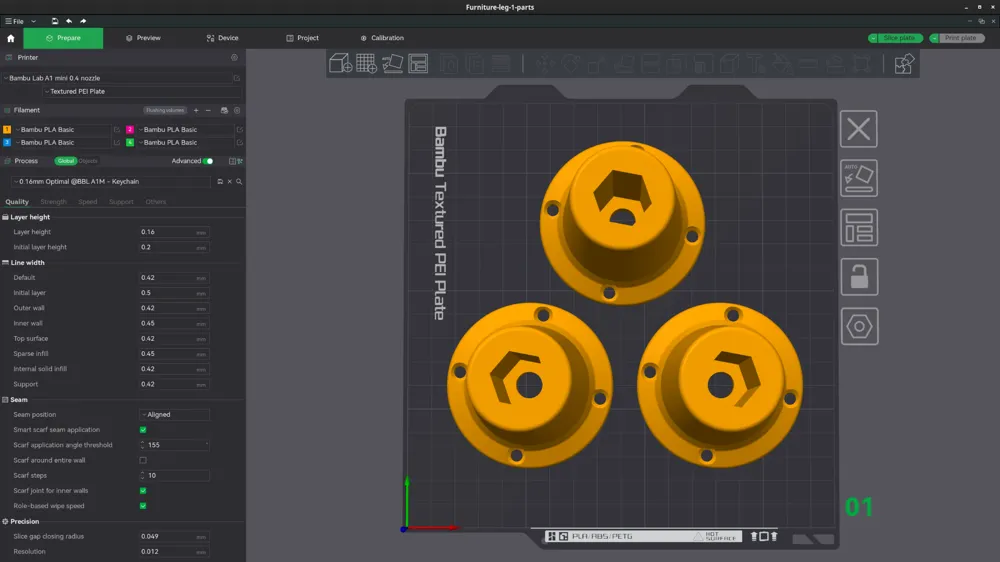

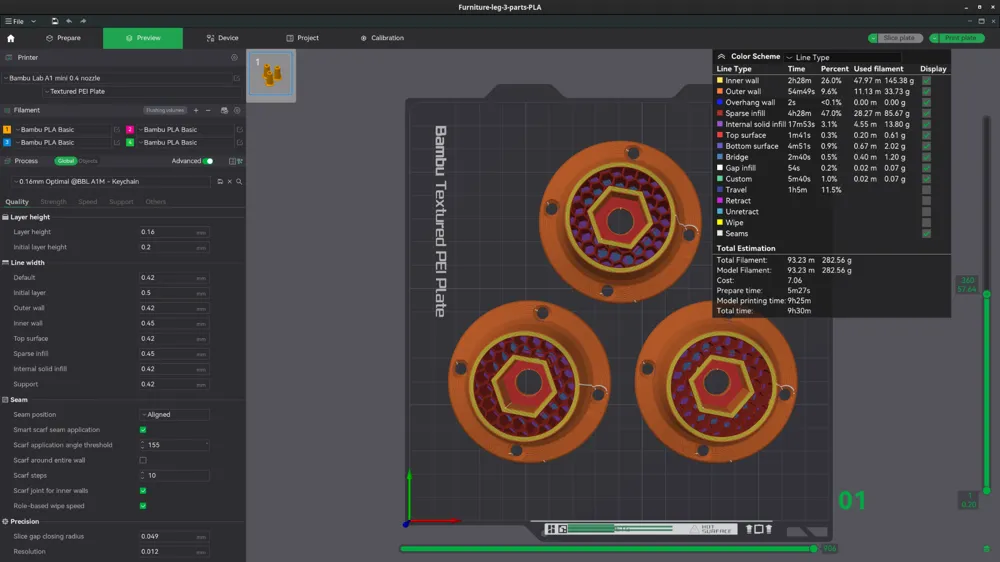

• 3 x Furniture leg

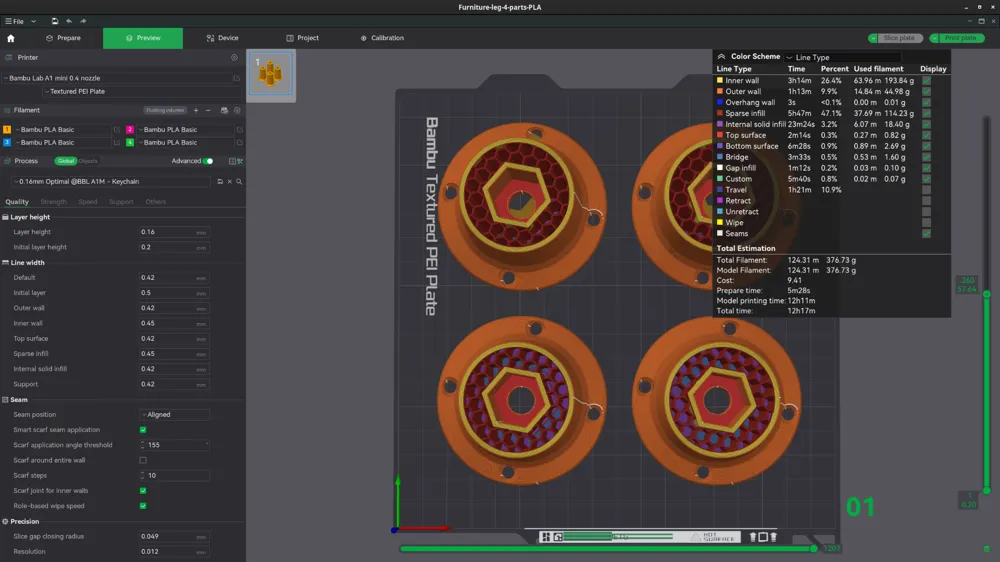

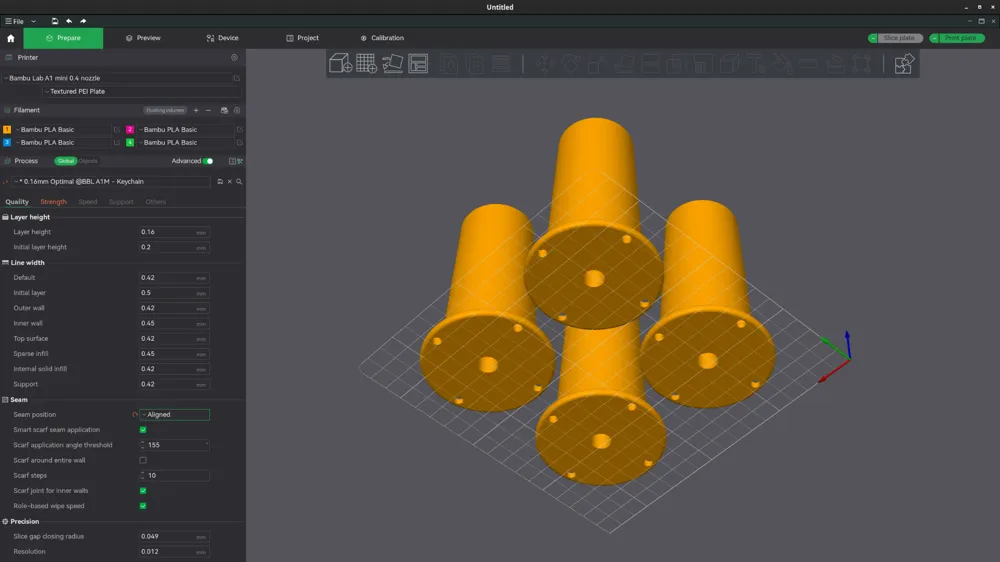

• 4 x Furniture leg
