Space Age Cube Clock

Cube Clock

This custom 3D printed clock takes inspiration from the sleek, minimalist design aesthetic of the FICHTER Space-Age style alarm clocks. It is an elegant and modern addition to any bedroom or office. The cube-like shape allows for an uncomplicated design that prioritizes functionality while maintaining a visually appealing appearance.

To assemble

After printing the parts:

• Snap the clock face into the clock frame
• Install the Clock Components Kit 011, the hands and the battery
• Slide the assembly into the clock box
• Put the lid in place and close

To change the battery or adjust the hands, remove the lid and slide out the assembly.

Dimensions in mm are 100x100x100

• Plate 1 contains the clock face and frame.
• Plate 2 contains the clock box and its lid. They are arranged to be printed with the best result in mind. I tried other orientation but it was not satisfactory in print time and quality
• Plate 3 contains the clock hands

Filaments I used for this print are:

• Body and Lid: Matte mandarin orange (11300)
• Face: Jade White (10100) and Black (10101)
• Frame: Black (10101)
• Hands: Jade White (10400) and Matte Ice Blue (11601)

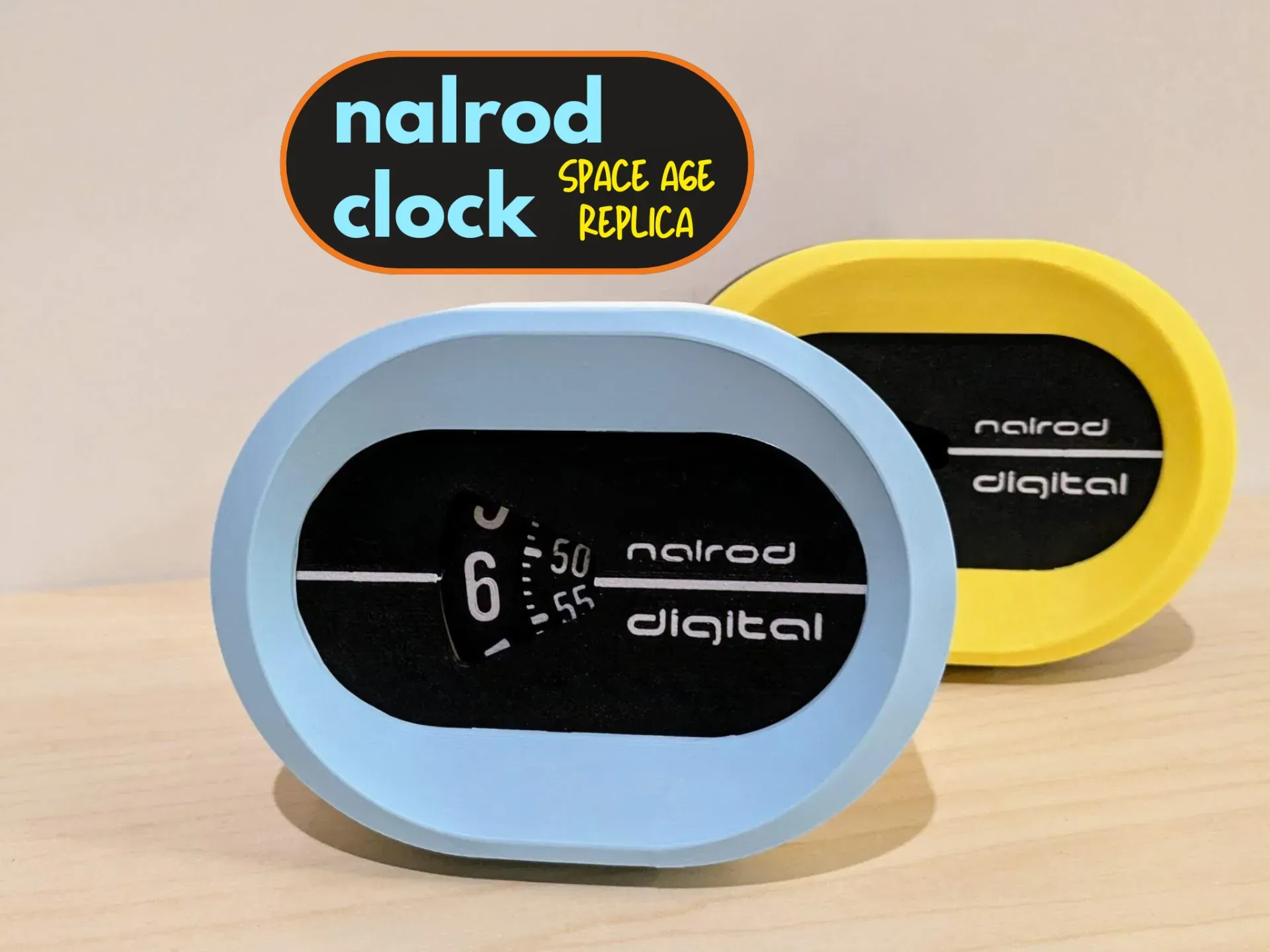

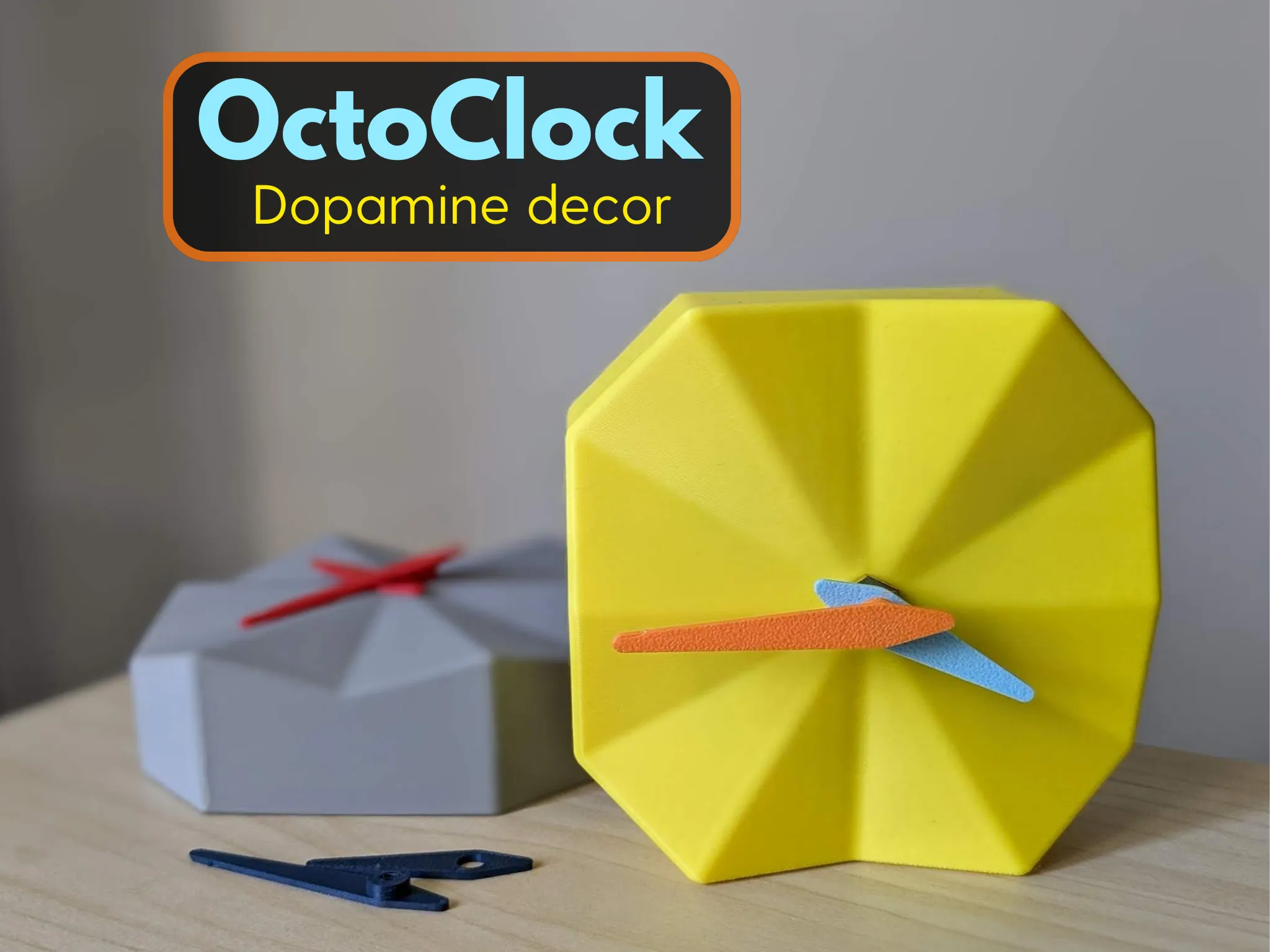

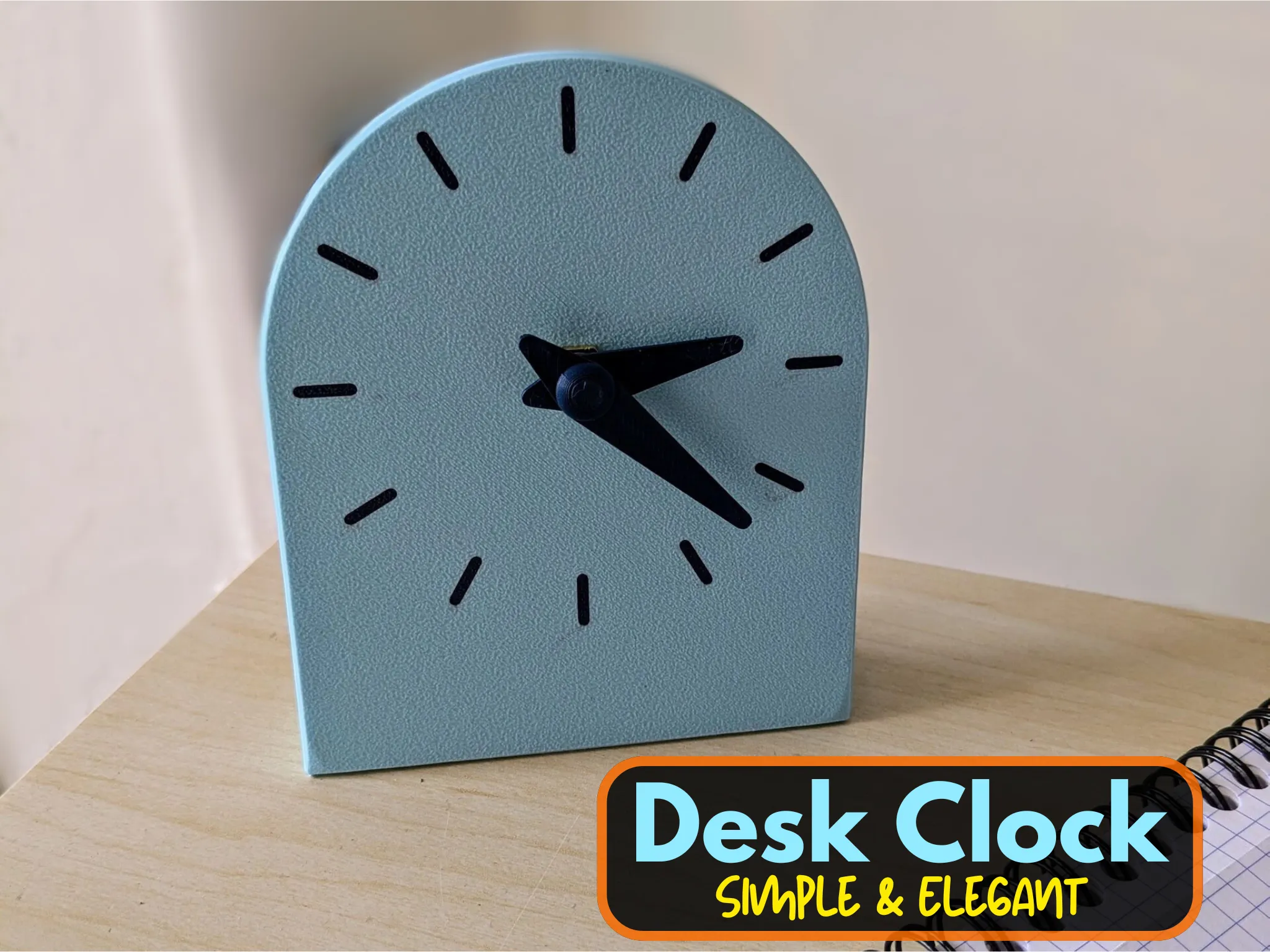

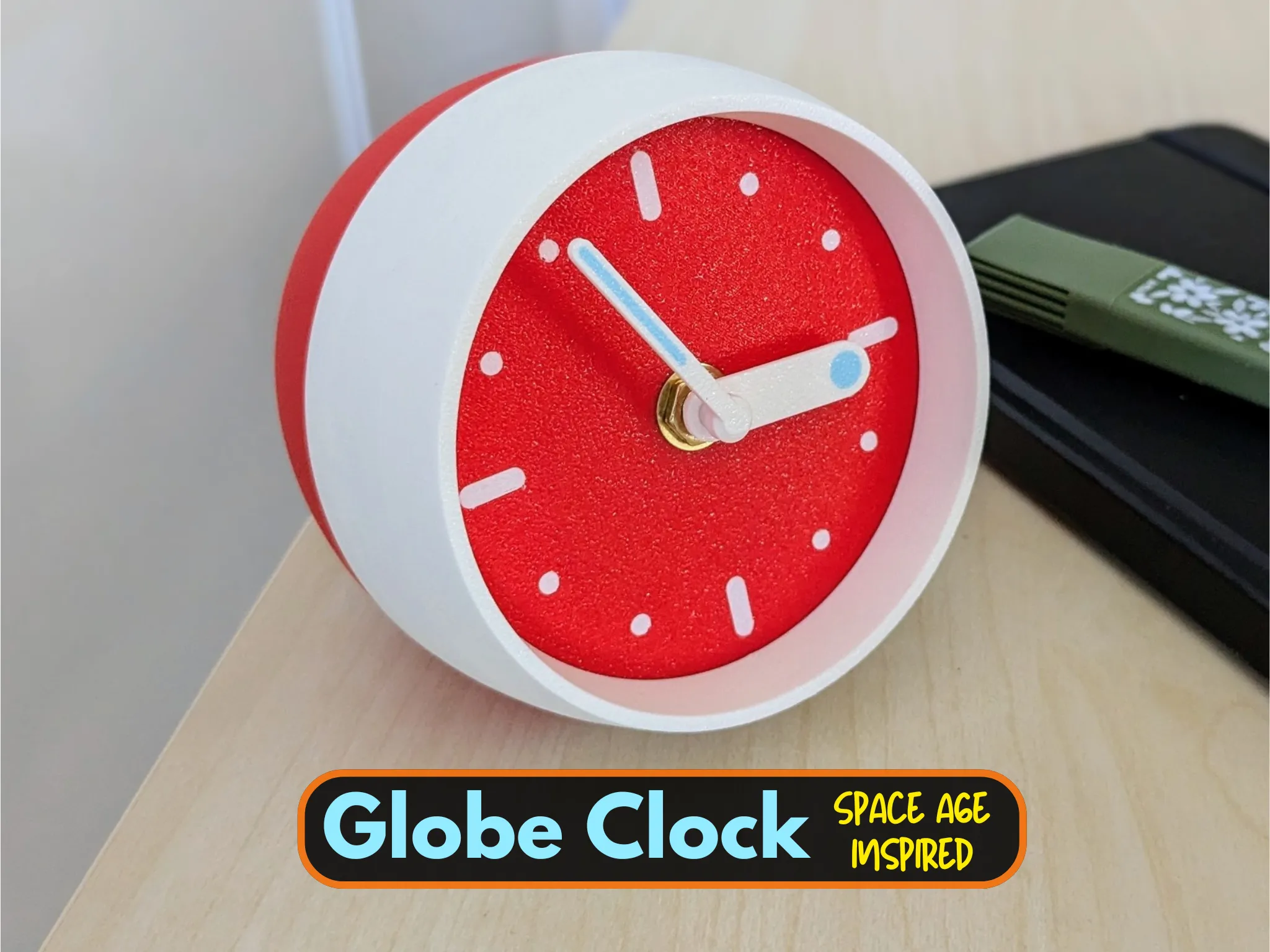

Check out my other clock design

Notes

• Notes

• Includes bambu studio 3mf file.
• All photos uploaded are of the actual printed model, and are copyright protected
• If you enjoy this model please consider to buy me a coffee
• If you prefer you can send me sats instead.
