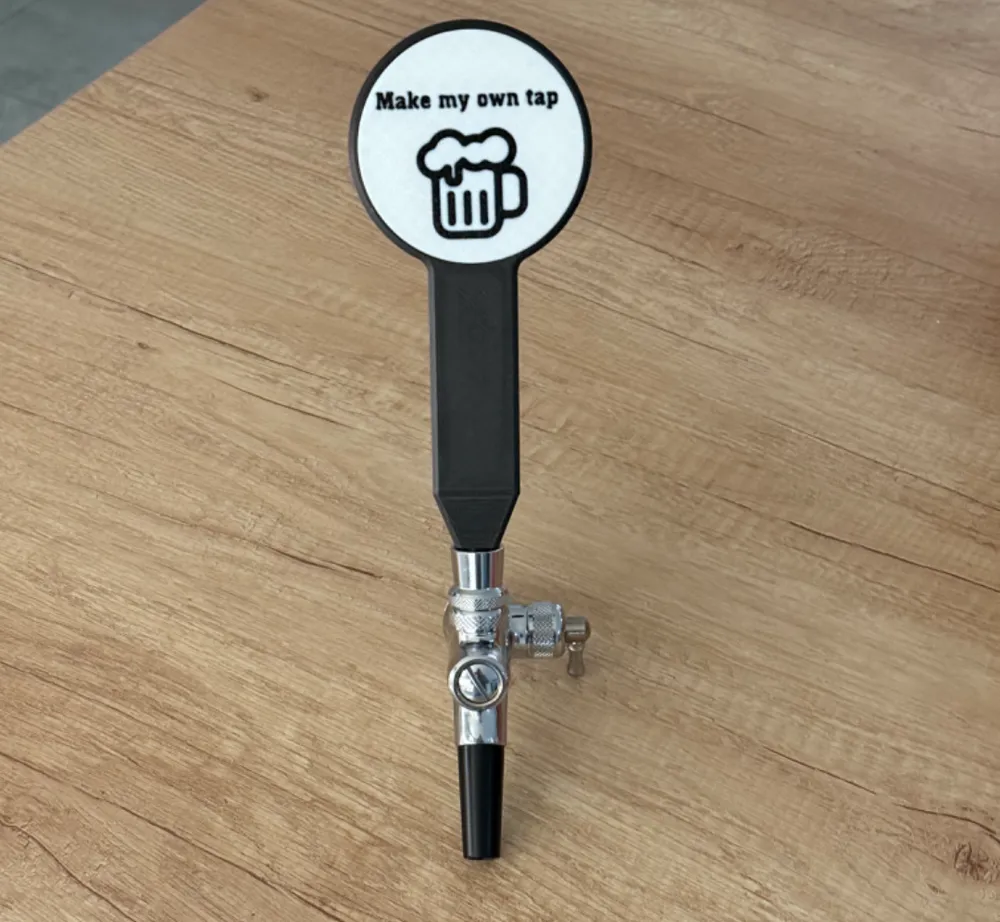

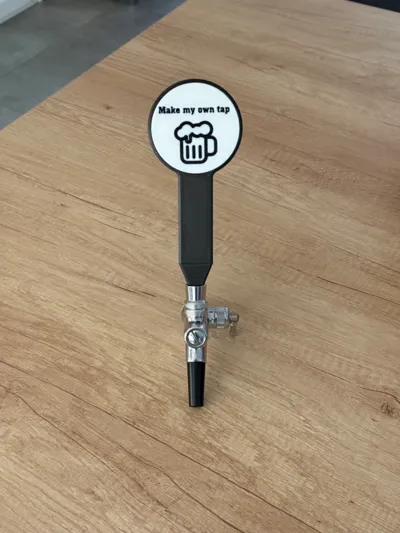

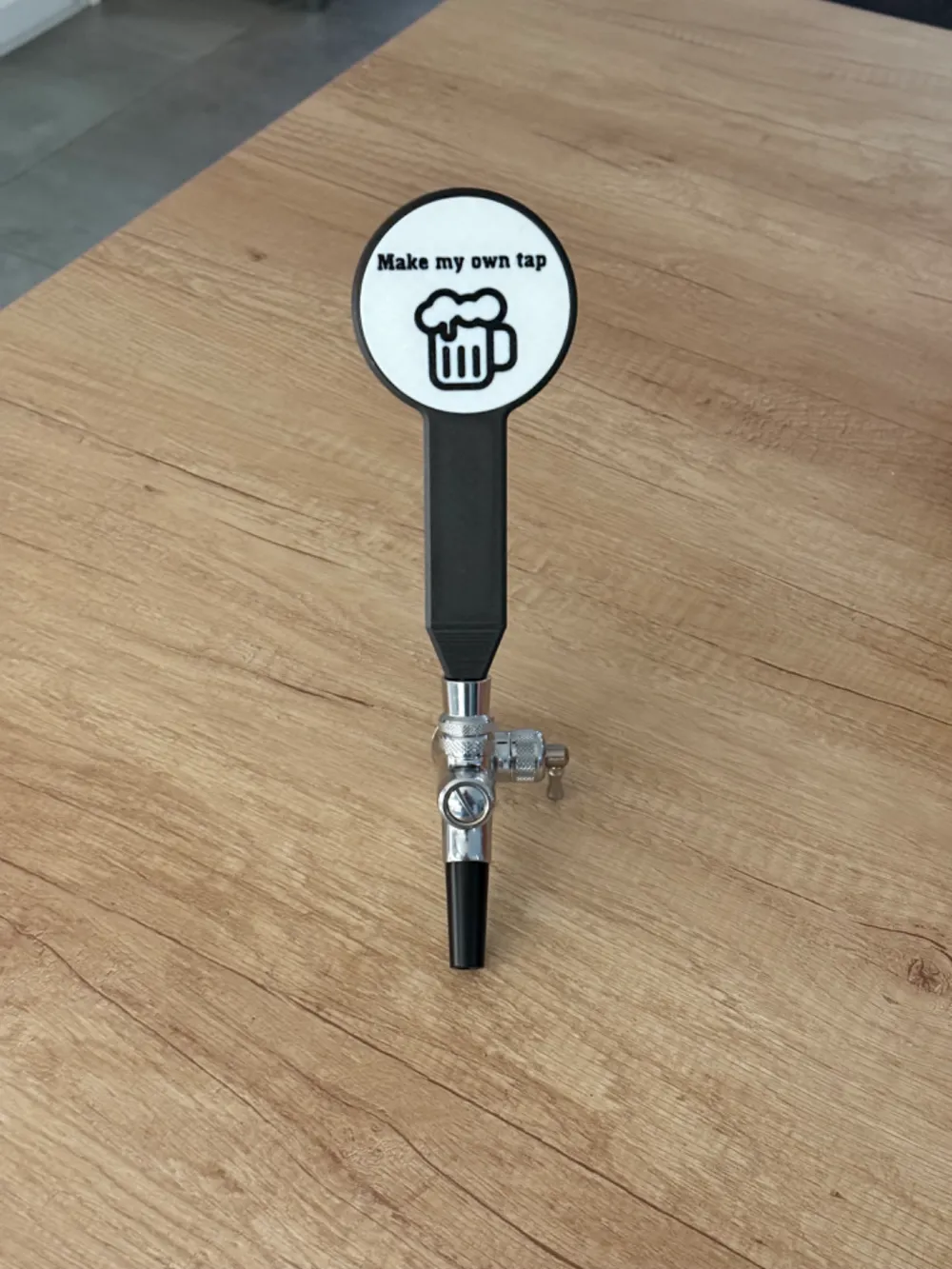

Handle Tap Beer customizable

This is a customizable knob with a disc insertable into it.

The screw thread prints with the knob, using a standard European M10 thread.

A second profile is offered for 3/8-16 screw threads.

Please choose the one that suits your needs

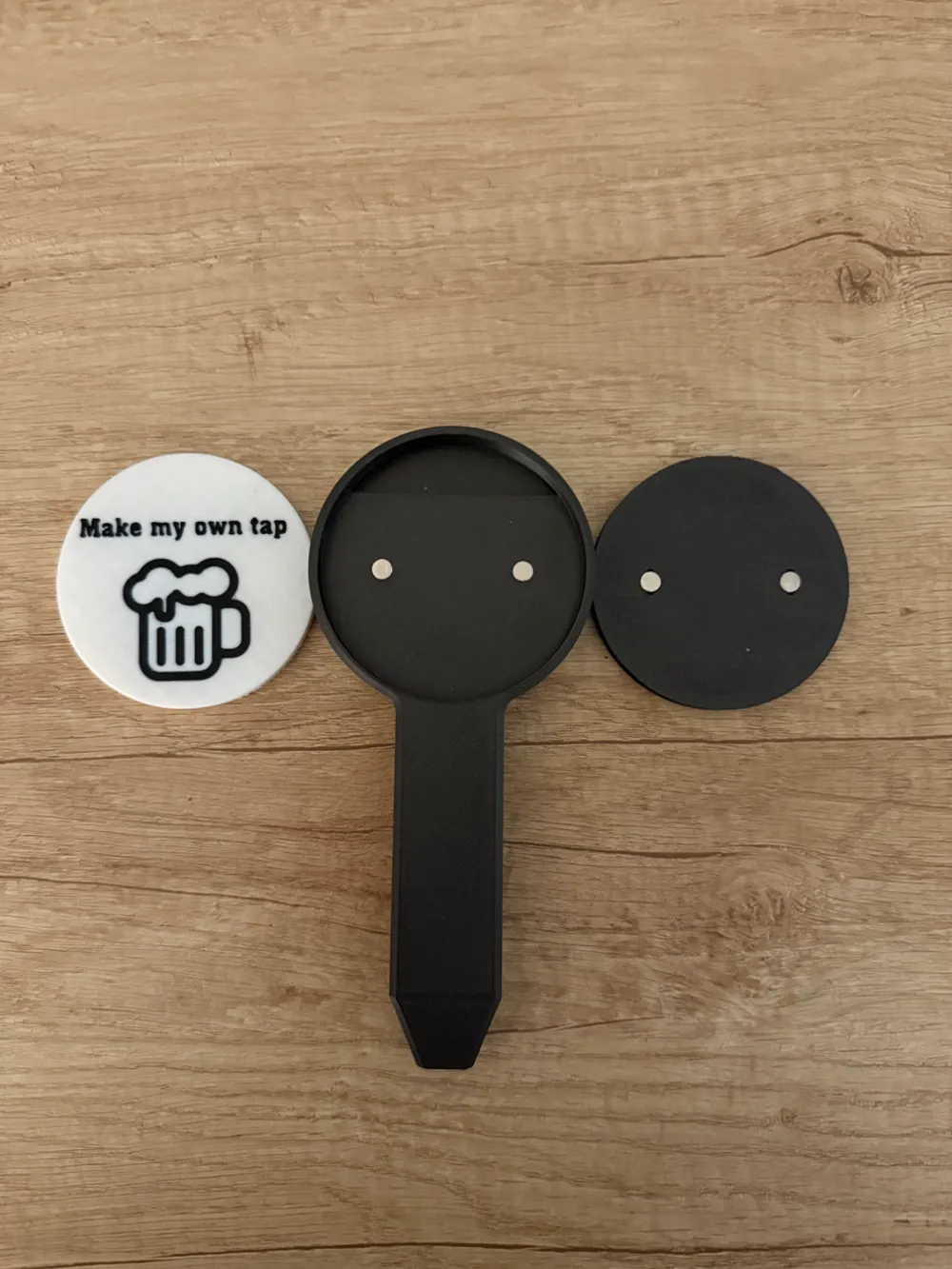

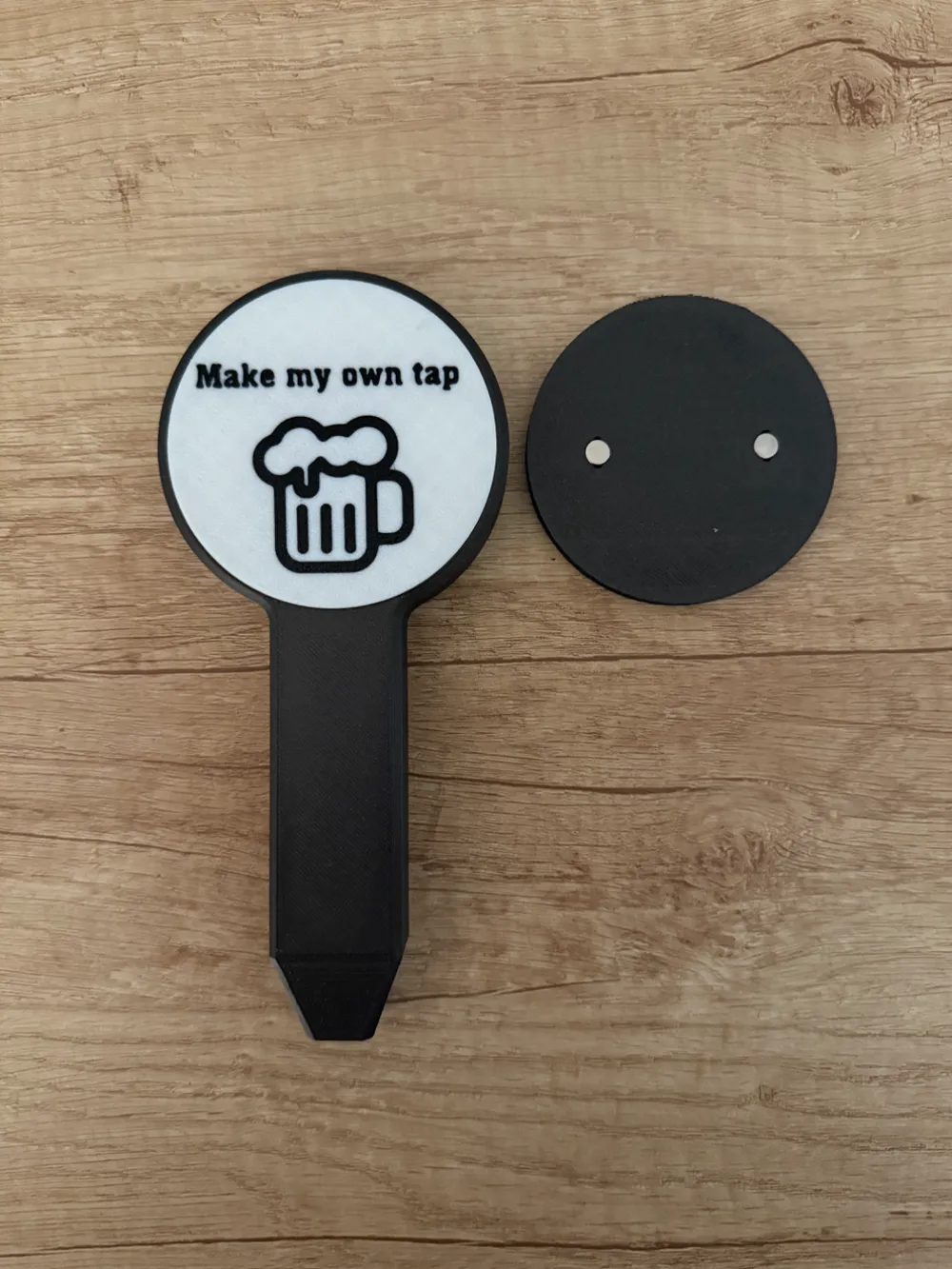

To hold the disc more effectively, you can insert 6x2mm magnets into the knob and the discs, but they will hold without them. (The holes are provided in the print files); magnets are easily found on Amazon, for example.

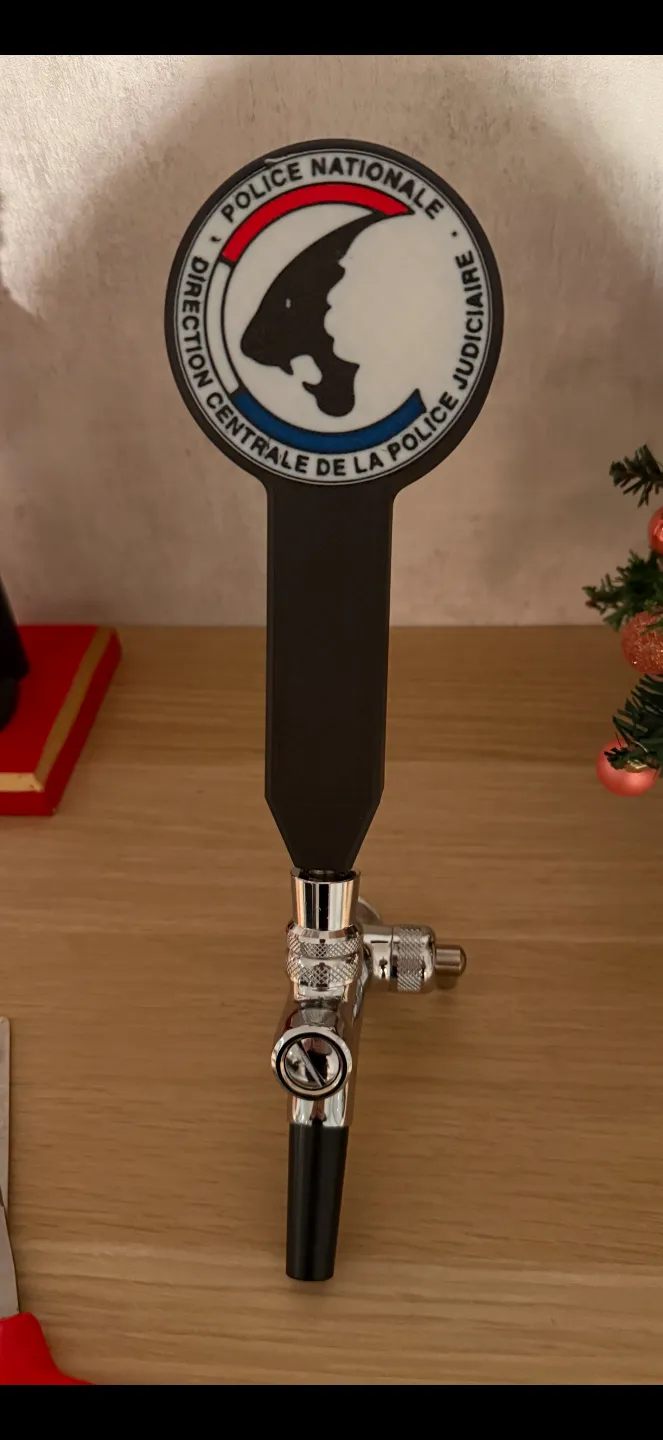

Each disc is customizable via MakerLab, in Make My Sign.

You can first use the "Image to Keychain" tool to import and transform your image into an SVG file usable in Make My Sign.

I have a JSON file available with the disc in the correct format (including magnet holes) if needed, via this link:

https://drive.google.com/file/d/104wuw3k9osfC3ThK-6vQow2kFODppox4/view?usp=share_link

Once in "My Sign Draft", click "Create from blank", then "Import template JSON file".

All you have to do is customize your disc.

Alternatively, here's a simple design tutorial:

In MakerLab/Make My Sign:

• The disc must measure 73.9 mm.
• Its thickness must be 6 mm.
• IF you wish to place magnets, follow this preliminary tutorial:

Create a 40 mm disc, and place two magnet holes at the end of the diameter in the section: HOLE/ Back Hole/ 6mm

Then re-increase the disc size to 73.90.

• Then customize your disc as you wish.

Please do not hesitate to ask if you have any questions.

PS: Magnets usually insert without glue, by pressing them in with a small flat-head screwdriver.
