Smol Table

A small table with 3d printed legs and a wooden tabletop.

In addition to the printed parts you will need:

• A wooden tabletop, I recommend ~30cm diameter ~18mm thick, e.g. this one from eBay or similar
• 16 Countersunk screws, I recommend 3.5mm x 15mm, e.g. these ones from Frantos

What to print:

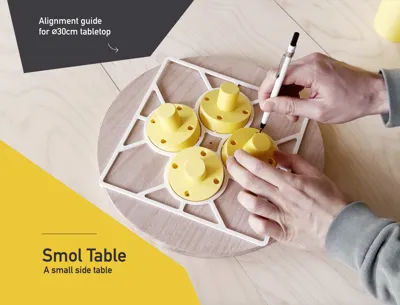

• (Optional) Positioning guide. Can be placed on the tabletop for easier positioning of the leg bases
• 4x table leg
• 4x leg base (could be printed on one plate, but I recommend printing at least one separately to test if it screws in well)

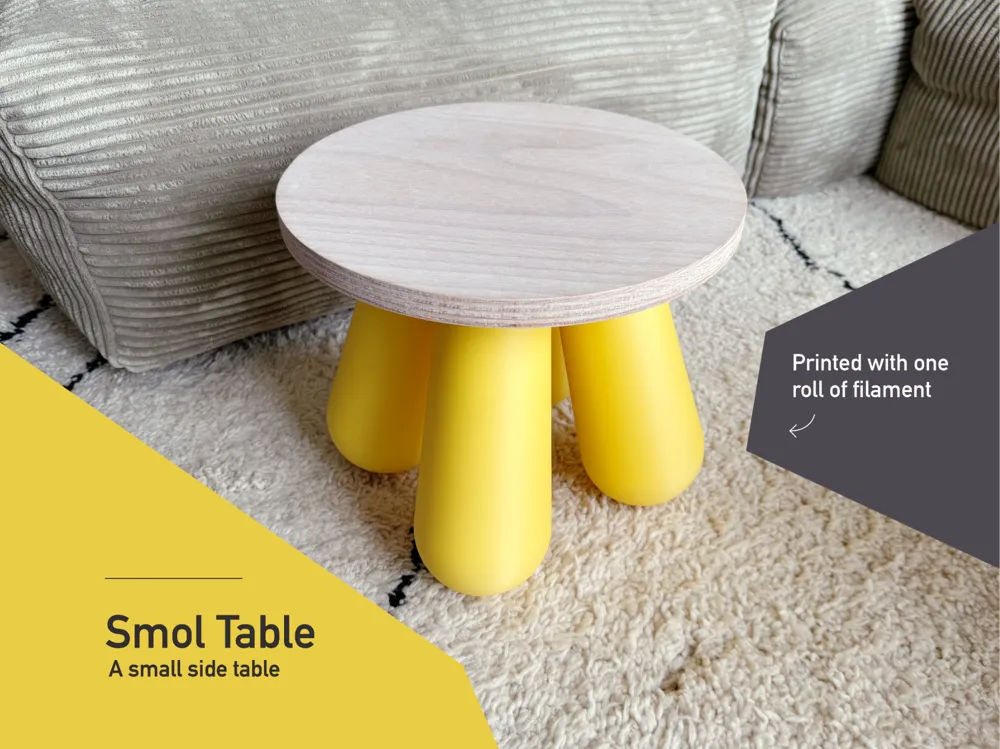

All parts required a little bit less than a Bambulab role of PLA filament when I printed mine.

Assembly:

• Mark the position of the holes (optionally using the guide)
• Pre-drill the holes so that the wood does not split later on
• Important! Remove the guide before screwing in the leg bases, otherwise you will have to destroy the guide to remove it

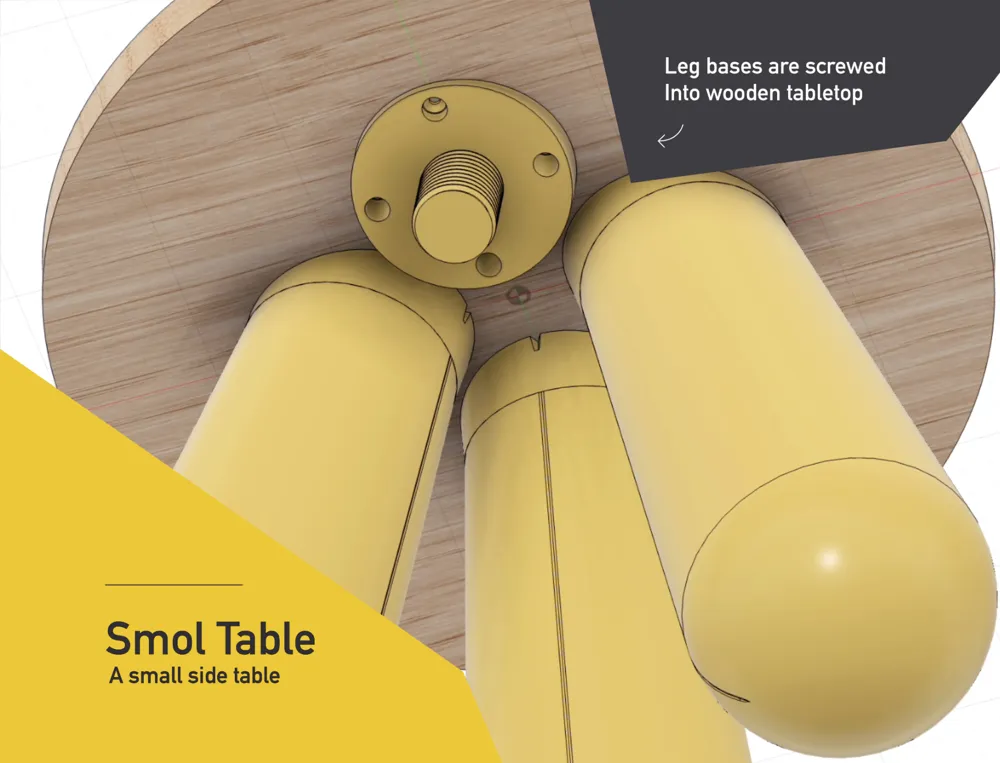

• Screw the bases into the wood using the countersunk srews
• Carefully screw the legs onto the bases. Once they are on, the are sturdy, but you can break the base if you apply pressure sideways while screwing on the legs!

Update 23. Feb 2025: Improved leg base design, more stability

⠀

⠀
