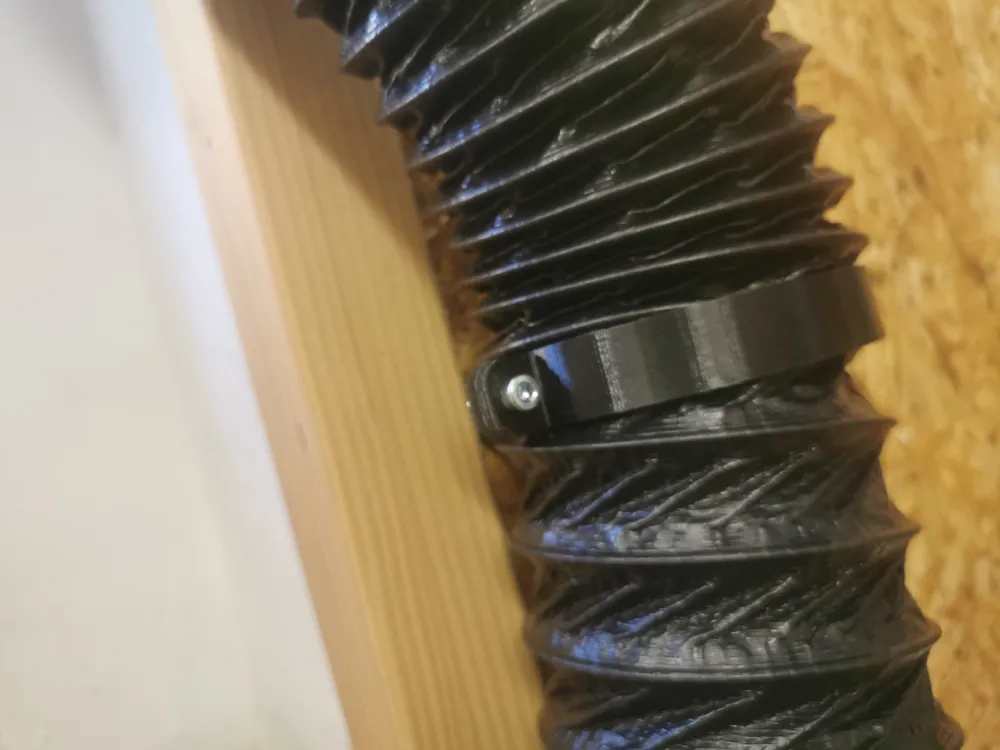

A clamp for securing a suction hose to the wall.
The clamp is mounted to the wall using an M4 countersunk screw.

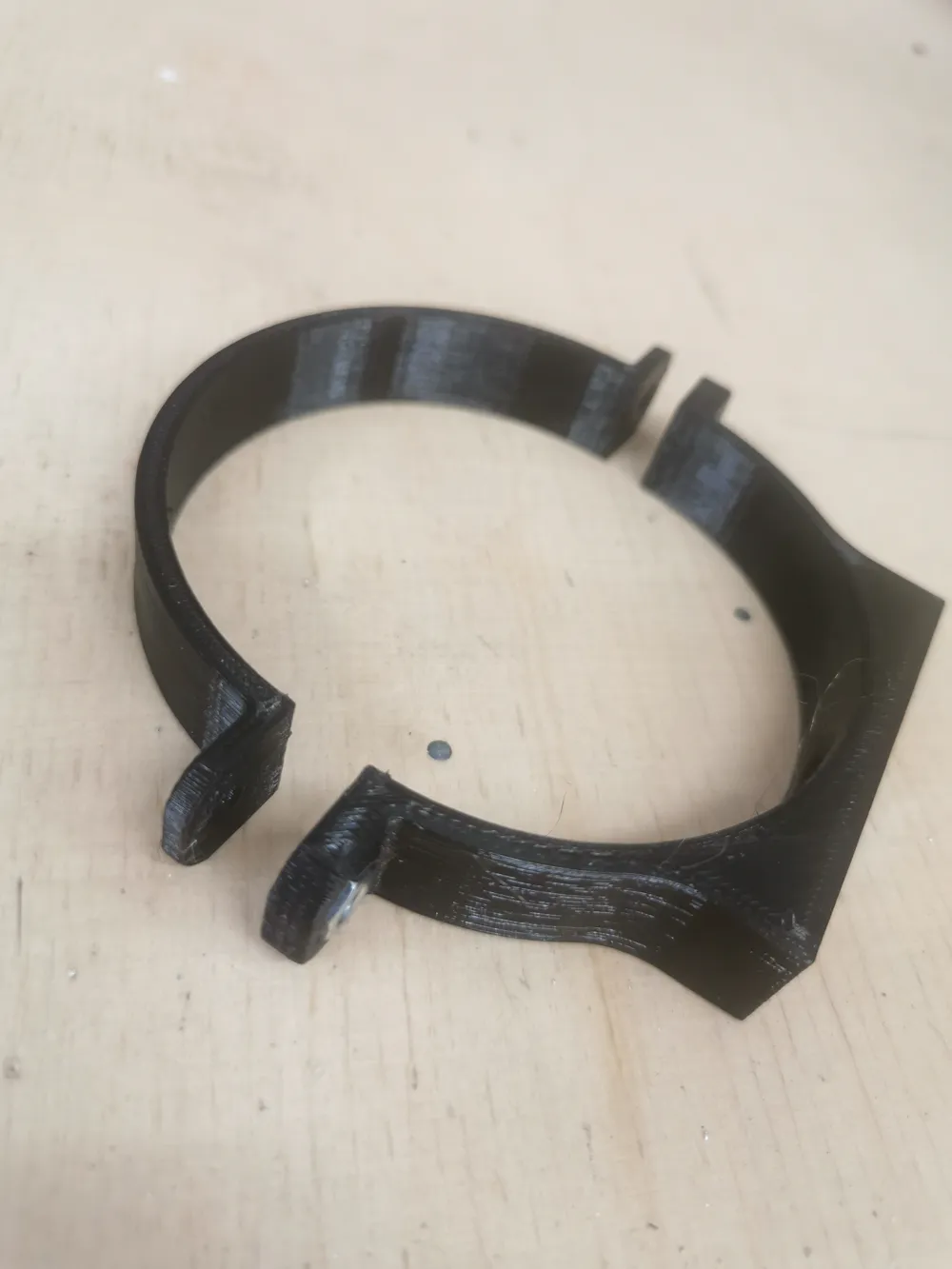

The two halves are joined together with M4 screws.
The inner diameter can be adjusted using Fusion 360.
STL “Clamp_Parametric i=76.stl” → 76 mm inner diameter
