Draft gauge set
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 10% infill
Designer
2.3 h
3 plates
Open in Bambu Studio
Boost
16
68
5
1
66
19
Released
Bill of Materials
List other parts
- SteelCableKeychain x 1: https://nl.aliexpress.com/item/1005006314084018.html?spm=a2g0o.productlist.main.1.7f64T1lkT1lkJg&algo_pvid=f141f2d8-8420-48a7-8b23-db6a2107770c&algo_exp_id=f141f2d8-8420-48a7-8b23-db6a2107770c-0&pdp_npi=4%40dis%21EUR%218.50%212.89%21%21%2163.77%2121.68%21%402103892f17334990396258317e96f6%2112000036724194982%21sea%21NL%21168772129%21X&curPageLogUid=YN615WO7aVbR&utparam-url=scene%3Asearch%7Cquery_from%3A
Description
A set of draft angle gauges.
Used to quickly determine the draft angle of a injection moulded part, or other obect.

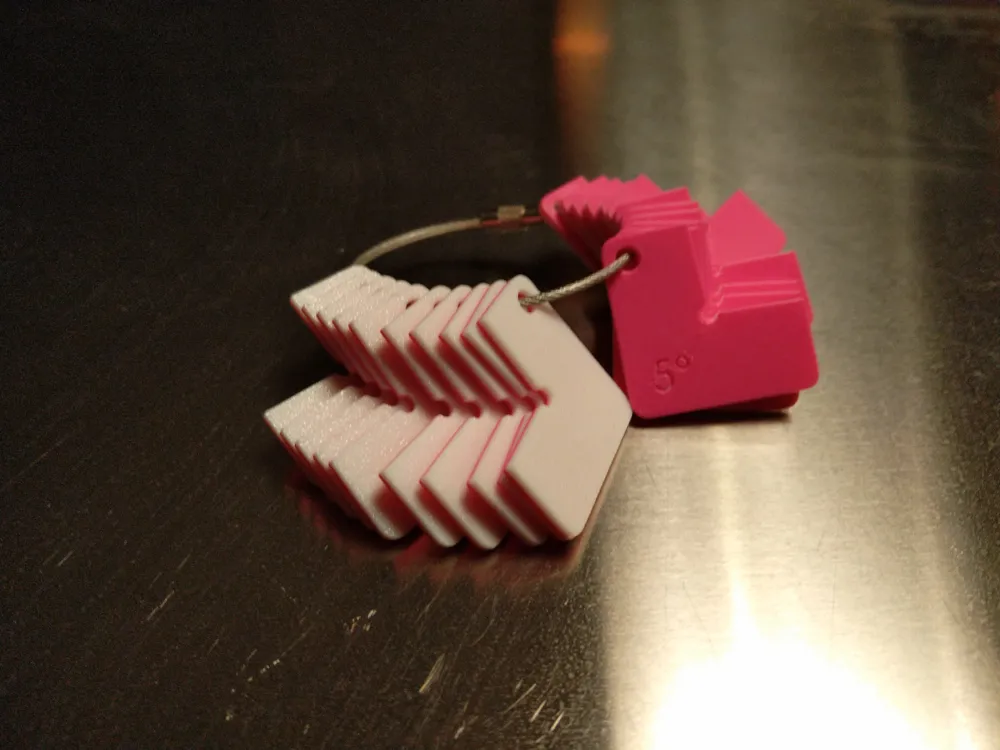

From 0 to 10.5 degrees in 0.5 degree increments.
The values are inscribed on the gauges and represent a deviation from 90 degrees.
I used a color change to make the text pop more.

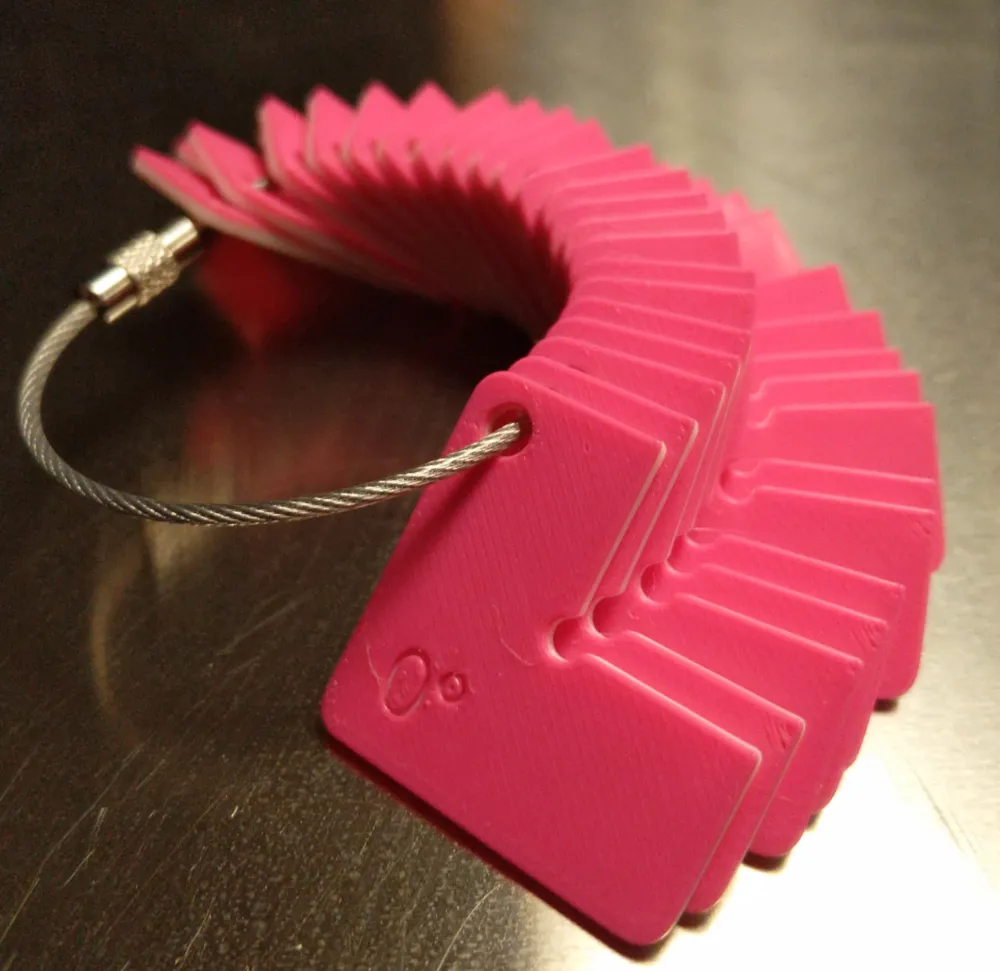

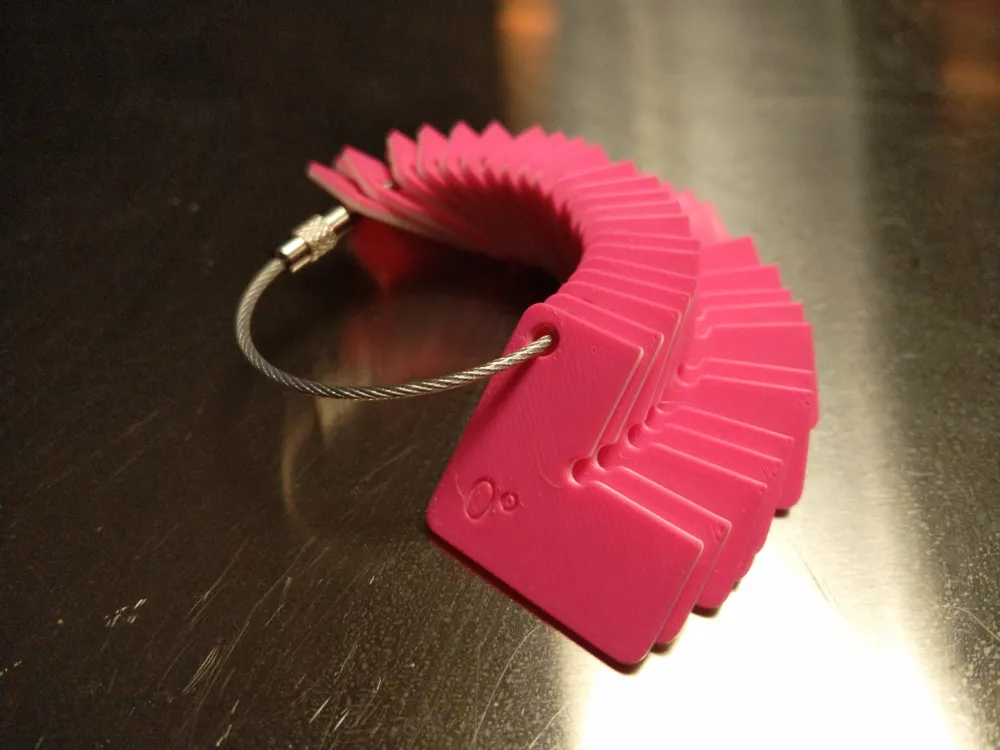

Has a small hole to attach it to a small steel cable as in the pictures.

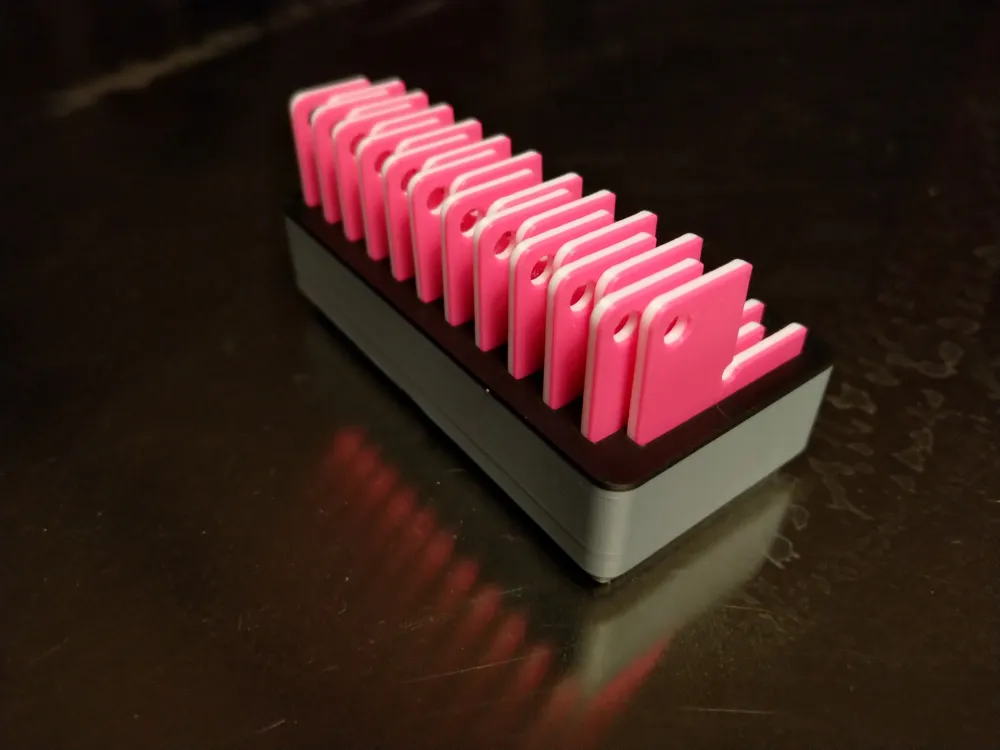

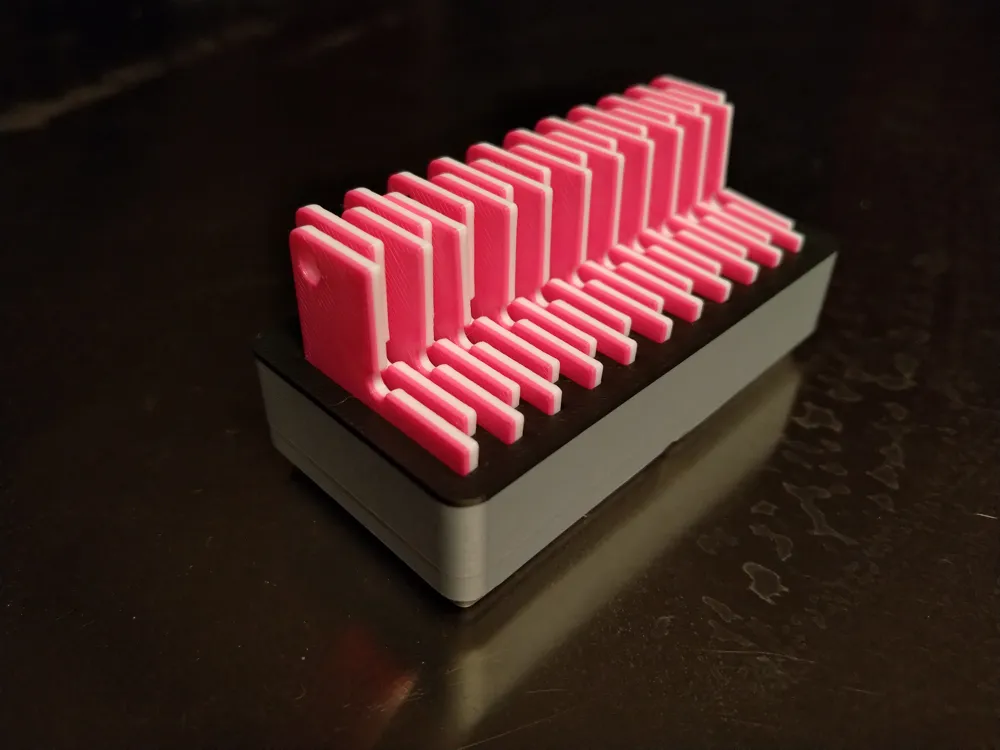

Or use the included gridfinity organizer to store the gauges, the size of the organizer is 1x2x3u.
